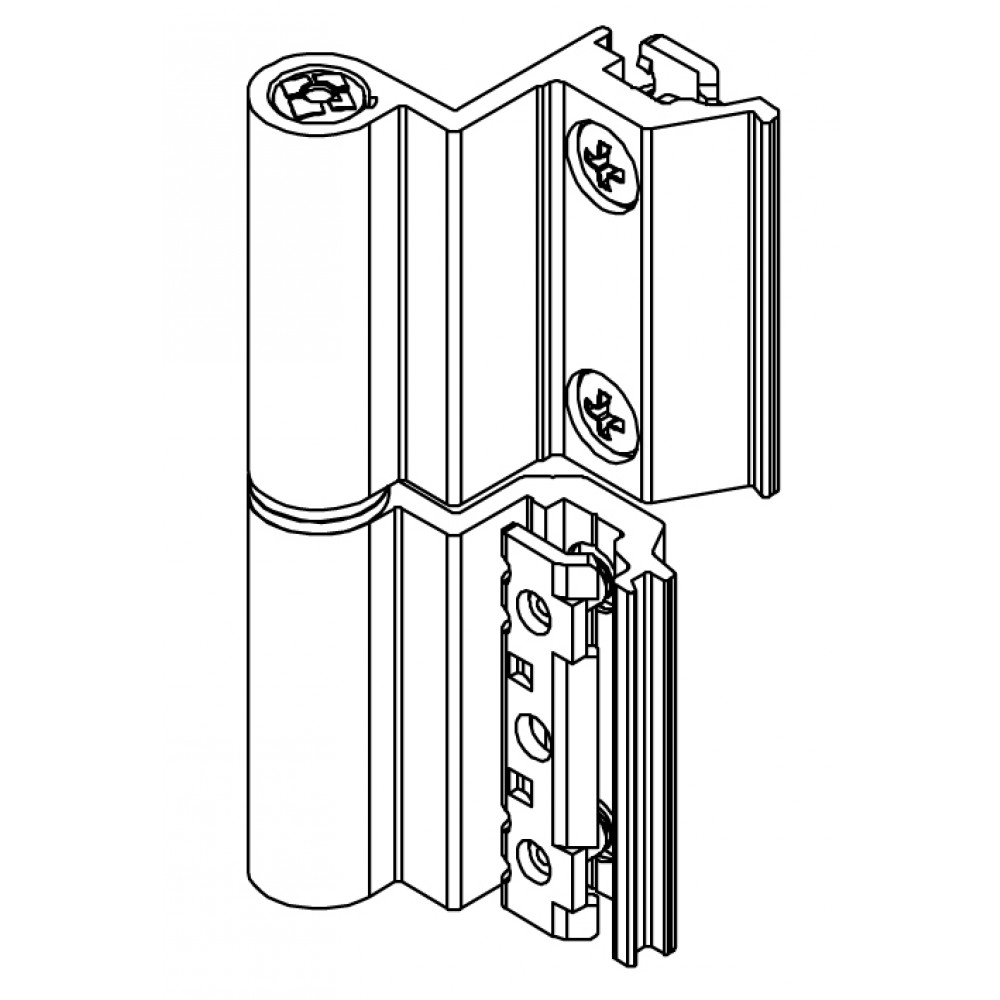

Hinge for Aluminum - Giesse Flash - Third Door - European Chamber
Hinge for aluminum - Giesse Flash Base model - third sash - suitable for CE European Chamber type profiles.
Giesse Flash Base Third Door hinge functions:

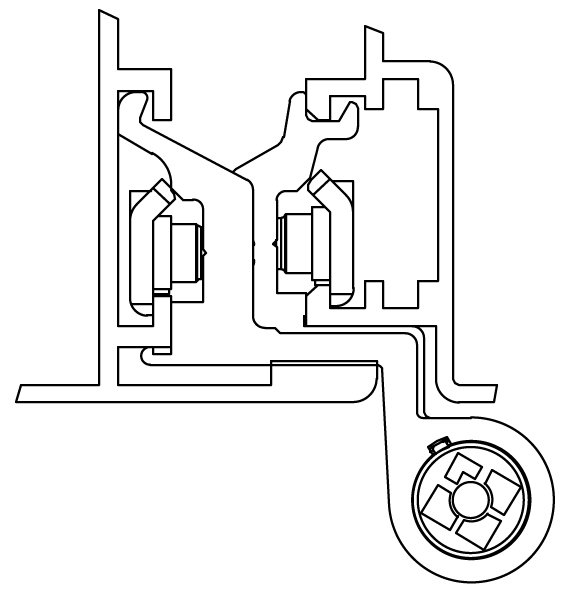

Ambidextrous hinge for aluminum windows and doors with open joint that is applied to the 3rd sash node.
This hinge for aluminum has the same reliability and precision requirements as traditional Giesse hinges and is applied extremely quickly to the window, even if the latter is already assembled.
Giesse Flash Base Third Door hinge finishes:
Silver, Bronze, Polished Brass, Satin Chromed Brass, White Ral 9010, Ivory Ral 1013, Black Ral 9005.
Giesse Flash Base hinge - Technical features:

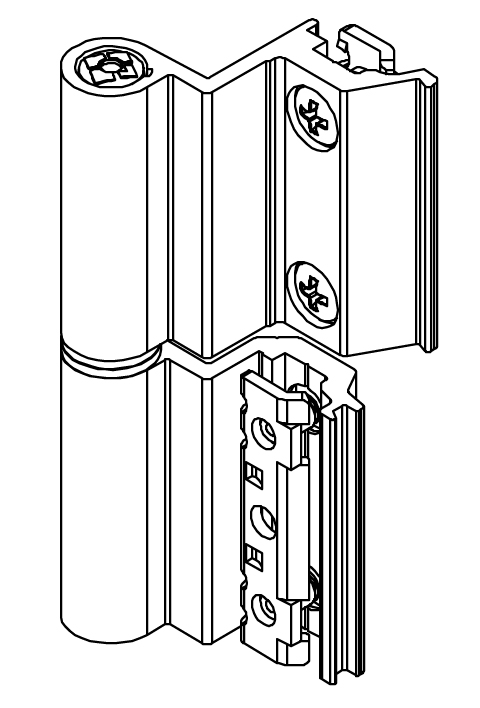

The Flash-Base hinge is supplied pre-assembled and adopts the Giesse-Rapid fixing system.
The particular shape of the hinge and the pre-assembled plate allows practical and rapid assembly on the already assembled frame and perfect positioning of the hinge during the screw fixing phase.
Hinge equipment for aluminium:
- 2 anchor plates
- 4 TGS M5x10 cross cut screws
Hinge materials for aluminum:
- Extruded aluminum hinge
- Pin, screws and plates in stainless steel
- Bushings in black nylon
Load capacities (considered on frames with a height of 2000 mm and a width of 1000 mm):
- with 2 Flash Base hinges: kg 75
- with 3 Flash Base hinges: kg 85
NOTE: For a complete knowledge of the characteristics of the Flash Base Giesse hinge, we recommend reading the PDFs that can be downloaded in this product sheet under the heading "Documents".
In particular

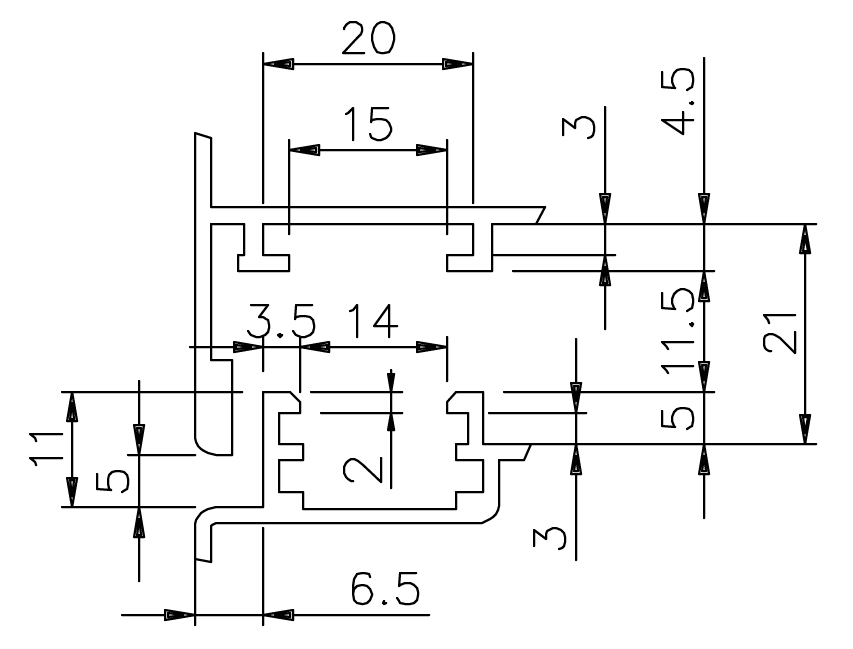

, we recommend reading the document "Nodes Type Swing C" where the nodes and series/systems to which this article is adapted are described .
