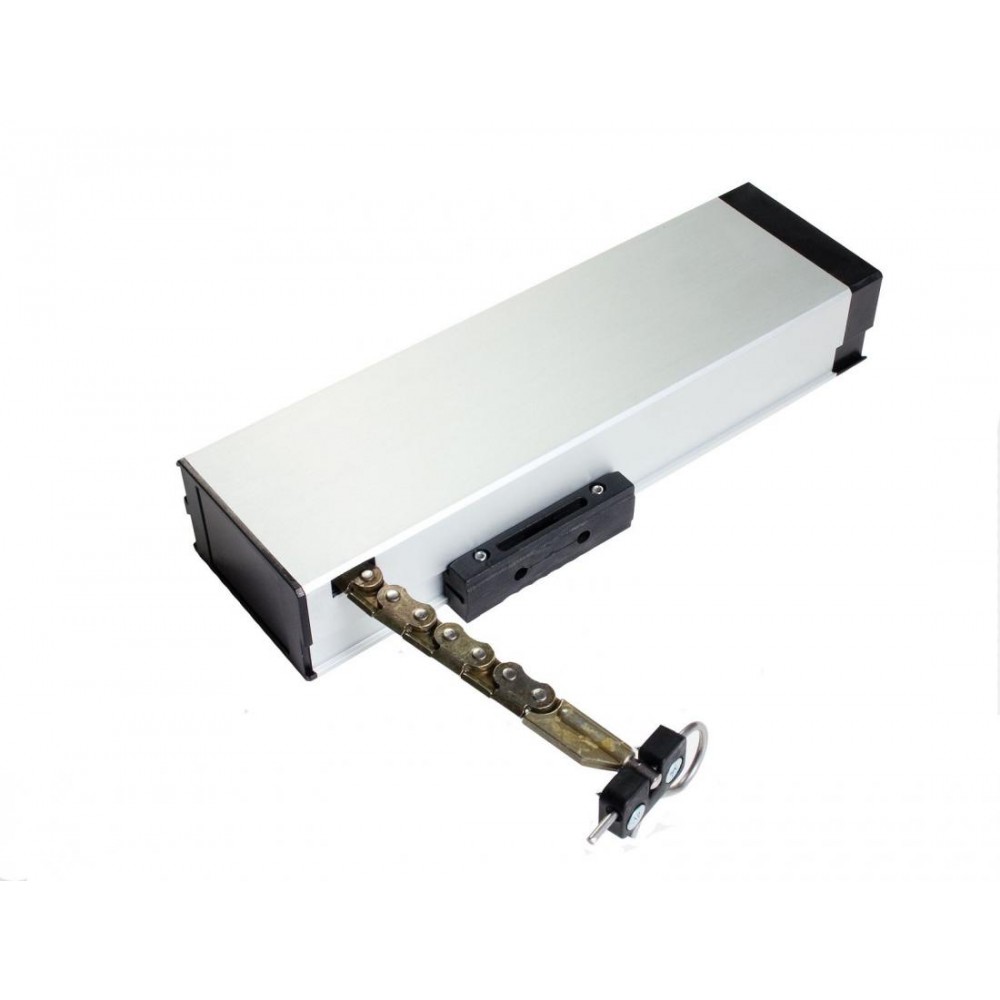

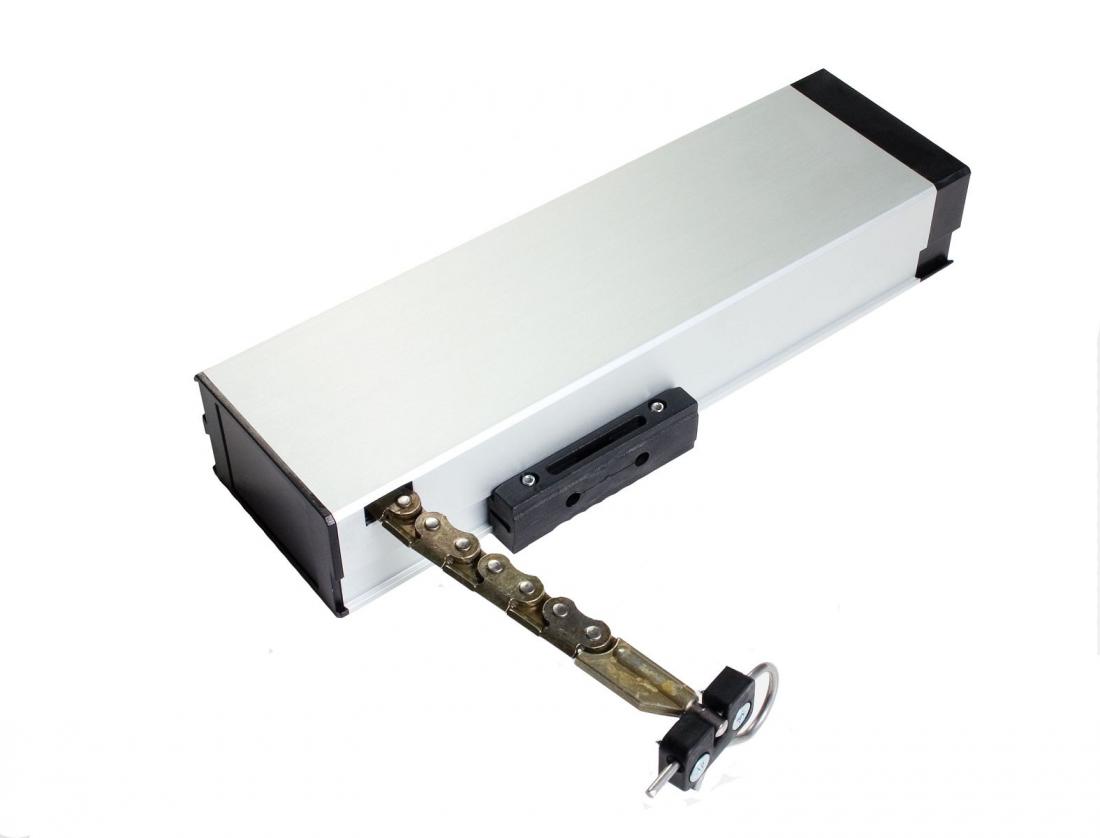

Sintesi 2000 Ultraflex 230Vac - Chain Actuator for Windows 300N
Ultraflex Control Systems electric actuator Sintesi model with selectable stroke 250 mm or 380 mm
- Two selectable strokes: 250 mm or 380 mm;
- 230 Vac power supply;
- Examples of applications: projecting, vasistas (bracket sold separately) , roof window.

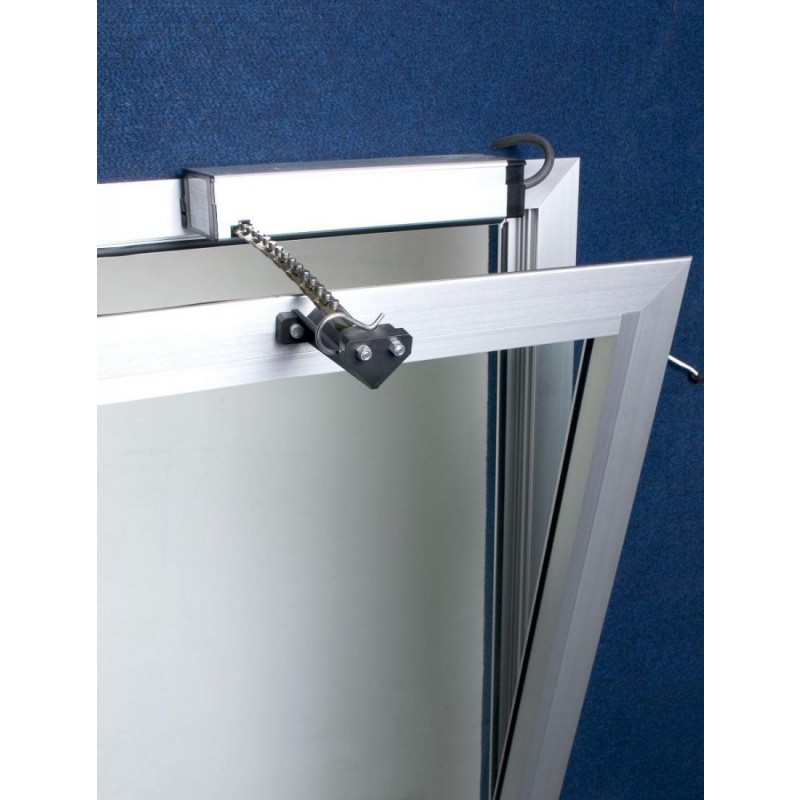

Sintesi 2000 Ultraflex for opening bottom-hung or top-hung windows
- The sliding bracket, to be inserted in one of the three dovetail guides, is included in the package.

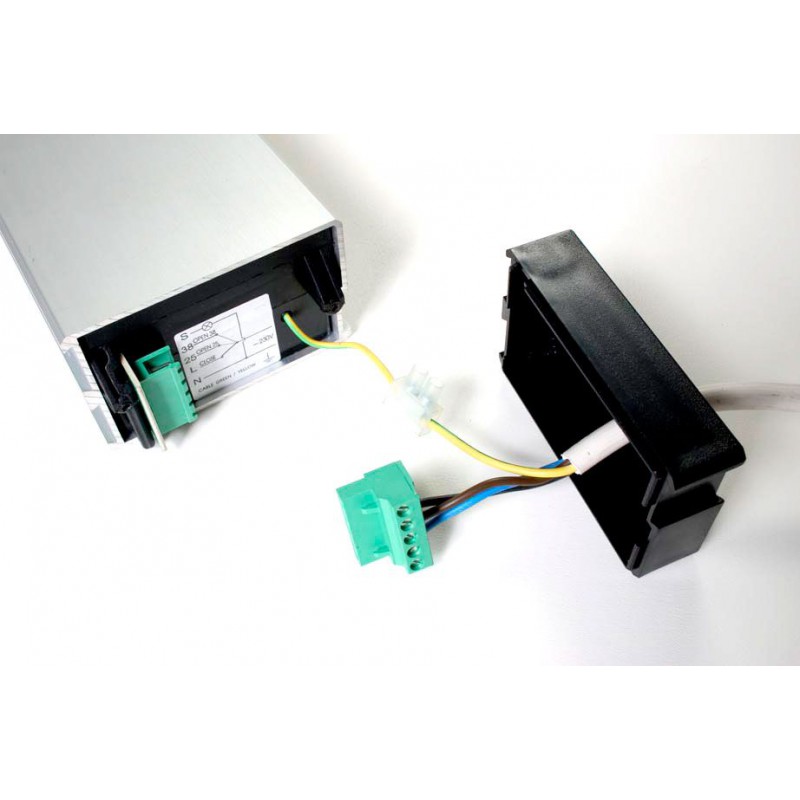

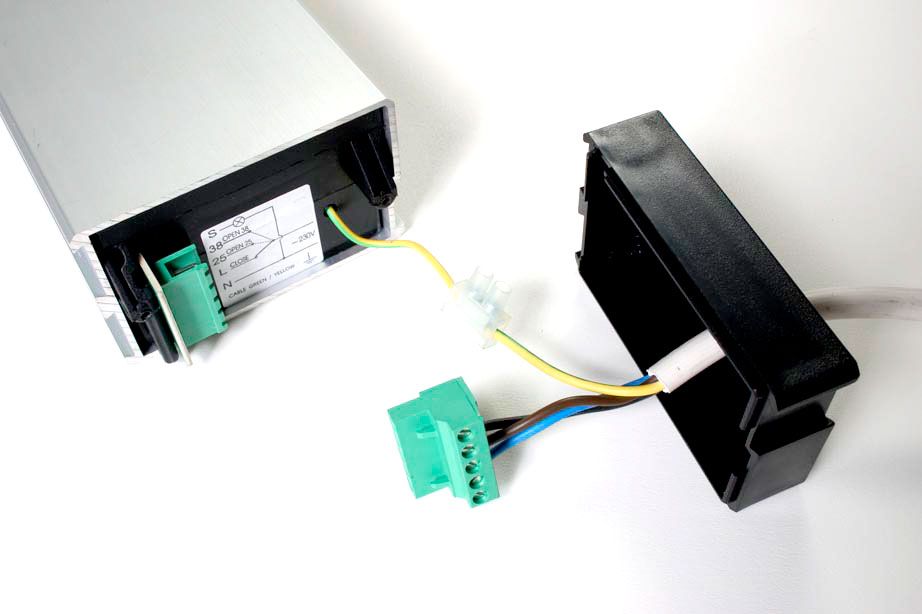

- Exclusive system for electrical connection. The removable connector allows maximum speed and convenience for the electrical connection for the final testing of the actuators on site.
- Quick release system for easy cleaning of the window.
- Three dovetail guides for maximum ease of installation; the sliding bracket is included in the package.
- For applications on large protruding windows it is advisable to select the 250mm stroke to better counteract the wind load.
- For windows with a height of less than 500 mm (for 250 stroke) and 800 mm (for 380 stroke), use the “Oscillating bracket kit” cod. 40560T.
- It is possible to install two SINTESI 2000 on the same window using the torque control unit cod. 41089V.
- POWER SUPPLY 230 Vac ± 10%
- ELECTRICAL CONNECTION 3 wires + earth
- STROKE selectable 250 mm/380 mm
- PUSH FORCE (stroke) 180 N (250mm) - 90 N (380mm)
- FORCE IN TRACTION 300 N
- SPEED ~40 mm/s
- ABSORPTION (at maximum load) 0.65 A
- CAN BE CONNECTED IN PARALLEL YES
- LIMIT SWITCHES microswitches
- Thermal PROTECTION
- SIGNAL closure
- PROTECTION DEGREE IP 20
CODE |
MODEL |
DESCRIPTION |
40313C |
Synthesis
230 Vac |
Sintesi 2000 A actuator SILVER ANODIZED |
40314D |
Synthesis
230 Vac |
Sintesi actuator 2000 B ANODIZED DARK BROWN |
40316F |
Synthesis
230 Vac |
Sintesi actuator 2000 W PAINTED WHITE RAL 9010 |
Supplied accessories Sintesi 2000: plastic sliding bracket.
Accessories that can be purchased separately: plastic bracket for bottom hung windows (code 36665E), aluminum sliding bracket cod. 37021U for heavy doors and windows and smoke and heat evacuation systems, bracket for transom windows in aluminum cod. 401571 for EFC systems and heavy doors and windows, adjustable aluminum bracket for bottom hung windows cod. 37493H, aluminum dovetail swing bracket kit cod. 40560T, chain tip for special applications (e.g. wooden windows, PVC) cod. 81222C.
