T50 Topp Rack Actuator 230V 50Hz - Stroke 32-50-75cm Adjustable
T50 Topp: quick assembly and possibility of stroke adjustment

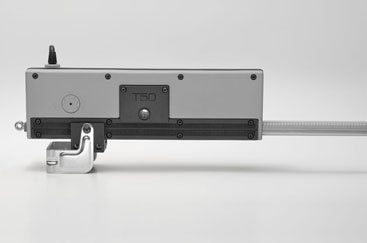

Topp electric linear actuator model T50 230V with self-aligning, rack-and-pinion tilting movement.
The
price includes the actuator only (rack kit or link bar are not included).
- Operation 230V 50Hz.
- Maximum applicable load 500N.
- Available strokes T50 Topp: 32cm, 50cm, 75cm (your choice).

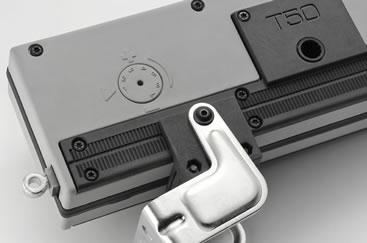

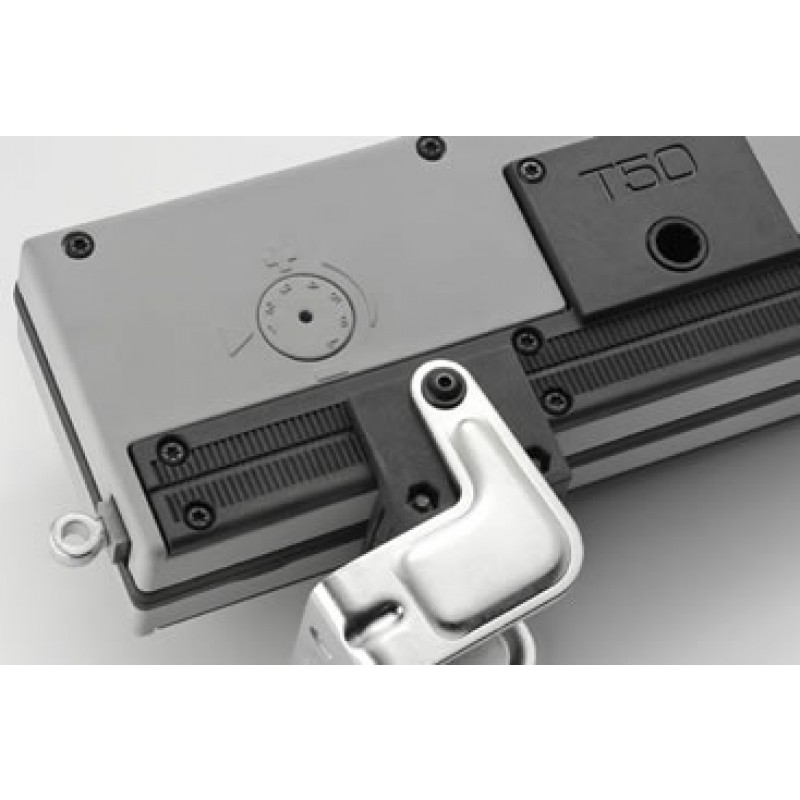

- Possibility of adjusting the stroke approximately every 50 mm, by means of a special regulating knob.
- CE marked device.
Technical characteristics of the T50 Topp engine
- Supply voltage: 230V 50Hz;
- Maximum applicable thrust load: 500N;
- Available strokes T50 Topp: 32cm, 50cm, 75cm (your choice);
- Absorption: 0.3A;
- No-load travel speed: 18mm/s;
- Double electrical insulation: yes;
- Type of service: S2 of 4min;
- Operating temperature: - 5 / + 55 °C;
- Degree of protection for electrical devices: IP55;
- Parallel connection of 2 or more actuators: yes;;
- End stop: encoder;
- Dimensions: variable from 610 to 1030x62x94mm.
Applications of the T50 Topp motor: for top hinged windows, domes and skylights.

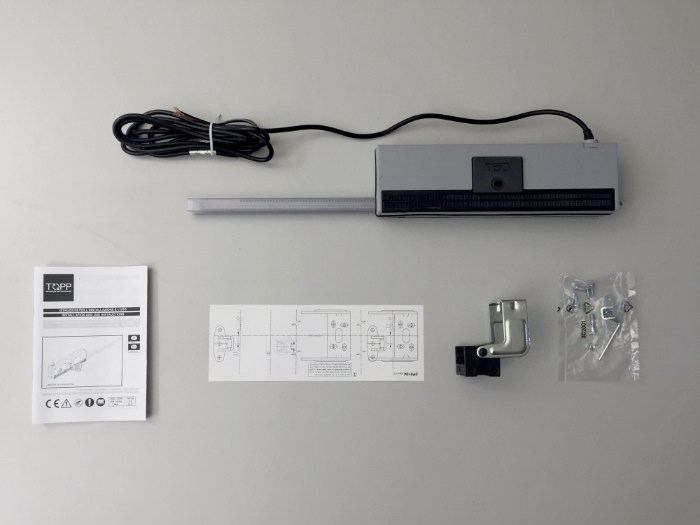

Included in the box: Topp T50 Rack & Pinion Actuator only.
Why choose the T50 Topp rack motor?

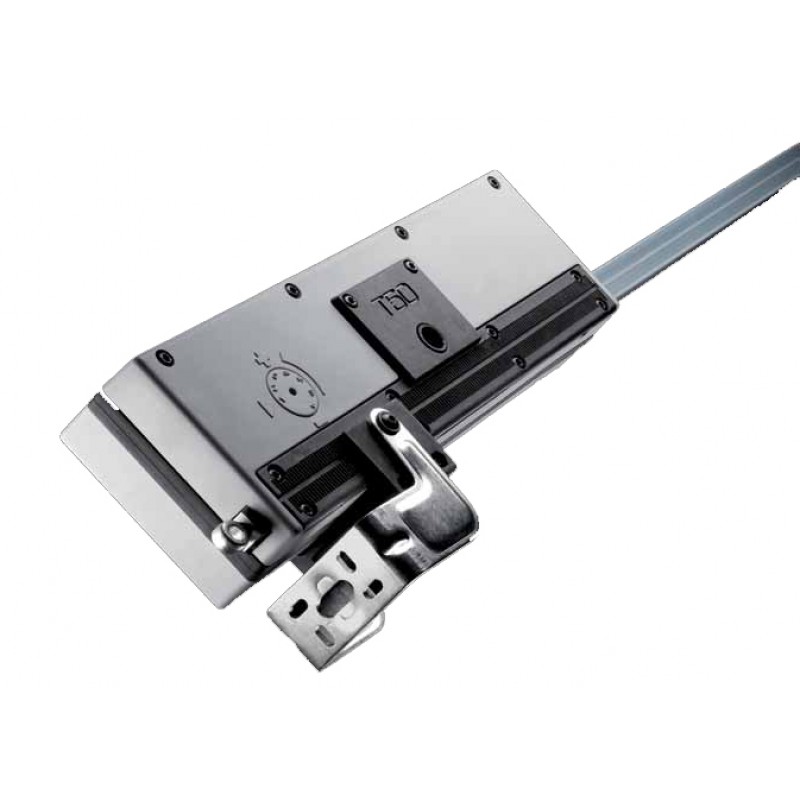

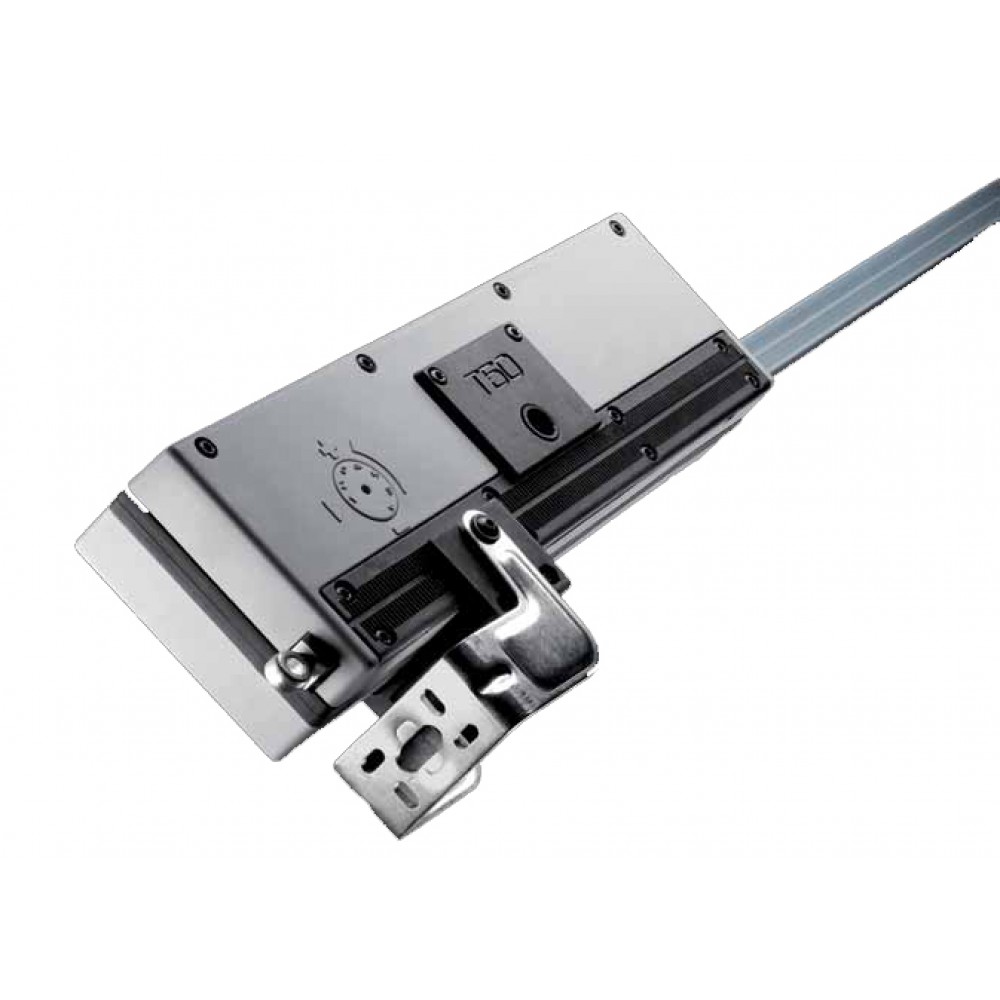

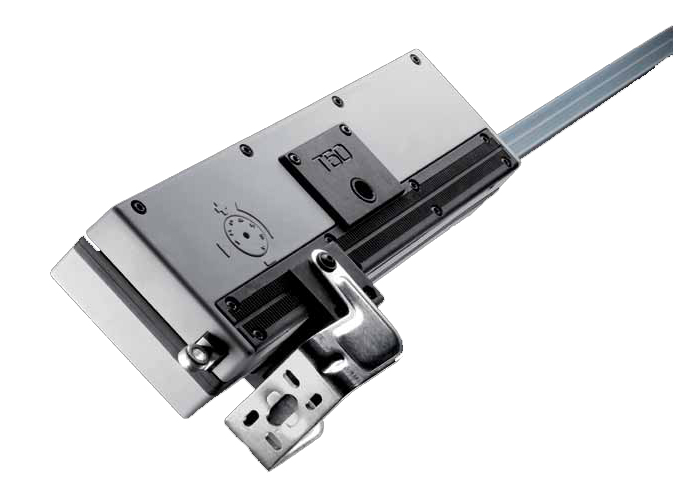

- Quick assembly in the absence of power thanks to the easy adjustment of the self-aligning sliding bracket, which allows the limit switch to be adjusted in 2mm steps along the tracks of the machine body.
- Possibility of adjusting the stroke in 7 positions from 150 to 500mm.
- High degree of protection IP55.
- Industrial, geometric and vigorous design.
T50 230V Rack Actuator
| Code |
Description |
| 3C20001 |
Rack actuator T50 230V stroke 32cm adjustable |
| 3C20002 |
Rack actuator T50 230V stroke 50cm adjustable |
| 3C20013 |
Rack actuator T50 230V stroke 75cm adjustable |
Discover the quality of Topp rack and pinion window actuators
The
Italian company Topp offers a wide range of systems for the
automation of doors and windows , designed to improve our daily well-being. Quality of materials and innovative solutions, combined with technical reliability and modern design have led Topp, in a few years, to assume a position of great international importance in the automation sector for doors and windows.
Topp uses the most modern and updated 3D design technologies. The aid of laser sintering machines for rapid prototyping accelerates the study and industrialization process of the products and confirms the high level of production techniques. Topp's success is the conquest of an increasingly varied and demanding market that exalts, involves and stimulates the search for rational and innovative solutions.
