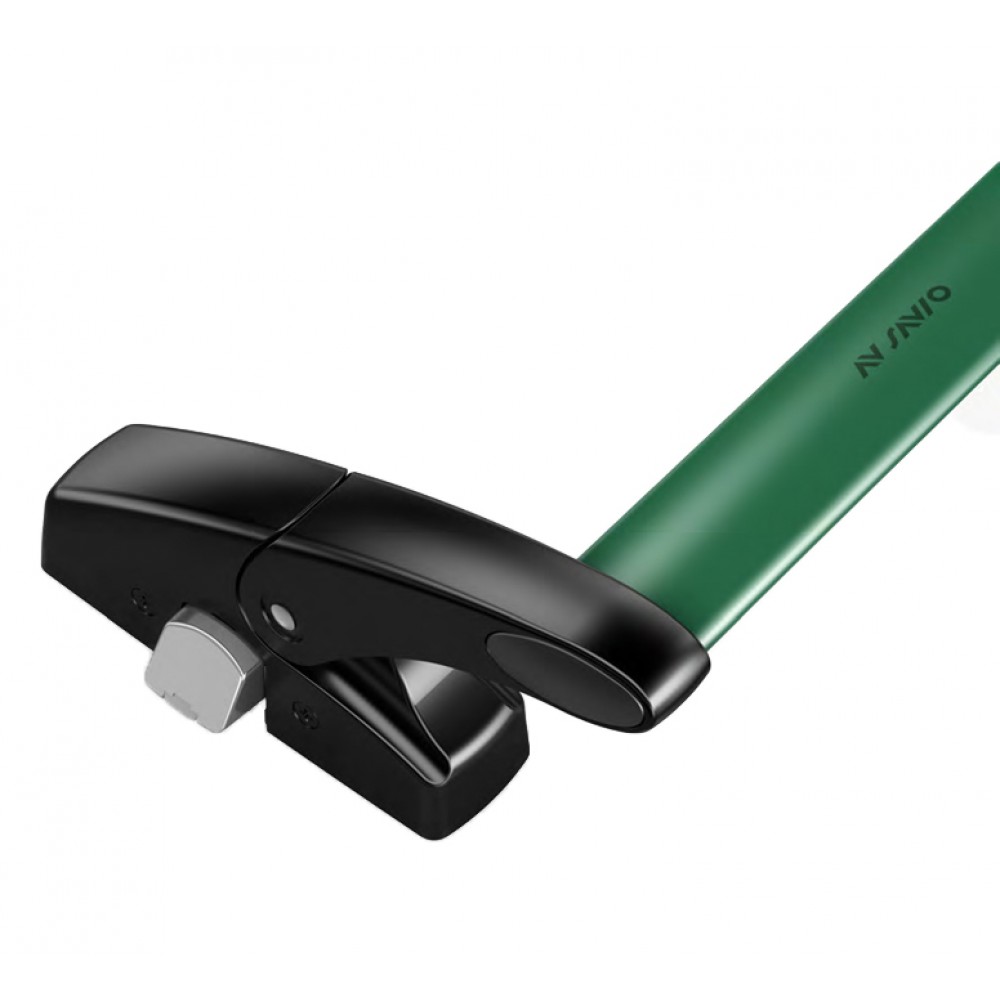

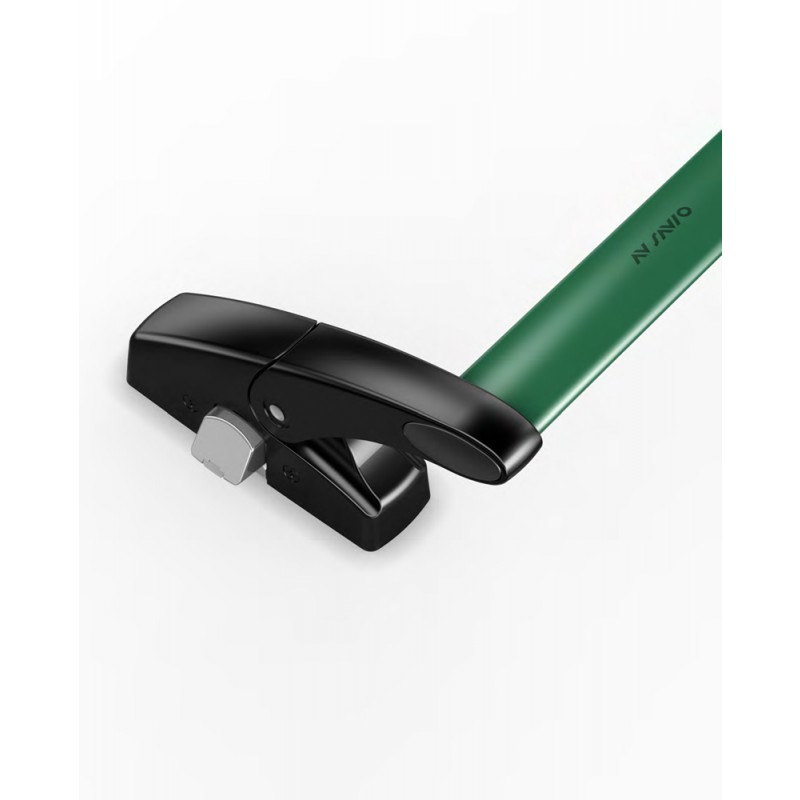

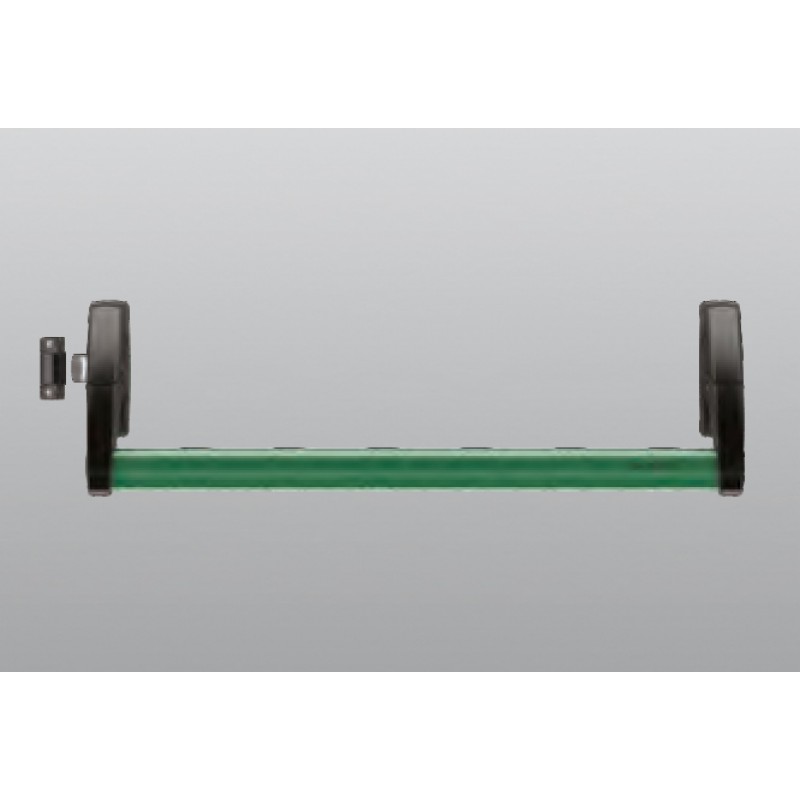

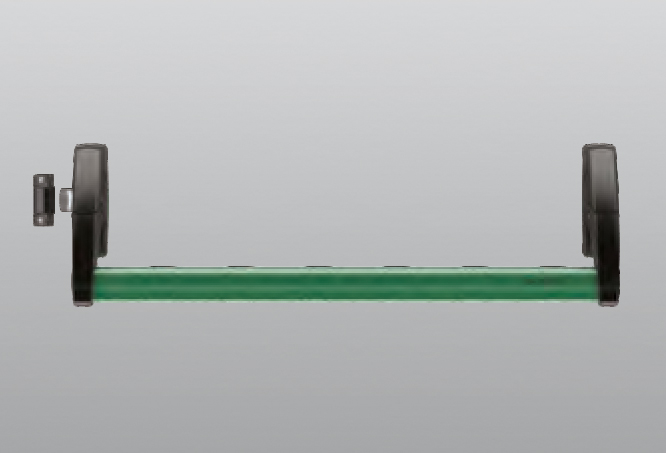

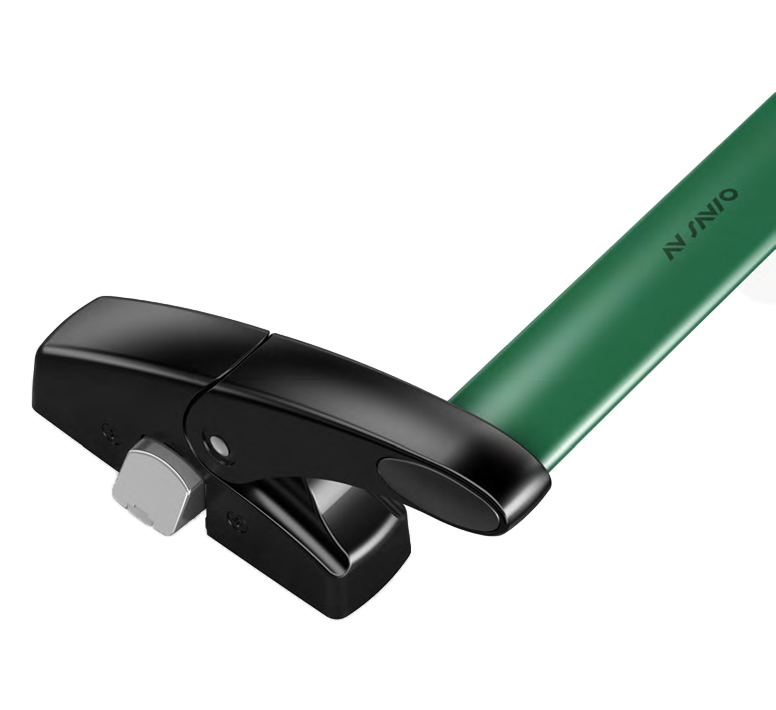

Horizontal Ambidextrous Panic Bar with 1 Locking Point Savio Juvarra Black
Savio Juvarra ambidextrous horizontal panic bar with 1 locking point, lever version, in zamak and galvanized steel.
Complete with: nickel-plated zamak latch, 1 galvanized steel fixing counterplate and 1 nylon fixing counterplate, 1200 mm bar and 2 painted zamak strikers, 4 TS screws Ø 4.2x13, 2 TC screws 4.2x13, 2 screws TC 4,8x13, 2 TS screws Ø 4,2x16, 2 TS screws M5x6 and 8 TS screws M4x5 in galvanized steel.
Finish: Black.
For doors with a useful passage width from 800 to 1240mm and max height 2450mm.

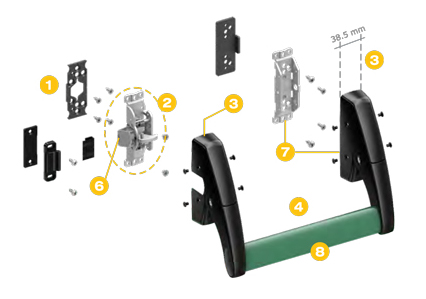

JUVARRA By Savio, THE INNOVATIVE PANIC HANDLE:
- 1) All supports and latches are screwed onto steel counterplates (also weldable) for easy, solid and quick fixing;
- 2) Fully ambidextrous mechanism;
- 3) Reduced dimensions (38.5mm) for mounting even on standard profiles;
- 4) Wide profile horizontal bars for better maneuverability;
- 6) Side latches (top, bottom and central) flat and translating;
- 7) Secondary support predisposed for the insertion of the open stop device and on the microswitch;
- 8) Horizontal bar to be inserted with wide machining tolerances, in steel with 40mm oval section.

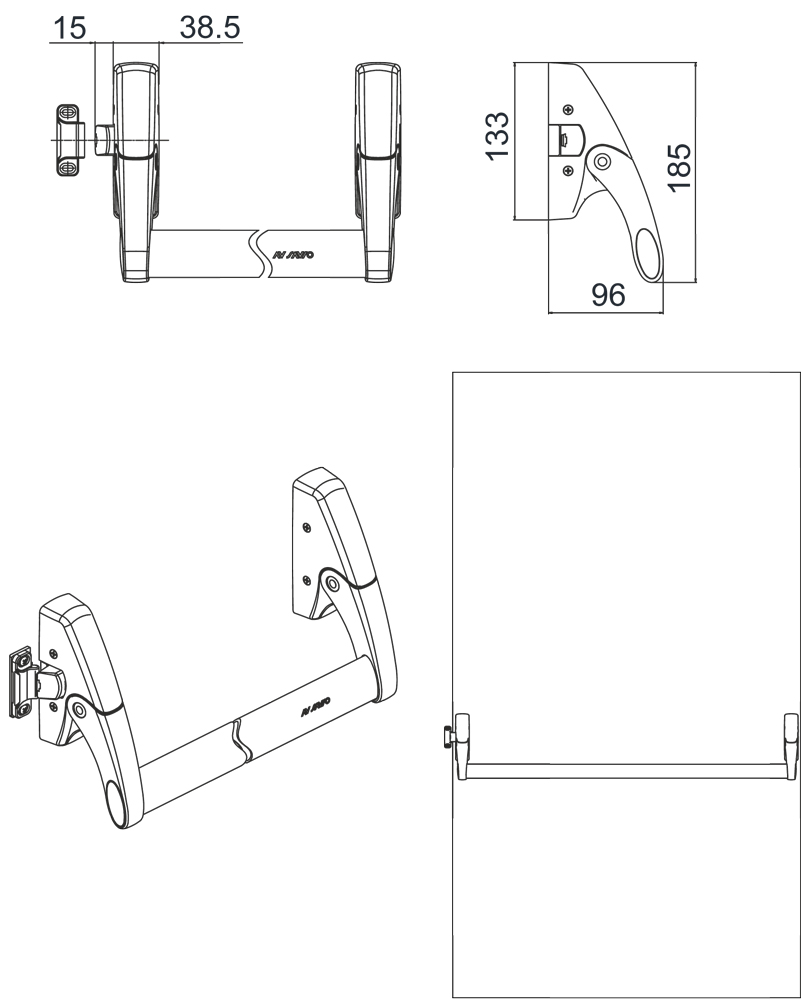

By clicking on "Documents" (above) you can download the brochure of the Savio Juvarra panic exit device, the application drawing of this product, the certifications and the relative assembly instructions.
