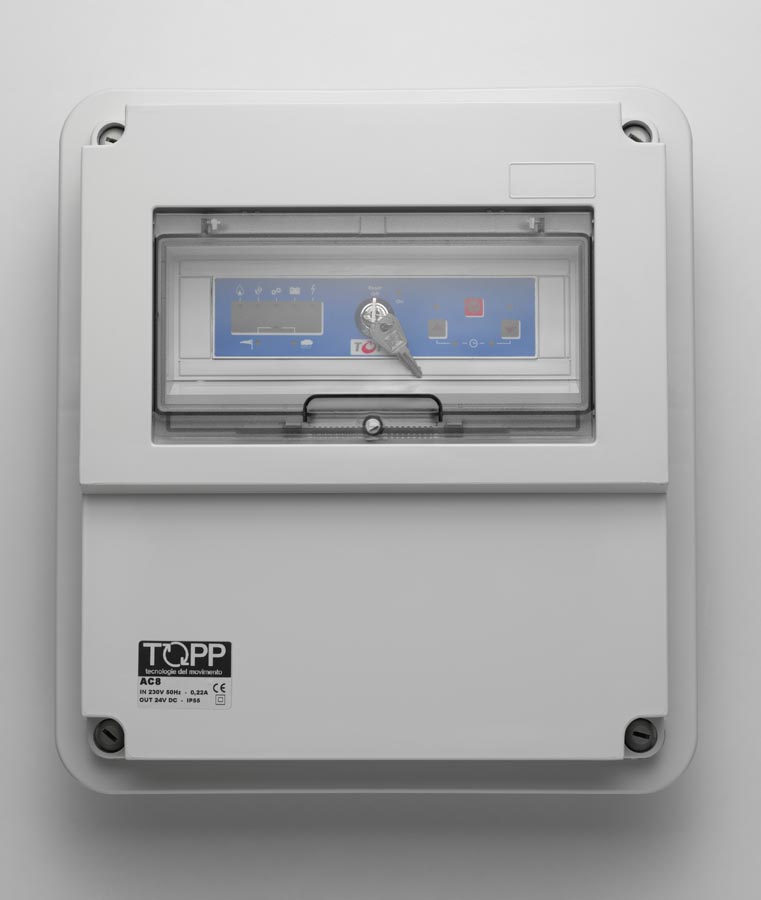

AC8 control unit and power supply for 24V max 16A actuators connection.
Modular system of command and detection for 24V actuators. The central AC8 allows extensive customization and makes the expandable system, according to the various user's needs. the communication interface is RS485. The AC8 module can be integrated in two different application systems: Single (1 single central AC8), where you control one area (max motors 24V connection for a total of up to 16A). Multiple (more central AC8), where cotrollano multiple areas simultaneously (up to 31). A battery pack 24V (loaded in buffer) provides to supply the energy to collegti engines, in case of lack of mains electricity. The central AC8 can be connected up to 30 smoke detectors, as well as external devices such as communicators siren, flashing light or telephone dialer. The alarm situation caused by smoke detectors always has priority over any other function. The entire apparatus of the plant is added to the anti-theft plastic cabinet (gray), with IP55 protection.
Optional: having to control a large number of engines for windows, you can expand your system by connecting to the central AC8 MEM / AL module (Expansion Module Motors), which controls a maximum of 24V motors for a totle of 16A. MEM / AL power the motors and leaves the control and management of the central AC8. On Windowo you can separately purchase the MEM / AL module.
The central AC8 is constituted by a versatile microprocessor-based system that is central in the drive use of motorized gates for the evacuation of smoke, climate management and control of atmospheric changes, such as rain and wind. The central AC8 can be employed individually or linked to other, up to a maximum of 31 by means of a RS485 serial line. The three possible solutions for use of this modular system for the smoke evacuation and ventilation installations are the following:
- Single, produced by a central AC8;
- Multiple multi central AC8;
- Multiple in most central and AC8 MEM-AL E MEM modules.

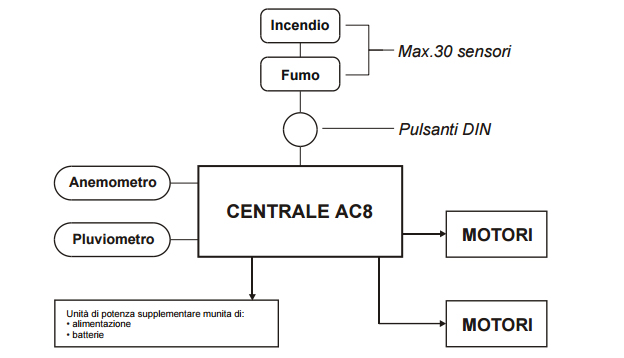

The Single System is used in systems where the vulnerable area is unique, not divided into zones with different alarms:

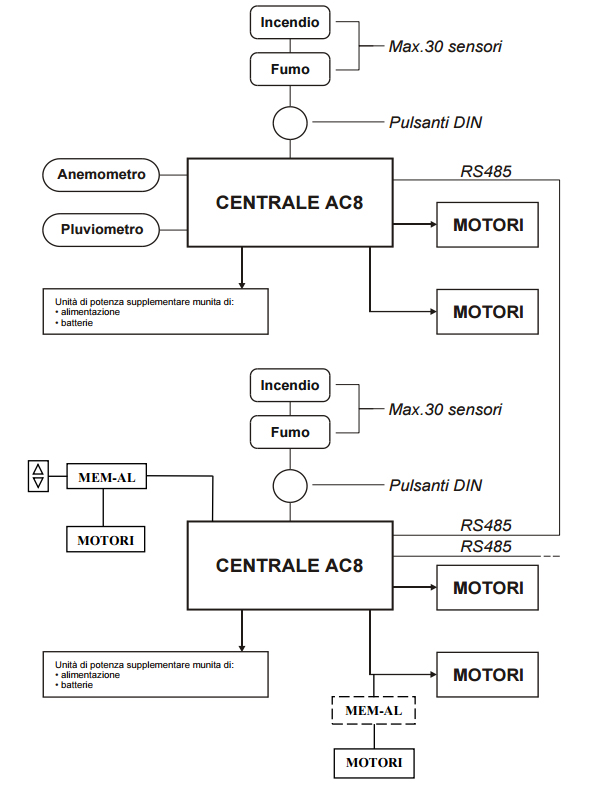

The Multiple system finds use in applications where there are multiple areas to be protected, each customizable according to specific needs, or where a greater number of sensors than those connectable to the central single is required:
Technical features
Model: AC8;
Supply voltage: 230 V ~ 50 Hz;
Output voltage: 24V;
Maximum coorente consumption: 0.22;
Output Current: 16A;
service type: S1 - Continuous
Predispositions: wind sensor, rain and manual controls;
Operating temperature: - 5 + 50 ° C;
Dimensions: 320x360x135 mm;
C20 actuators can be connected: 30;
C20 tandem actuators can be connected: 15;
C30 actuators can be connected: 12;
Actuators connected C40: 12;
Actuators connected C60: 15;
Actuators connected ACK4: 10;
Actuators connected C130: 30;
Actuators connected C160: 15;
Actuators connected C240: 15;
Actuators connected SL60: 10.
Actuators connected T50: 10;
Actuators connected T80: 10;
