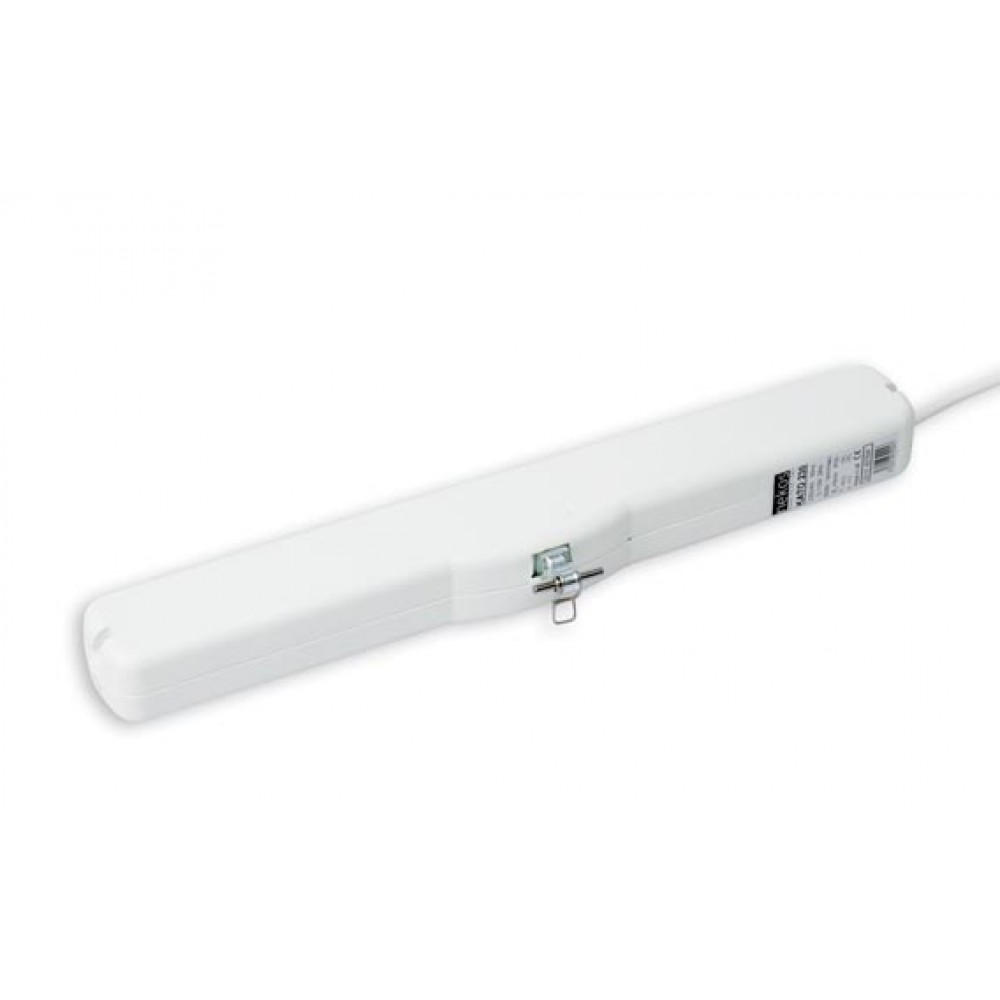

Kato Nekos Chain Actuator 230V 300N Selectable Stroke up to 400mm White Black or Gray
Kato Nekos motor for opening top-hung and bottom-hung windows
Kato Nekos is the
electric chain actuator for top hinged windows, transom windows, domes and dormer windows.
The Kato Nekos motor for windows has
limited dimensions , only 37x59 cm in section; the shell and the brackets are made of high resistance composite material. It is also

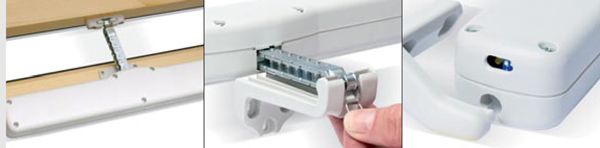

easy to install , it can be mounted with quick coupling in the supports and also provides for quick release from the window with the use of the Nekos patents.
What does the Kato Nekos Window Actuator include?
Linear electric actuator with double-row four-link articulated chain, enclosed in a suitable container of high-resistance composite material (polyamide reinforced with glass fibre). suitable for moving
top-hung windows, transom windows, domes and dormer windows .
- Power in traction and thrust 300N .
- Supplied complete with brackets for mounting the quick coupling actuator without the use of screws (patented).
- Brackets for transom or projecting doors with quick hooking/unhooking (patented).
- Limit switch: electronic in opening with variable strokes and can be selected at any time via dip-switch.
- Power absorption closing limit switch.
- Can be connected in parallel.
- Compliant with Directives 2004/108 CE (EMC Directive) and 2006/95 CE (BT Directive).
Kato Nekos actuator: color choice between black, white and grey
Kato Nekos Standard Colors:
- Black (approximately RAL9004) with black cable,
- White (approximately RAL9003);
- Gray (approximately RAL7047) with white cable.
Kato Nekos is the simple but smart chain motor
The strengths of Nekos products can be recognized in all actuators and Kato has been, and remains, the parent of the whole family. An idea made concrete in practice. For 10 years it has found application in window and door manufacturers, dome makers, mansard window manufacturers, electricians and in special applications.
Brackets for quick engagement of the actuator in its working position,
variable and electronically selectable strokes ,
ease of hooking the chain to the window, relaxation function, are the main and defining features that distinguish Kato and all the other actuators born after him.
It is
small in size , only 37x59 cm in section; the body and the brackets are made of high resistance composite material (polyamide reinforced with fibreglass).
Kato Nekos Technical Data:
- Model: Kato Nekos 230V;
- Pushing force: 300N;
- Pulling force: 300N;
- Strokes (selectable at any time): 110, 200, 300, 400 mm;
- Power supply voltage: 230V~ 50Hz;
- Current draw at rated load: 0.115A;
- Power consumption at nominal load: ~ 28 W;
- No-load translation speed: 14 mm/s;
- Duration of idle stroke (400 mm): 25 s;
- Double electrical insulation: YES;
- Service type: S2 of 3 min;
- Operating temperature: - 5 + 65 ºC;
- Degree of protection for electrical devices: IP30;
- Adjustment of the attachment to the frame: Self-determination of the position;
- Parallel connection of two or more motors: YES;
- Opening limit switch: Electronic;
- Closing limit switch: Absorption of power;

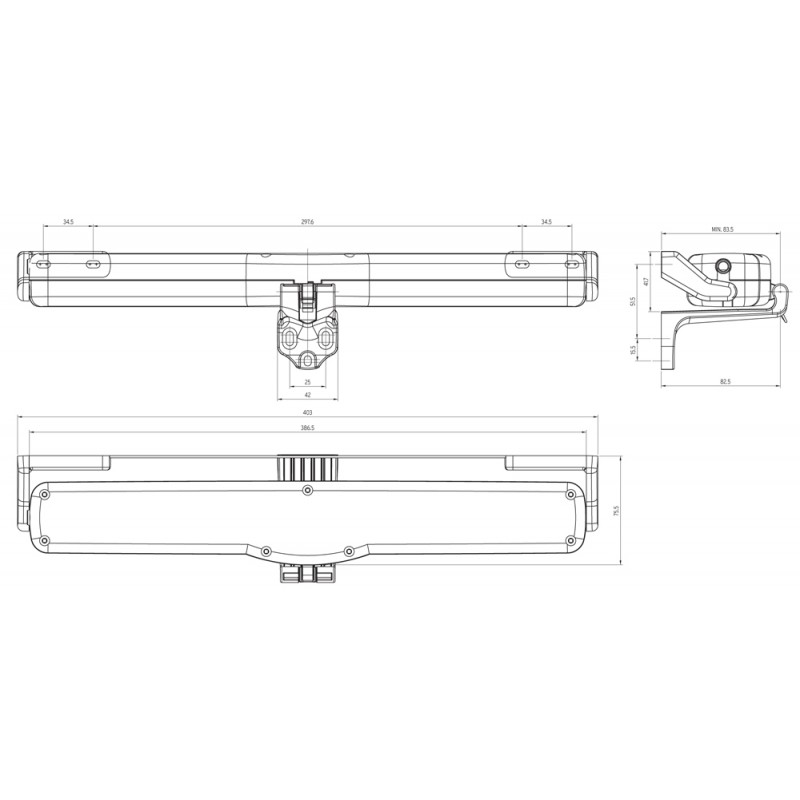

- Dimensions: 386.5x59x37 mm;
- Appliance weight: 0.970 Kg.
Each pack contains:
• Actuator with 2m power cord.
• Standard support brackets with spacer (A).
• Brackets for vertical mounting of the actuator (B).
• Bracket for bottom hung attachment (C).
• Bracket for projecting connection (D).
• Adhesive drilling template (E).
• Small parts pack.
• Instruction manual.
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
Why are Nekos motors safe and reliable?
Nekos products are
built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws. Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein. CE marked, they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
Kato, the clever evolution of Nekos development
Nekos is a young company which, after 15 years of intense development, design and new construction work, has achieved a leadership position in the
technological innovation of automation for doors and windows ; an internationally recognized record.
