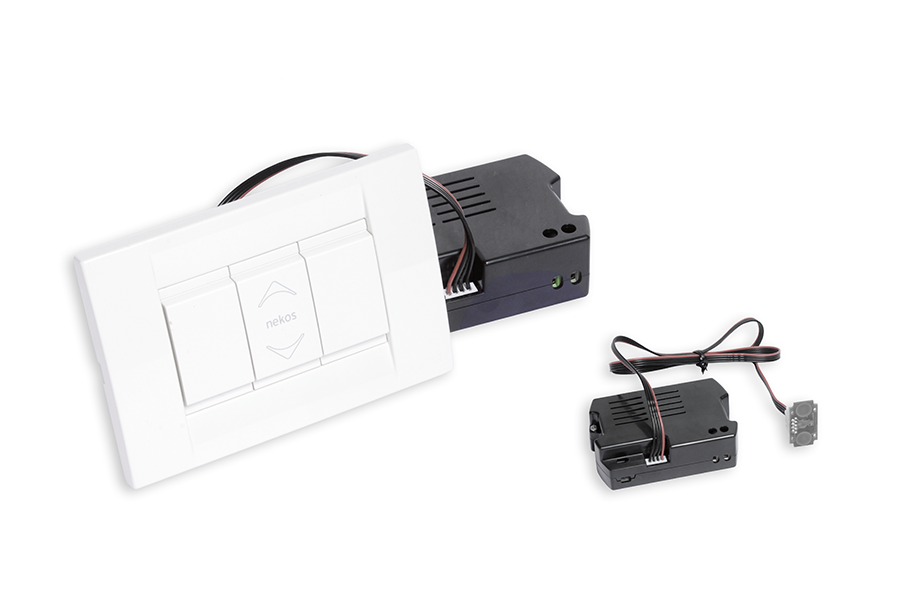

ALI'SW 24V Nekos power supply with White Vimar pushbutton panel
ALI'SW Nekos: power supply device for low voltage 24V motors
ALI'SW Nekos is the
power supply device for low voltage motors designed to be inserted in 3-module flush-mounting boxes of the Italian type.
Switching power supply with 110/230VAC (+/- 10%) 50/60Hz input, supplies a stabilized 24VDC output voltage, with a maximum current of 0.5A.
The command for the operation of the motor uses the innovative
touch-switch technology which activates the command at the simple touch of the button: "dead man" or automatically step by step. The touch-switch card can be applied to any commercial-type hole-covering element, maintaining an elegant electric control integrated into the design of the home environment.
The quick connector wiring between touch-switch and power supply is 20 cm long for insertion in the same flush-mounting box; the 80 cm cable is available on request when the solution is adopted on two different boxes.
By adding a control unit and a light sensor it is possible to adjust the brightness in the room autonomously and automatically as the external light varies.
MODEL: ALI'SW Nekos feeder
- Power Supply Voltage: 100/240V ~ (AC) 50/60Hz;
- Output voltage: 26V = (DC);
- Current consumption at rated load: 0.170A ~;
- Maximum applicable load: 0.500 A =;
- Number of applicable motors: Nr. 1 KIMO chain actuator, Nr. 1 MR28 tubular motor.
- Double electrical insulation: YES;
- Service type: Continuous;
- Operating temperatures: -5°C ÷ +65°C;
- Degree of protection for electrical devices: IP30;
- Power cord: Not provided;
- Overload protection: Electronics;
- Dimensions: 87.5 x 55.5 x 27.5mm;
- Weight: 0.085Kg.
