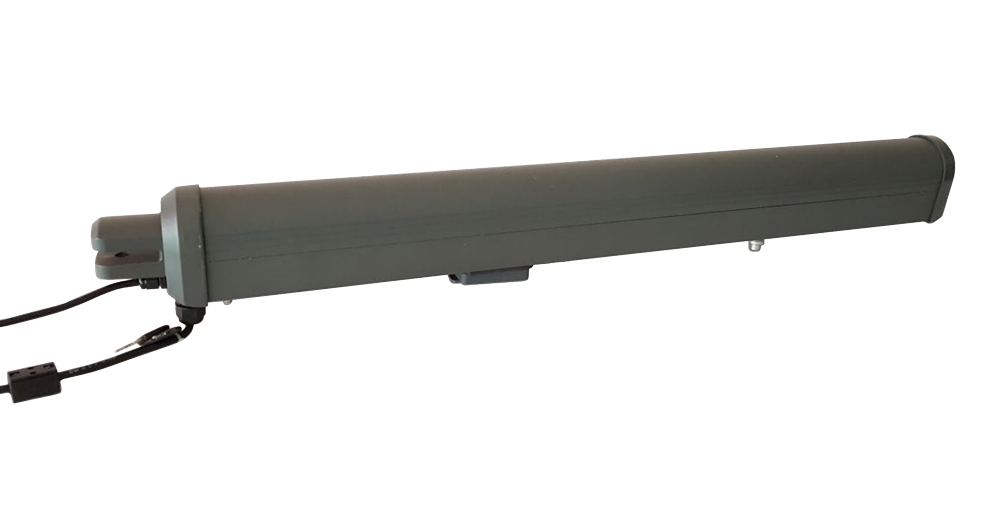

Motor for Aprimatic R251 FE swing gate
Aprimatic electromechanical actuator model
R251 FE (electronic limit switch) , low voltage, for swing gates.
This gate motor has been designed for
residential use .
The "FE" model is equipped with electronic limit switches (by means of internal microswitches), suitable for systems where it is not possible to use a floor stop. The adjustment of the electronic limit switches is possible only with the use of the BA24 control unit and the limit switch optional card.
Electric motor for swing gate R251 FE Aprimatic: technical data
- Mains power supply: 230Vac - 50Hz
- Motor power supply : 24Vcc
- Maximum leaf width without electro-welding : 1.8m
- Maximum leaf width without electro-welding : 3m
- Maximum leaf weight : 300kg (for 3m leaf) - 500kg (for 1.8m leaf)
- Maximum number of cycles : 50 cycles / day
- Degree of protection : IP44
- Power consumption : 48 W
- Current consumption : 2 A
- Maximum thrust force : 2500 N
- Rod stroke : 400 mm
- Linear speed : 16 mm / s
- Operating temperature : -20 ° + 50 ° C
- Anti-crushing safety : Electronic
Read the features of the R251 FE Aprimatic swing gate motor
24V
electromechanical arm with electronic limit switch adjustment (via internal microswitches). Suitable for systems where it is not possible to use a ground stop. The adjustment of the electronic limit switches is possible only with the use of the BA24 control unit and the limit switch optional card.
Completely self-learning
programming with
the possibility to vary the parameters through simple adjustment of Dip Switch and trimmer on the card.
Adjustable and pre-drilled rear bracket . The arms are equipped with mechanical limit switches that allow you to adjust the desired stroke. For leaves longer than 1.8 meters, the use of an electric lock is recommended.
Continuity of service guaranteed , in case of black-out, by two optional emergency batteries.
How to mount a swing gate motor?
The ideal installation of the R251 FE Aprimatic swing gate motor (with 1.8m leaf) involves the use of other accessories such as:
- R251 FE actuator - Go to the product sheet by clicking here
- AP350 left actuator
- AP350 right actuator
- BA230 electronic control unit with integrated 433.92 Mhz radio receiver
- TM4L - 433.92 MHz four-channel transmitter
- ET2N-W 24V flashing light
- Pair of ER48 photocells (12V-24V)
- ANT433 - 433.92 MHz antenna with 4.5 m coaxial cable ref. to mass
- PC12E - Wall-mounted key button
