Aprimatic Varia T 230V Bottom Hung Window - Chain Motor with Parallel Connection
Apricolor Varia T Aprimatic chain motor: actuator for bottom hung and top hung windows.
The Varia T motor model
allows several of these actuators to be connected in parallel.
The Vasistas Kit and the Protruding Kit are included:
the related accessories for top hung and bottom hung applications are also included in the Varia T Aprimatic motor package.
TECHNICAL DATA Aprimatic Apricolor Varia T chain motor:
- POWER SUPPLY: 230 Vac;
- ABSORBED POWER: 150 W;
- ABSORBED CURRENT: 0.8A in ca / 1.8 in cc;
- THRUST FORCE: 150 N;
- TRACTION FORCE: 300 N;
- ADJUSTABLE STROKES: from 90 to 400mm;
- TRAVEL SPEED: 40mm / s;
- FRONT ADJUSTMENT: max. 10mm;
- PARALLEL CONNECTION: Yes;
- THERMAL PROTECTION: 100 ° C (230 V versions only);
- CAPACITOR: 4 μF;
- BUILT-IN RELAY: Yes;
- LUMINOUS LIGHT: Yes;
- REMOVABLE TERMINAL BLOCK: Yes;
- DEGREE OF PROTECTION: IP20.
Below are the dimensions: 26.5cm length, 8cm width, 5cm thickness.
Note: The use of the Varia does not exclude the application of safety arms on the windows which must always be used.

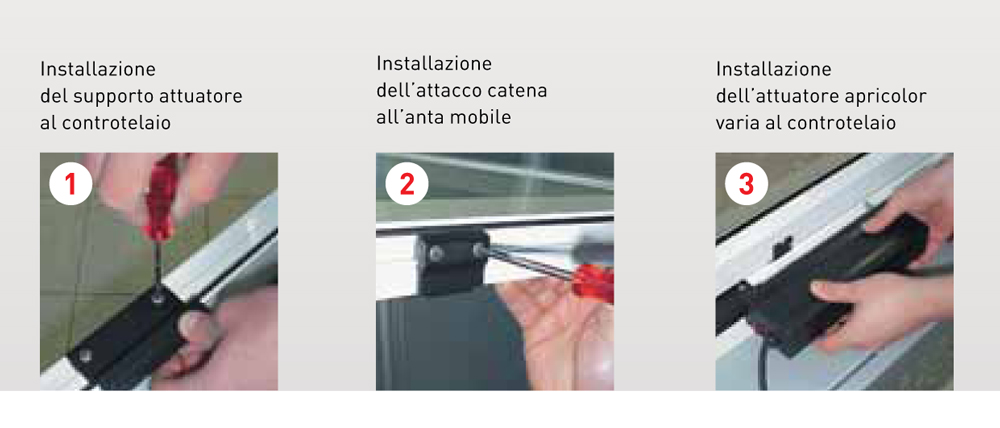

Exclusive quick fixing system of the actuator to the window frame.

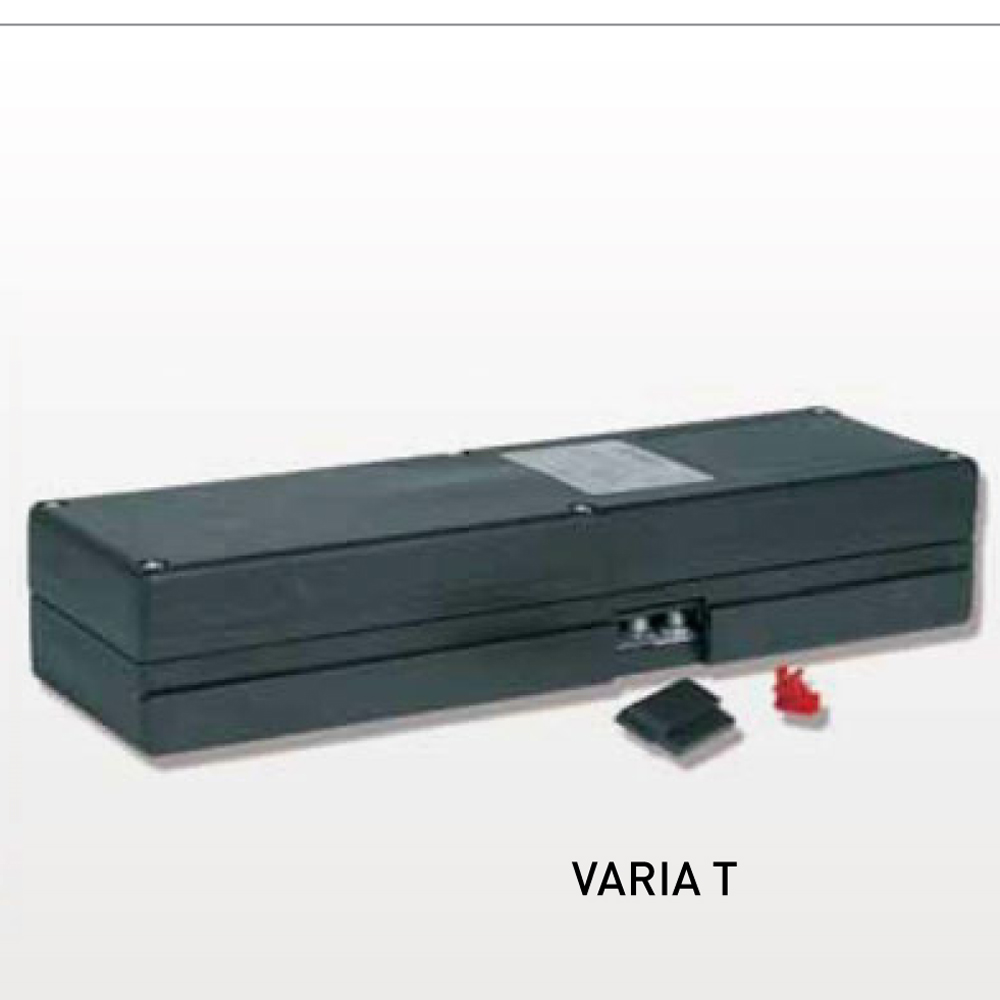

Apricolor VARIA is the electromechanical chain actuator with internal collection in nylon casing.

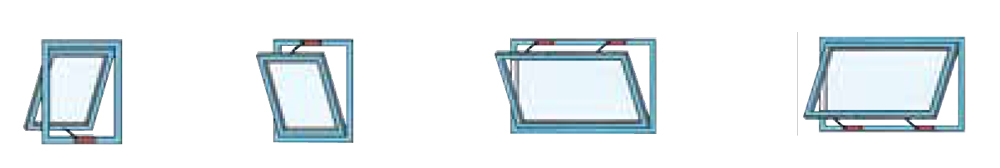

Suitable for bottom hinged and top hung windows, adjustable stroke from 90 to 400 mm.
The maneuvering chain is treated against oxidation with dacromet coating.
