By choosing the desired variant, it is possible to purchase the Aprimatic WK120 automation in the single-leaf right, single-leaf left or double-leaf version, in the preferred length.
The anodized aluminum casing and all the accessories for sliding door automation are also available as variants, based on your installation needs.
The variants do not include all versions, for longer measures you can contact us and request a quote.
Are you looking for a product ofAprimatic catalog not present on our site? Contact us and ask for a quote.

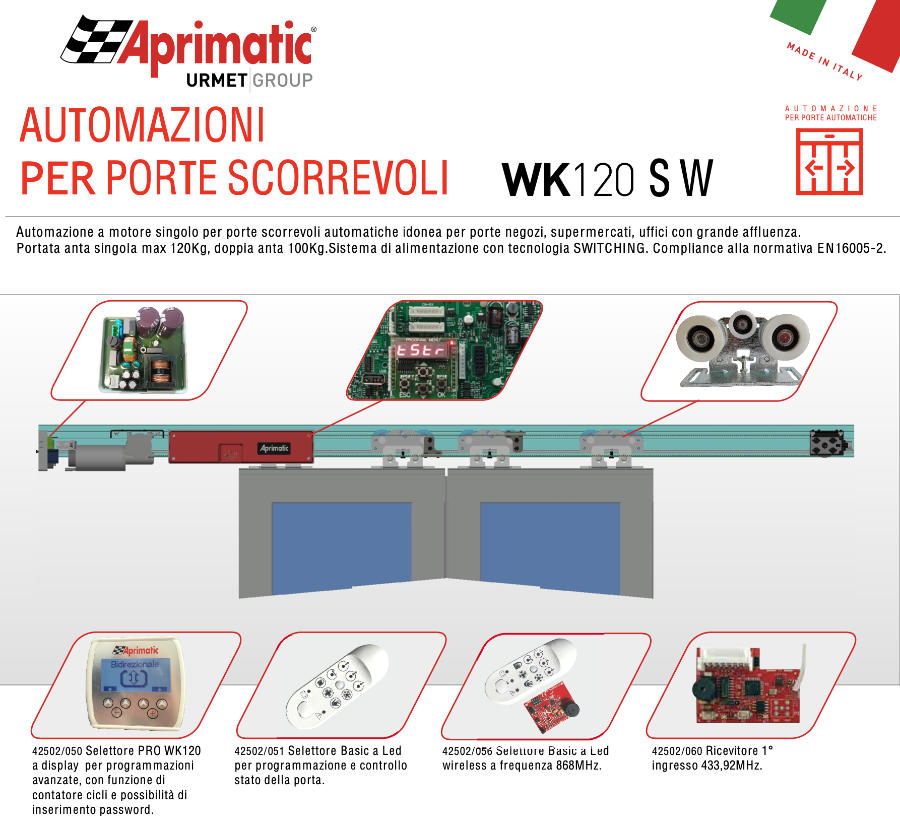

APRIMATIC WK120 - Sliding Door Automation - Single Door Right or Left, Double Door and Accessories
Aprimatic WK120 sliding door automation , designed to ensure reliability and safety in high-traffic contexts, such as supermarkets, offices, pharmacies and shops.
It is a motorized beam complete with mechanical and electronic components, compatible with single or double-leaf sliding doors.

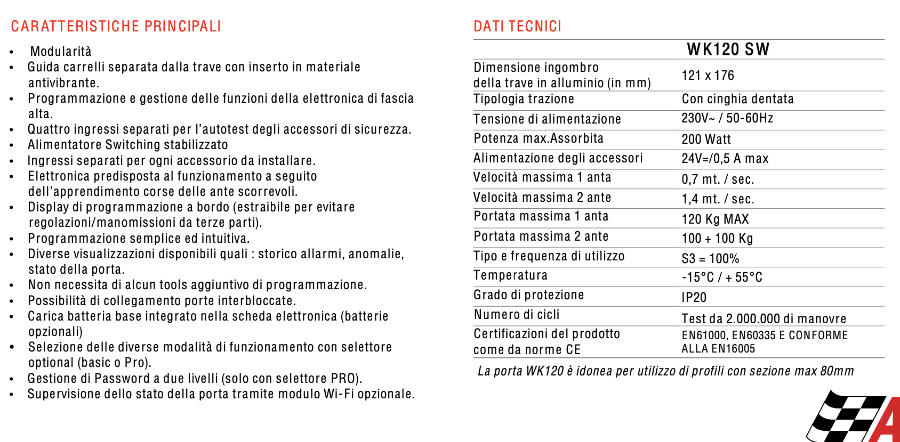

All components are integrated into a compact and resistant aluminum beam (121 mm high and 176 mm deep). The profile is compatible with door sections up to 80 mm . Installation is simple, does not require masonry work and can be completed without the intervention of specialized technicians.
The heart of the sliding door automation is a 100W German Dunker motor , equipped with an optical encoder for electronic control of position and speed. The pinion is made of aluminum and guarantees safe transmission via a toothed belt (8 mm pitch), eliminating the risk of derailment.
The control unit self-learns the stroke, the weight of the doors and the braking distances. This allows for quick and safe commissioning. The system is designed for intensive and continuous use (up to 6 cycles/minute) and can move up to 120 kg for a single door or 100+100 kg for two doors.
Aprimatic sliding door automation with advanced electronics and PRO selector
The control system integrates advanced regulation and diagnostic functions , accessible via the backlit PRO selector , included in the kit. It is possible to view the alarm history, the door status and modify the parameters in a simple and intuitive way, without the need for additional software.
The automation is certified according to the EN16005 standard and includes emergency functions such as automatic opening in the event of a blackout, adaptive obstacle detection, connection to photocells and management of anti-panic systems. The emergency battery pack is included in the versions supplied by Aprimatic to ensure safety even in the absence of power.
What does the APRIMATIC WK120 Kit include?
The standard kit (single-door version) includes:
Motorized beam in the selected length;
Anodized aluminum casing;
Engine and electronics group;
Pair of galvanized trolleys (1 driving + 1 idler);
Guide profile for door from 1 to 1.5 m;
Emergency battery pack;
PRO selector with backlit display;
Installation manual and technical documentation.
The door is not included and must be supplied by the customer.
The WK120 is available in the following variants:
Single right door
Single-leaf left
Double door
Lengths range from 2010 mm to 6010 mm (ask us for a quote for longer sizes).

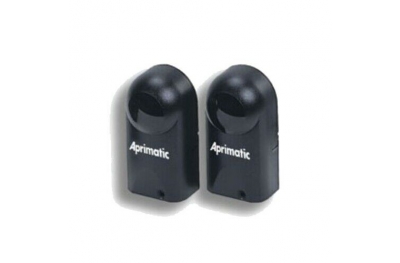

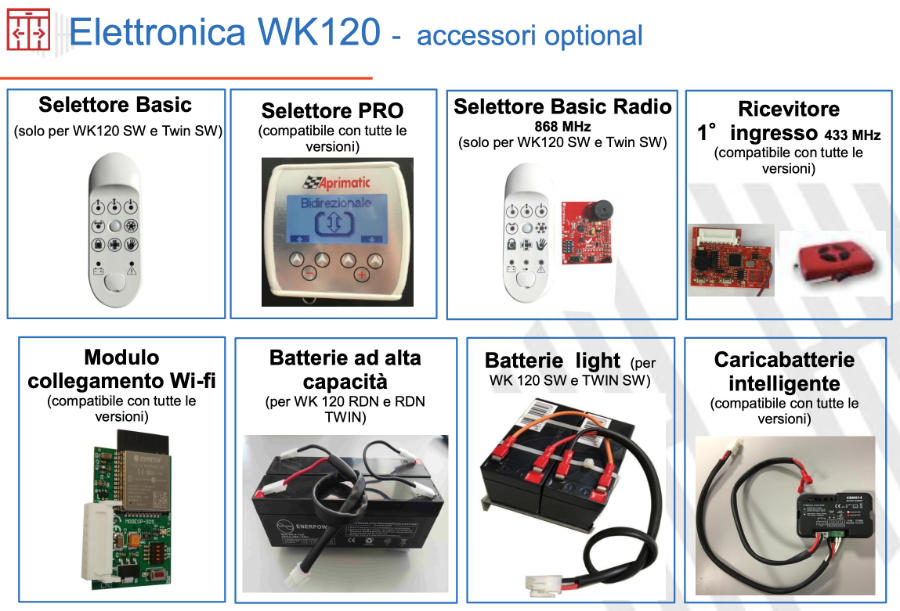

To complete the installation, we recommend adding radar sensors for control and safety, preferably in dual technology. Photocells, remote controls, radio receivers, wireless selectors and Wi-Fi modules are also available. All components are compatible with the WK120 control unit.
