Rack Operator Aprimatic Aprilineare Speedy 230V

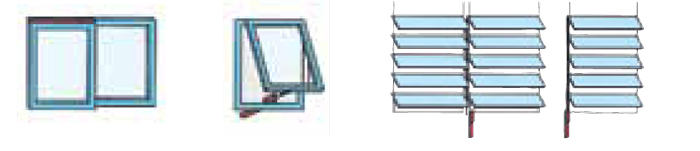

Rack operator for bottom-hinged and outward-opening windows, shed, skylights, domes, jalousie windows and sliding windows.
TECHNICAL DATA:
- POWER SUPPLY: 230 Vac - 50 Hz;
- ABSORBED POWER: 20 W;
- ABSORBED CURRENT: 0.09 A in ac / 0.8 A in dc ;
- THRUST AND TRACTION FORCE: 200 N (650N the model for vertical sun blinds);
- SHIFTING SPEED: 30 mm/s;
- STANDARD AVAILABLE STROKES: Up to 1,350 mm;
- PARALLEL CONNECTION: YES;
- LIMIT SWITCH: Electronic;
- OPERATING TEMPERATURE: -5° +40° C ;
- PROTECTION DEGREE: IP65.

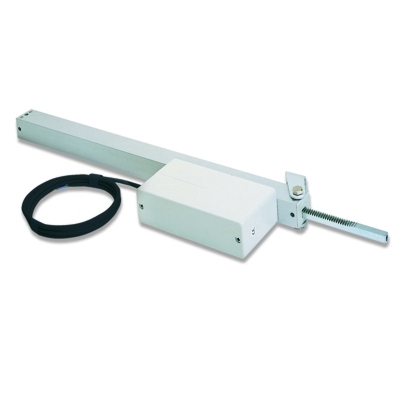

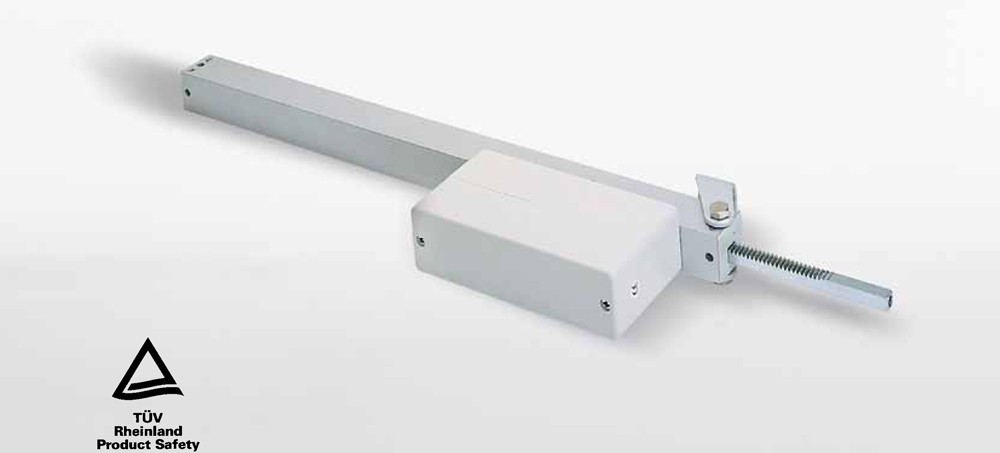

Aprilineare is an aluminium electric operator with rack-driven linear movement.
The device features an electronic limit stop, IP65 protection degree, anti-interference capacitor, anodised aluminium bracket and galvanised steel frame mount.
The operator can be connected in parallel. The rack is made of C43 galvanised steel and has a 10 x 10 square section.
The motor box is made of two sealed pieces of impact-proof ABS.
Aprilineare sturdy, safe, versatile, easy to install and maintenance-free.
