Aprimatic Varia 24V Chain Operator for Windows
Chain operator for bottom-hinged and outward-opening windows.
SCREW KIT conventional fitting system for bottom-hinged windows and for outwardopening windows are not included (sold separately).
TECHNICAL DATA:
- POWER SUPPLY: 24 Vcc;
- ABSORBED POWER: 40 W;
- ABSORBED CURRENT: 0.8A in ac/1.8 in dc;
- THRUST FORCE: 150 N;
- TRACTION FORCE: 300 N;
- ADJUSTABLE STROKES: from 90 to 400 mm;
- SHIFTING SPEED: 40 mm/s;
- FRONT ADJUSTMENT: max. 10 mm;
- CAPACITOR 4 µF BUILT-IN RELAY: YES;
- LIGHT INDICATOR: YES;
- REMOVABLE TERMINAL BOARD: YES;
- PROTECTION DEGREE: IP20.
NOTE: Use of the Varia actuator still requires (compulsorily) the application of safety arms on the windows

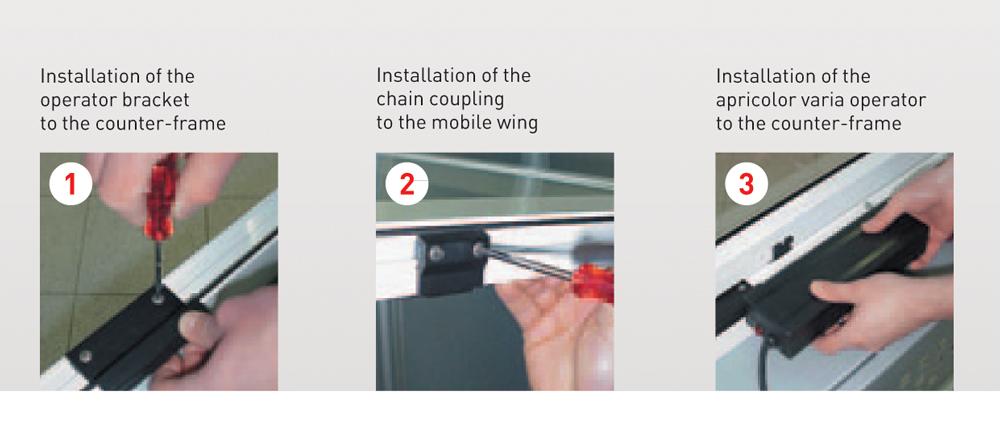

Exclusive quick-fit system securing the operator to the frame.
Apricolor VARIA is an electromechanical chain operator with internal nylon magazine.
It is suitable for bottom-hinged and outward-opening applications, and features an adjustable stroke from 90 to 400 mm.
The chain is rust-proof thanks to the Dacro-met coating.
