AriaLuce 50 Pinto Shutter in Medium Density Insulated Aluminum

AriaLuce 50 Pinto, medium density roller shutter in insulated aluminum

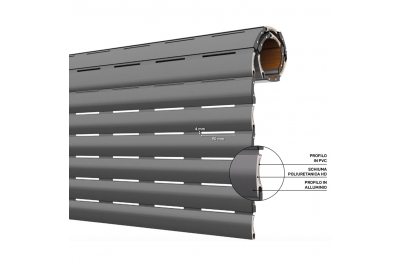

AriaLuce Pinto, the design insulating roller shutter that lets more air and light through

• The holes that are wider than other shutters allow more air and light to pass through.
• This feature favors ventilation and controlled sunshine inside the house.
• The slats are in insulated aluminum with thermal insulation.
• It is an ideal roller shutter for design houses.

Caution:

• The aluminum terminal is also included in the indicated price;
• This is the AriaLuce 50 Pinto roller shutter in medium density version;

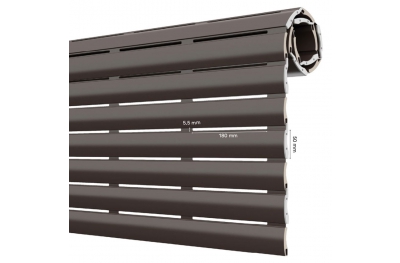

• The high-density AriaLuce 50 shutter version is also available on Windowo.



What are the advantages of the AriaLuce Pinto Medium Density roller shutter?

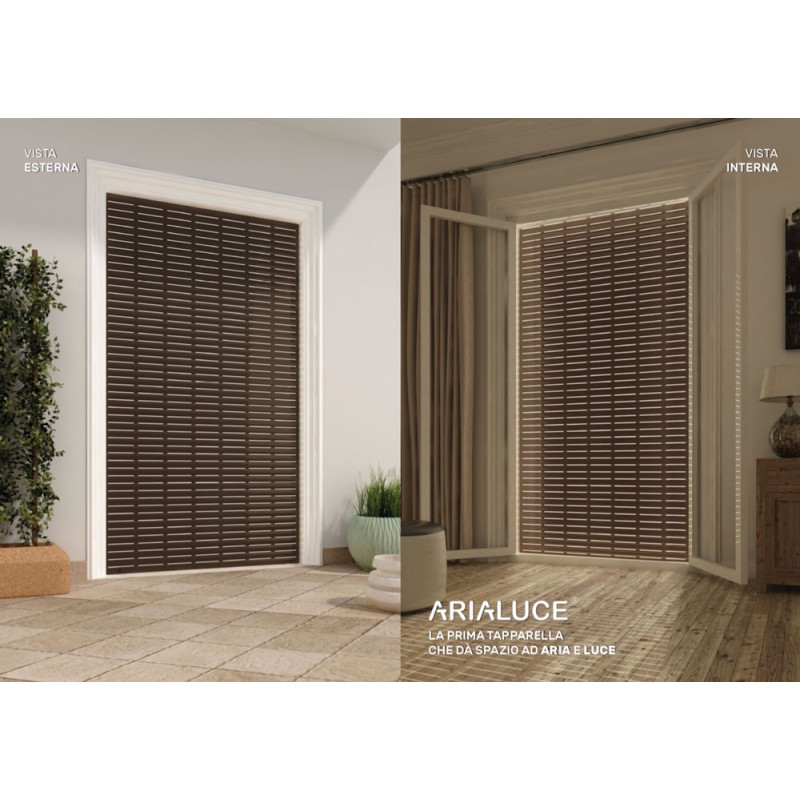

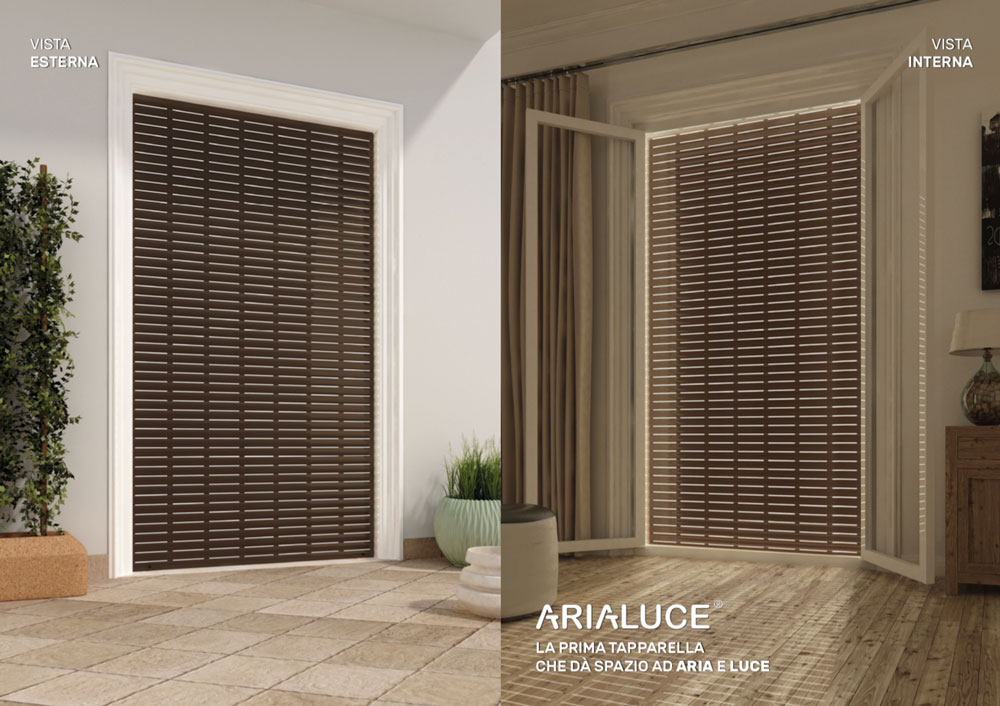

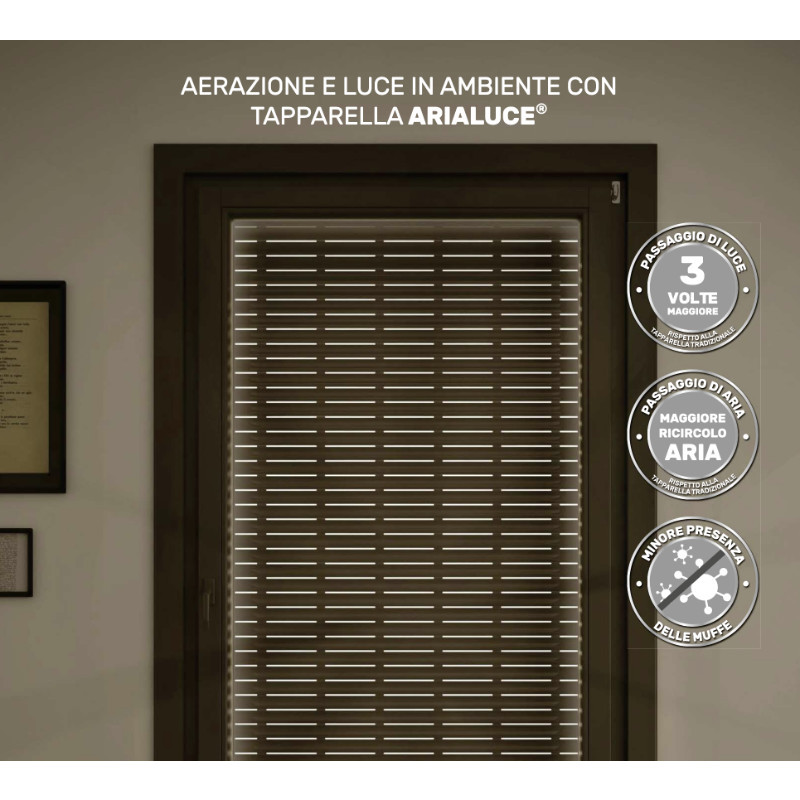

AriaLuce is an insulated aluminum roller shutter with a large hole. Its fundamental feature consists in the particular long slot in the slat, which allows, with the roller shutter lowered, a significant ventilation and lighting of the environment, unlike the traditional roller shutter.

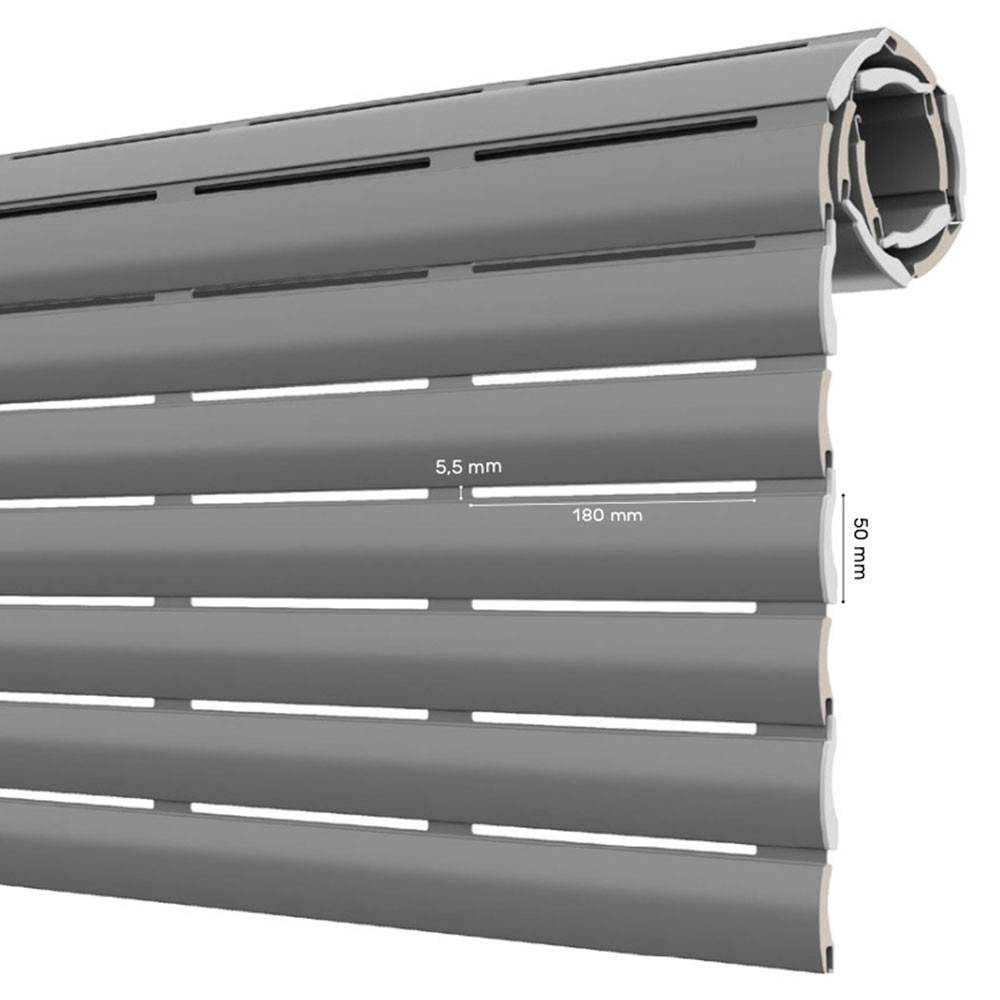

The size of the hole (height 5.5 mm, width 180 mm), much larger than the traditional one (height 2 mm, width 17 mm) favors, with the shutter lowered, the easy recycling of air inside the house and , at the same time, the entry of sunlight.

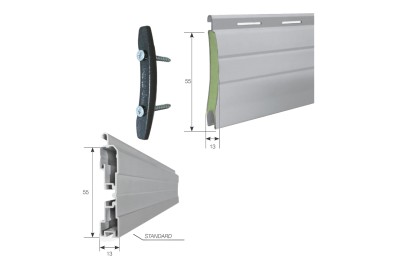

Read the measures of the slat of this roller shutter

Read the dimensions of the slats of this insulated aluminum roller shutter.

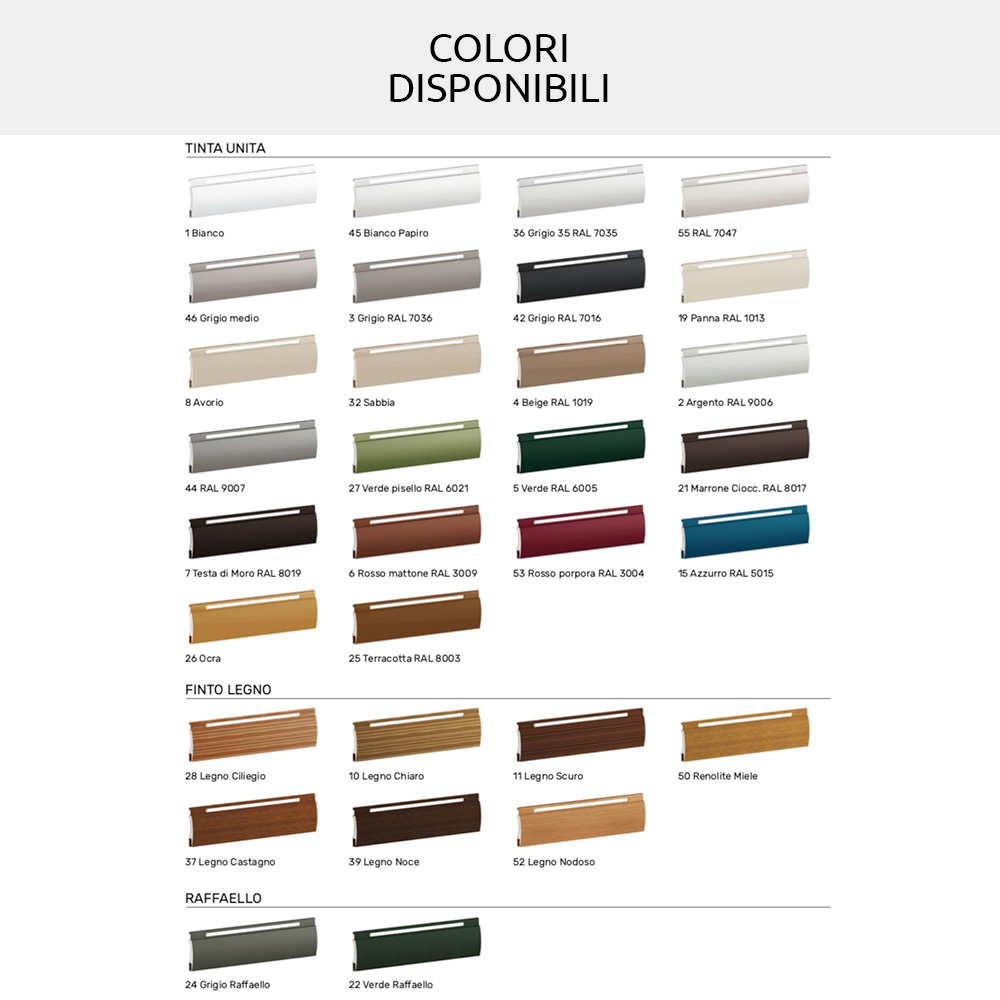

Choose your favorite color of your insulated aluminum roller shutter

To see the colors better, we recommend that you look at the photos above.
There are also colors with a faux wood effect.




Security: add the deadbolt (optional)

The deadbolt is a safety system for the roller shutter.
In practice, it prevents the shutter from being raised, and is very useful especially on the hottest evenings, when we sleep only with the shutters down.
The deadbolt is optional and excluded from this product.




Technical characteristics of AriaLuce Pinto design shutters

• Model: AriaLuce 50 Pinto medium density;
• Profile size : 12 x 50 mm;
• Weight per m2 : about 5.0 Kg;
• Aluminum thickness : 0.50 mm;
• Number of bars per 1 meter of height : 20;
• Maximum permissible width : 4200 mm;
• Aluminum ribs : the aluminum is insulated with medium density polyurethane;
• ONLY roller shutter (this product does not include belts or motors to raise and lower the roller shutter);
• Aluminum terminal (the terminal is the last stick that rests on the ground).



The AriaLuce roller shutter caps are included

Standard splint locking with screwed side cap.

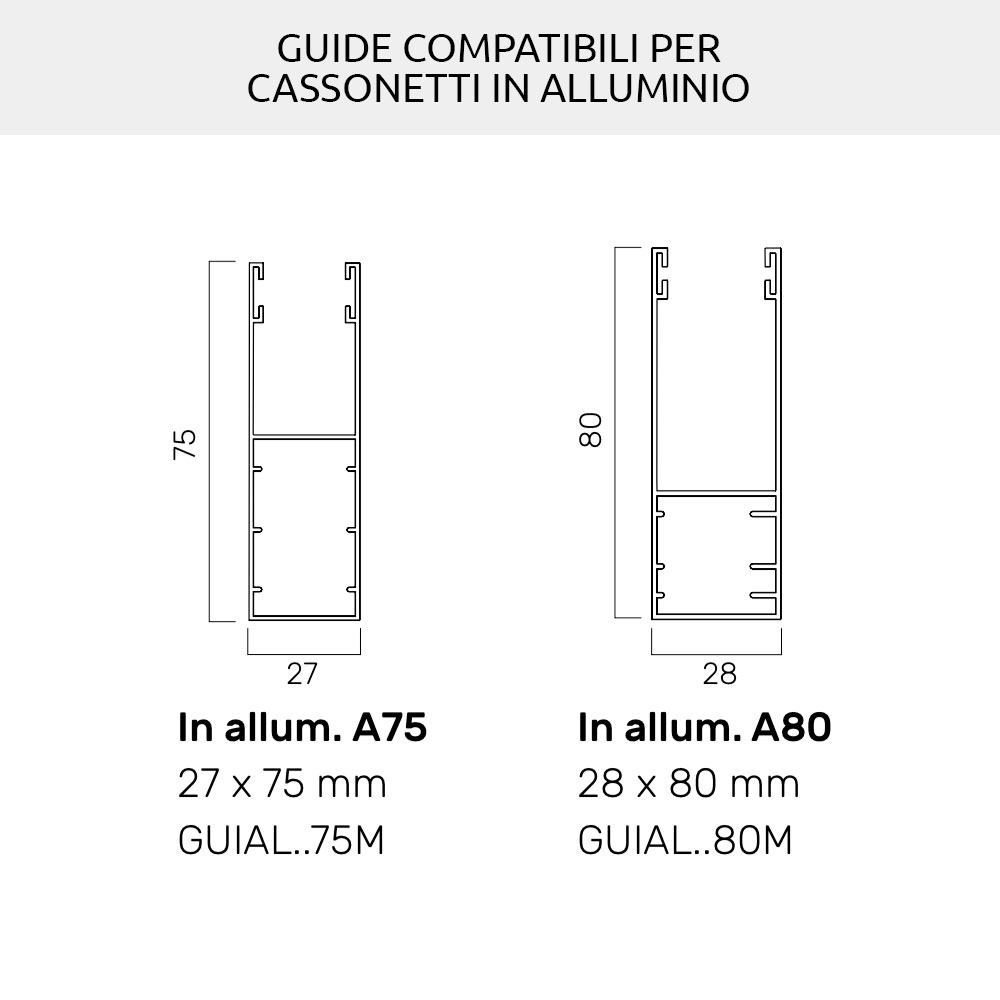

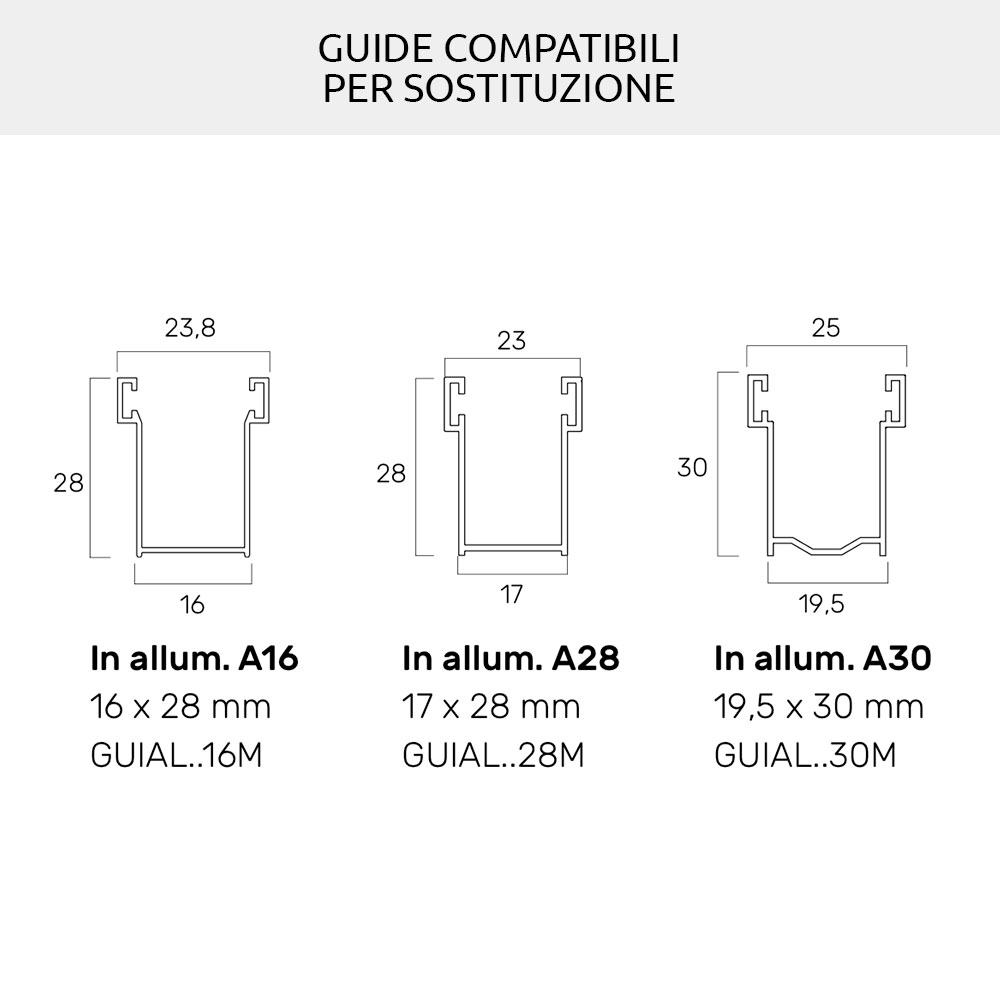

Compatible guides: see the photos above

Look at the compatible guides of this roller shutter in the photos above.
We have put compatible guides for:

• New achievements;
• Replacements of shutters;
• Aluminum bins.



How do you take the measures of the shutter?

We recommend that you take measurements based on what you need to do:

1. Replacement of an existing roller shutter: you can take the measurement of the old roller shutter.
2. Replacement or new installation of roller shutters and sliding guides: for the width of the roller shutter, with reference to the guides to be used, the necessary tolerances must be taken. You can use the old guides if they are in good condition and if they have at least 16.5mm of usable space inside.
3. Enter the finished measurements, in millimeters (base and height). By finished measurements, we mean the total measurements of the product, including any side caps and completion accessories.
4. To choose the shutter profile, if you need to make a replacement, measure the height of the single slat without considering the connecting hook between the slats.



AriaLuce Pinto is also seen on TV: watch the commercial

Watch the video of the AriaLuce roller shutter : it is famous for being the roller shutter that improves lighting and ventilation in the home.




Pinto Tapparelle: aluminum roller shutters for sale online

Pinto Tapparelle is an Italian company specialized in the design and production of PVC and Aluminum roller shutters.
The production plants are in Italy: in Polla (SA) and Polesine Parmense (PR).

Pinto roller shutters are for sale online on Windowo.
