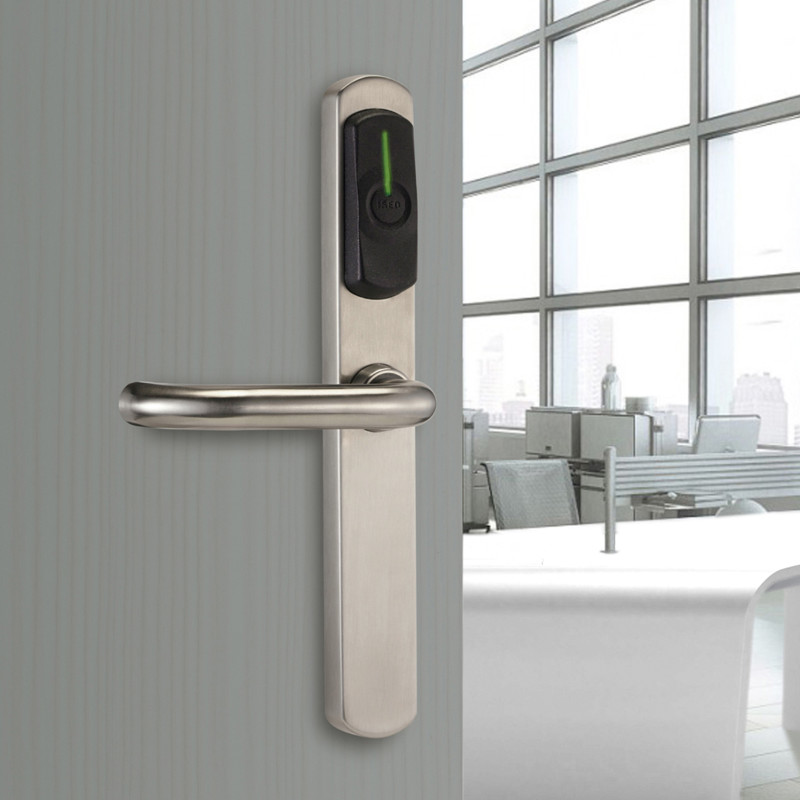

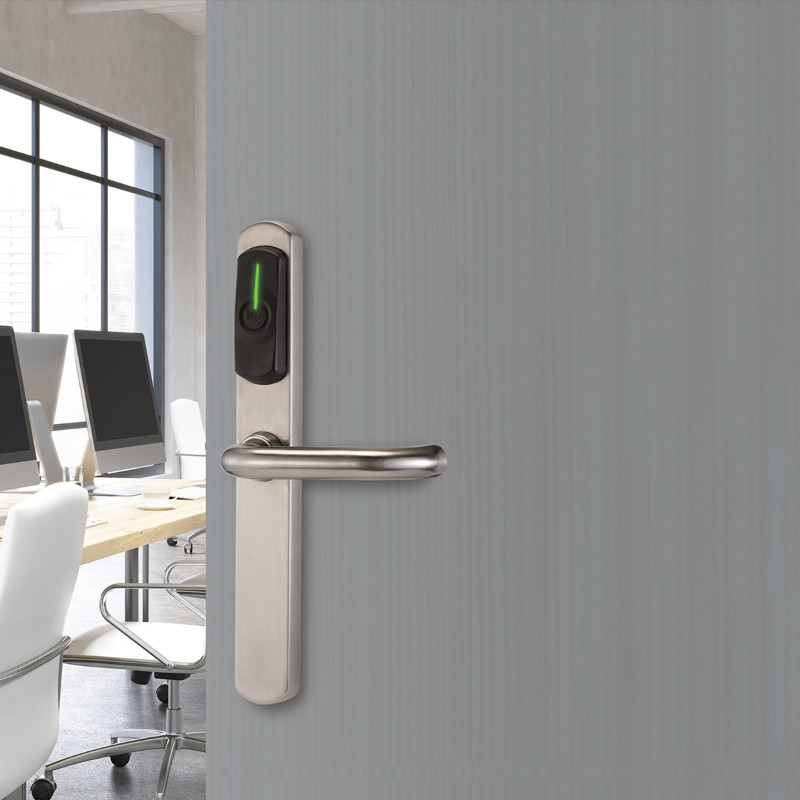

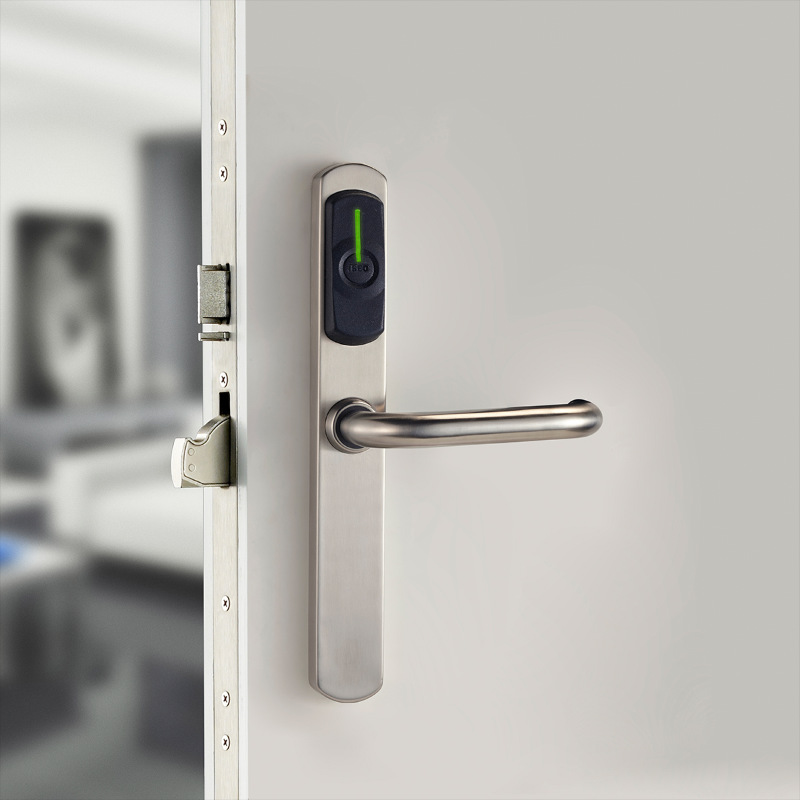

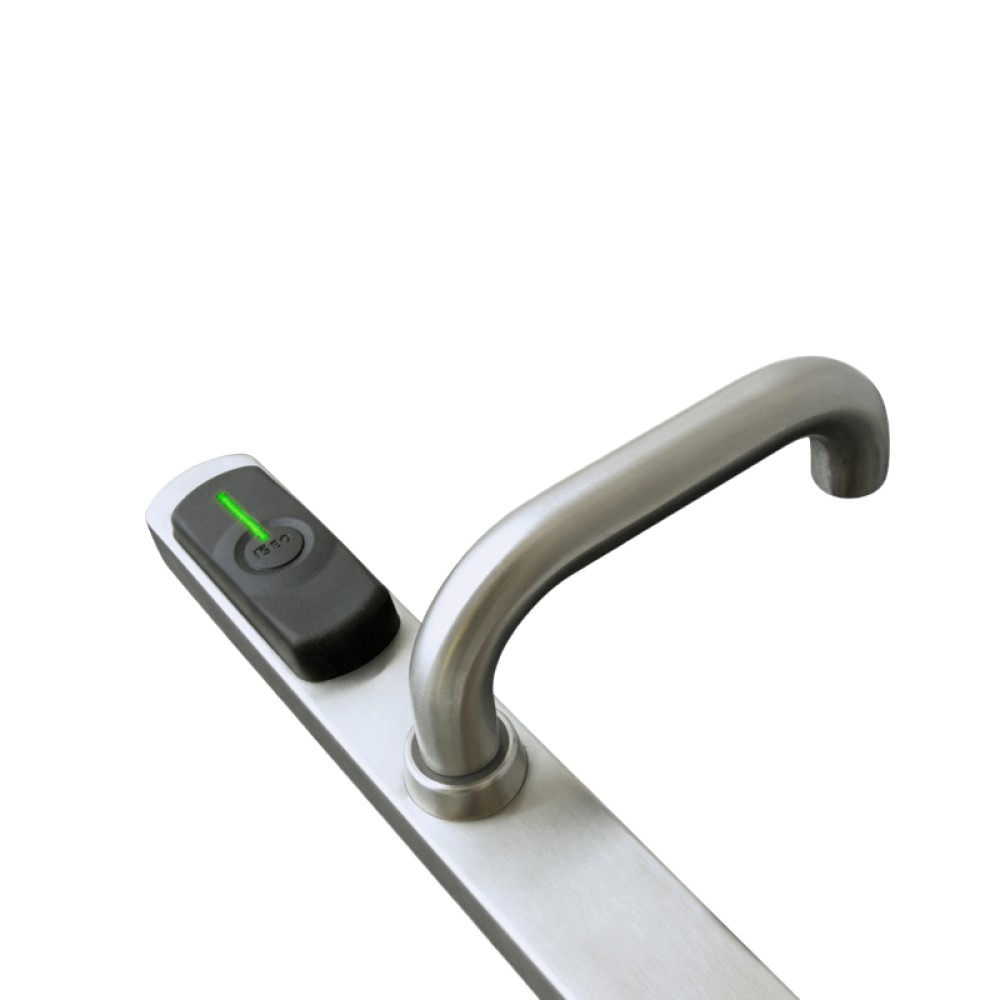

Aries Iseo Electronic Battery Handle Plate - Access Management
Aries Iseo electronic handle plate is one of the products of the ISEO Zero1 range, which can be managed by the V364 access control system.
Aries Iseo can be installed on most doors on the market and its
battery operation and the absence of electrical connections make it the ideal solution for managing access via RFID cards, ensuring maximum flexibility and low installation costs, both for new installations, both for retrofitting on existing doors.
Its
minimal shape allows you to insert the Aries electronic handle plate in any environment, from the most classic to the most modern.
Aries Iseo versions that can be ordered:
- Aries Smart 2.0;
- Aries Smart 2.0 for panic devices;
- Aries Smart 2.0 for customized handles;
- Aries Smart 2.0 for removable handles for panic devices;
- Aries Smart 2.0 for DIN lock;
- Aries Smart 2.0 for fire locks;
- Aries Smart 2.0 for locks Press Open Meroni.
Where to use the Aries Iseo plate?
The
flexibility and simplicity of installation make it the ideal solution for access control in the community and residential area (commercial buildings, industries, public and private offices, universities and schools, hospitals and residences for the elderly, residences and hotels, etc.) .
For access control in smaller contexts, such as private homes, B & Bs, small hotels, professional studios, shops and small businesses, the
Libra Iseo Argo Electronic Cylinder (available on Windowo) is available.
Why choose Aries Iseo Electronic Handle Plate?
The Aries Iseo electronic handle plate
can be installed on most doors on the market. It has in fact been designed to be combined with most mechanical locks, guaranteeing maximum installation flexibility.
Battery operation and the absence of electrical connections make ARIES the ideal solution for access management, ensuring maximum flexibility and low installation costs, both for new installations and for retrofitting on existing doors.
The
width of only 38 mm allows installation on any type of door (wood, aluminum, metal, PVC, etc.) in combination with locks with entry starting from only 25 mm.
The
nylon underplate allows the installation of the Aries electronic handle (in combination with locks with a minimum entry of 40 mm) to replace old mechanical handles, covering any holes on the door.
All electronic and mechanical devices are inside the handle plate and fixing requires only three holes on the door, one for the handle follower and two for the fixing screws. Therefore a
simple and immediate retrofit installation on existing doors.
The
elegant shape , combined with the available finishes, allows you to insert the Aries Iseo handle plate in any environment.
What are the main functions of the Aries Iseo plate?
- Multistandard RFID reader (ISO14443A / ISO14443B - 13.56MHz).
- SMART version with Bluetooth Smart 5.0.
- Ignition system for detecting RFID cards and mobile phones (patented). Low consumption device powered by batteries.
- Open opening function (office function) without extra battery consumption. Battery charge status detection.
- Real Time Clock / Calendar.
- Handles movement detection.
- Mechanical emergency key use detection.
- Privacy signaling device.
- Narrow profile (38 mm).
- Compatible with most mechanical locks.
- Extremely quick and easy installation.
- Luminous and acoustic signals.
- Field upgradeable software.
- IP55 version for outdoor installations.
Technical features Aries Iseo Electronic Handle Plate
- 13.56 Mhz Multistandard RFID Reader: ISO14443A (Mifare *** Classic, Plus, Desfire); ISO14443B (eg ST microprocessor cards);
- Communication interfaces: - Proximity RFID modem; - Bluetooth Smart 5.0;
- Batteries: 2 AA 3.6Vdc lithium batteries; 3-level battery charge status indication;
- Mechanical emergency cylinder: ISEO R90 Factory high security half cylinder. Mechanically re-codable up to 3 times; - Use of emergency key detected by the electronics. KA burning in the same plant;
- External emergency power supply: For installations without mechanical emergency cylinder. Connector under the aesthetic plate; - Operation with standard 9V battery;
- Square / cylinder center distance: 70, 72, 85, 88 and 92 mm;
- Signals: 1 Green, 1 Red LED; - Buzzer;
- Privacy signaling device (optional): knob with ergonomic shape for easy use; Reset of the signal every time the door is opened;
- Software: Field upgradeable without disassembling the device;
- Finishes: Inox;
- Handle: Safety "U" shape; Left and right hand configurable during installation;
- Compatibility with mechanical locks: 7, 8 or 9 (**) mm handle follower. Square / cylinder center distance 70, 72, 85, 88 and 92 mm; - Entry: minimum 25 mm. European profile cylinder hole; Latch only or with automatic deadbolt; Max angle of rotation of the handle 40 °.
