ASD 55 Pinto aluminum roller shutter insulated with high density polyurethane
Pinto brand ASD 55 aluminum roller shutter. High density aluminum shutter, ideal for thermal insulation.
ASD 55 Pinto roller shutter in insulated aluminum for thermal insulation
- The profile of the slats is made of insulated aluminum ;
- Inside there is an ecological polyurethane foam for thermal insulation.
Attention: the aluminum terminal is also included in the indicated price.
Description: how does this insulated aluminum roller shutter work?

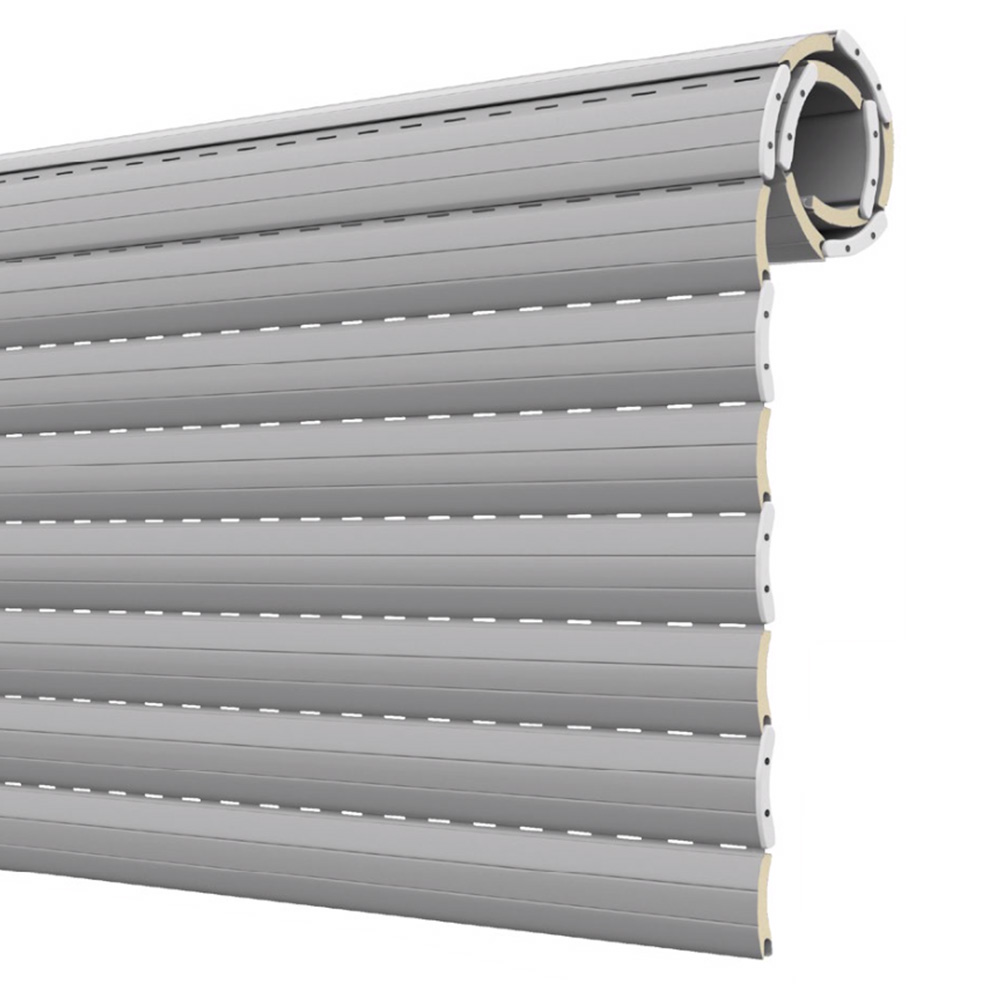

The ASD 55 roller shutter has an aluminum profile with ecological high density polyurethane foam.
ASD 55 Pinto batten locking
A - Standard with screwed side cap. Included in this product;
B - With metal nail. Only on request;
C - With shoe cap screwed onto alternating ribs. Compatible guides A30, A25. Only on request.

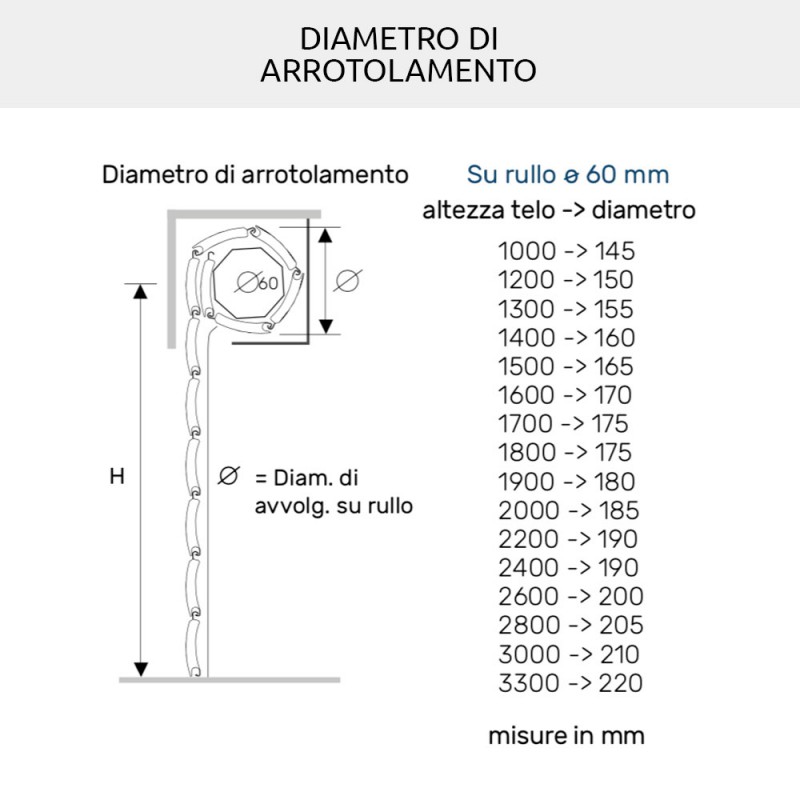

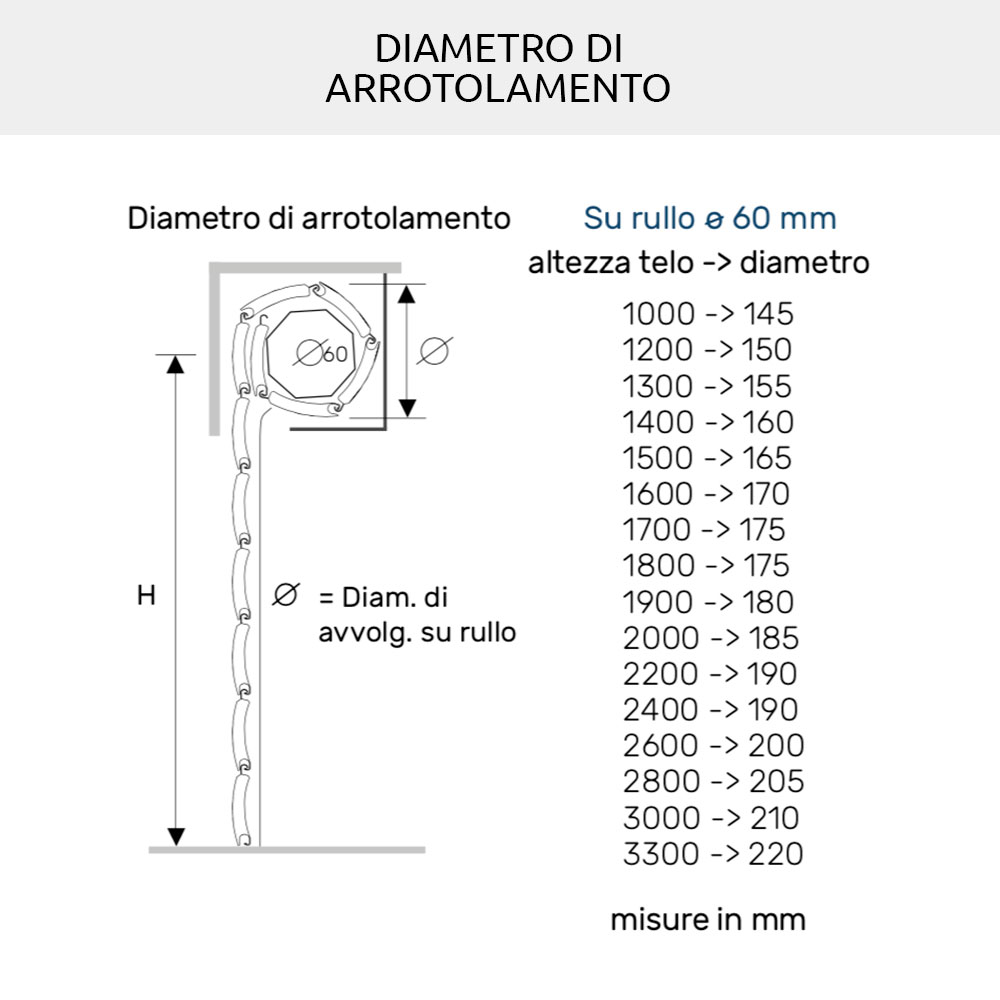

Measurements of the aluminum roller blind ASD 55 Pinto
Read the dimensions of the slats of this aluminum roller shutter.

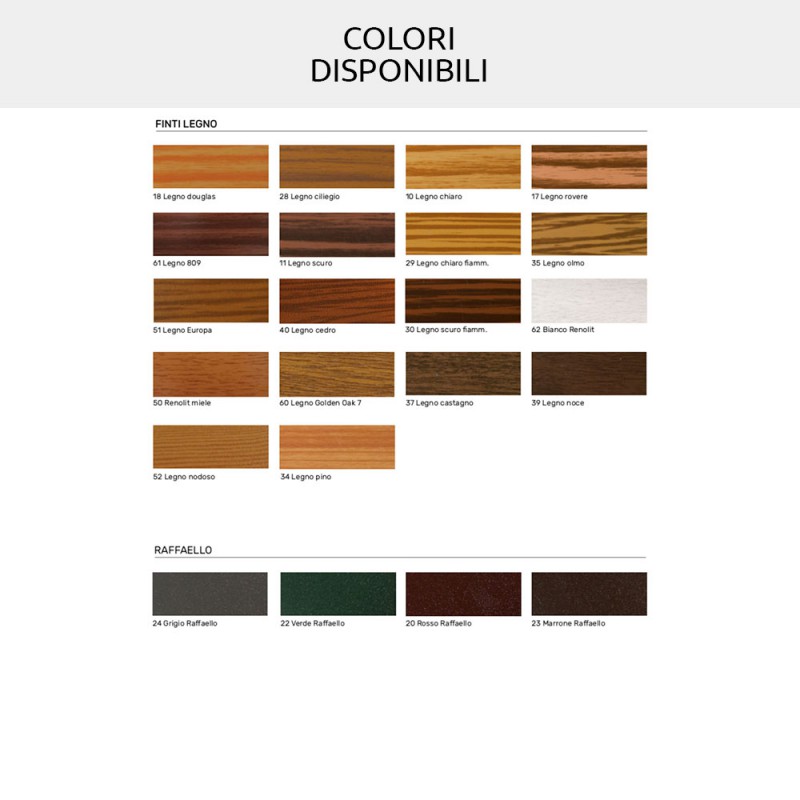

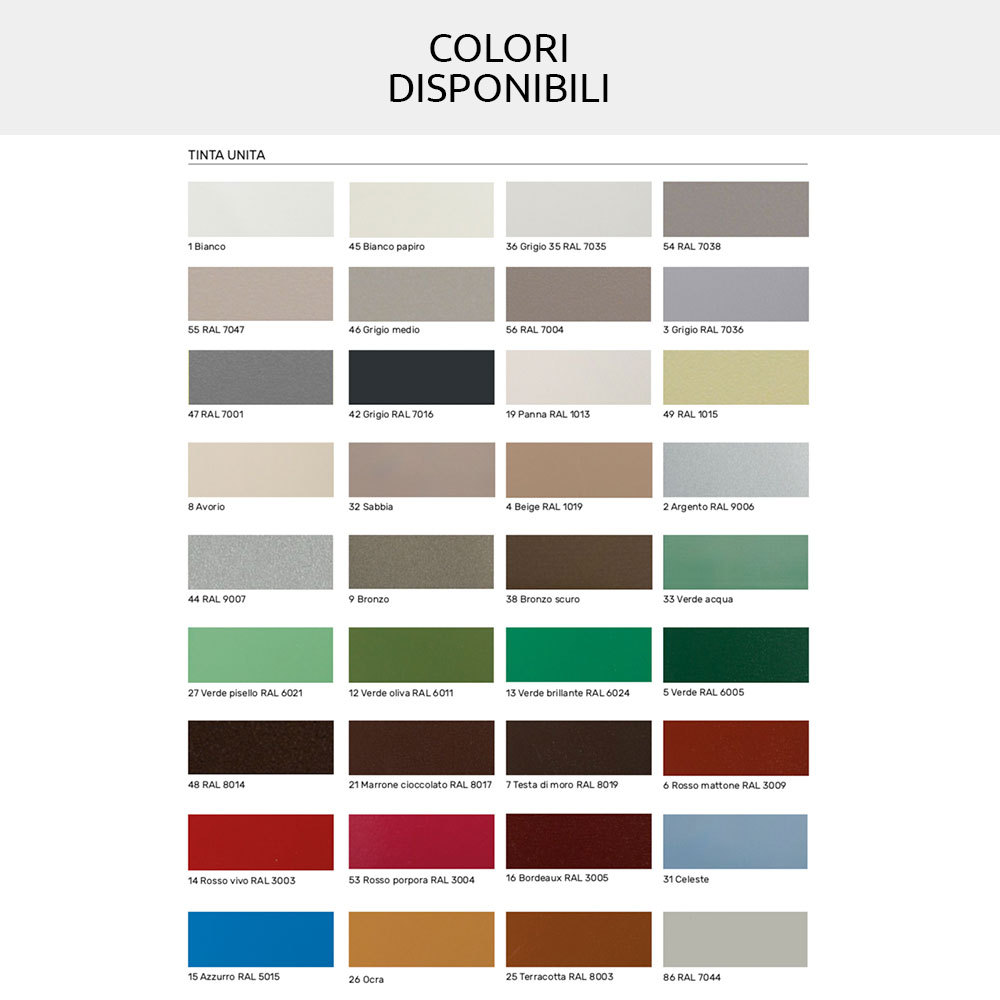

Choose the color of your ASD 55 Pinto aluminum roller shutter
To see the colors better, we recommend that you look at the photos above.

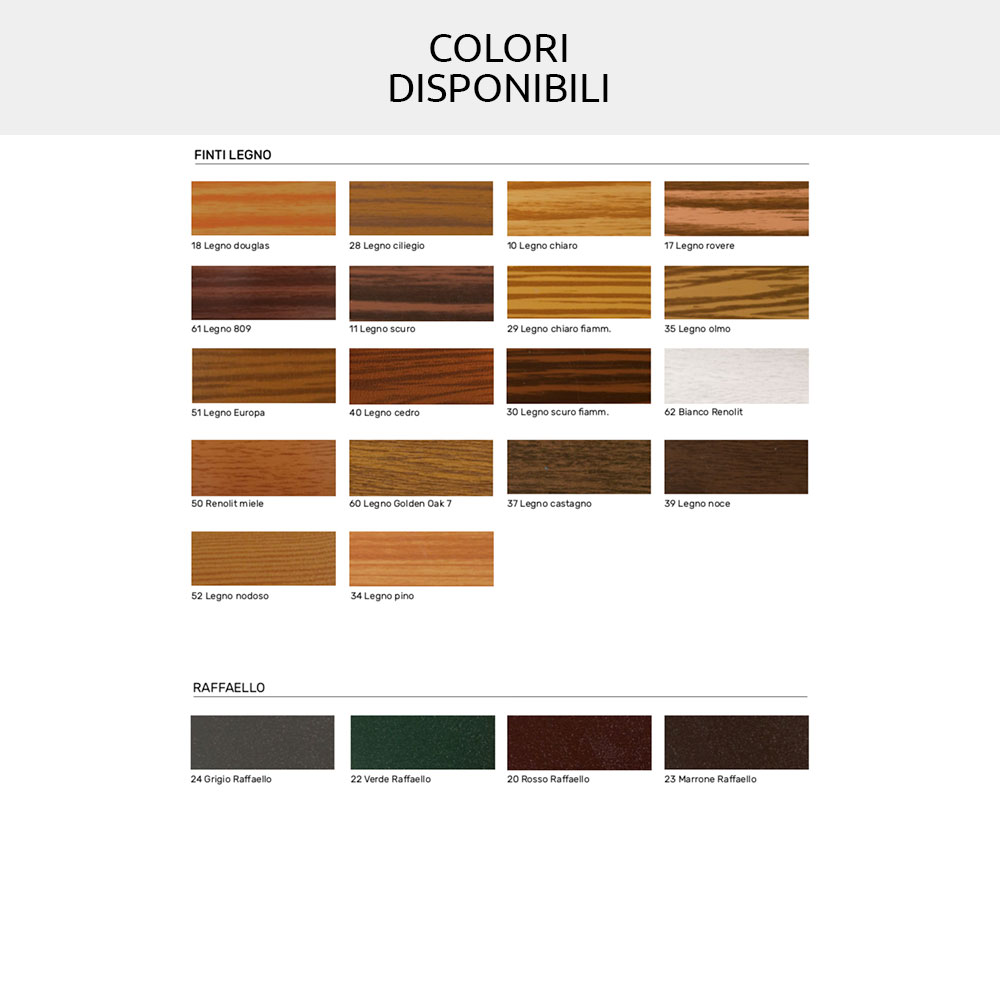

Wood effect colors are also available.
You can add the safety bolt (on request)
The deadbolt is a safety system for the roller shutter.
In practice, it prevents the shutter from being raised, and is very useful especially on the hottest evenings, when we sleep only with the shutters down.
The deadbolt is optional and excluded from this product. Ask to add it to your aluminum roller shutter.
Technical characteristics of the ASD 55 Pinto insulating shutter
- Profile size : 12 x 55 mm;
- Weight per square meter : about 5 Kg;
- Aluminum thickness : 0.33 mm;
- Number of bars per 1 meter of height : 18;
- Maximum permissible width : 4200 mm;
- ONLY roller shutter (this product does not include belts or motors to raise and lower the roller shutter);
- Aluminum terminal (the terminal is the last stick that rests on the ground).

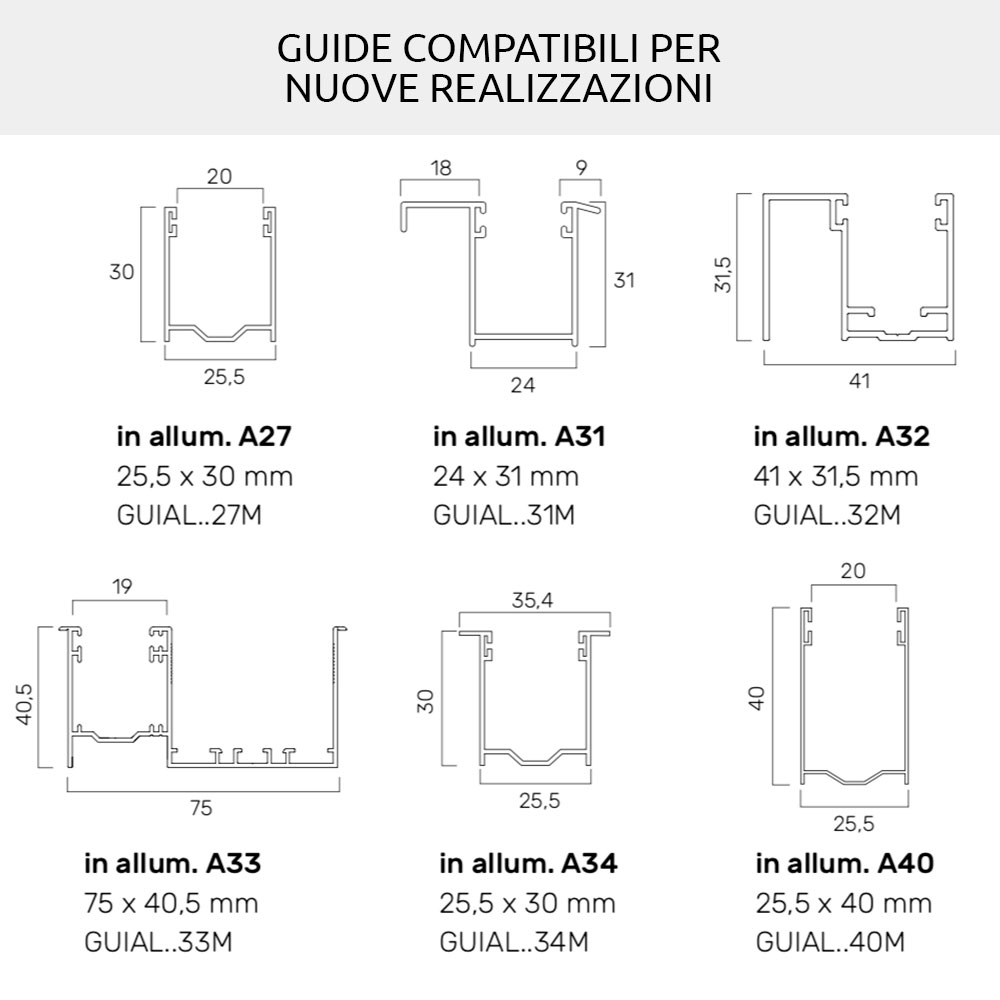

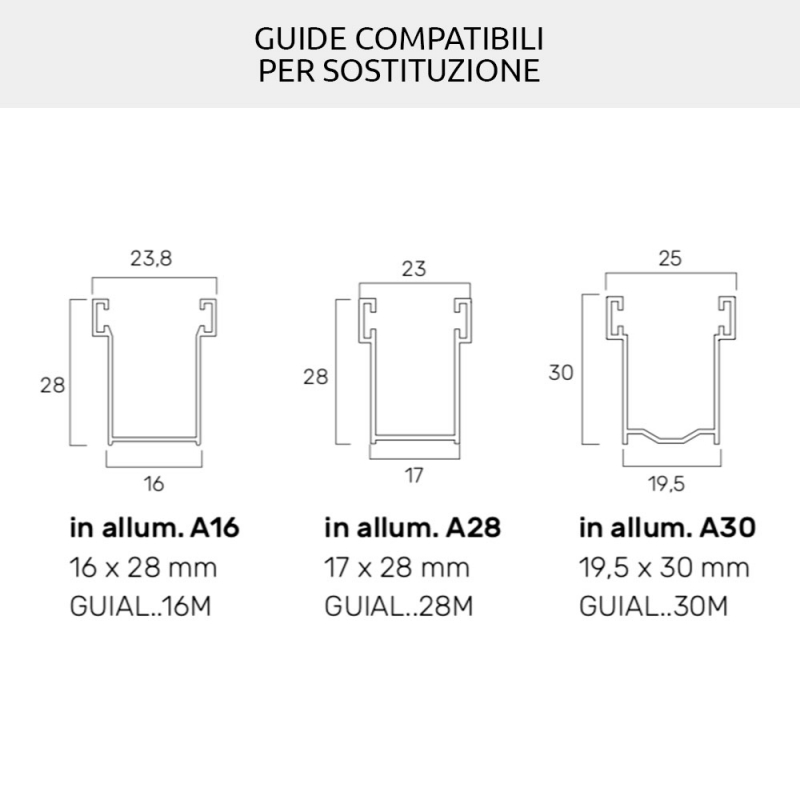

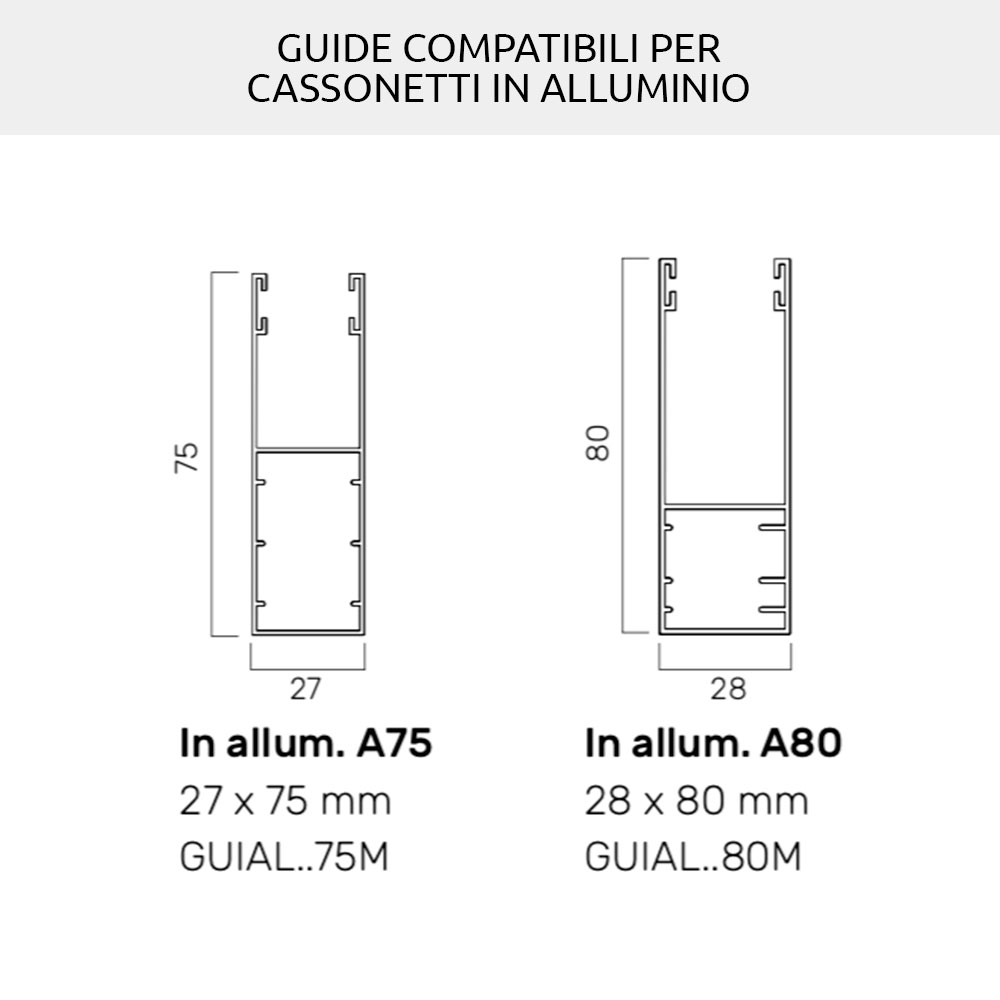

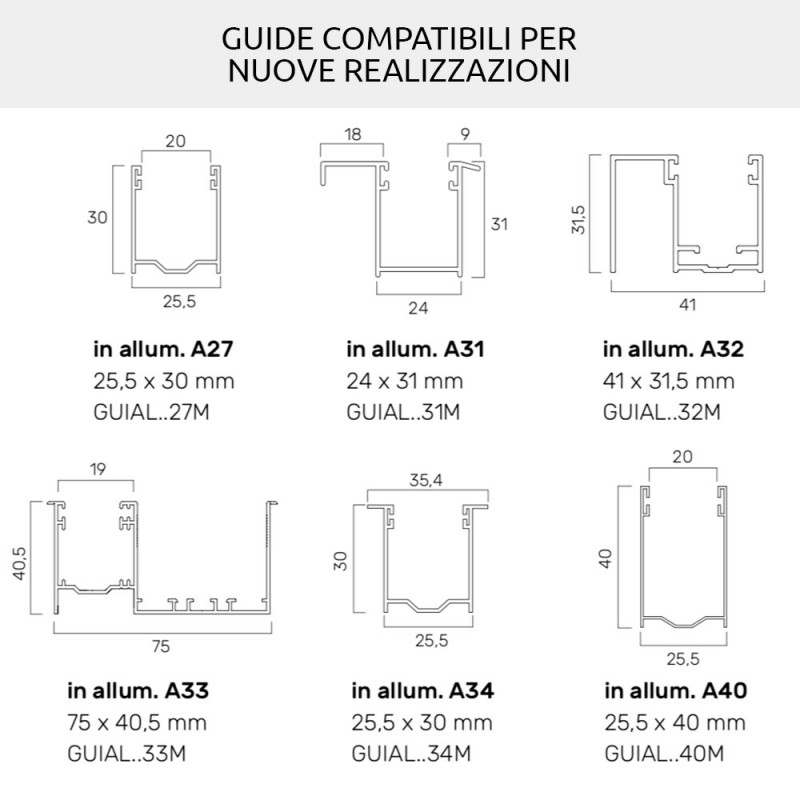

ASD 55 Pinto roller shutter guides compatible
Look at the compatible guides of this roller shutter in the photos above.
We have put compatible guides for:
- New achievements;
- Replacements of shutters;
- Aluminum bins.
How to take the measurements of the aluminum roller shutter?
We recommend that you take measurements based on what you need to do:
- Replacement of an existing roller shutter: you can take the measurement of the old roller shutter.
- Replacement or new installation of roller shutters and sliding guides: for the width of the roller shutter, with reference to the guides to be used, the necessary tolerances must be taken. You can use the old guides if they are in good condition and if they have at least 16.5mm of usable space inside.
- Enter the finished measurements, in millimeters (base and height). By finished measurements, we mean the total measurements of the product, including any side caps and completion accessories.
- For the choice of the shutter profile, if you need to make a replacement, measure the height of the single plank without considering the connecting hook between the slats.
Pinto roller shutters, buy on Windowo: prices and offers
Pinto is an Italian company specialized in the design and production of PVC and Aluminum roller shutters.
The Pinto factories are in Italy in Polla (SA) and Polesine Parmense (PR).
Are you looking for online shutters made to measure in Italy and made with certified materials?
Buy Pinto roller shutters in the Windowo shop.
