Automation for Concealed Sliding Doors V1 230V Topp
TOPP door operator, model V1,
automation for concealed sliding doors, max.load 50 kg.
Power supply 230V~50 Hz (with infrared on-board sensor).
You can choose to buy the version suitable for the TS8 radio remote selector (sold separately on Windowo) or the version that it is not suitable.
We recommend reading the brochure (downloadable in "Documents").

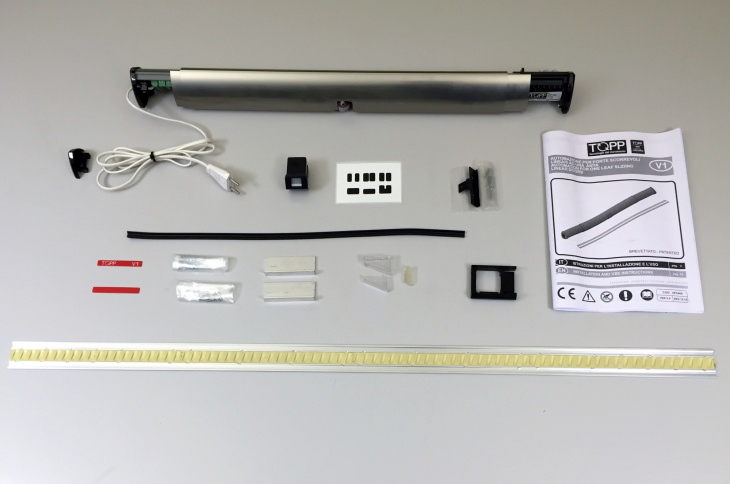

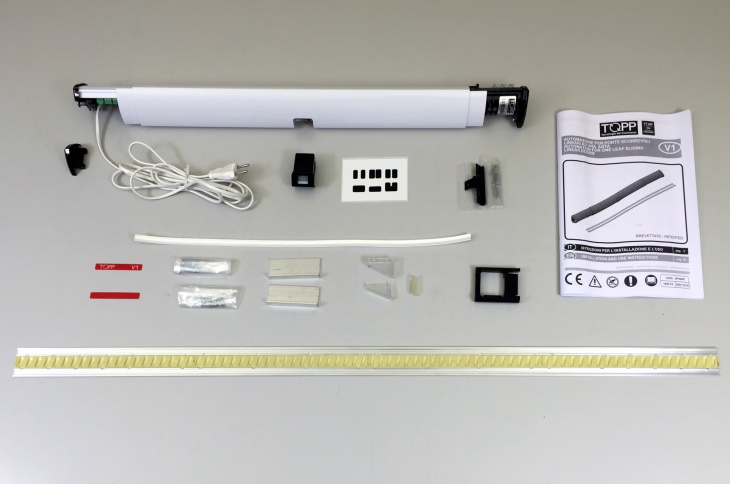

ATTENTION: Topp V1 automation for sliding doors is supplied with
a single integrated sensor. If you want an extra sensor, it must be purchased separately. In fact, it is assumed that on one of the two sides is open by a button (normally supplied by the electrician).
V1 allows easy installation, simple adaptability to existing sliding doors, minimal dimensions and appealing design.
It is available with infrared on-board sensor, microwave sensor or gesture activation key and remote control selector. In the basic version, functions by remote control selector cannot be selected.
V1 can be easily installed on existing concealed sliding doors and complies with the EN16005 standard, “Low Energy Movement” section, that manages the door speed by a sophisticated electronic control with no need of sensors or safety photocells.
The remote control selector allows to select the following functions:
Opening, Closing, Door open or closed, Slow speed mode, Entrance only mode, Exit only mode, Reset, Automatic mode.
CE marked device.
V1 230V Topp Automation for Sliding Doors Technical characteristics:
- Power supply: 230V ~ 50Hz;
- Peripheral power output: 5 V 80mA / 24 V 110mA;
- Absorption: 100mA a 230V;
- Power absorbed: 15W;
- Type of use: continuous;
- Opening/closing speed: in accordance with the EN16005 about “Low Energy Movement”;
- in reference to panel weight;
- Control of panel weight: from 150N to 500N adjustable every 35N by the installer;
- Maximum thrust force: 62N;
- Door open waiting time: adjustable from 2 sec to 60 sec;
- Protection against electric shocks: class II;
- Working temperature: - 5°C + 50°C;
- Number of door panels: 1 PANEL;
- Maximum capacity: 500N;
- Size of opening: 700 ÷ 1000 mm;

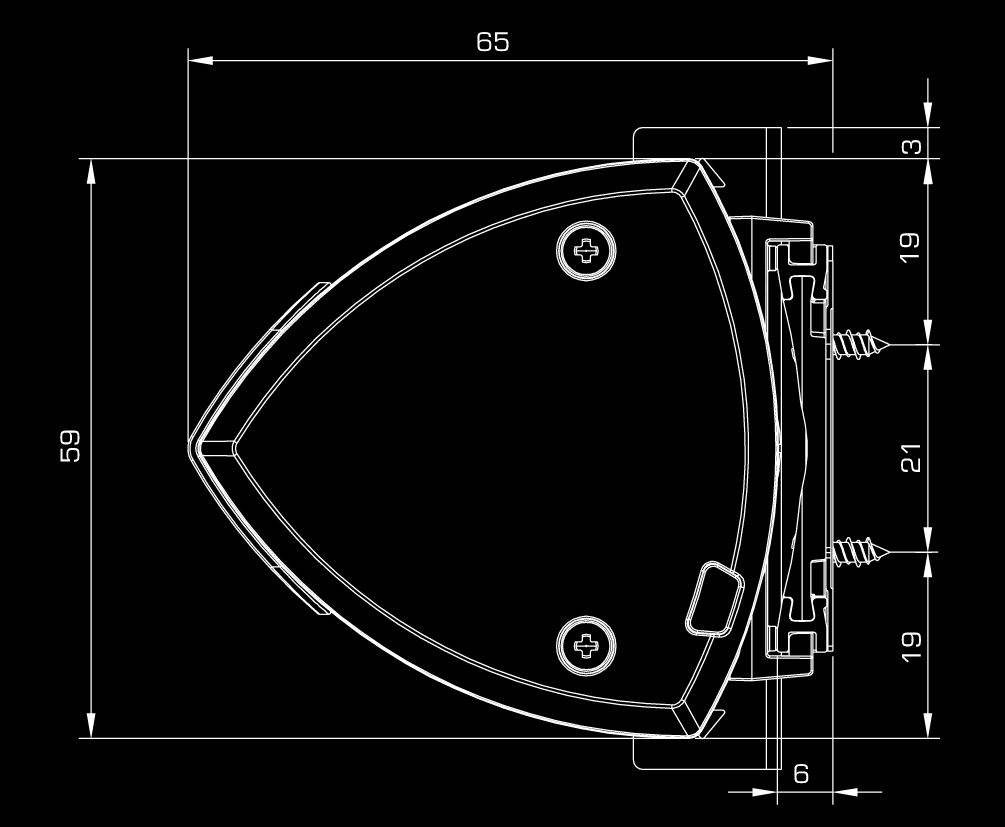

- Overall dimensions: 59x59 mm x variable length 700 - 1000 mm.
