Blade Hinge with Washer for Welding Justor PP 240

Justor
Brands: Justor
Code: PP
£ 44,39
Prices excluding VAT
Are you looking for a product from the Justor catalog that is not on our site? Contact us and ask for a quote.

- +

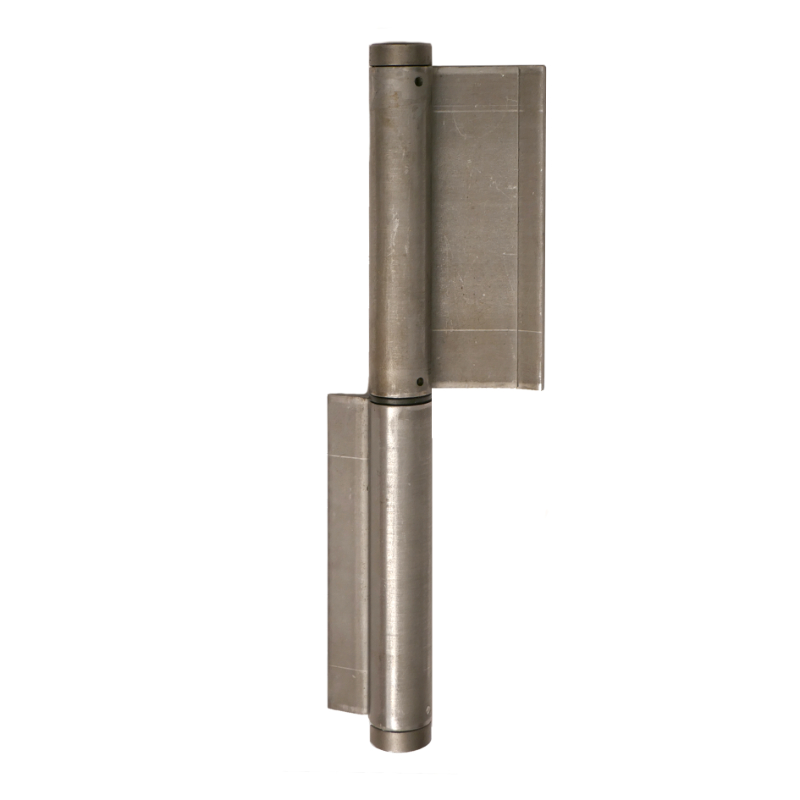

Bandella Pin with Welding Washer - Justor PP 240 - Case of 2 Pieces

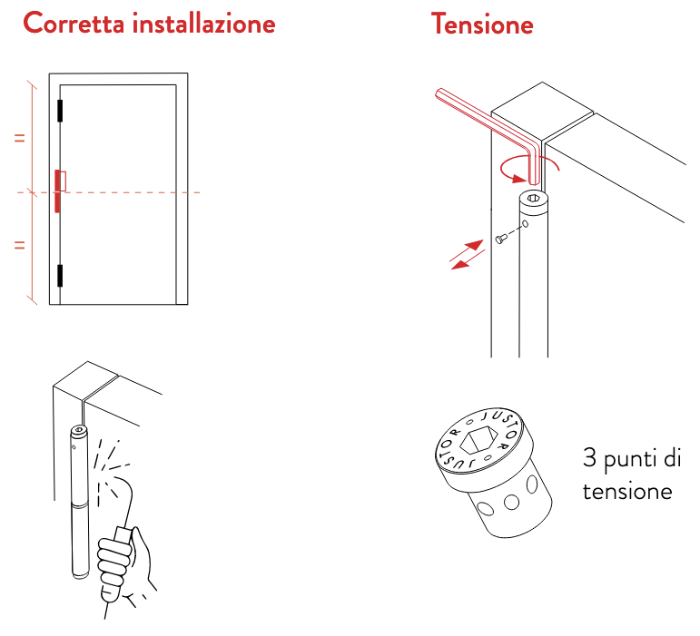

Strap pin with washer to be welded Justor PP 240 made with two profiles. Pin with shovel pushing the door.

The upper part that pushes the door works on the lower profile welded to the frame by the action of the washer.

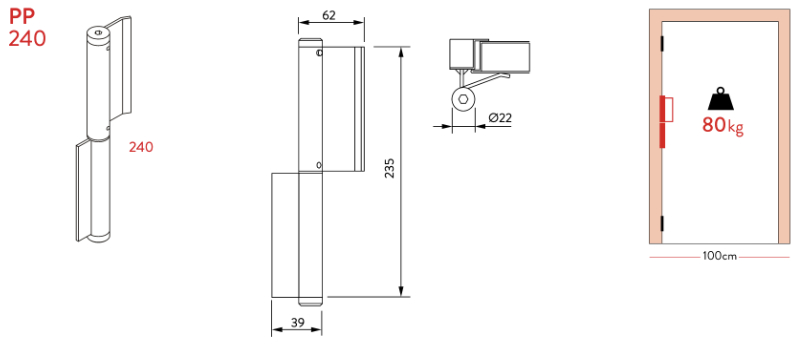

Features hinge pin with washer to be welded

  • High resistance to deformation;
  • 3 adjustable strength positions;
  • Opening up to 180º;
  • Door width 100cm;
  • Door weight 80 kg.

Perno a Bandella con Rondella a Saldare Justor PP 240

External materials for Justor PP 240 pin

  • Strap: steel;
  • Adjustment cap: carbon steel;
  • Washers: stainless steel.

Justor PP 240 pin internal materials

  • Axis inside: steel;
  • Internal spring: steel plate set with protective grease.

Perno a Bandella con Rondella a Saldare Justor PP 240

Justor PP 240 pin operation

  • Application: Suitable for interior/exterior doors;
  • Automatic return: yes;
  • Power regulator: yes;
  • Maximum opening: 180º;
  • Cycles: more than 500,000.
