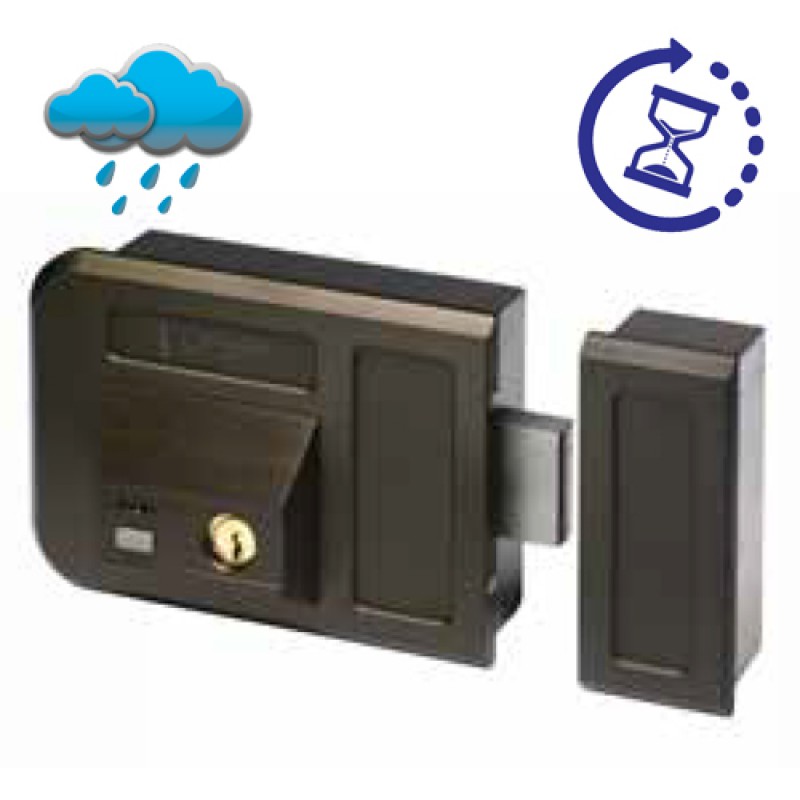

Bronze Security Electric Lock for Surface Mounting for Gates and Doors with Internal Key 28001 Gate Lock Opera Series
Bronze-coloured safety electric lock to be applied to pedestrian gates even exposed to bad weather and wooden condominium doors.
The
exposed bronze safety electric lock for gates and doors , model 28001 from the Gate Lock series by Opera, is a safety device designed to control access.
Do you want the black version? Go to the product sheet:
Black Electric Lock for Gates with Key 28001 Opera .
Are you looking for the silver version? Here is the product sheet:
Opera 28001 Silver electric lock .
Bronze electric lock for gates 28001 Opera internal opening variants:
- With key cylinder
- With key and button
Bronze electric lock for gates 28001 Opera hand variants:
On request (contact us to have these variations):
- Supply without cylinder (Art + SC)
- Version with remote deadbolt status relay (Art + M)
Features of the bronze colored safety electric lock 28001 Opera
- Bronze finish.
- Version: to be applied.
- Lock body and strike plate in stainless steel.
- Lock cover and counterplate in anodized aluminium.
- Deadbolt closed in the absence of power.
- Mechanical opening from the outside with round cylinder.
- Adjustable entry mm. 50 - 60 - 70.
- Stainless steel deadbolt dimensions 18 x 28 mm (25 mm travel).
- Anti-burglary device of the deadbolt in the closed position.
- Power supply: 12/24 Vac/dc.
- Current consumption 1.2 A starting, 200 mA holding.
- Internal microprocessor electronic circuit.
- 12 Vac/dc opening command from intercom or via relay.
- Hall effect sensor for the position of the door.
- Re-closing after 2 sec. when the door is brought together.
- Automatic reclosing timing selectable from 5 to 60 sec. if the door is not opened.
- C./NO/NC output relay contact for deadbolt status indication (M version only).
- Suitable for weatherproof operation, with internal heating system if the temperature drops below 5°C.
Led illumination
- Two-color red/green LED for signaling the deadbolt open/closed status.
- LED in the lower position for night indication, blue in the closed position and white in the open position to illuminate the ground.
Dimensions
Insertion of round cylinder for gates
Insertion of detached cylinder for wooden doors
Gate Lock Opera Series
- Safety electric locks for garages and automatic gates.
- Anti-cut rotating deadbolt with mechanical lock on closing.
- Manual operation with European cylinder.
- Entirely made of stainless steel, weatherproof.
- Can be operated from the gate remote control.
