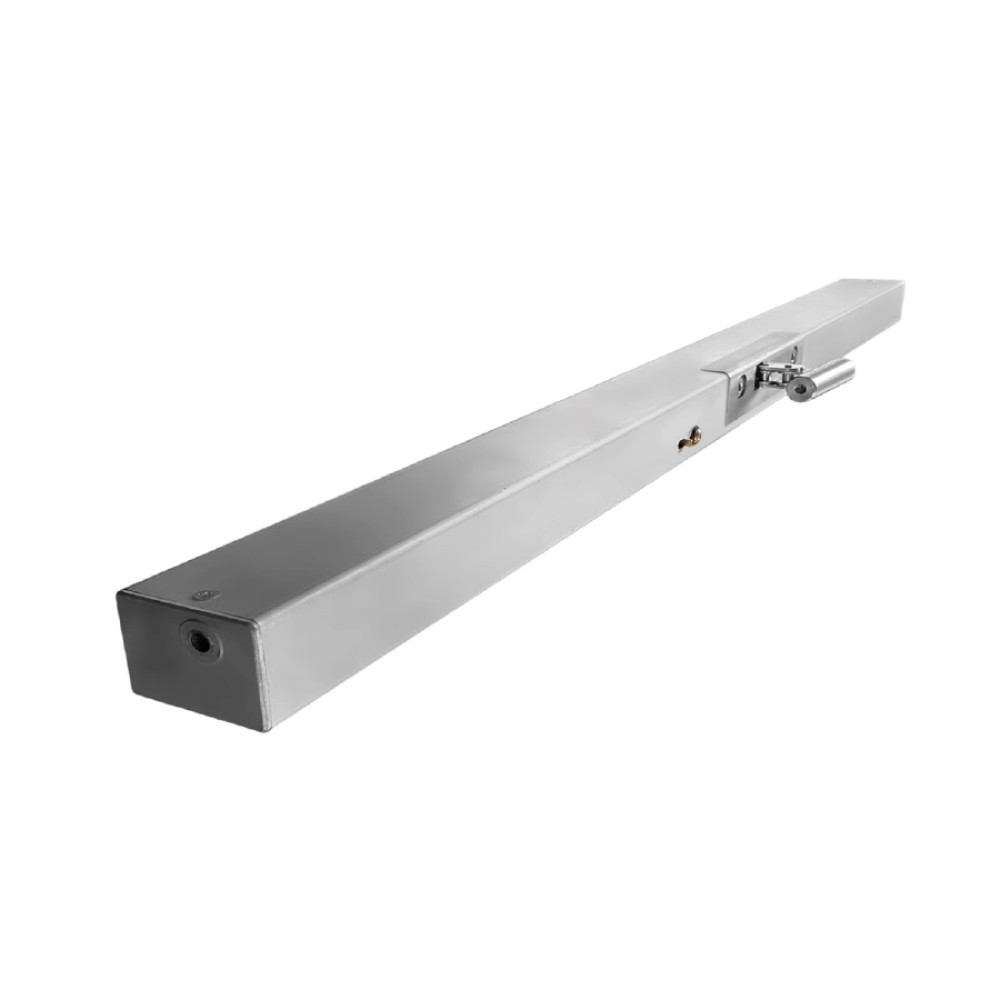

C50 Topp Electric Chain Actuator with Force 500N

C50 and C50 RWA - Topp Electric Chain Actuator - Thrust force 500N

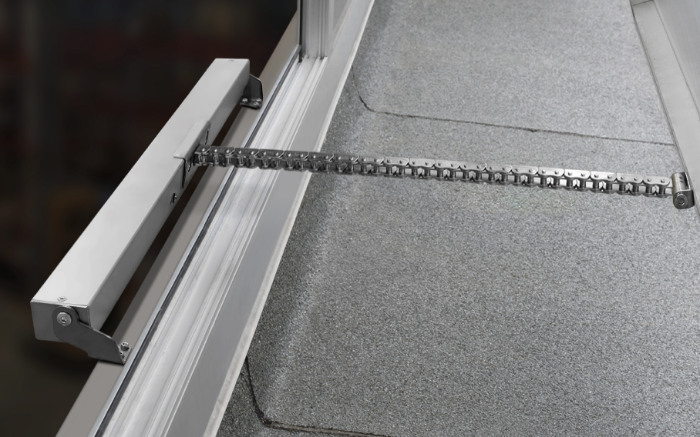

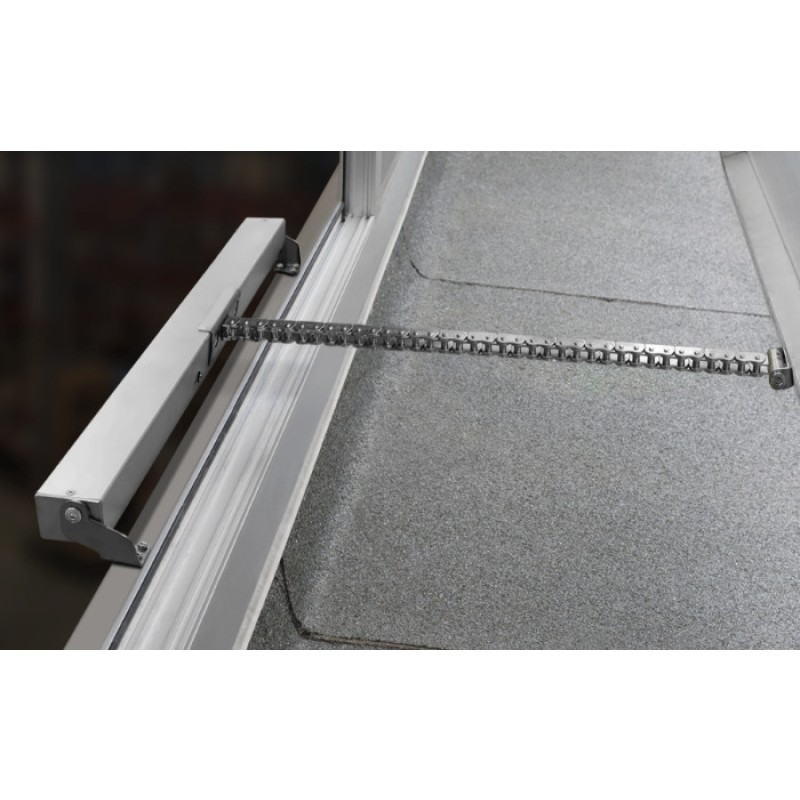

Topp C50 and C50 RWA actuator with double link articulated chain

• 230V 50Hz or 24V dc operation (select the variant);
• Maximum applicable load 500N;
• Strokes 600, 800, 1000 mm (select the variant);
• Chain terminal attachment to the frame and patented chain trim adjuster to ensure greater resistance to high peak loads with long strokes;
• Arranged for synchronization and simultaneous operation of two actuators installed on a single window;
• CE marked device and, in the 24V version, verified according to the EN12101-2 directives for smoke and heat evacuation systems (stroke 600mm and stroke 800mm).

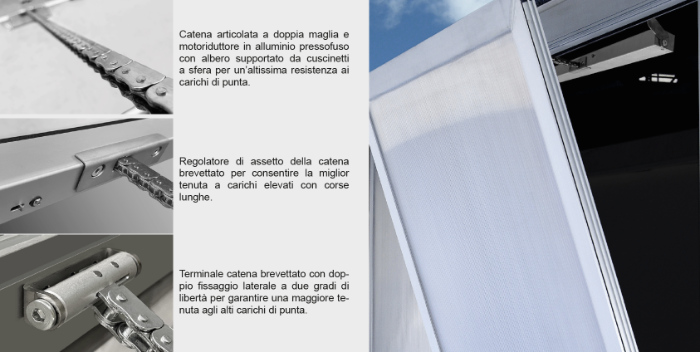

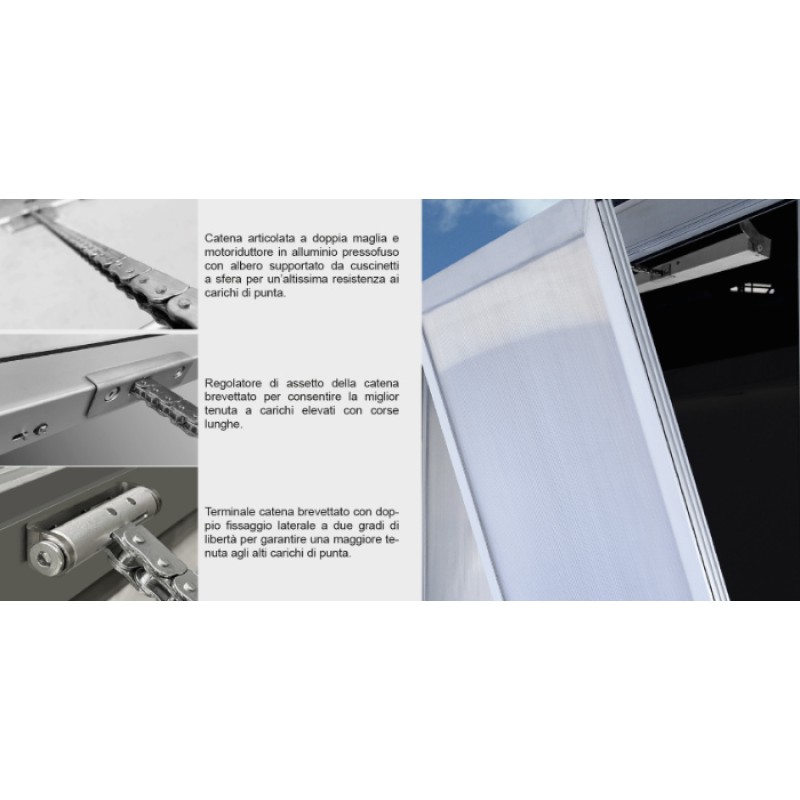

C50 Topp with 500N force: very high resistance to peak loads

1. Double link articulated chain and die-cast aluminum gearmotor with shaft supported by ball bearings for very high resistance to peak loads;
2. Patented chain trim adjuster to allow the best hold at high loads with long strokes;
3. Patented chain terminal with double lateral fixing with two degrees of freedom to guarantee greater resistance to high peak loads.

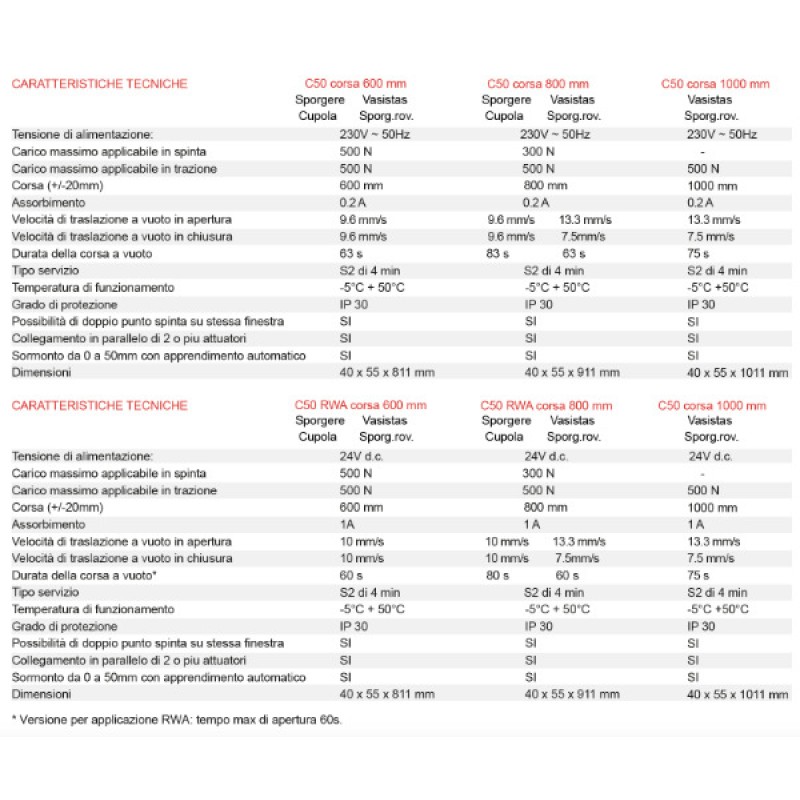

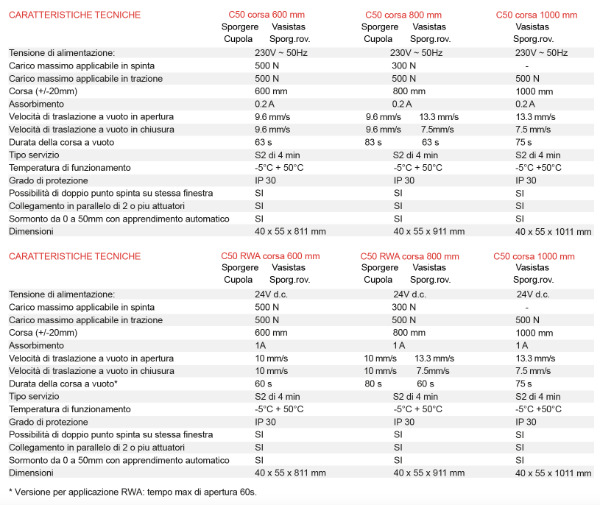

Technical characteristics of Topp C50 actuator

Why choose C50 Topp?

1. Double link chain with very high resistance to peak loads;
2. High stroke combined with reduced dimensions of the actuator to allow applications that require minimum overall dimensions (international patent on the chain path);
3. Current absorption limit switch in closing to avoid adjustments in closing and to avoid any errors in the positioning of the actuator;
4. Quick attachment and release system of the chain to the window (international patent).

Topp window motors with Made in Italy technology

High quality guarantee of Topp actuators

• C50 Topp - Scheda (2,24 MB)
