Cat Ultraflex UCS - Manual Chain Actuator with Crank Handle for Top-hung Windows

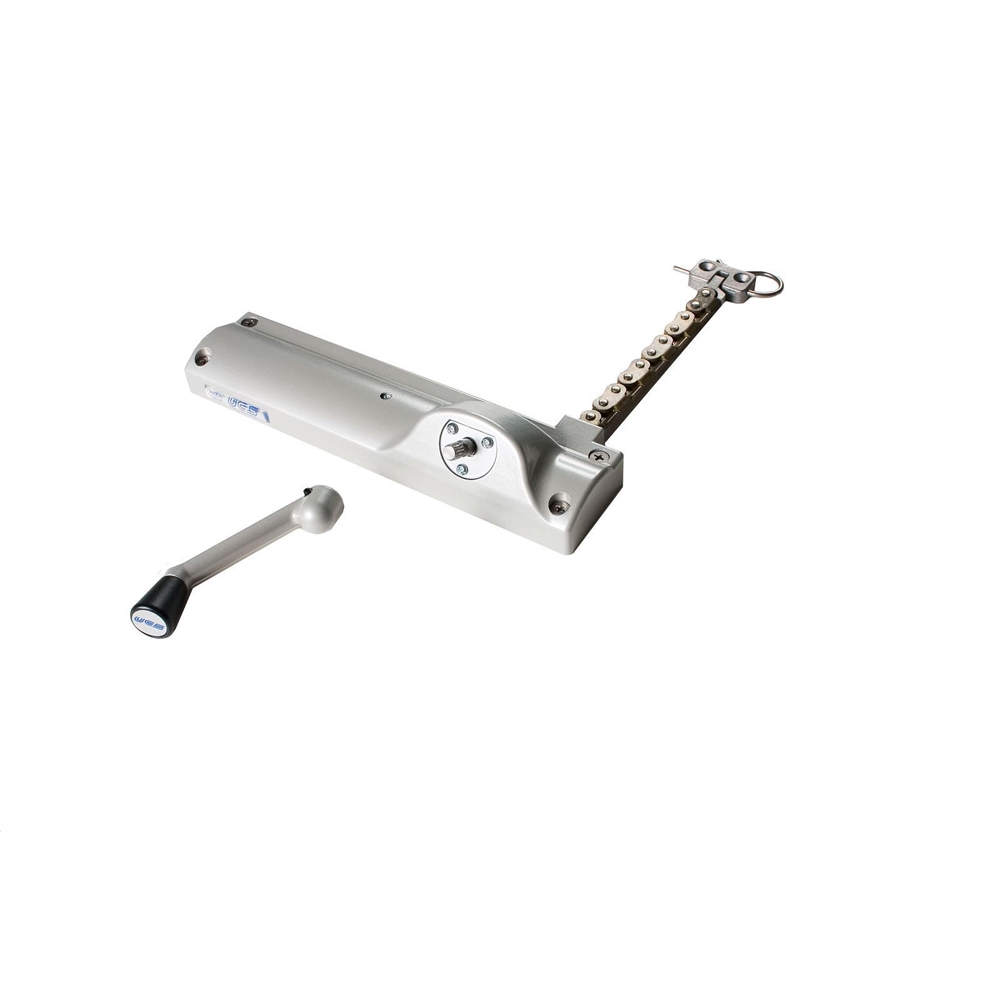

The Cat Ultraflex is a hand crank chain operated actuator
Cat Ultraflex Control Systems manual chain actuator

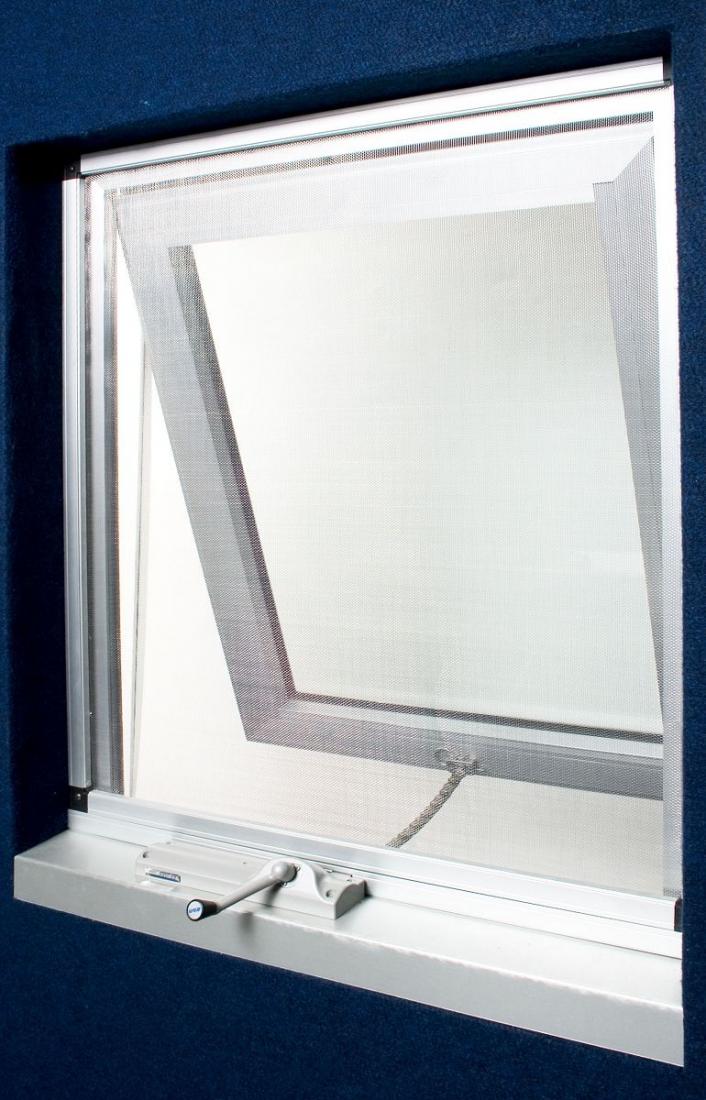

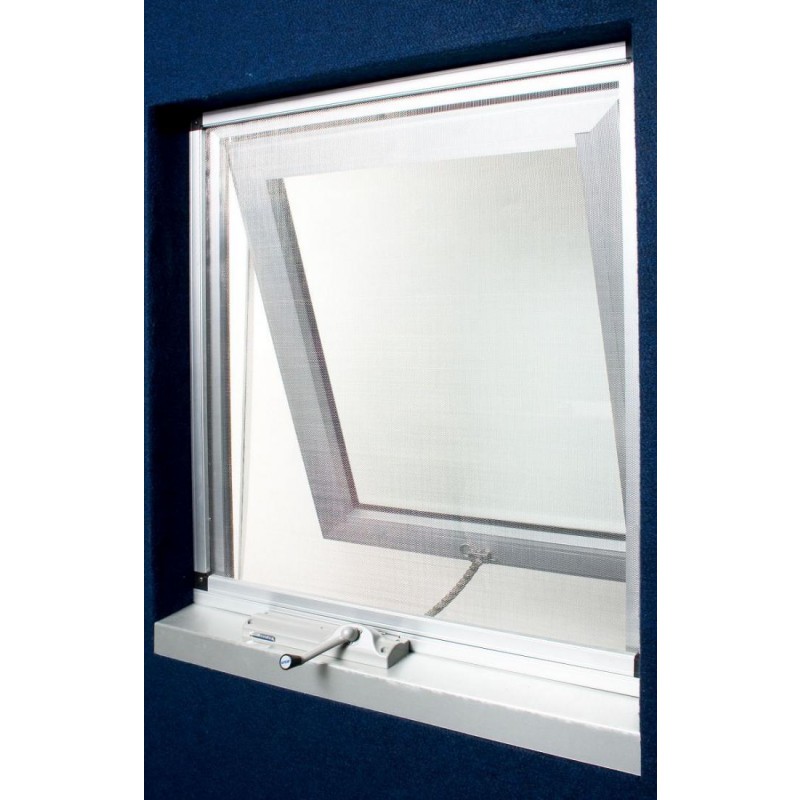

for opening top hinged windows by crank.
The Cat Ultraflex manual actuator has a

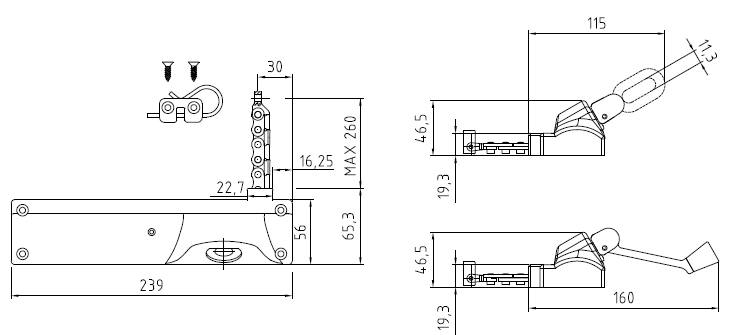

maximum opening of 260mm.
Cat Ultraflex technical characteristics
- Manual chain actuator for opening roof windows, skylights and hinged windows.
- Quick and easy installation on aluminum, wooden or PVC windows.
- Maximum opening approximately 260 mm. The door can be stopped in any intermediate position to obtain the desired ventilation.
- Possibility of opening the window from the inside without removing any mosquito net.
- The actuator is irreversible: in the closed position it is not possible to open the leaf from the outside.
- Smooth operation, 30 crank turns for full opening.
- Quick release system for easy cleaning of the window.
- Corrosion resistant chain. Suitable for doors with a minimum height of 300 mm*.
- The Cat is supplied with a sill handle .
- *for windows with a height of less than 500mm, follow the instructions in the user manual.
You can click on Documents to view the Technical Sheet of this product.
