Chain actuator ACK4 S Sync 230V 50Hz for the synchronous operation of more actuators on the same window frame Topp
ACK4 S Sync synchronised for more push points Black Grey White

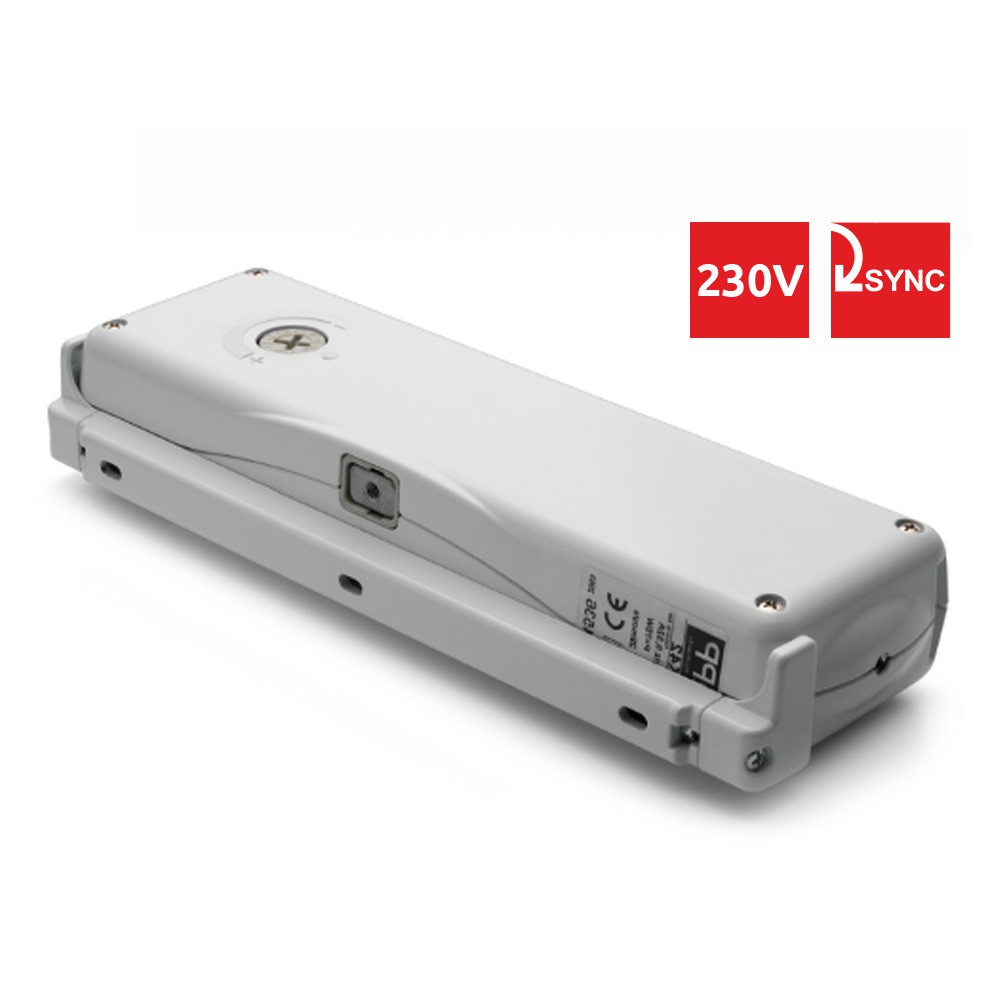

Electric actuator Topp model ACK4 S Sync 230V with double-link made of Stainless steel, contained in as die-cast body of alluminum alloy coated by epoxy powders, complete with support and fitting accessories for top and bottom hung windows.
“S” version for the synchronous operation of more actuators on the same window is available.
The price is for single actuator.
Description of the actuator
- Operation at 230V 50Hz;
- Max. stroke 40cm, adjustable at 100, 150, 200, 205, 300, 350, 400mm by an external handgrip;
- Electronics with acoustic device that warns of any eventual incorrect installations;
- Protection degree of electric devices IP55;
- CE marked device.
ACK4 S Sync 230V for more push points

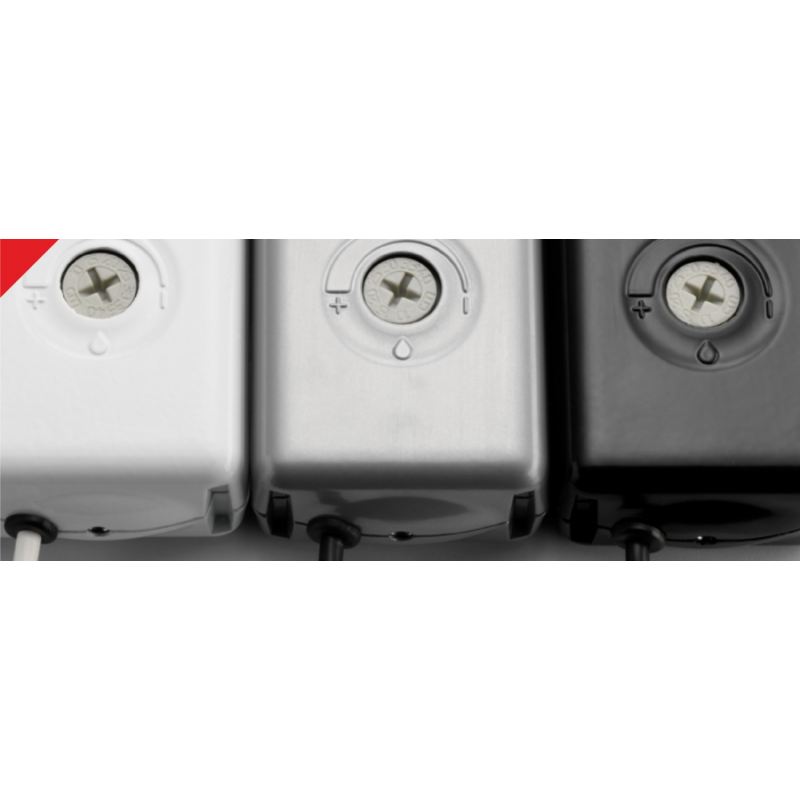

Choose the version of your Topp actuator:
- 3A419901 - Black;
- 3A419903 - Grey;
- 3A419902 - White.
Why choose ACK4 S Sync Topp?
- ACK4 S Sync is ideal to be synchronised and to function on more push points on the same window frame;

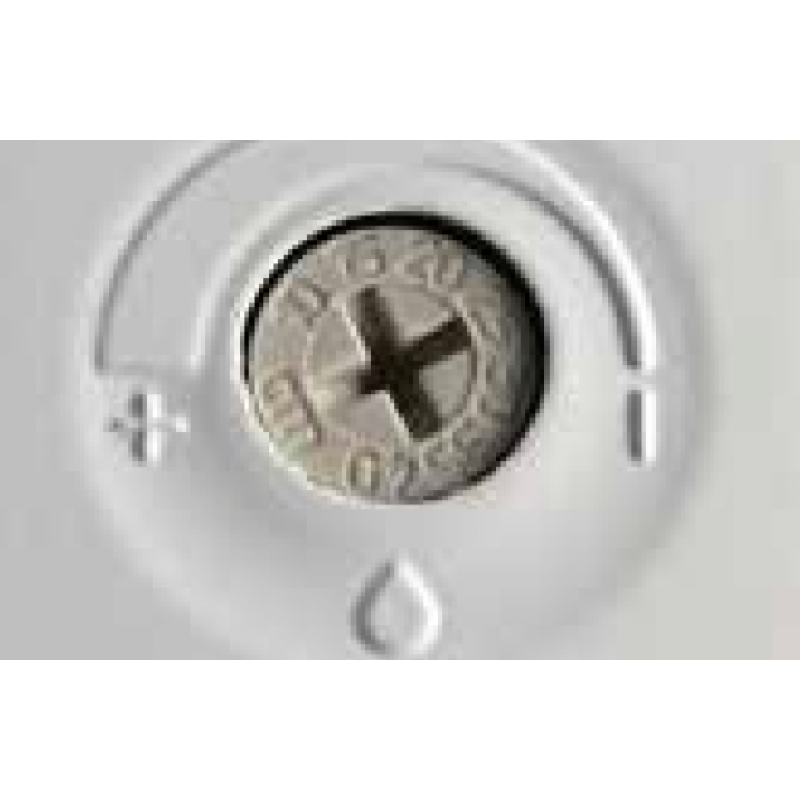

- Easy stroke adjustment;
Easy stroke adjustment (7 positions from 100 to 400mm) - International patent.

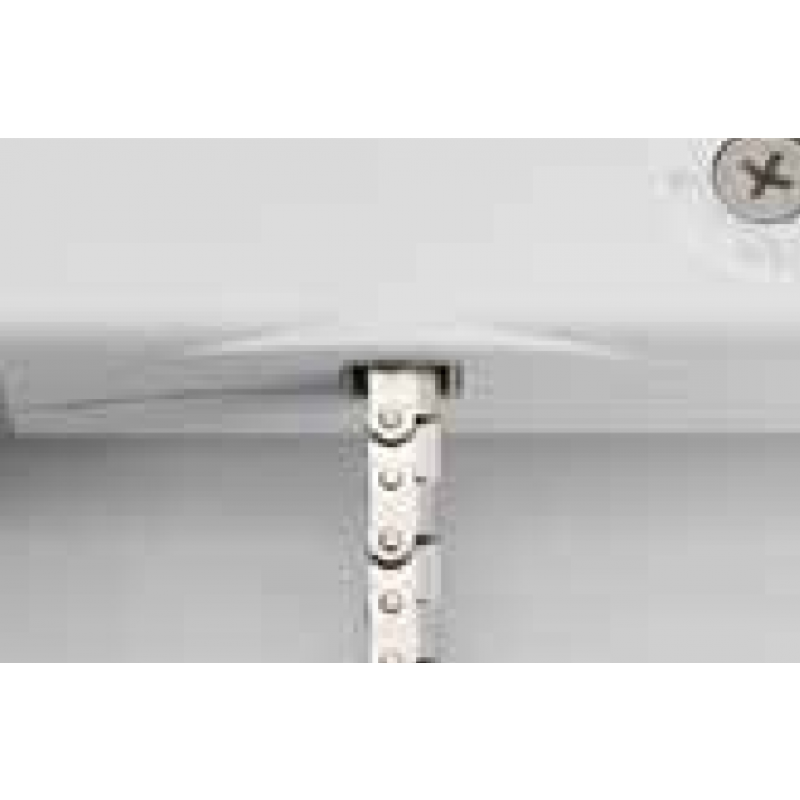

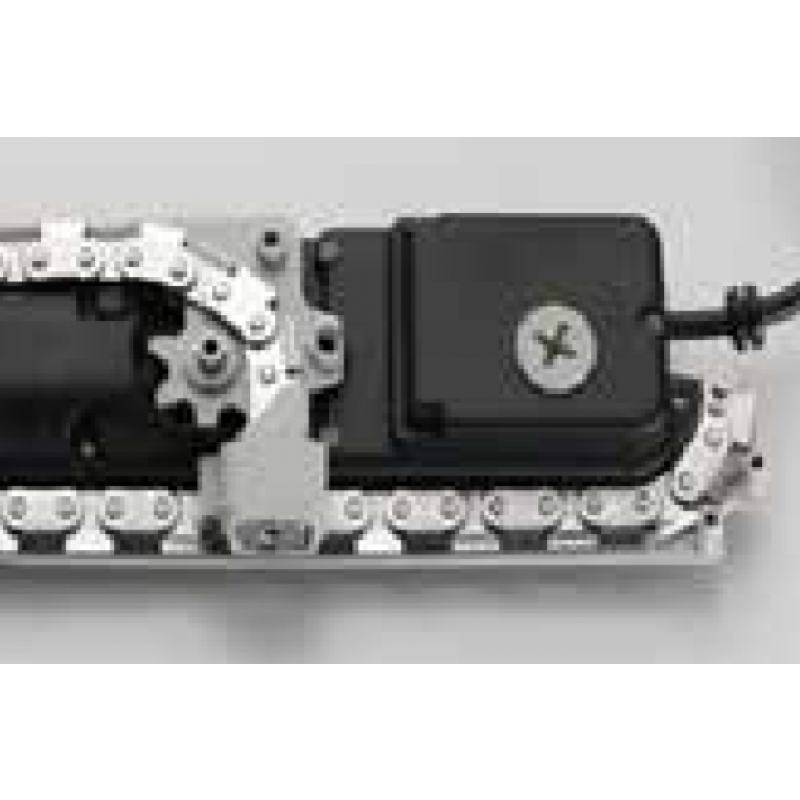

Double link articulated stainless steel chain.
High protection IP 55 rated.
Technical characteristics of the actuator
- Power supply voltage: 230V 50Hz;
- Maximum applicable load in thrust: 300N;
- Maximum applicable load in traction: 300N;
- Strokes: 100, 150, 200, 250, 300, 350, 400mm;
- Absorbed current: 0,32A;
- Idle translation speed: 27mm/sec;
- Duration of the idle stroke: 15sec:
- Double electrical insulation: yes;
- Service type: S2 of 2min;
- Operating temperature: -5° +50°C;
- Protection degree of electrical devices: IP55;
- Stroke end adjustment to the window frame (in closing): 10mm;
- Parallel connection of two or more ACK4: yes;
- Chain position control: yes;
- Stroke end: encoder;
- Acoustic device that warns of any eventual incorrect installations (buzzer): yes;
- Dimensions: 288,5x83x47,8mm;
- Weight: 1,9kg.

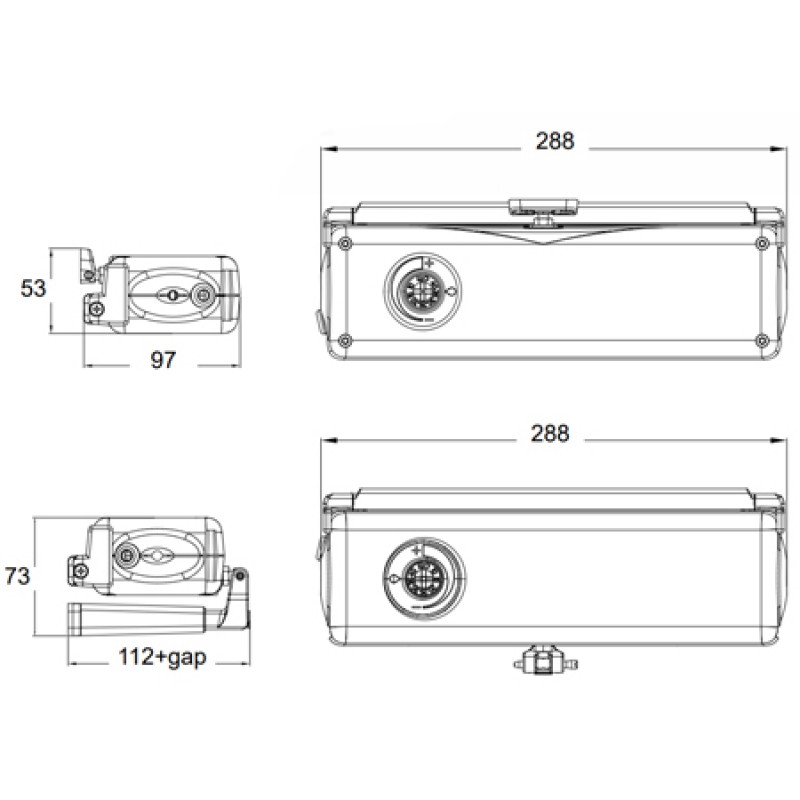

Dimension of the actuator
Dimensions are in millimetres.
Applications of the actuator
Top-hung windows, bottom-hung windows, skylights, roof windows, cupolas.
What is included?
Chain actuator, brackets set for top/bottom hung windows.
