Chain Actuator Micro L RWA WAY Mingardi 24V Stroke 280-380mm 350N
Chain actuator for: top hinged windows, bottom hinged windows
- MINGARDI linear electric actuator with articulated chain movement contained inside the casing.
- Operation with 24V DC power supply Compliant with Directive 2004/108 EMC.
- Tested according to the specifications of the European Standard EN 12101 - 2.
- Equipped with an electronic limit switch system. Can be connected in parallel.
- Available colours: silver anodized (A) - black anodized (N) - RAL 9016 (B).

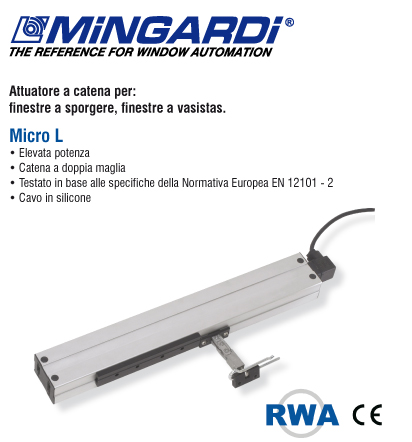

Features Mingardi Micro L Chain Actuator
- High potency;
- Double link chain;
- Tested according to the specifications of the European Standard EN 12101 - 2;
- Silicone cable;
- Degree of protection: IP 22;
- Closing-opening limit switch: Electronic.
Colour: Silver anodized (A) - Black anodized (N) - RAL 9016 (B)
ATTENTION:
- The universal kit for applications on top-hung windows (art.2700090) must be purchased separately on the website.
- The universal kit for applications on bottom-hung windows (art.2700092) must be purchased separately on the website.
MICRO L RWA MINGARDI TECHNICAL DATA
| DESCRIPTION |
VOLTAGE |
PUSH TRACTION |
RACE |
ABSORPTION
MAX |
MINIMUM SPEED |
| Micro L RWA |
24V |
350 No |
280mm
380mm |
25W |
approx. 16mm/s |
THE PERFORMANCE VALUES SHOWN IN THE TABLE ARE AVERAGE CERTIFIED VALUES UNDER STANDARD USE CONDITIONS.
