Switch for civil series, 1 Module 1P 10 AX 250 V~ aligned illuminable , replaceable button, color finish of your choice. Max 100 W for lamps with integrated power supply.
You have chosen:
Minimum order quantity: 10
Are you looking for a product from the Vimar catalog that is not on our site? Contact us and ask for a quote.

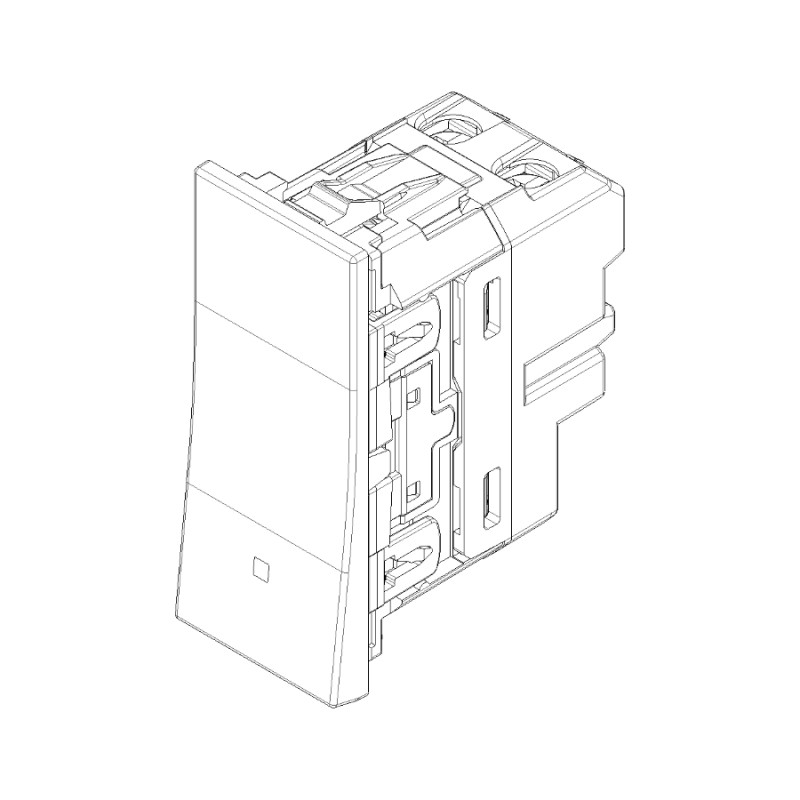

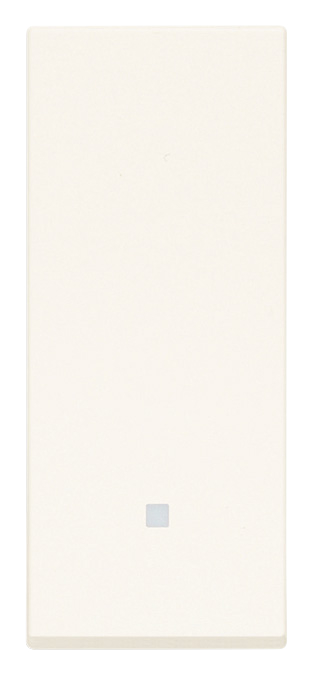

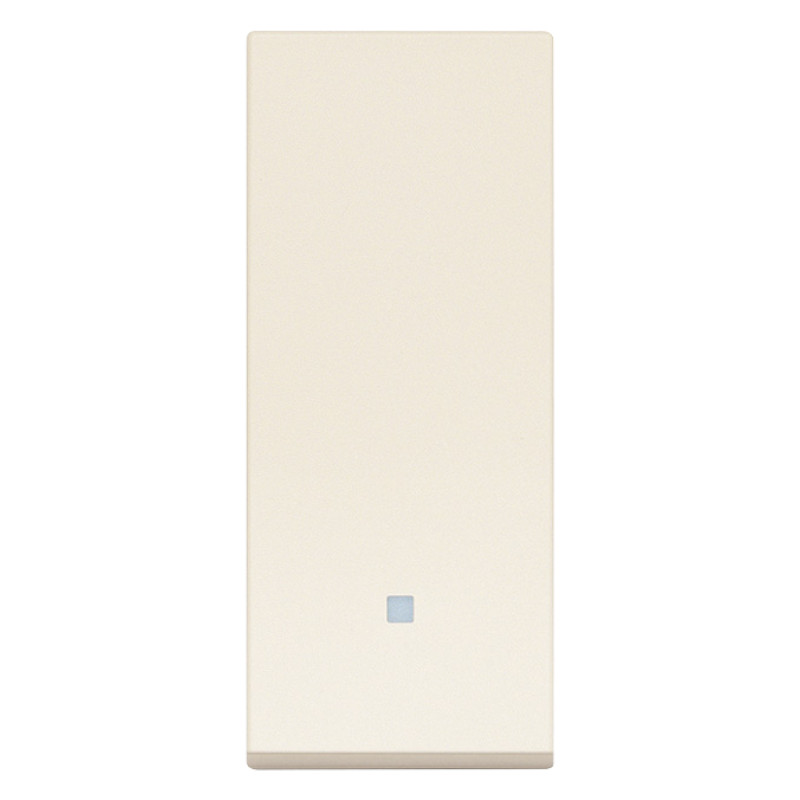

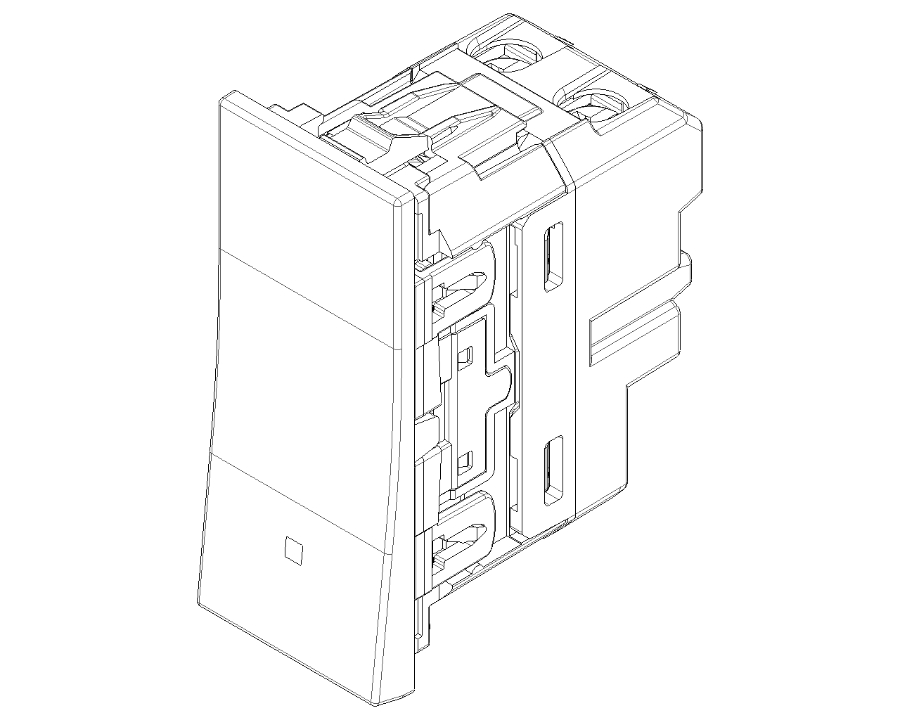

1 Module Switch for Civil Series - VIMAR LINEA 30000.B/C/G - Aligned and Illuminable
Single-pole switch 1 pole 10AX 250V~ from the Vimar Linea civil series , with aligned control, replaceable button and optional LED lighting (control and orientation function).

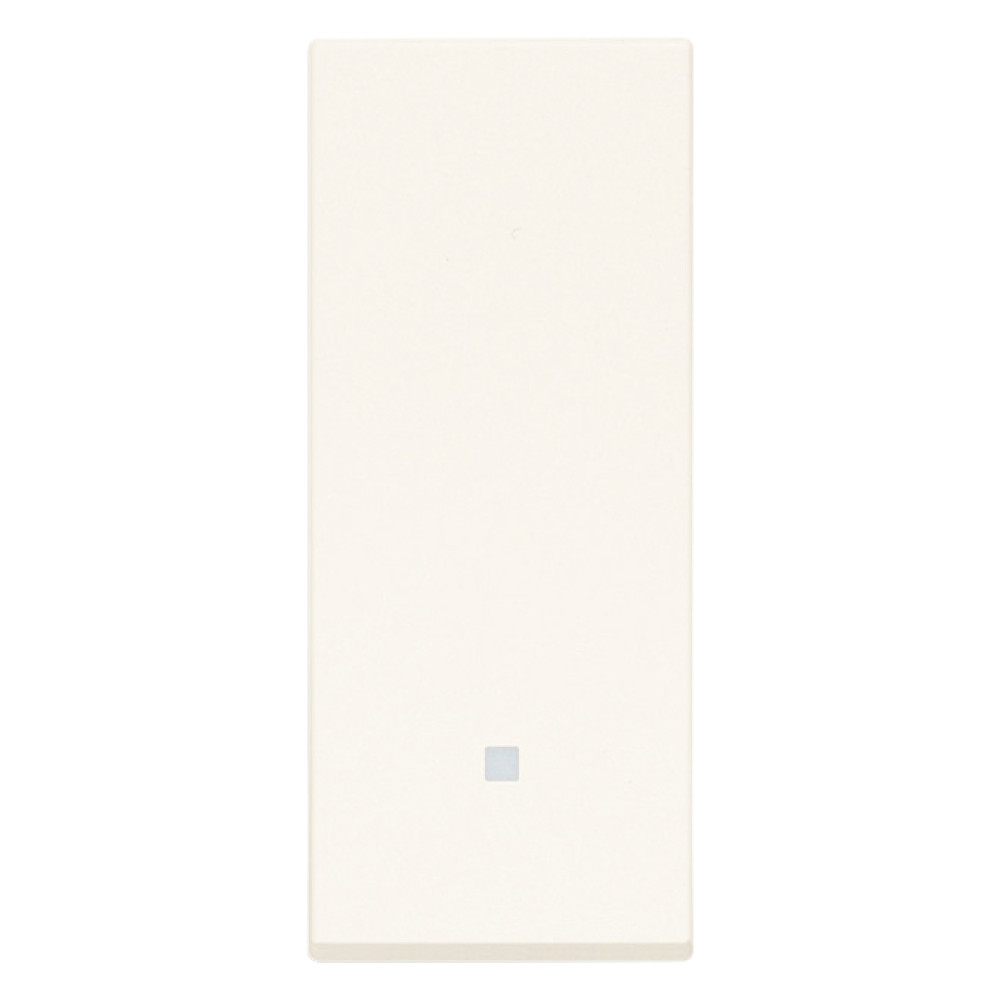

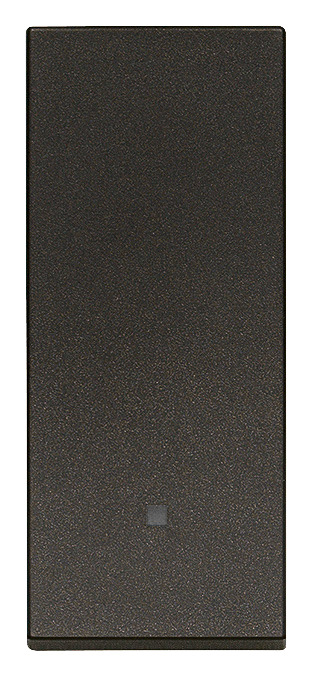

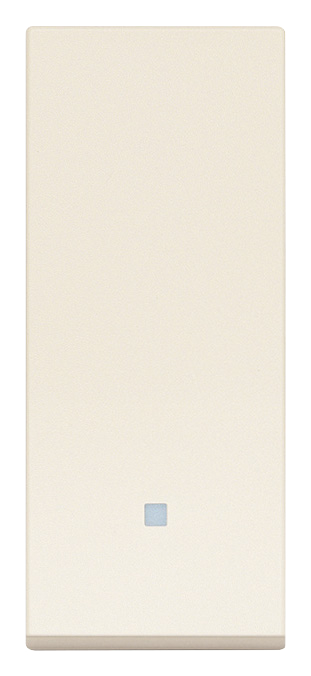

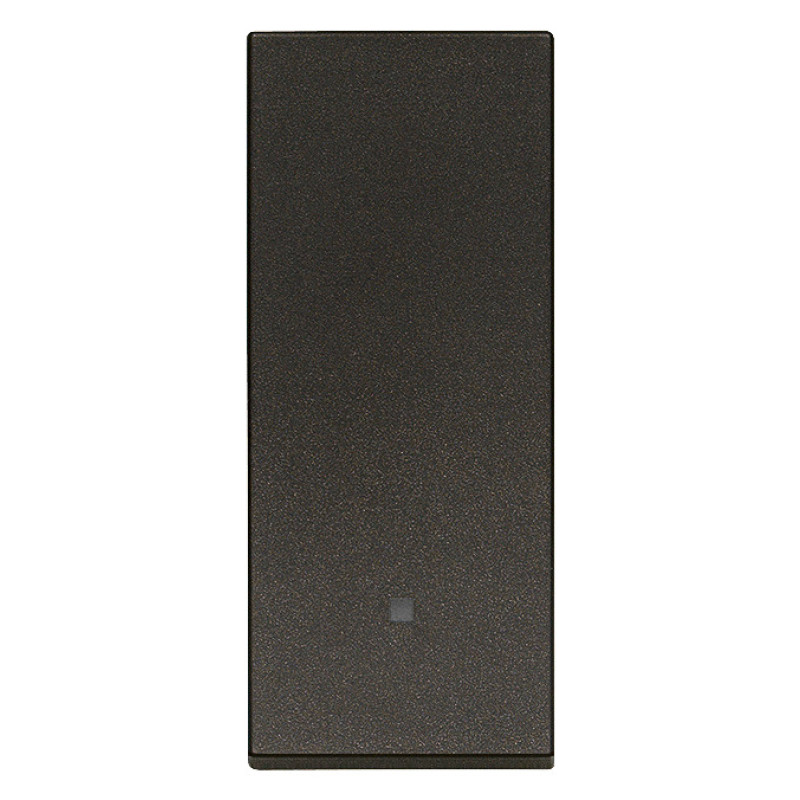

Available in different finishes , with a matt surface and discreet elegance. 1-module format, ideal for compact and coordinated installations (on Windowo you can also find the 2-module version).
Perfect for residential systems or professional environments that require a clean design, reliable controls and compatibility with Vimar Linea Series plates. Ideal for light control, with the option of backlighting for intuitive use even in the dark.
Main features of the 1-module switch for the Civil Series
Control type: Rocker/push button
Operation: Single pole switch
Rated current: 10A
Rated voltage: 250 V~
Number of modules: 1
Lighting: Optional, with replaceable LED
LED function: Control and orientation
Mounting type: Recessed
Fixing: Lock in position

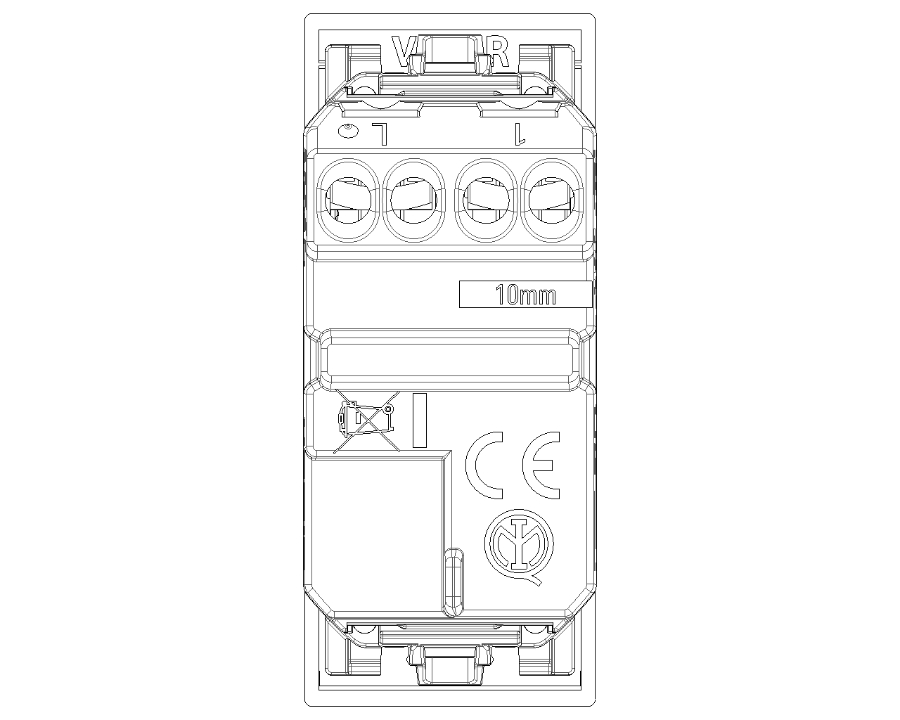

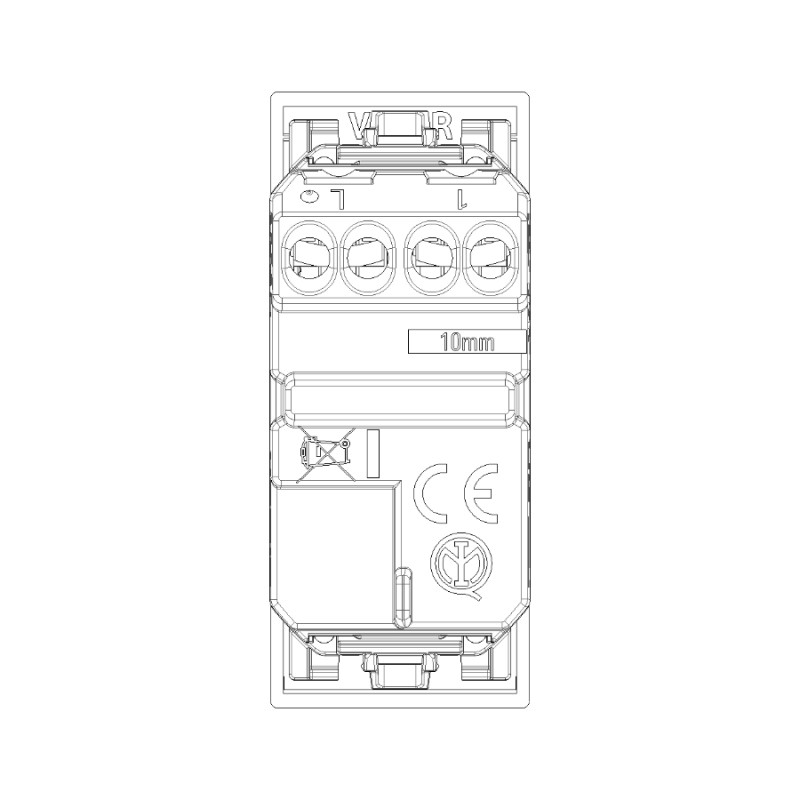

Connection: Screw terminal
Protection class: IP40
Suitable for lamps with integrated power supply up to 100W

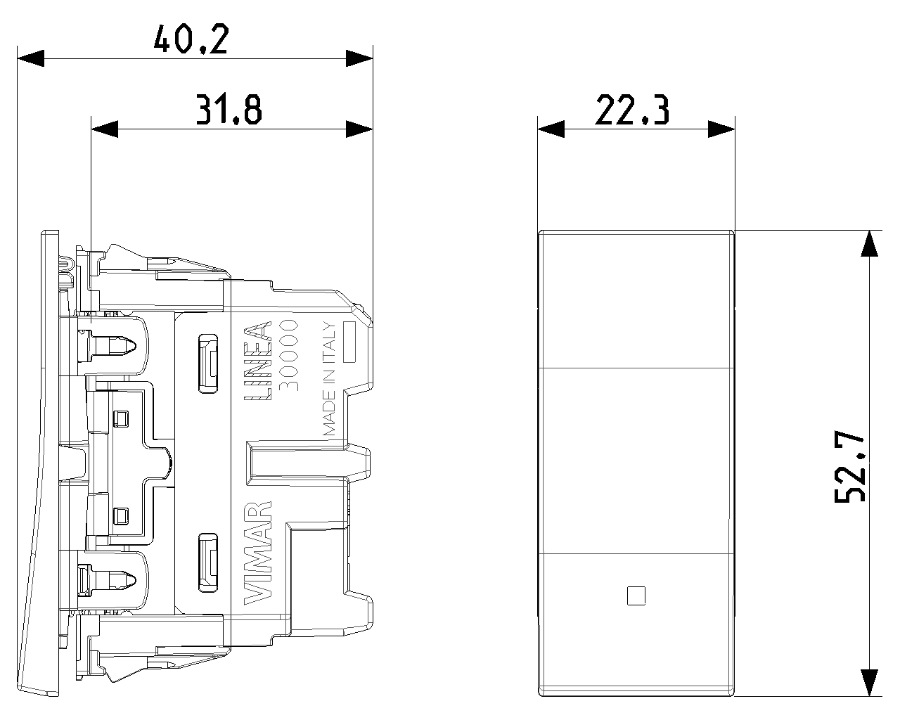

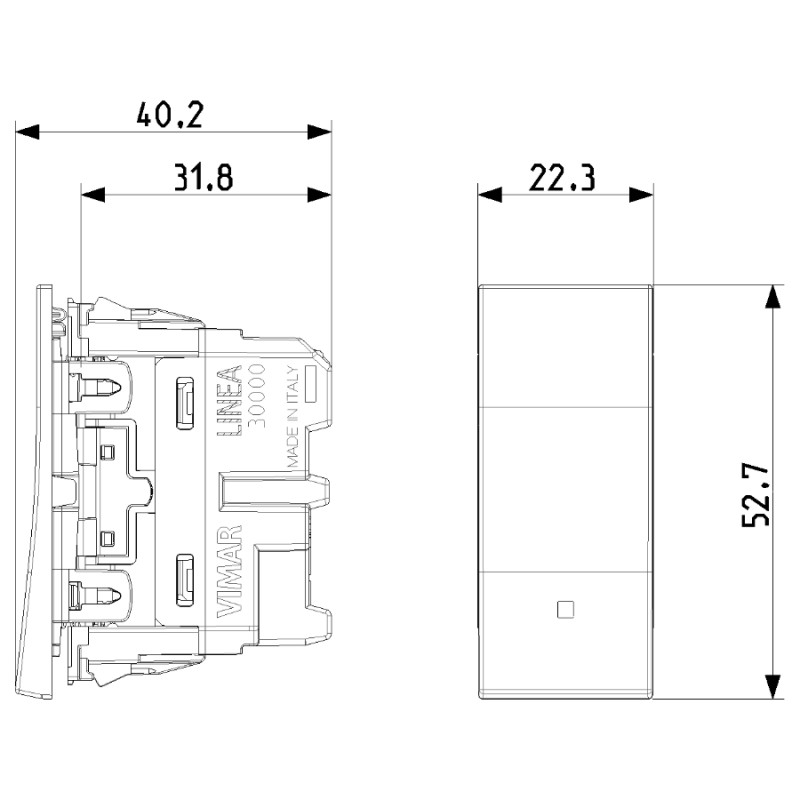

Materials and dimensions VIMAR LINEA 30000.B/C/G
Material: Halogen-free thermoplastic
Surface: Matte, untreated
Height: 52.80 mm
Width: 22.30 mm
Depth: 39.70 mm
Recess depth: 31.80 mm
Switches for civil series for sale online
The switches for civil series are fundamental elements for every electrical system, designed to guarantee safety, functionality and design. Available in different types - such as single-pole switches, double-pole switches, diverters and buttons - they adapt perfectly to the needs of homes, offices and professional environments.
Thanks to the wide choice of finishes , colours and modules, the domestic switches integrate with the plates of the main domestic series such as Vimar, BTicino, Gewiss and others, offering an elegant and coordinated solution.
On Windowo you will find a selection of high-quality domestic switches, also in illuminated or smart versions, ideal for those looking for a modern, reliable and easy-to-install system.
