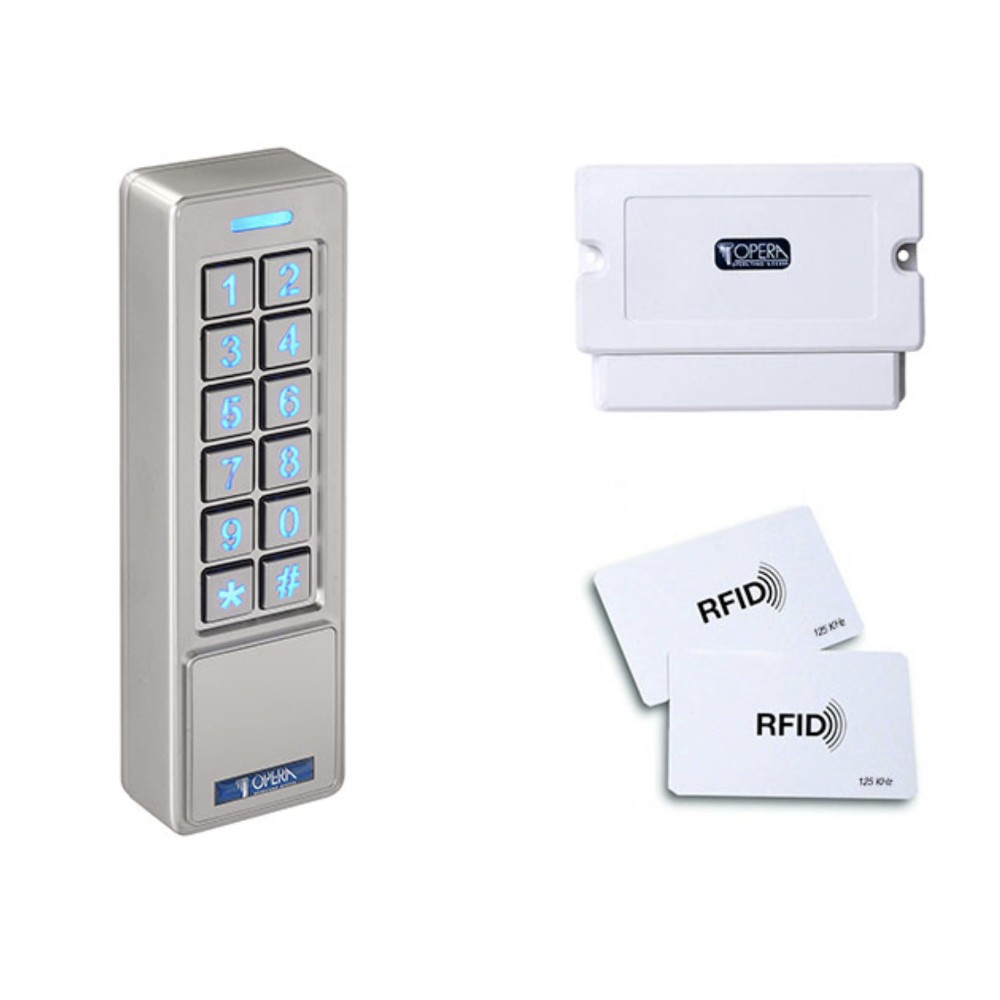

Code Keypad with RFID Reader 57301 Opera 12/24 Vac/dc Backlit

Opera
Brands: Opera
Code: 57301
-20%
£ 247,87 £ 309,84
Prices excluding VAT
Outdoor code keypad, with transponder reader. Two releases for the management of 2 doors with code or card. Separate electronics for absolute safety. Vandal-proof, with anti-tamper system.
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

Code Keypad with RFID Reader - 57301 Opera - 12/24 Vac/dc - Backlit Blue Color

Code keypad with RFID card reader - Combined access control system, keypad and transponder reader.

External keyboard equipped with transponder reader, designed to manage two doors via code or card. It has a separate electronic unit to ensure maximum security and is designed to resist vandalism, including an anti-tamper function.

Art. 57301 - 12/24 Vac/dc - blue backlit keyboard

  • IP65 protection rating - for outdoor use;
  • Current absorbed: 50 mA in stand-by/95 mA with active relay at 12 Vdc, 30 mA in stand-by/50 mA with active relay at 24 Vdc;
  • Internal buzzer to signal key presses;
  • Double relay for managing two doors separately.

Remote management electronics for:
  • Management of the lock opening command;
  • Anti-tamper “tamper” contact with buzzer activation;
  • Contacts of the 2 output relays 30Vdc / 10A timed from 1-99 sec. for the lock opening command or selectable in bistable operation;
  • Up to 1,000 4 ÷ 6 digit codes or 125 KHz transponder cards can be stored on output relay 1;
  • Up to 10 4 ÷ 6 digit codes or 125 KHz transponder cards can be stored on output relay 2;
  • Access programming with PIN only, transponder only or PIN + transponder;
  • Separate code storage for door 1 or door 2;
  • Activation of the anti-tamper alarm buzzer;
  • NO input buttons for opening door 1 and 2;
  • Code deletion: single or total.

Tastiera a Codice con Lettore RFID - 57301 Opera

Tastiera a Codice con Lettore RFID - 57301 Opera

Access Opera Series

  • Access control systems.
  • Code keypads, magnetic stripe and RFID card readers.
  • Stand-alone version for single applications.
  • Online version managed by PC for multi-door systems.
  • People counting systems for libraries, museums, shopping centers.

Opera Operating Access professional products

Opera srl, specialized in the design and manufacturing of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century. The company is characterized by continuous expansion in world markets but with strong roots in Italy.

opera operating access

Access control systems - Made in Italy quality

Over 40% of the turnover is made abroad, but 90% of our suppliers are local. Almost all of the products are manufactured in our modern industrial plant, with technologies that respect the environment and the quality of work. We are proud to produce and live in Modena, a town in northern Italy which has been included in the UNESCO world heritage site since 1997.

made in Italy
