Composition OL 90 N EV1 Geze For Rectangular windows, opening door 170mm
System for light openers, for rectangular windows (standard).
Finish: EV1.
The composition contains all the items you need to dial the device completely OL 90 N finish EV1 (type Silver).
The composition contains the following Art .:
Art.
Description
Color
030611
Lever and angular movement for OL 90 N Geze.
EV1
016591
Rod Ø 8mm 3000 mm.
Galvanized
030396
Cover profile, length 3000mm at the ends cut oblique.
EV1
030373

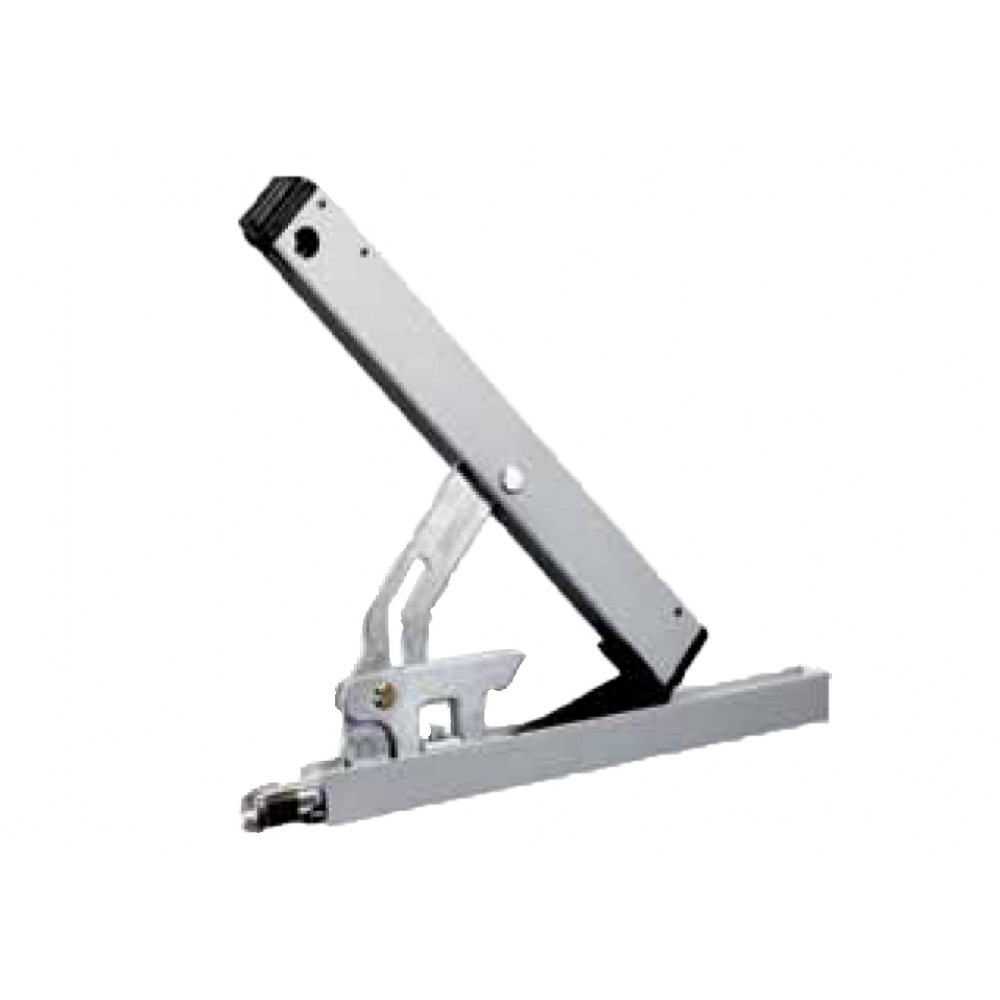

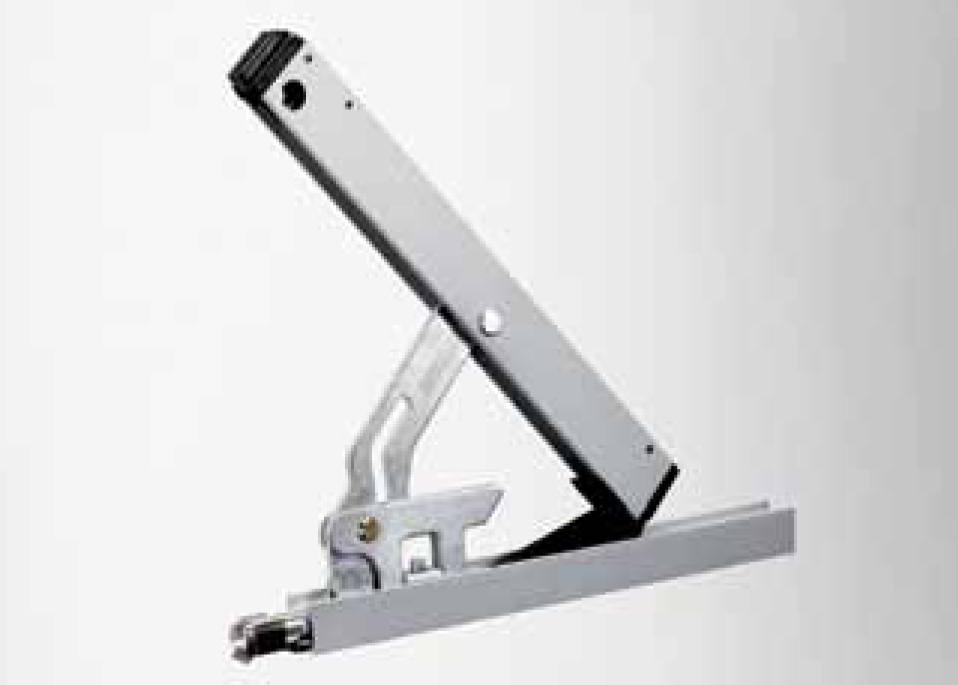

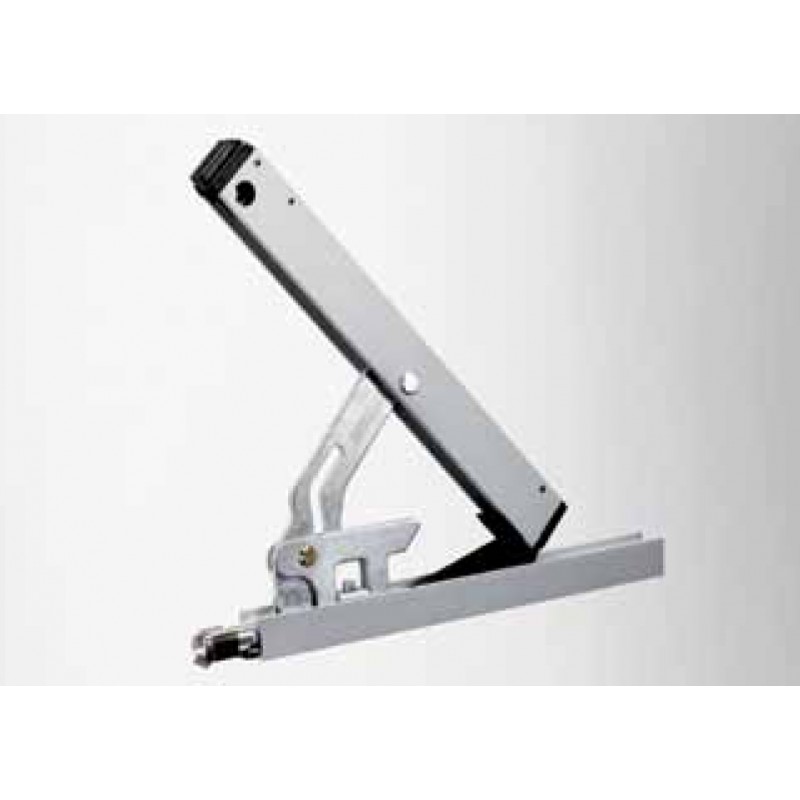

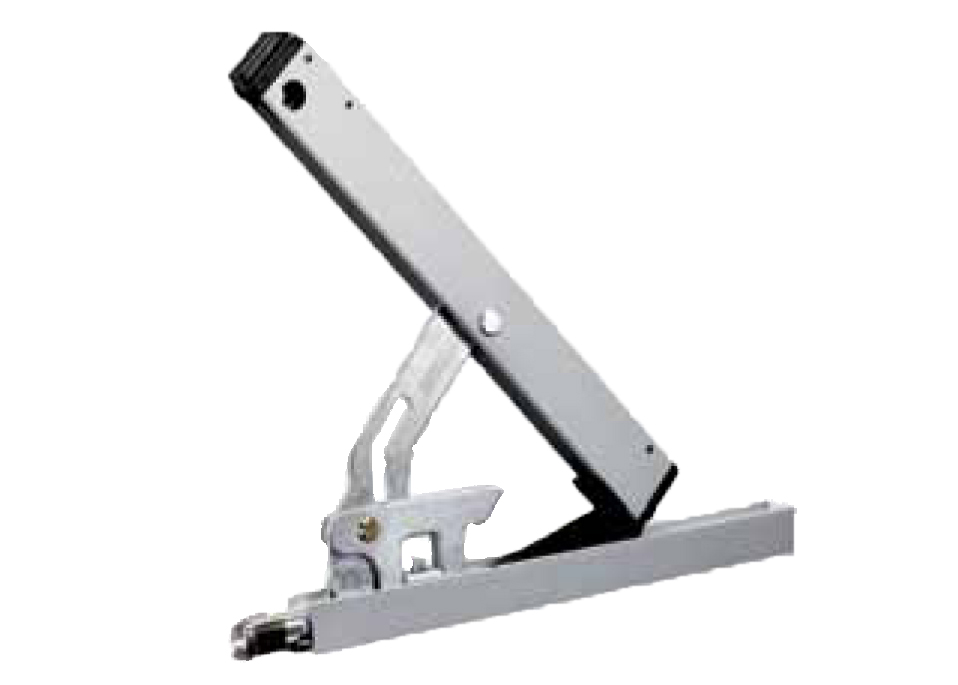

Scissors arm.
EV1
Device for opening fanlight resting with an angle of aperture of 170 mm.

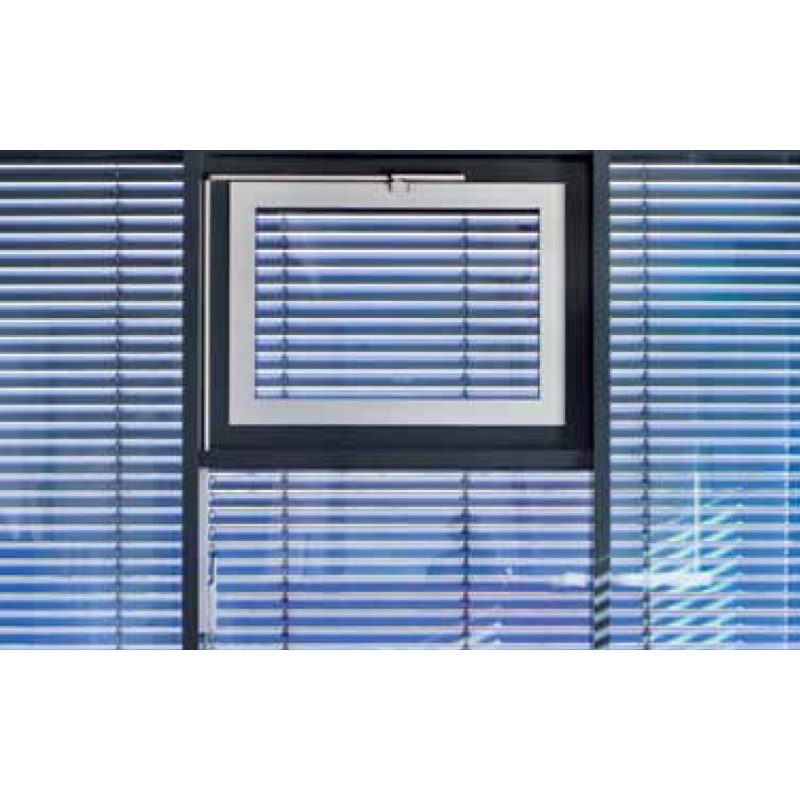

This fanlight opener is used on fi rectangular windows installed vertically and with inward opening, with door
tipper, hinge, swivel and swinging in wood, synthetic material or metal.
The OL 90 N meets the stringent requirements of the RAL quality seal and the level of quality RAL.
The OL 90 N, at all heights of the door, reaches the opening angle of full 170 mm.
The flat design of the arm and the turning of the arm V take up very little space above and to the sides of the door of the fi window.
The completely pre-assembled modules simplify installation. The arms and arm V can be mounted in front.
Inaccuracies stripping are automatically corrected by a set pressure.
The fixing screws are invisible, so the lines clear of OL 90 N are not interrupted.
The block in the arm ensures a safe locking of the leaf.
The easy release of the arms via button allows you to clean the window fi both internally and externally.
