Comunello Raywin R60 230V Rod Actuator for Windows and Domes

Comunello Mowin
Code: RAYWIN R60 230V
-25%
£ 143,75 £ 191,66
Prices excluding VAT

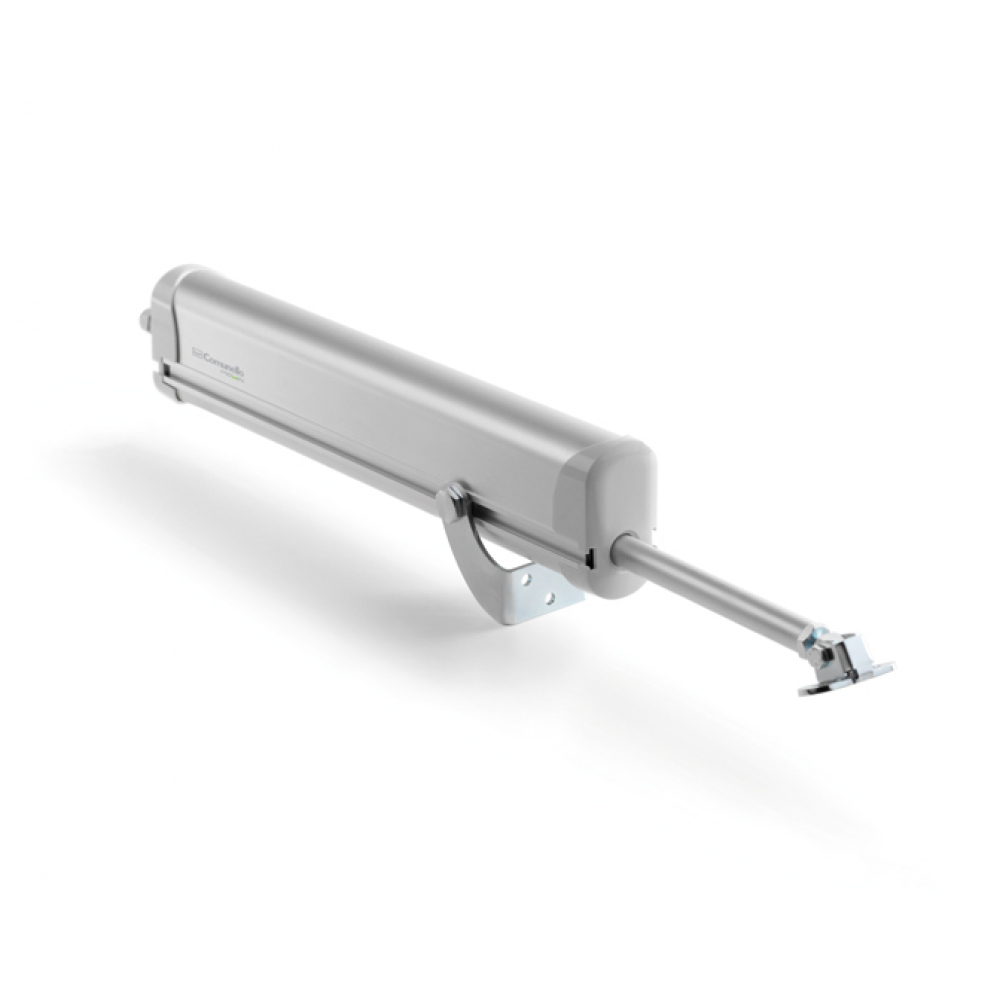

Comunello Raywin R60 230V is a rod actuator that opens and closes hinged windows, slats, sunshade blades and domes.
Are you looking for an actuator from the Comunello catalog that is not on our site? Contact us and ask for a quote.

- +

Comunello Raywin R60 600N 230V 50 Hz L=<1250 - Rod Actuator

Comunello Raywin R60 230V - Electric rod actuator for opening and closing top hinged windows, slats, sunshade blades and domes.


Raywin R60 230V Comunello Mowin rod motor

Inside the package you will find all the elements and tools that make assembly and connection operations with the electrical system simple.

The package contains:
  • Comunello Raywin rod actuator with electric cable,
  • anchor bracket and adjustment screws,
  • fixing bracket for projecting windows and domes,
  • multilingual instruction booklet.

Raywin Mowin Comunello rod actuator

Raywin Comunello stem actuator openings

Features Raywin R60 230V Comunello Rod Actuator

  • Model: Raywin R60 Standard 230V;
  • Power supply: 230VAC;
  • Frequency: 50Hz;
  • Service: S2 4min;
  • Push force: 600N;
  • Pulling force: 600N;
  • No-load translation speed: 7 mm/s;
  • Degree of protection: IP44;
  • Double insulation: Yes;
  • Absorption: 0.33A;
  • Power: 41W;
  • Operating temperature: - 5° / + 50°;
  • Strokes: 180 - 225 - 300 - 500 mm;
  • Opening limit switch: by absorption;
  • Closing limit switch: by absorption;
  • Soft Start / Soft Stop: Yes / Yes;
  • Obstacle detection: Yes;
  • Parallel connection: Yes (max 30 actuators);
  • Sync: No;

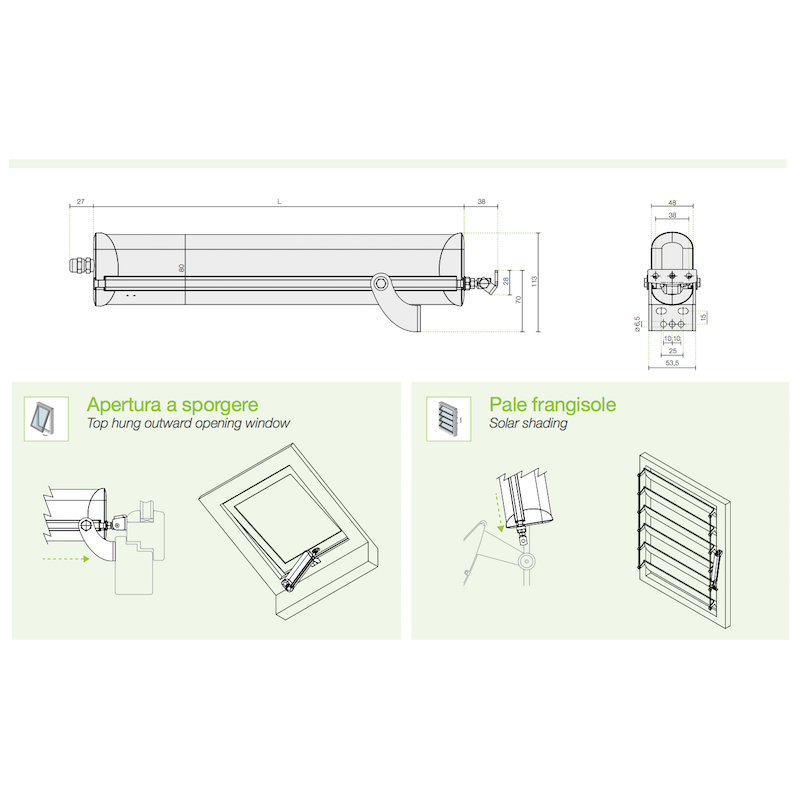

  • Dimensions: 400/600x84x48mm.

Raywin R45 Comunello actuator

Immediate stroke adjustment - Anchor points.
Adjustable fixing on rail.

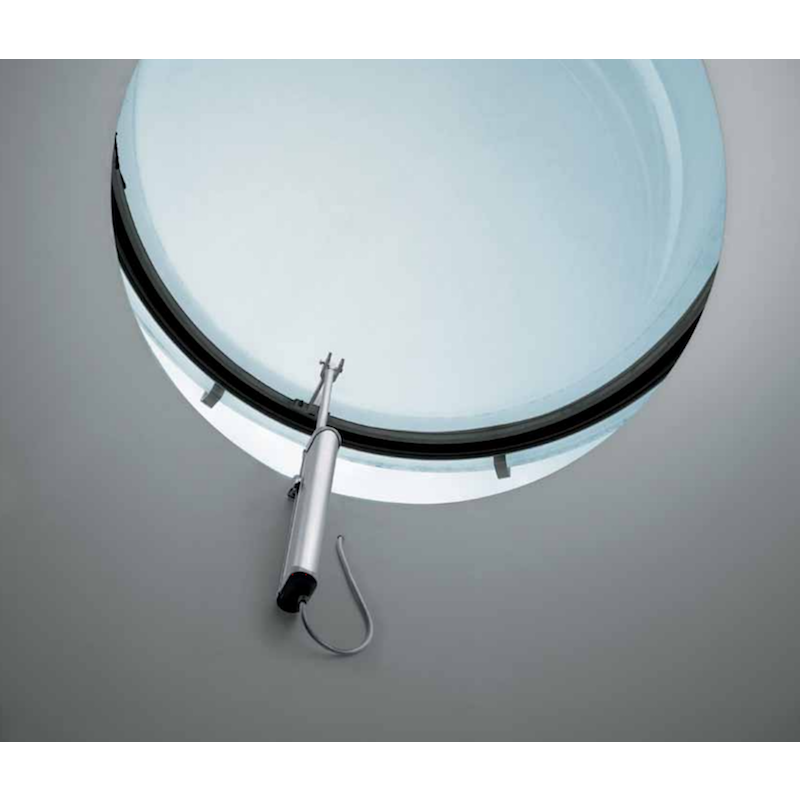

Applications Raywin Comunello rod actuator

Comunello Mowin


Raywin Comunello Mowin window motors

The Mowin project was born from Comunello's 45 years of experience in the mechanical handling of doors and windows.

The guarantee of high quality and durability, recognized on Comunello products, continues in the brand new Mowin electromechanical actuators thanks also to a careful development of the electronic and programming parts, offering stable and highly flexible products, suitable for multiple applications for windows, domes, skylights, sunscreen blades, curtains, shutters.

A modern design with attention to all its details presents the Mowin series as a product capable of becoming the protagonist even in residential environments.
