Triple Liwin L35 3W-Net Chain Actuator 24V L=2500<3750 Comunello Mowin
Liwin L35 3W-Net 24V
L= 2500 < 3750 mm

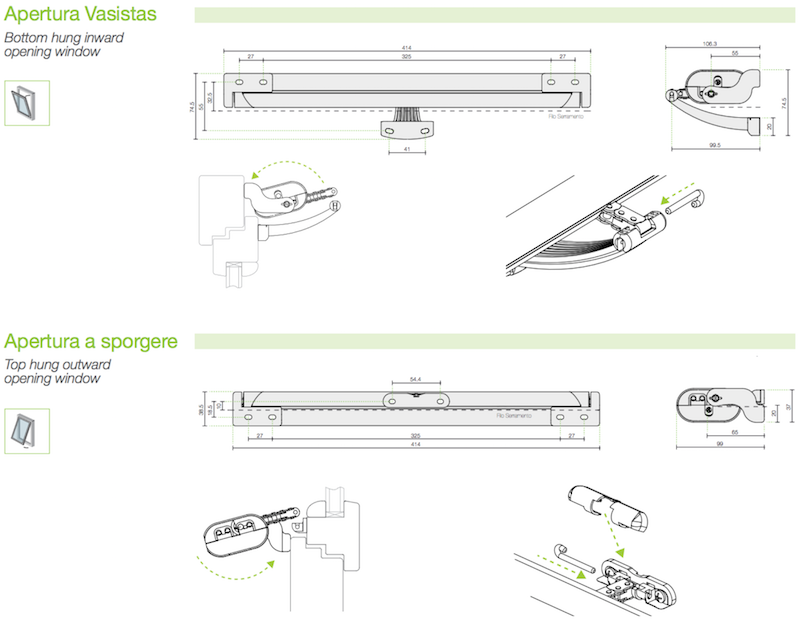

Triple chain actuator for opening and closing top-hung outward windows, shed, skylights and bottom-hung inward windows in wood, PVC and aluminium.
This is the 3W-Net version, an innovative communication system that ensures perfect movement control and coordination. No external coordination controller is required, and the connection is made via an RS485 serial port. These versions are suitable for use with unusually wide or heavy windows.
The box contains all the parts and equipment you need to make set up and connection as easy as possible.
The Liwin actuator range are in compliance with Directives EC (EMC, LVD and R&TTE directives) as amended.
Package contents: triple
chain actuator provided with electric supply cable, support brackets, fixing brackets for top-hung and bottom-hung windows, drilling template included, multi-lingual user’s guide.
Technical features:
- Model: L35 24V 3W-NET;
- VDC power supply: 24VDC;
- Service: S2 4min;
- Thrust force: 350N x 3 x 0,7 = 735N;
- Tension force: 350N x 3 x 0,7 = 735N;
- Idle translation speed: 18 mm / s;
- Degree of protection: IP44;
- DC Double Insulation: low voltage;
- VDC Power consumption: 1 A;
- Power: 28 W;
- Operating temperature: -5 ° / + 50 °;
- Strokes available: 50 – 100 – 150 – 200 – 250 – 300 – 350 – 400 – 420 mm;
- Stroke limit - resistance;
- Soft Start / Soft Stop: Yes / Yes;
- Obstacle detection: Yes;
- Parallel connection: yes (max 30 actuators);
- Synchronization: yes;
- Dimensions: 390x38x73 mm.
Adjusting immediate races - Quick hitch.
easy and quick attacks - Double link chain - first floor details.
Comunello Mowin
The Mowin® project comes out of Comunello’s 45 years experience in mechanical opening systems for doors, windows and gates. The guarantee of high quality and durability associated with all Comunello products continues in the brand new Mowin® mechanical actuators, which, when combined with the fanatical attention was also devote to the development of electronic parts and programming, enable us to offer products that are stable and yet extremely flexible, suitable for a broad range of applications for windows, domes, skylights, brise soleil blades, awnings and roller shutters. Contemporary styling that reflects the utmost attention to detail means that the Mowin® series of products have exactly what it takes to assume a benchmark role also in the field of home automations.
Window automation: a new challenge in the consolidation of our position as a top player with a high class Italian touch.
