Spindle Actuator Raywin R45 450N 230V 50 Hz Comunello Mowin

Comunello Mowin
Code: RAYWIN R45 230V
-25%
£ 120,31 £ 160,41
Prices excluding VAT
Are you looking for an actuator from the Comunello catalog that is not on our site? Contact us and ask for a quote.

- +
Spindle Actuator Raywin R45 450N 230V 50 Hz Comunello Mowin

Spindle actuator for opening and closing top-hung outward windows, skylights, solar shading and domes.

The box contains all the parts and equipment you need to make set up and connection as easy as possible.
The Raywin actuator range are in compliance with Directives EC (EMC, LVD and R&TTE directives) as amended.

Package contents: rod type actuator provided with electric supply cable, anchor bracket and adjusting screws, fixing bracket for top-hung windows and domes and multi-lingual user’s guide.

Raywin Mowin Comunello spindle actuator

spindle actuator openings Raywin Comunello

Technical features:
  • Model: RAYWIN R45 230V;
  • Electrical power supply: 230VAC;
  • Frequency 50Hz;
  • Operation: S2 4min;
  • Thrust force: 450N;
  • Tension force: 450N;
  • Stroke speed unloaded: 7 mm/s;
  • Protection class: IP44;
  • Double insulation: Yes;
  • Power consumption: 0,23 A;
  • Power: 29 W;
  • Operating temperature: - 5 ° / + 50 °;
  • Strokes available: 70 - 160 - 200 - 235 - 300 – 400 mm;
  • Open limit switch: on impact;
  • Closed limit switch: on impact;
  • Soft Start / Soft Stop: Yes / Yes;
  • Obstacle detection: Yes;
  • Parallel connection: Yes (max 30 actuators);
  • Synchronization: No;
  • Dimensions: 400/600x84x48 mm.

Raywin R45 spindle actuator Comunello

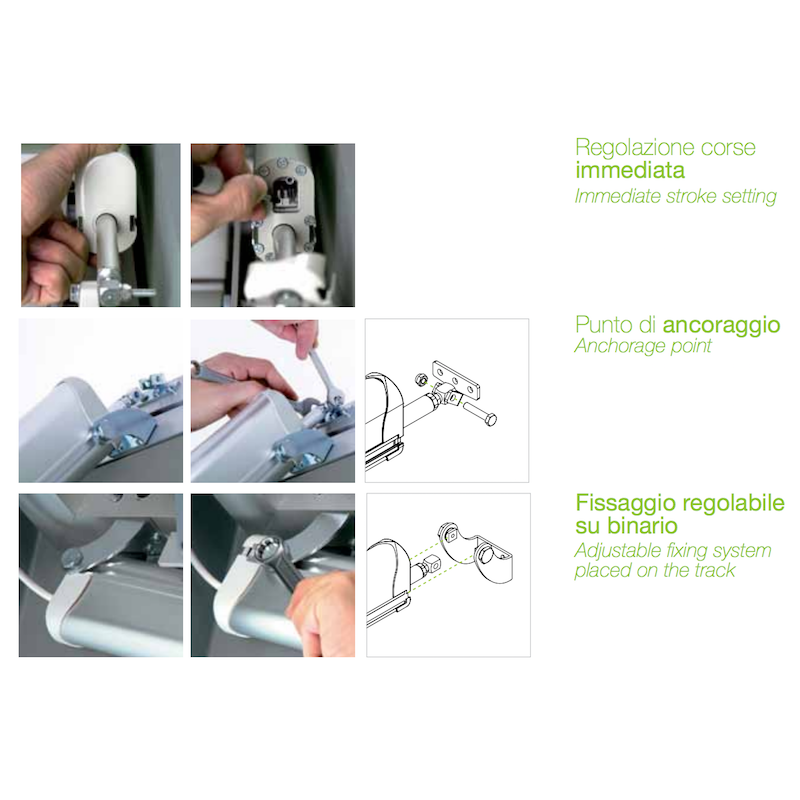

Immediate stroke setting - Anchorage point
Adjustable fixing system placed on the track.

Applications Raywin spindle actuator Comunello Mowin

Comunello Mowin

Comunello Mowin
The Mowin® project comes out of Comunello’s 45 years experience in mechanical opening systems for doors, windows and gates. The guarantee of high quality and durability associated with all Comunello products continues in the brand new Mowin® mechanical actuators, which, when combined with the fanatical attention was also devote to the development of  electronic parts and programming, enable us to offer products that are stable and yet extremely flexible, suitable for a broad range of applications for windows, domes, skylights, brise soleil blades, awnings and roller shutters. Contemporary styling that reflects the utmost attention to detail means that the Mowin® series of products have exactly what it takes to assume a benchmark role also in the field of home automations.

Window automation: a new challenge in the consolidation of our position as a top player with a high class Italian touch.
