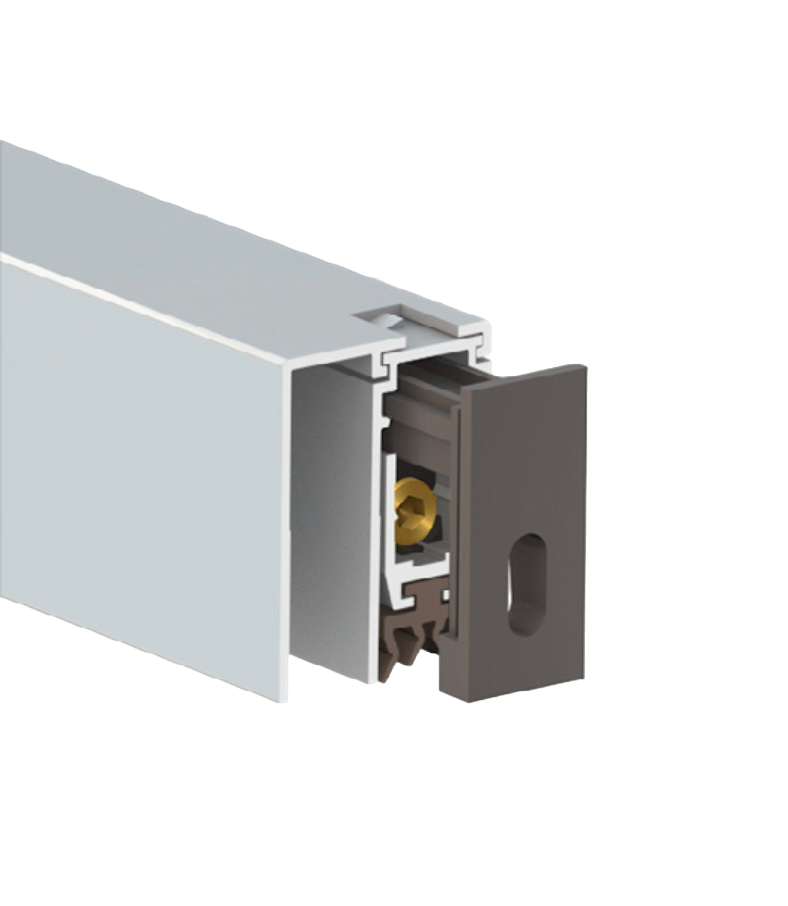

Draft Excluder for Sliding Door 2020LSD Comaglio Sliding Series
Comaglio 2020LSD sliding door draft excluder : the Sliding series introduces itself to
the sliding door sector .
In fact, a sliding door has peculiarities that make it difficult or prevent the application of an automatic draft excluder traditionally designed for swing doors.
Sliding door draft excluders 2020LSD with ZERØCONTRAST
- Item: 2020LSD.
- Sizes: 430-1330 mm (select the variant);
- Doors: sliding;
- Sliding series for sliding door;
- Finish: raw aluminum;
- Max shortenability: 100 mm;
- Packaging: single polyethylene bags with standard accessories.
Comaglio Sliding Series: draft excluders for sliding doors with ZERØCONTRAST mechanism
Comaglio has designed and obtained the patent for the
new ZERØCONTRAST mechanism for automatic draft excluders, easy to install and perfectly compatible with most sliding doors.
The ZERØCONTRAST mechanism is characterized by 4 foundations:
- effectiveness guaranteed by a strong and homogeneous compression of the gasket on the floor;
- closing the door without any resistance . There is no need for a lock or any other means of restraint to keep the door closed;
- traction drive with completely invisible control block;
- simplified universal installation for application on both overlapping and concealed sliding doors, with right or left opening
2020SLD draft excluder certifications
The functional tests confirmed the stability and resistance of the mechanism, surpassing the ambitious goal of 300,000 door opening and closing cycles.
The 2020SLD draft excluder is undergoing certification, at the appropriate recognized institutes, for soundproofing, fire resistance, smoke resistance and cycles of use.

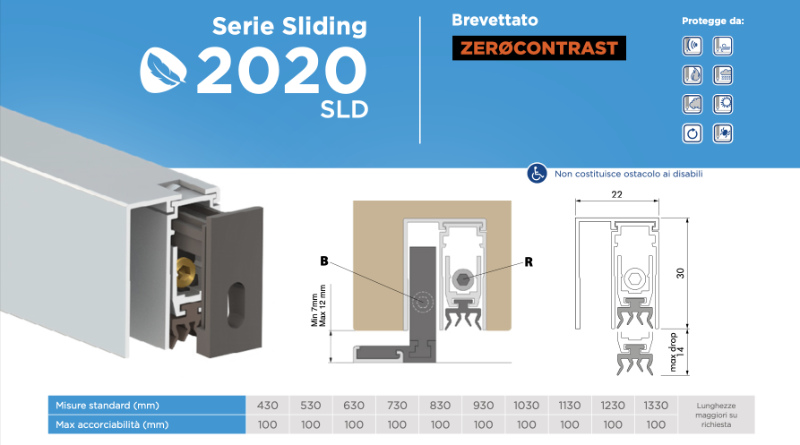

Draft excluder fixing system with ZERØCONTRAST
ZERØCONTRAST traction mechanism (PATENTED) with the parallel descent of the mobile profile with gasket, characterized by DOUBLE ADJUSTMENT (screw B: descent - screw R: inclination) for a strong homogeneous pressure along the entire length.
Main applications draft excluder 2020LSD Comaglio Sliding Series
Wooden door: with overlapping or retractable door, opening to the right or left.
Extruded profiles in 6060 aluminum alloy, 4-blade extruded silicone gasket - molded elements in self-lubricating nylon + nylon reinforced with 30% glass fiber - threaded rods in burnished iron - brass bushing Ø 6 mm.
Comaglio, a leading company in the draft excluder sector
Comaglio began its activity in 1976 in Italy, immediately focusing on the draft excluder sector.
Forty years after that first historic patent, Comaglio continues to be a family-run industry. From that initial garage where Aldo Comaglio built the first Italian prototype of draft excluders, to the current and modern structure located at the gates of Lake Garda.
Throughout the 30 years of its history Comaglio has always kept unchanged the characteristics that have distinguished its draft excluders:
- product quality with attention to the smallest details,
- maximum attention to customer satisfaction,
- prompt response to the needs of a constantly expanding market.
