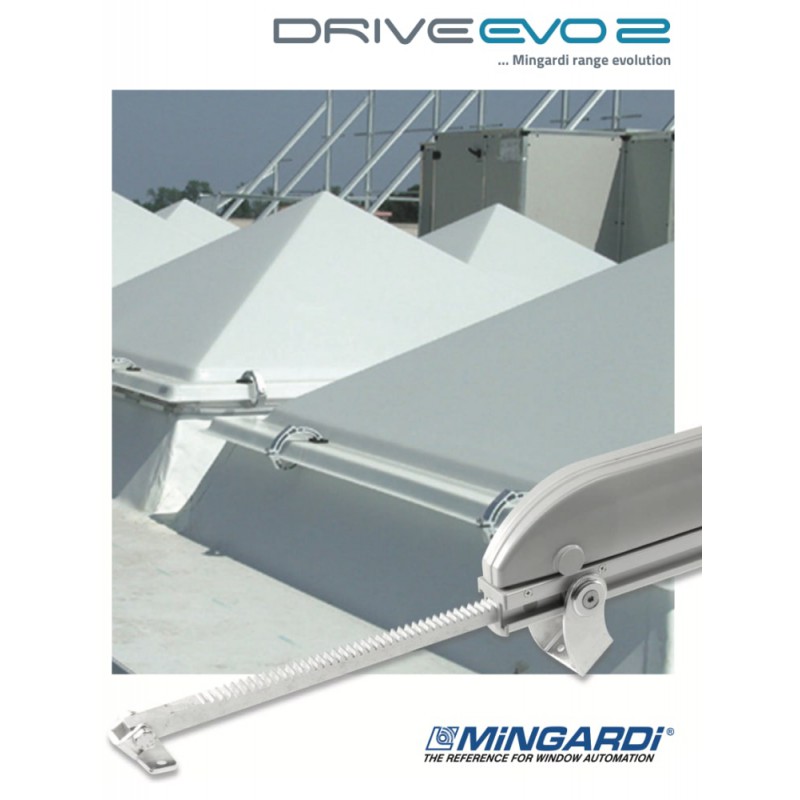

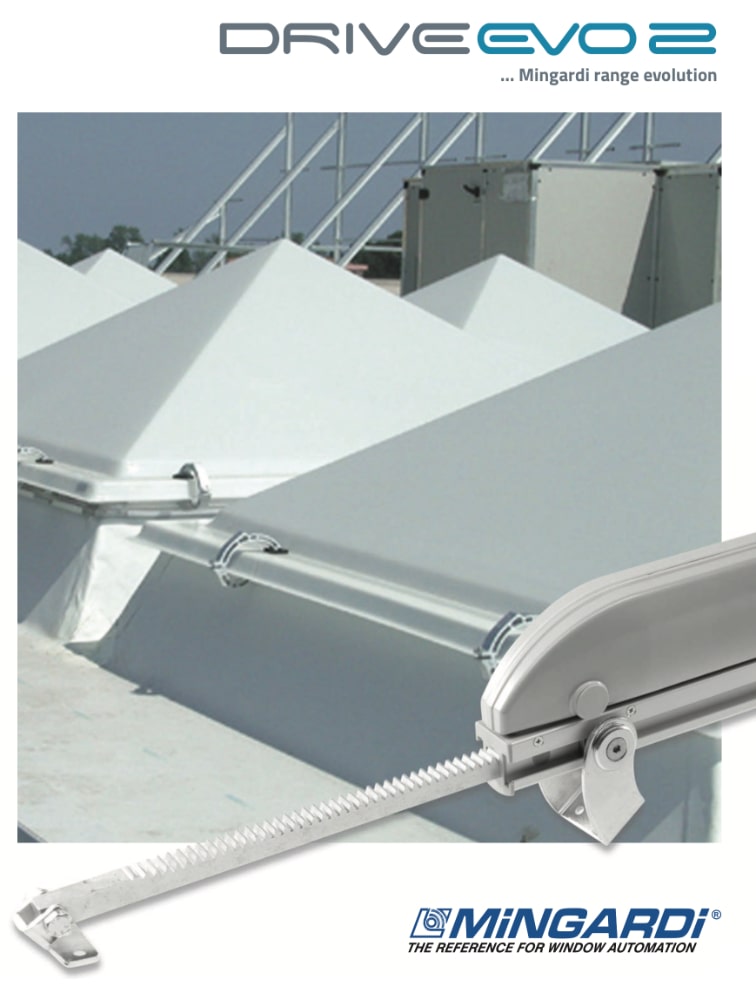

Drive Evo 2 Mingardi Rack Actuator for Windows Skylights Domes

Drive Evo 2 Mingardi Rack Actuator for Windows, Skylights, Domes, Sunshades

Drive Evo 2 Mingardi offers maximum flexibility thanks to its different configurations and voltages.

The 24V version is RWA (tested to be installed on smoke and heat evacuation devices).




Why choose the Drive Evo 2 Mingardi gearmotor?

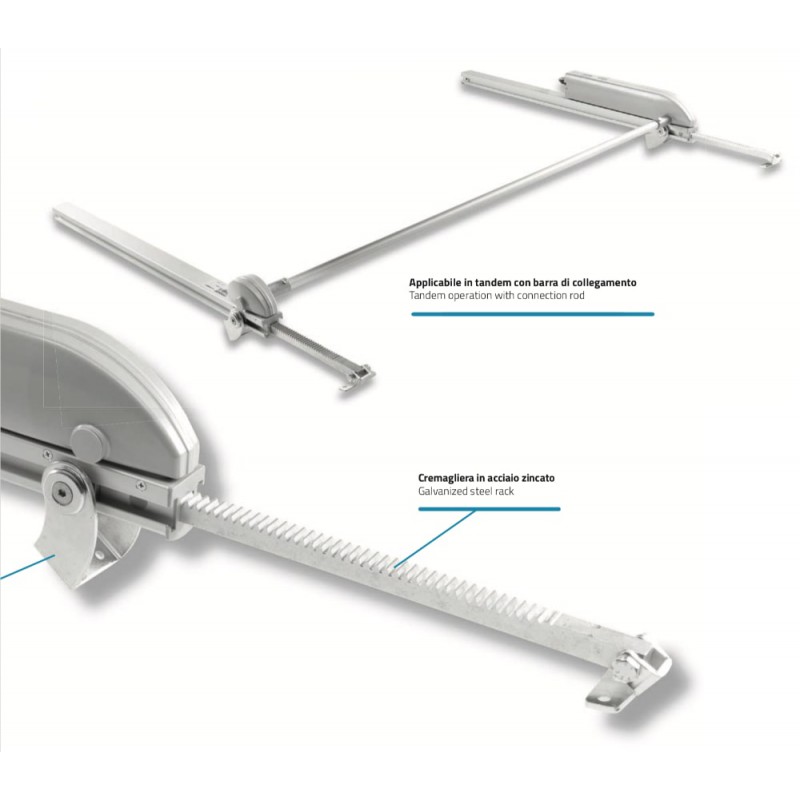

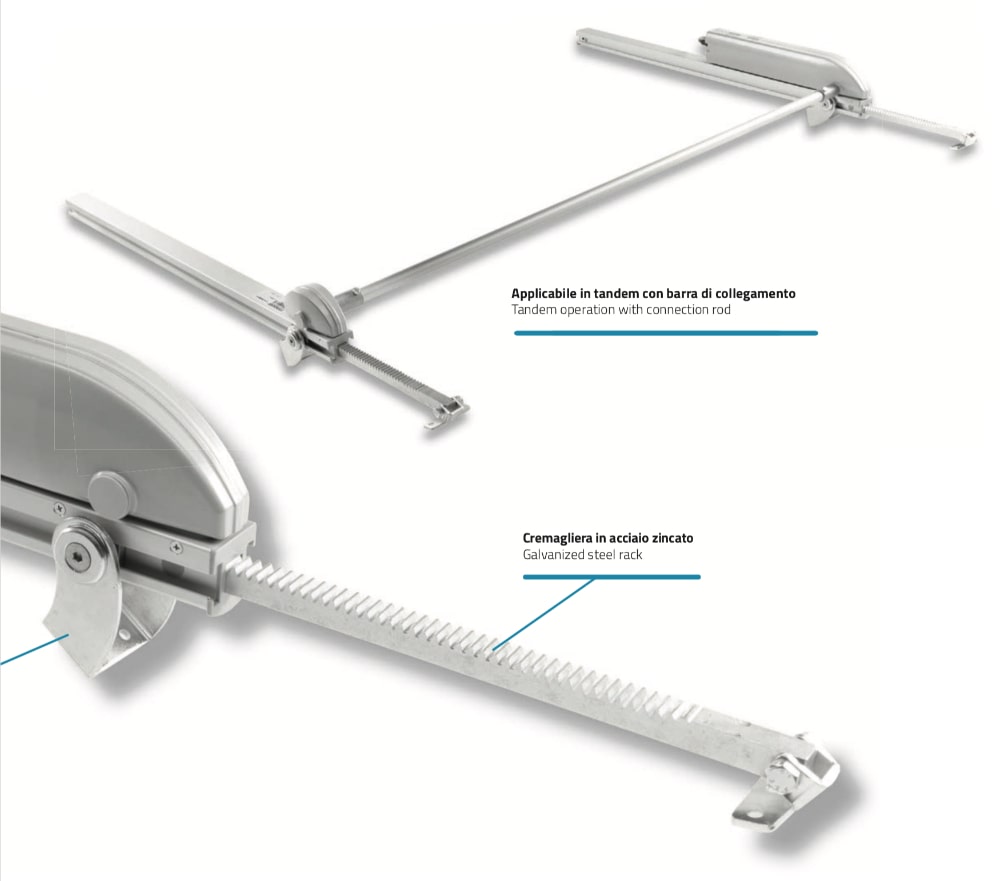

• Suitable for large windows in tandem application;
• Strokes up to 1000 mm;
• Extended voltage 110 - 240V AC (50 / 60Hz);
• RWA 24V DC version (tested on 350 mm stroke);

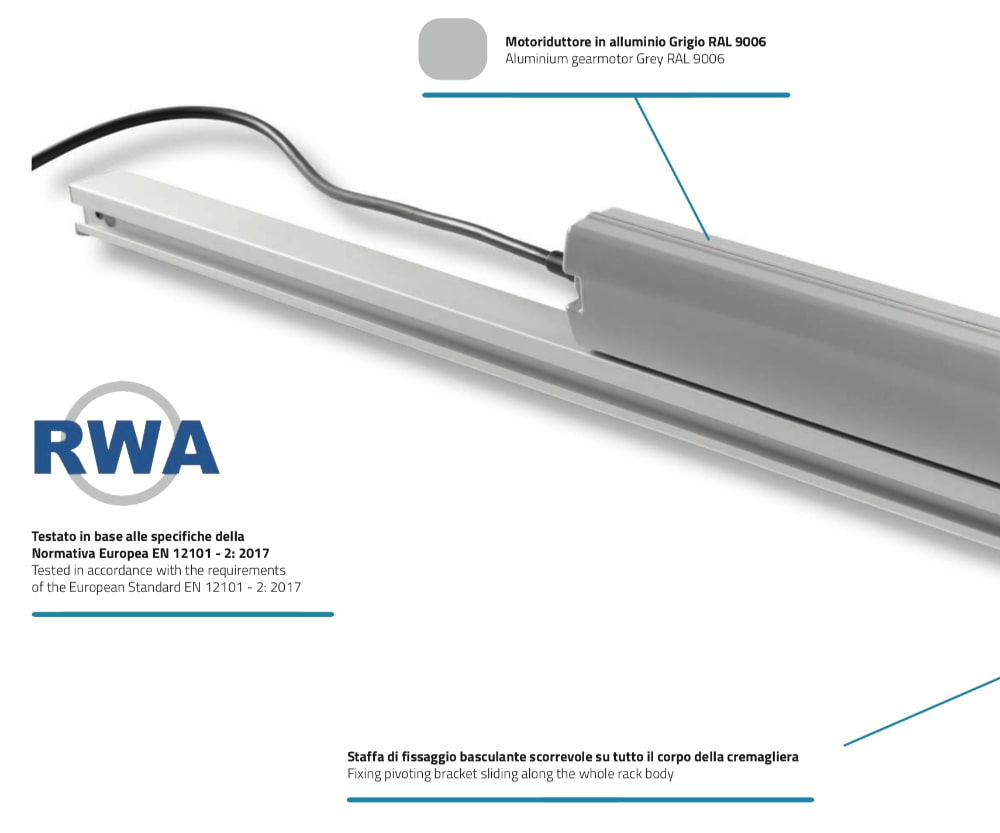

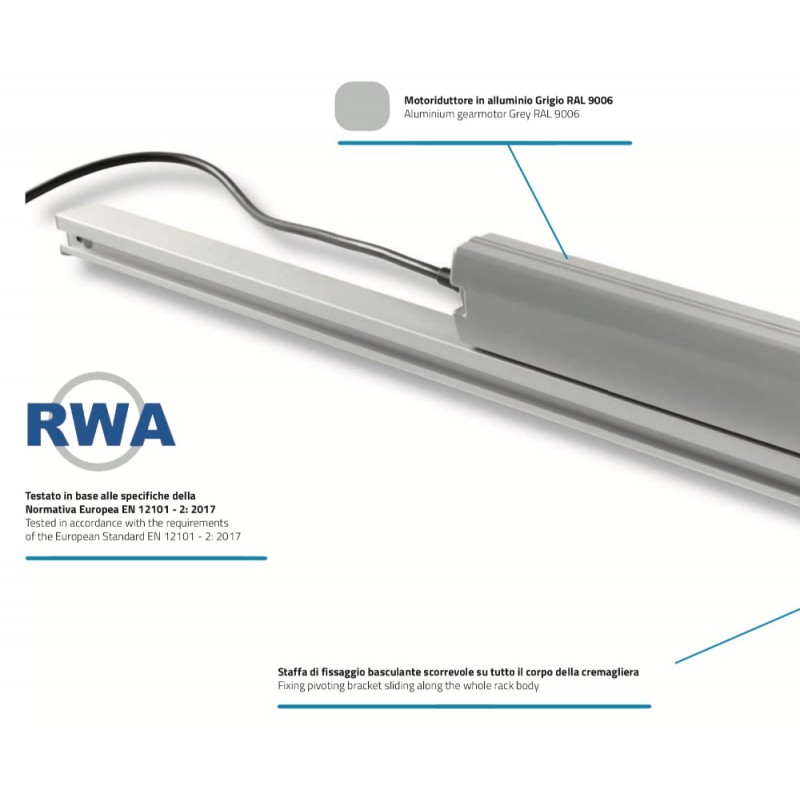

• Aluminum gearmotor body;
• Degree of protection: IP 55 electrical parts;
• Soft stop closure to preserve the window;
• Steel rack;
• Tilting fixing bracket sliding on the whole rack body.

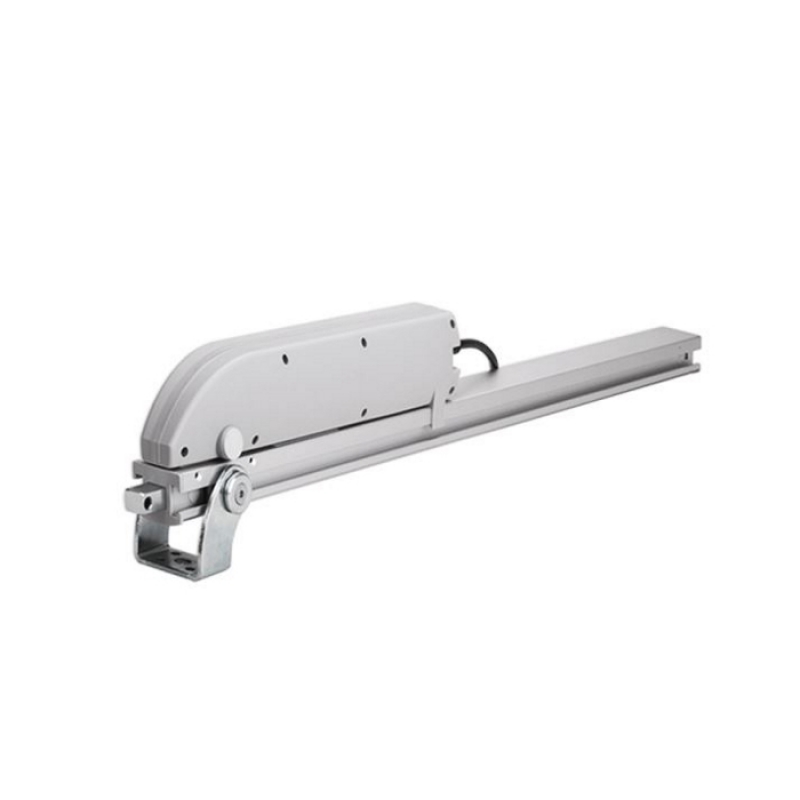

Drive Evo 2, rack motor with aluminum body

• Electric linear rack actuator 12x12 section contained inside the tubular aluminum body;
• Operating voltage: 110 - 240V AC (50 / 60Hz) or 24V DC;
• Compliant with the relevant European Directives. 24VDC version tested according to the specifications of the European Standard EN 12101 - 2: 2017;
• Equipped with electronic limit switch system in opening and closing with overload protection;
• Possibility of parallel connection;
• Gearmotor body in gray aluminum RAL 9006, rack in galvanized steel ;
• Complete with fixing accessories.

Technical features Drive Evo 2 Mingardi rack actuator:

• Force: Thrust - Traction: 1000N;
• Voltage: 110 - 240 V AC (50/60 Hz) or 24V DC RWA;
• Opening and closing limit switches: Electronic;
• Degree of protection (for internal use): IP55 electronic parts;
• Operating temperature: -10 ° C + 40 ° C;
• Black cable: PVC L. 1500 mm;
• Certifications: CE.

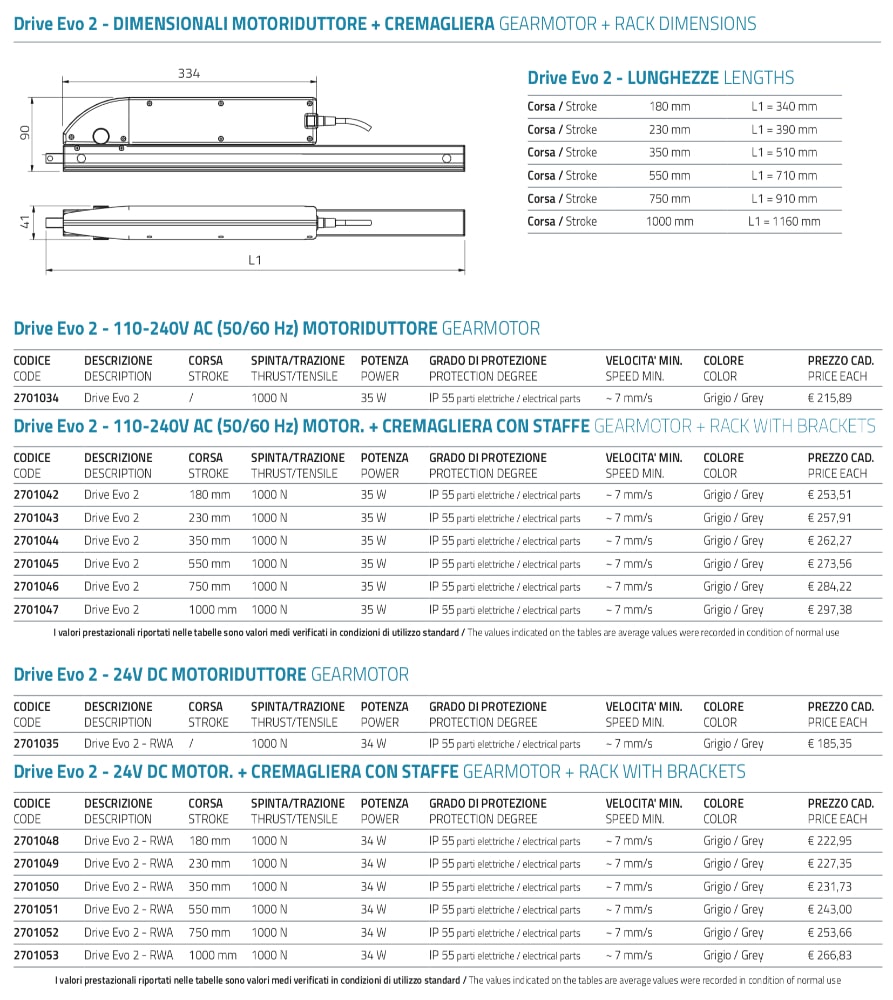

Drive 2 Mingardi window actuator lengths:

• Stroke 180mm - L1 = 340 mm;
• Stroke 230mm - L1 = 390 mm;
• Stroke 350mm - L1 = 510 mm;
• Stroke 550mm - L1 = 710 mm;
• Stroke 750mm - L1 = 910 mm;
• Stroke 1000mm - L1 = 1160 mm.
