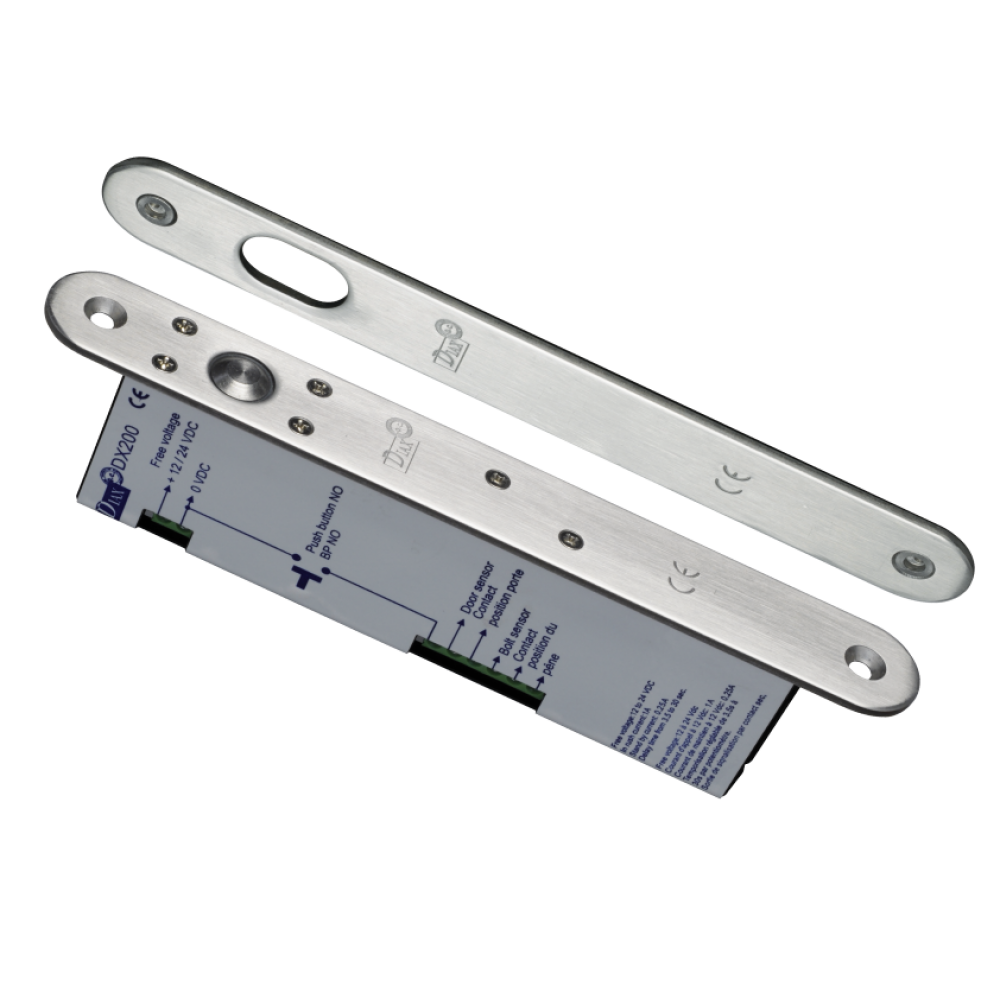

DX200I Fail Safe Solenoid Bolt 12/24V DC + CDVI State Reed
DX200I FAIL-SAFE SOLENOID (UNLOCKING WITHOUT POWER SUPPLY) 12 / 24V DC + STATE REED
The DX200 solenoid bolt from CDVI is an entry level, fail safe locking device. With a stainless steel faceplate, retry circuit and monitoring, the DX200 is excellent value for securing a door.
The DX200 is manufactured in stainless steel, with a keeper plate of equal dimension to ensure symmetry. A retry circuit activates if door is not correctly aligned, and monitoring of the door position and lock position is signalled via outputs for full status of the security of the door. The unit operates with free voltage between 12 and 24Vdc. A stainless steel surface housing is available for convenience if required - the housing is supplied in two parts, one for the lock and one for the keep plate.
Features
Fail-safe:
Unblocking without power supply
Easy to install:
- Fixing plate for round corners;
- Dimensions of the fixing plate is identical to the counterplate, this allows an installation of the electric piston on a frame or door;
- Fast and secure connection screw connector;
- Compact;
- Free tension;
- Integrated timer;
- Status sensor.
- Piston diameter of 14mm;
- Signaling of (piston state and port);
- Adjustable opening time.
Dimensions:
SOLENOID.
L = Length, W = Width, D = Depth
- Fixing plate: L 212 x W 25 x D 3mm;
- Electropistholes Recessed hole: L 163 x W 25 x D 45mm.
Power supply: 12 to 24V dc.
Absorption:
- 200 mA at 12V dc;
- 130 mA at 24V dc.
Intake absorption:
- 1000mA at 12V dc;
- 600mA to 24V dc.
