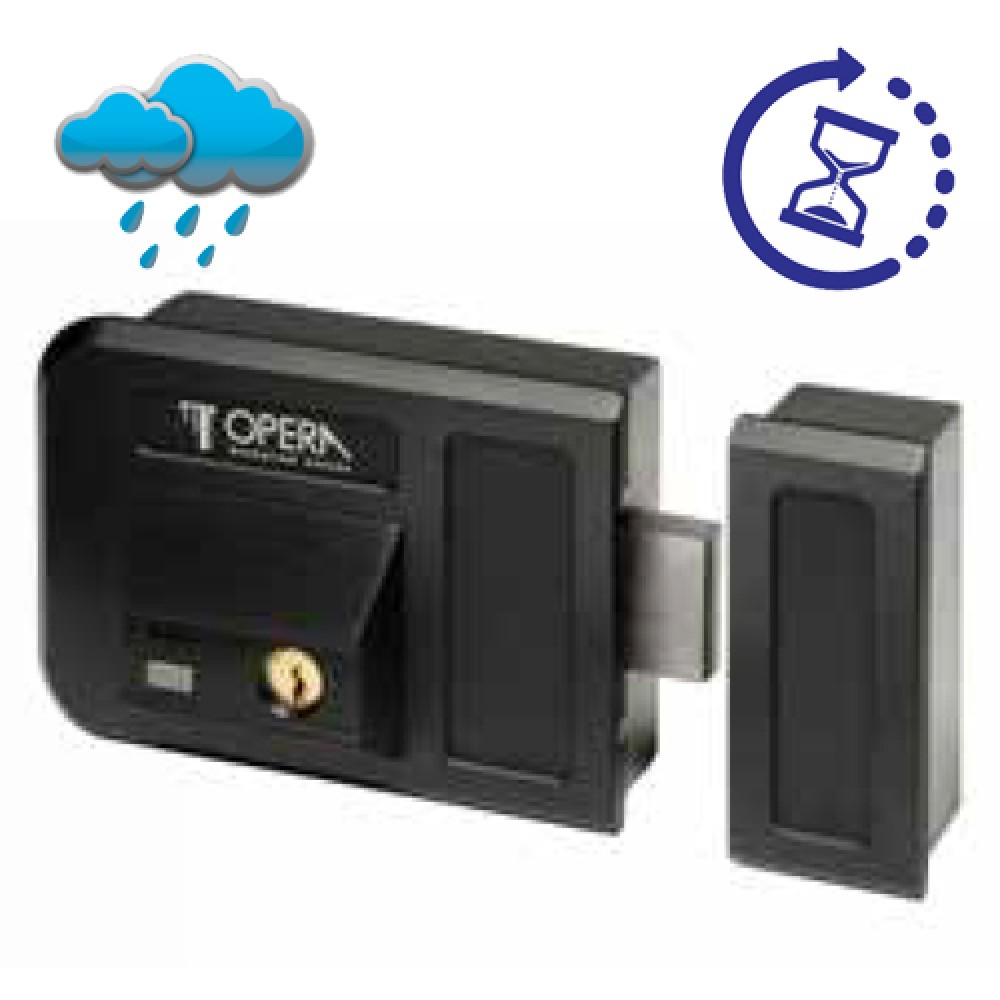

Electric lock for gates - Black to be applied on sight - with internal key - 28001 Opera
Safety electric lock to be applied to pedestrian gates, even those exposed to the elements, and wooden condominium doors.
Internal opening variants
- With key cylinder
- With key and button
Hand variants
On request (contact us for these variants):
- Delivery without cylinder (Art + SC)
- Version with removable bolt status relay (Art + M)
Features Electric lock for gates
- Black finish.
- Version: to apply.
- Lock body and counterplate in stainless steel.
- Lock cover carter and counterplate in anodized aluminium.
- Bolt closed in the absence of current.
- Mechanical opening from outside with round cylinder.
- Adjustable backset mm. 50 - 60 - 70.
- Stainless steel deadbolt dimensions mm.18 x 28 (stroke mm. 25).
- Deadbolt anti-burglary device in closed position.
- Power supply: 12/24 Vac/dc.
- Absorbed current 1.2 A inrush, 200 mA maintenance.
- Internal electronic circuit with microprocessor.
- Opening command at 12 Vac/dc from interphone or via relay.
- Hall effect sensor for the position of the leaf.
- Reclosing after 2 sec. when approaching the door.
- Automatic reclosing timer selectable from 5 to 60 sec. if the door is not opened.
- C./NO/NC output relay contact for bolt status indication (M version only).
- Suitable for weather operation, with internal heating system if the temperature drops below 5°C.
Led illumination
- Two-colour red/green LED for signaling deadbolt open/closed status.
- Blue LED in the lower position for night indication in the closed position and white in the open position to illuminate the ground.
Electric lock dimensions for gates
Round cylinder insertion for gates
Detached cylinder insertion for wooden doors
Gate Lock Series Opera
Security solenoid locks for garages and automatic gates.
Anti-cut rotating deadbolt with mechanical block on closure.
Manual operation with European cylinder.
Entirely in stainless steel, resistant to bad weather.
Can be operated from the gate remote control.
