Electric Striker Omnia Micro Opera 31012UNI Without Anti-Repeater

Opera
Brands: Opera
Code: 31012UNI
-20%
£ 24,37 £ 30,46
Prices excluding VAT

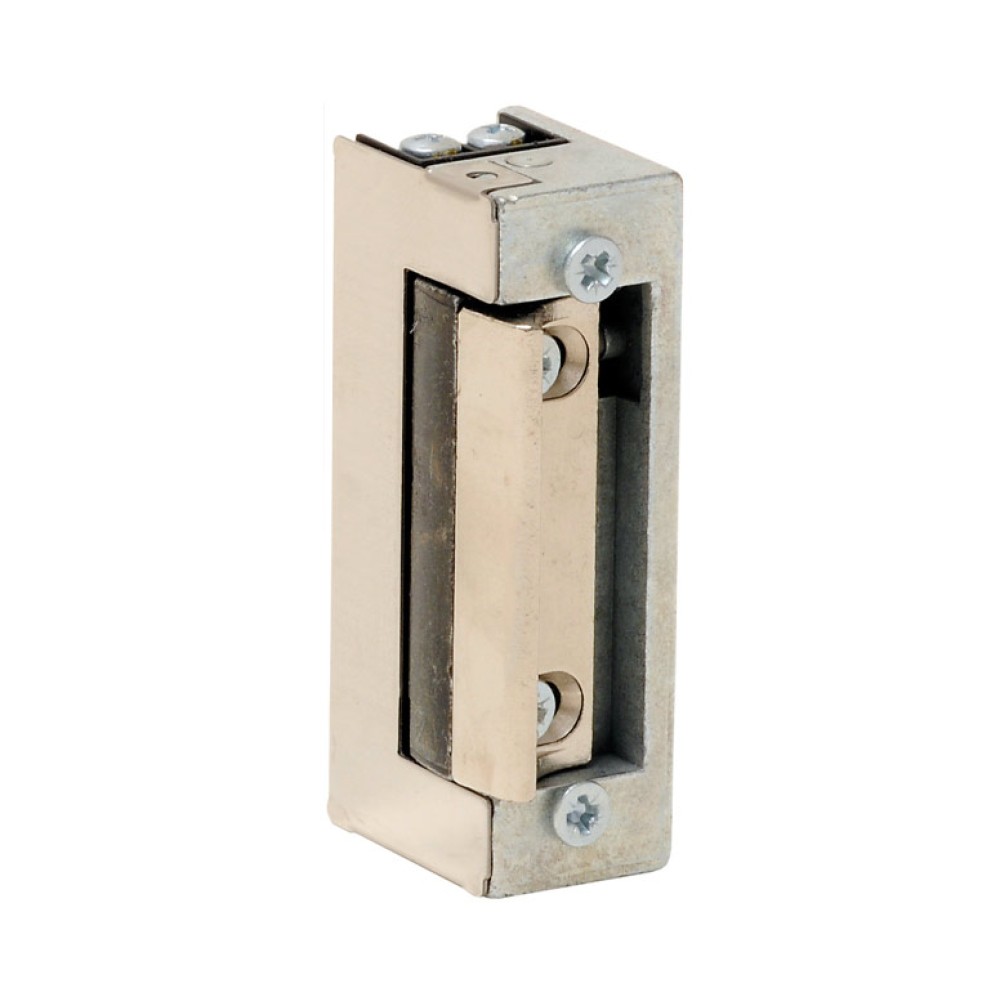

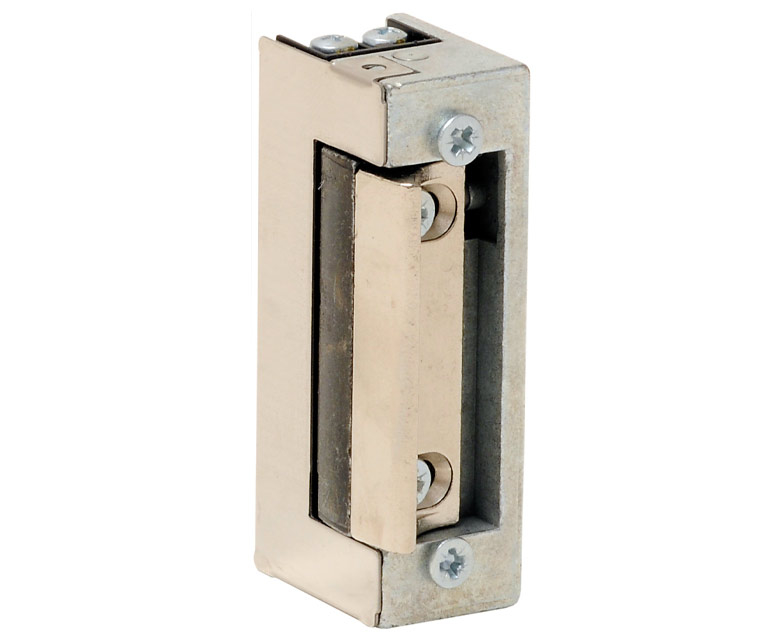

Electric strike Omnia Micro Opera 31012UNI. Electric strikers for aluminum or wooden doors with latchbolt and deadbolt locks.
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

Omnia Micro Electric Striker - Opera 31012UNI - Without Anti-Repeater

Electric strike for aluminum or wooden doors with latchbolt and deadbolt locks.


Choice of variants:

  • Without open stop lever
  • With open outlet stop lever


Mechanical characteristics - Omnia Micro Electric Striker

  • Body and latch block in anti-corrosion metal, symmetrical - reversible.
  • Breaking strength: 350 kg.
  • Horizontally adjustable latch block.


Technical characteristics - Meeting Opera 31012UNI

  • Stuck without power.
  • Without anti-repeater (opening limited to the duration of the electrical impulse).
  • Power supply: 10 / 24 Vac/dc.

Current consumption
  • 185 mA at 12 Vac (impulsive)/240 mA at 12 Vdc (continuous).
  • 480 mA at 24 Vac (pulsed)/580 mA at 24 Vdc (pulsed).

The product is not equipped with a front (can be purchased separately on Windowo).

Incontro Elettrico Omnia Micro - Opera 31012UNI


Omnia Opera Series

  • Electric safety strikers for wooden or metal doors.
  • Radial and Omnia16 series with thickness reduced to 16 mm..
  • Exit series to be applied for panic bars.
  • Blindo series for interlocked and armored doors.
  • Glass series for crystal doors.

Omnia Opera Series


Opera Operating Access

Opera srl, specialized in the design and manufacturing of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century. The company is characterized by continuous expansion in world markets but with strong roots in Italy.
