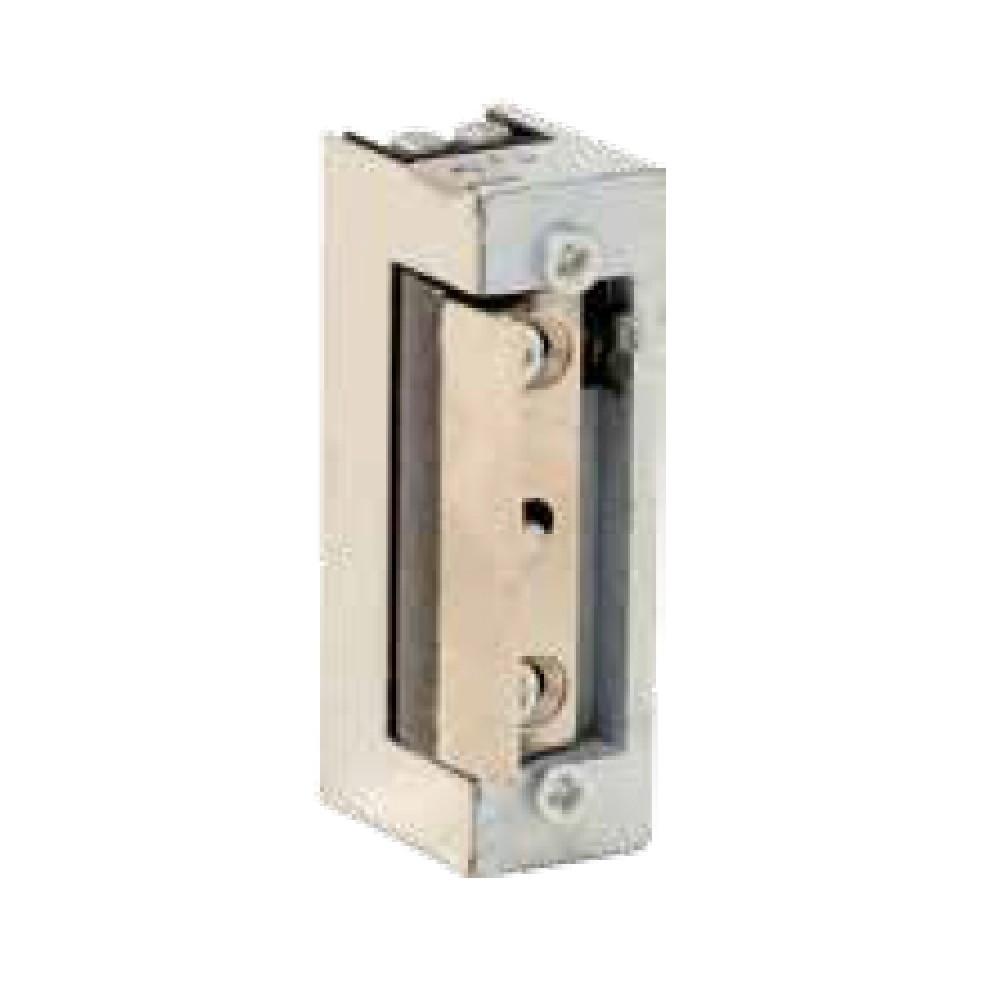

Electric Striker With Anti-Repeater 31212UNI Opera Omnia Series
Electric strike 31212UNI Opera for aluminum or wooden doors with latchbolt and deadbolt locks.
Choice of variants:
- Without open stop lever
- With open stop lever
Mechanical characteristics 31212UNI Opera
- Body and latch block in anti-corrosion metal, symmetrical - reversible.
- Breaking strength: 350 kg.
- Horizontally adjustable latch block.
Technical characteristics meeting 31212UNI Opera
- Stuck without power.
- With anti-repeater (opening with electric impulse).
- Re-closing after opening the door.
- Power supply: 10 / 24 Vac/dc.
- Current consumption:
- 185 mA at 12 Vac (impulsive)/240 mA at 12 Vdc (continuous).
- 480 mA at 24 Vac (pulsed)/580 mA at 24 Vdc (pulsed).
IMPORTANT
The product is not equipped with a front (can be purchased separately on Windowo).
Omnia Opera Series
Electric safety strikers for wooden or metal doors.
Radial and Omnia16 series with thickness reduced to 16 mm..
Exit series to be applied for panic bars.
Blindo series for interlocked and armored doors.
Glass series for crystal doors.
