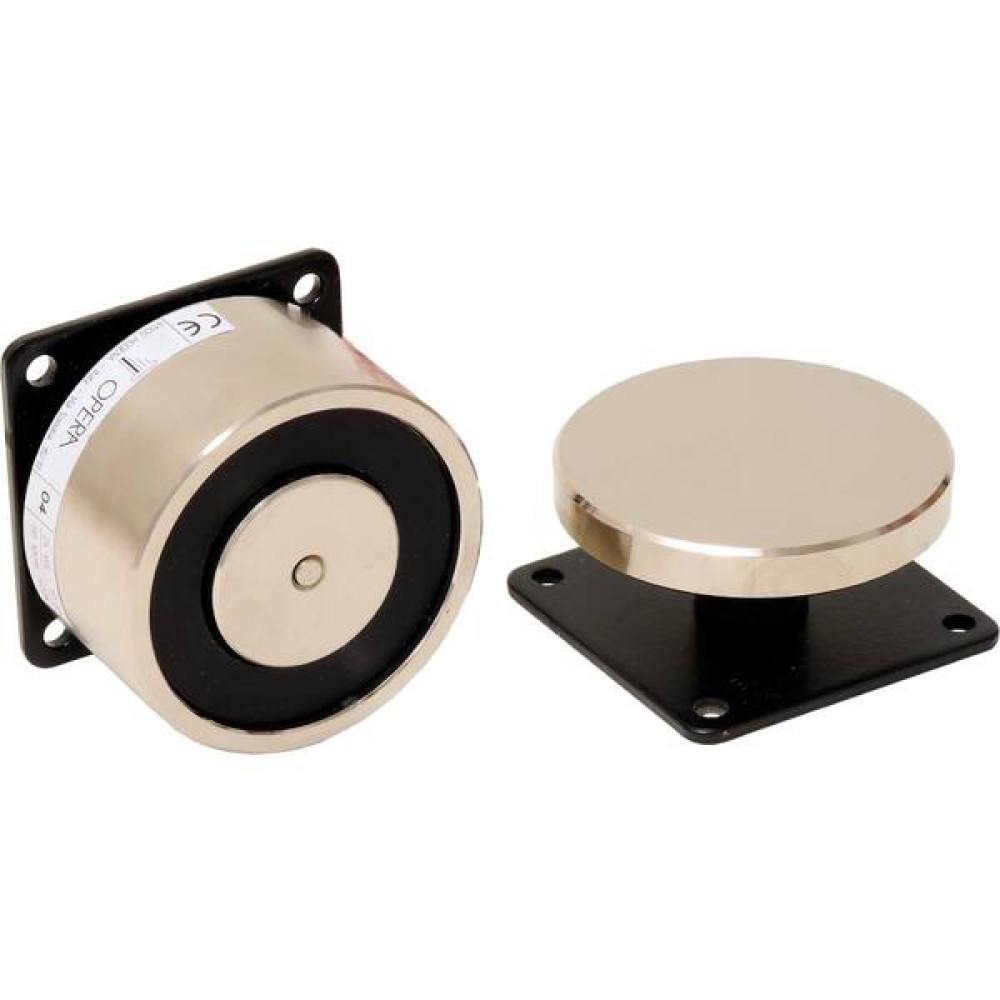

Electromagnet for Fire Doors - Opera 01830I - Holds 140 Kg - with Fixed Counterplate
Holding electromagnet for swing or sliding fire doors with counterweights.
The
Opera 01830I electromagnet for fire doors is a high quality solution to ensure security and access control in public and private buildings.
Designed to hold fire doors, this electromagnet offers a
holding force of 140kg , ensuring doors remain closed in emergency situations.
Electromagnet for Fire Doors - Technical Characteristics
- Electromagnet body with fixing base
- Nickel-plated electromagnet block
- Fixing base dimensions: mm. 65 x 65 x 3
- Electromagnet dimensions: diameter mm. 70 x height mm. 47
- Power supply: 24 Vdc - Current absorbed: 70 mA
- Traction force: > 140 kg.
- Residual anti-magnetism spring on the electromagnet body
- Electromagnet complete with fixed counterplate art. 01810Z
Holding electromagnet - Optional on request
Contact us to add variations:
- 24 Vac power supply
- Lifetime connector
What are the products in the Fire Control Opera series?
- Holding electromagnets for fire doors
- Regulators for sliding fire doors
- Hydraulic impact shock absorbers
- Single-zone fire alarm control panels
- Smoke and heat detectors
Experience Opera Operating Access products first-hand
Opera Operating Access is synonymous with quality, innovation and safety in the sector of electromechanical solutions for doors and gates.
Discover the excellence of Opera products, designed and made entirely in Italy, a guarantee of reliability and durability over time.
High quality Made in Italy electromagnets for fire doors
The
electromagnets for fire doors produced by Opera represent the ideal solution to guarantee the safety and functionality of fire prevention systems.
Designed and manufactured in Italy , these devices combine advanced technology, high-quality materials and rugged construction, ensuring reliable and long-lasting performance.
