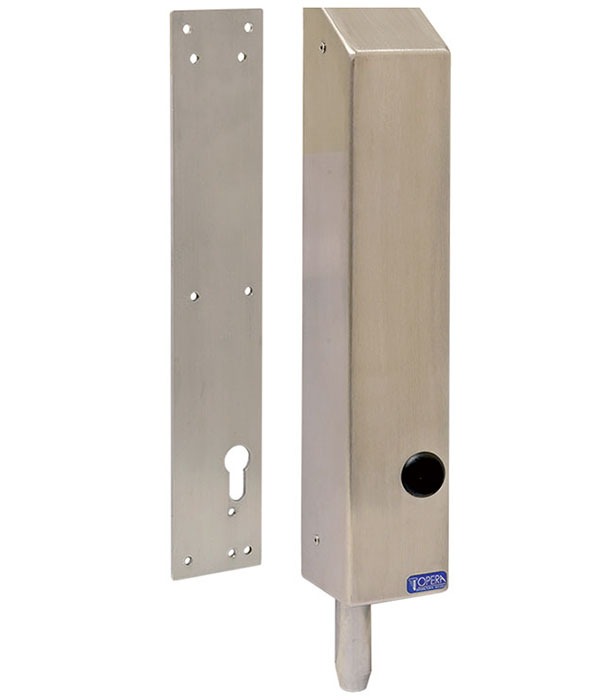

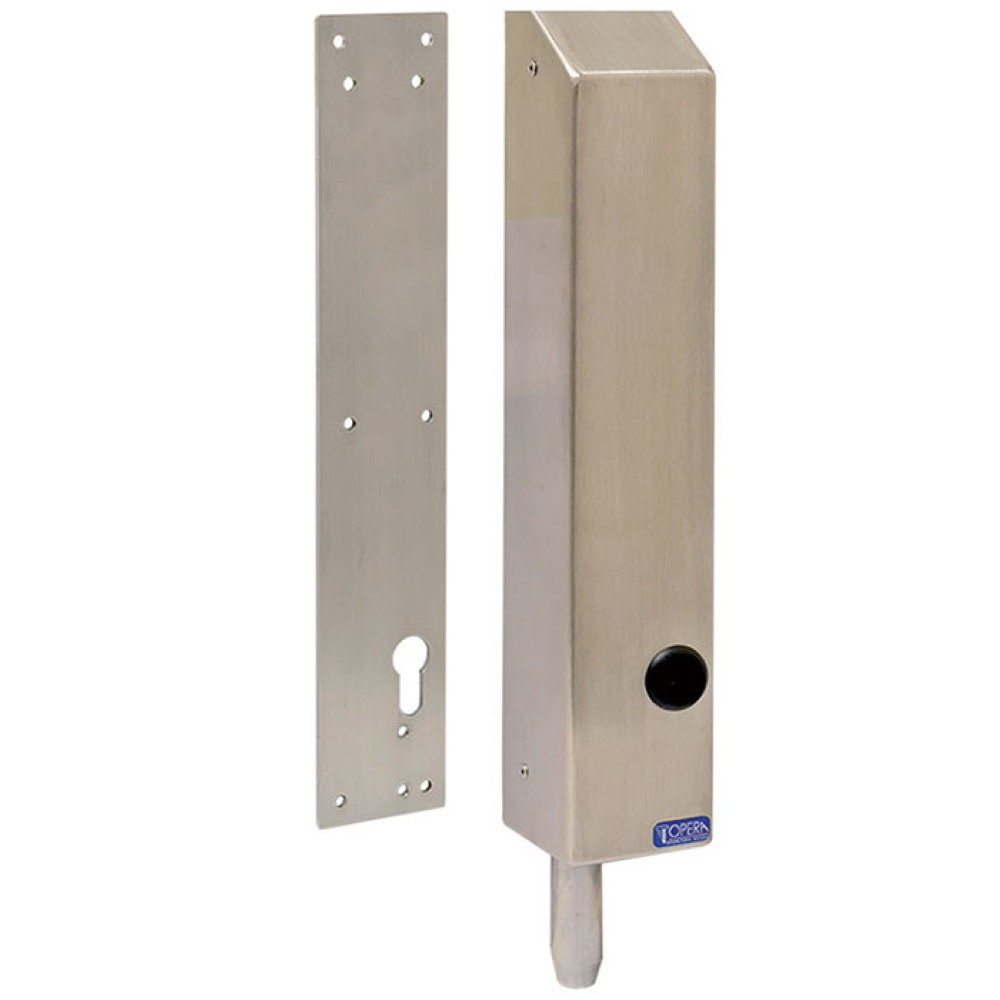

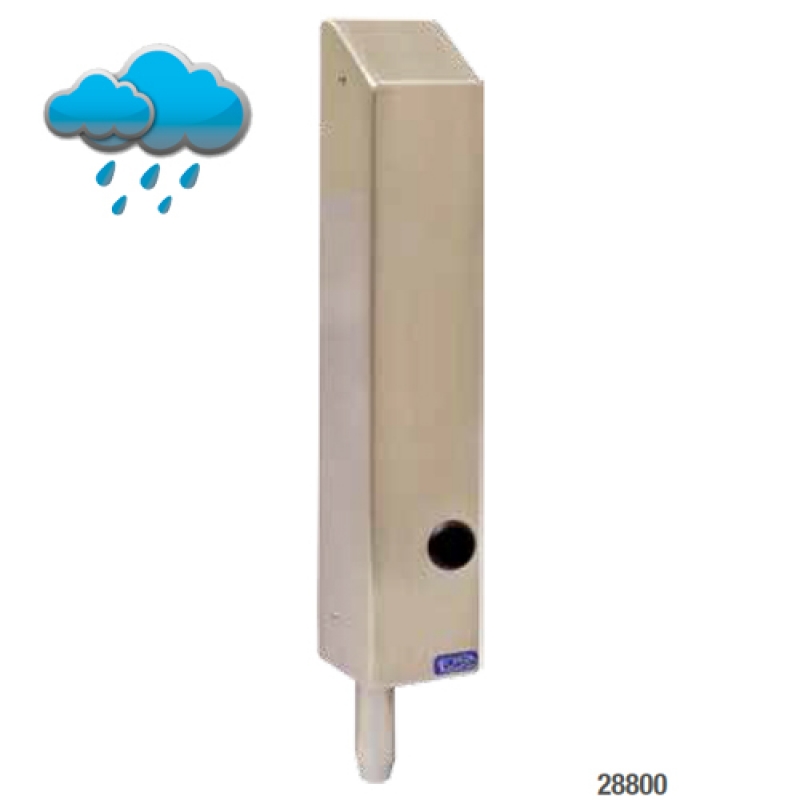

28800 Stainless Steel Solenoid Lock for Automatic Gates Gate Lock Opera Series
High security electropiston for automatic gates made of fine stainless steel.
Solenoid lock for automatic gates in stainless steel - Variants:
- Carter in stainless steel with fixing plate;
- Black painted steel carter without fixing plate.
Solenoid lock for automatic gates in stainless steel - Optional variants:
- Standard version (without options);
- Electropiston version for horizontal operation;
- Version with anti-tamper microswitch for cover opening;
- Version with heater on version with black painted steel casing without fixing plate.
Characteristics Electric lock for gates Gate Lock Opera series
- Version: to apply.
- Lock body in stainless steel, aluminum and steel treated against corrosion.
- Cover casing in stainless steel (stainless steel casing version).
- Covering carter in black painted steel (carter version in black painted steel).
- Stainless steel flat fixing plate to be welded (stainless steel casing version).
- Body dimensions: mm. 335x60x55.
- 4-throw mechanical opening and closing with European cylinder (through hole on both sides) - Supplied without internal side cylinder (mm. 35+10).
- Rubber protection of the cylinder hole against atmospheric agents.
- Stainless steel bolt ø mm. 20 x extension mm. 60 (stroke mm. 50).
- Deadbolt anti-burglary device with “total reaction” lock in the closed position.
- Internal anti-handling protection plate (stainless steel casing version only).
- Output contact C./NO/NC
- Power supply: 24Vdc.
- Absorbed current 5 A peak, 750/900 mA maintenance.
- Deadbolt closed in case of power failure.
- Suitable for operation in bad weather, with internal heating system if the temperature falls below 5 °C (standard on the stainless steel casing version).
Double cylinder length without subplate
Double cylinder length without underplate and anti-tear defender (art. 02250)
Double cylinder length with subplate
Double cylinder length with underplate and anti-tear defender (art. 02250)
Half cylinder length
Possible uses
