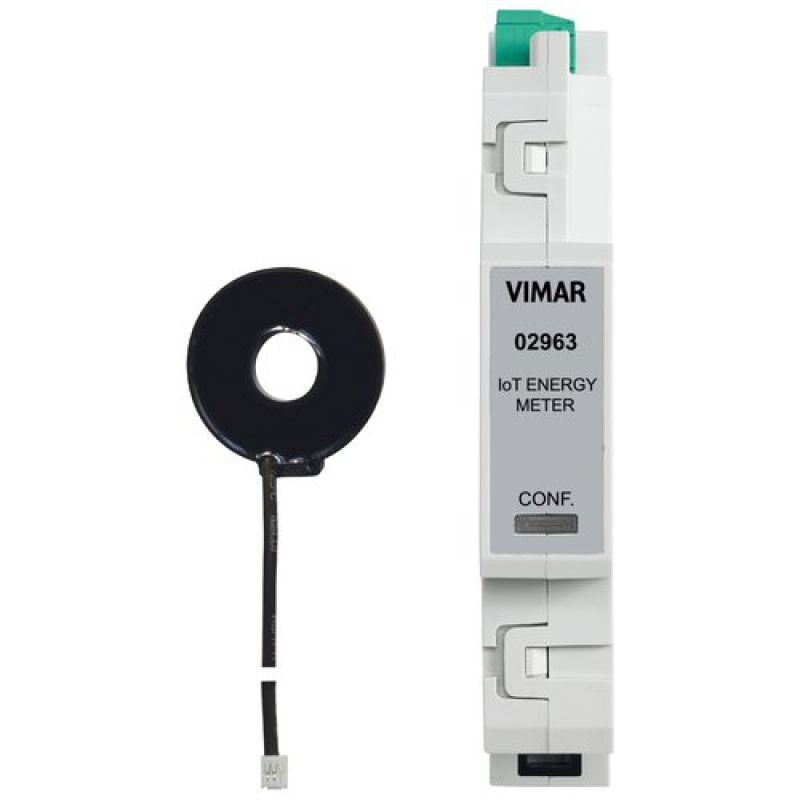

Energy Meter Connected IoT Single-phase 02963 Vimar
Connected Energy Meter Vimar is an IoT connected device for:
- instant and historical electricity consumption / production measurement (with hourly, daily, monthly, annual resolution);
- load control function (max 4 loads);
- 1 input for toroidal current sensor supplied;
- detectable powers 25 W-10 kW;
- single-phase power supply 100-240 V 50/60 Hz.

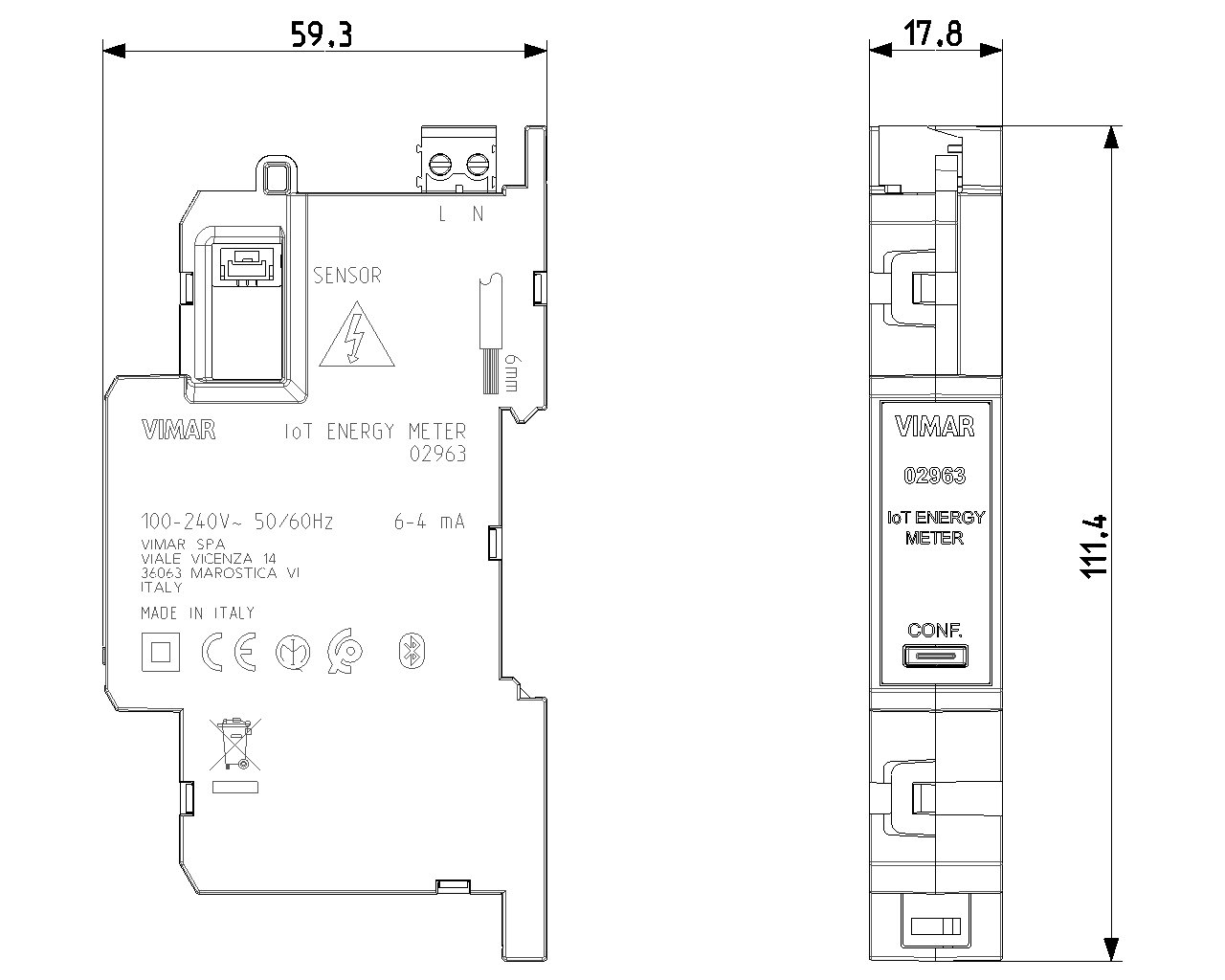

Technical drawing Energy Meter Connected Single-phase IoT Device Connected Vimar:
IoT technology based on Bluetooth technology 5.0 standard for creating VIEW Wireless mesh system, installation on DIN rail (60715 TH35), occupies 1 module of 17.5 mm.
Connected Energy Meter allows you to control the energy consumption of the system or the production of a photovoltaic system.
Other information 02963 - Energy meter connected
The device measures the consumption / production of instant and historical electricity with an hourly, daily, monthly and annual resolution. It must be connected to the single-phase line (or to a single line of a three-phase system) using the current probe supplied.
In a plant it is possible to install only one meter for total consumption (or of a single load); in photovoltaic systems it is possible to install a maximum of two meters (one for the exchange meter and one for the production meter).
It can be used to prevent tripping due to overload of the circuit breaker present in the electricity meter, managing the disconnection of up to 4 loads, according to the priority set by the user.
Features 02963 - Connected energy meter
- Nominal supply voltage: 100-240 V ~, 50/60 Hz.
- Absorption: 6 mA at 100 V ~, 4 mA at 240 V ~ (6-4 mA).
- Detectable powers: from 25 W to 10 kW.
- Inputs for current sensors (sensor supplied).
- Power dissipated: 0.55W
- Transmitted RF power: <100mW (20dBm).
- Frequency range: 2400-2483.5 MHz.
Clamps:
- 2 terminals (L and N) for line and neutral;
- current probe connector.
- CONF front button for configuration / reset.
- Blue LED indicating the configuration status.
- Operating temperature: -10 ÷ +40 ° C (for indoors).
- Voltage variation of the power supply network not exceeding ± 10%
- Degree of protection: IP20.
- Overvoltage category: III
- Measurement category: CAT III
- Altitude: up to 2000 m
- Pollution degree: 2
- Relative humidity: 80% 31 ° C - 50% 40 ° C
- 1 module of 17.5 mm.
- Configuration from App View Wireless for Bluetooth technology system.
- Can be controlled from App View.
NB: Starting from version fw 1.7.0, the device works as a repeater node for battery-powered products (for example art. 03980).
Operation 02963 - Energy meter connected
The device works only in Bluetooth technology mode and allows you to:
• Check single-phase systems (with consumption and / or production)
• Monitor the instantaneous power produced and consumed (in kW with values between 25 W
and 10 kW).
• Monitor the energy produced and consumed in kWh.
Through the gateway 20597-19597-16497-14597 the data collected are transmitted to the App View
which displays the powers produced, consumed and withdrawn with their respective graphs.
In the App View, the energy produced, consumed and withdrawn are displayed with the following
resolutions:
- Hourly for the last 7 days (D),
- Daily for the last month (S),
- Monthly for the last 12 months (M),
- Yearly for the last 10 years (A)
• Manage up to 4 loads by means of as many relay actuators (art. 20593, 19593, 16953, 14593, 03981).
The controlled loads must be assigned a priority which determines the order of disconnection by the device itself. The user can disable the automatic control by forcing the loads.
