Fischer DuoPower L Anchor with Greater Anchor Depth
Fischer DuoPower L : discover the
extended length, universal and bi-material anchor, perfect for fixing medium and light loads on masonry, concrete and plasterboard.
The
greater anchoring depths of the DuoPower L allow the fastening to be particularly suitable for fastening in hollow construction materials, cellular concrete and for penetrating high plaster thicknesses.
ATTENTION: the number of plugs in the package changes according to the chosen item.
Check the table within this tab to find out more.
Fischer DuoPower L dowels with or without screw
Discover the DuoPower L anchor in the
version with or without screw : just select the variant you prefer.
You can choose between different variants of Fischer DuoPower L:
- Fischer DuoPower L : bi-material dowel with increased length;
- Fischer DuoPower SL : bi-material anchor with increased length with TSP chipboard screw with pozidrive recess;
- Fischer DuoPower SL with TE screw : bi-material anchor with increased length with TE wood screw.
Here are the photos of the different versions.

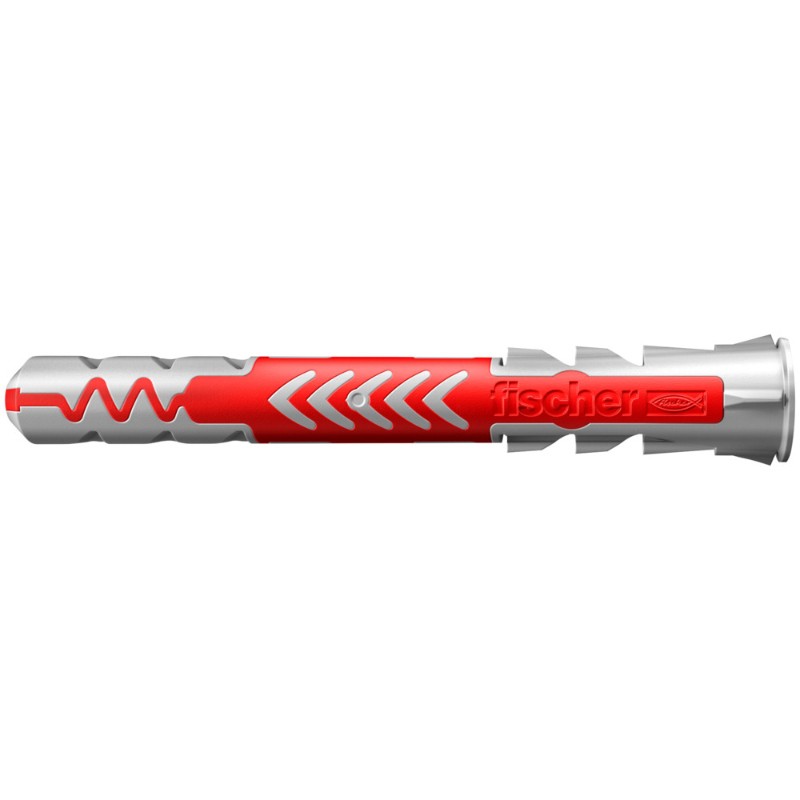

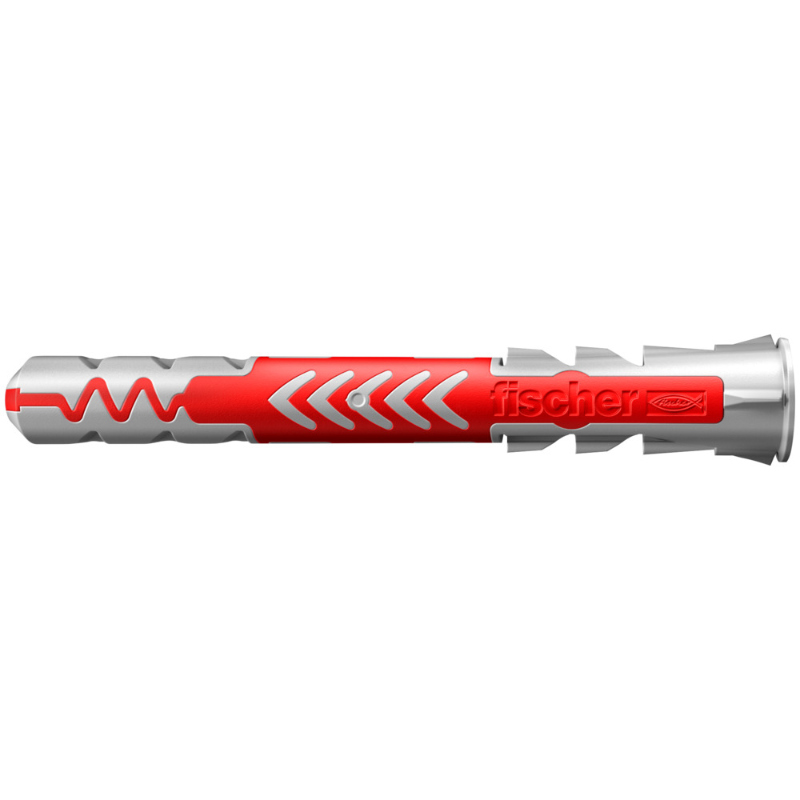

Fischer DuoPower L: bi-material dowel with increased length.

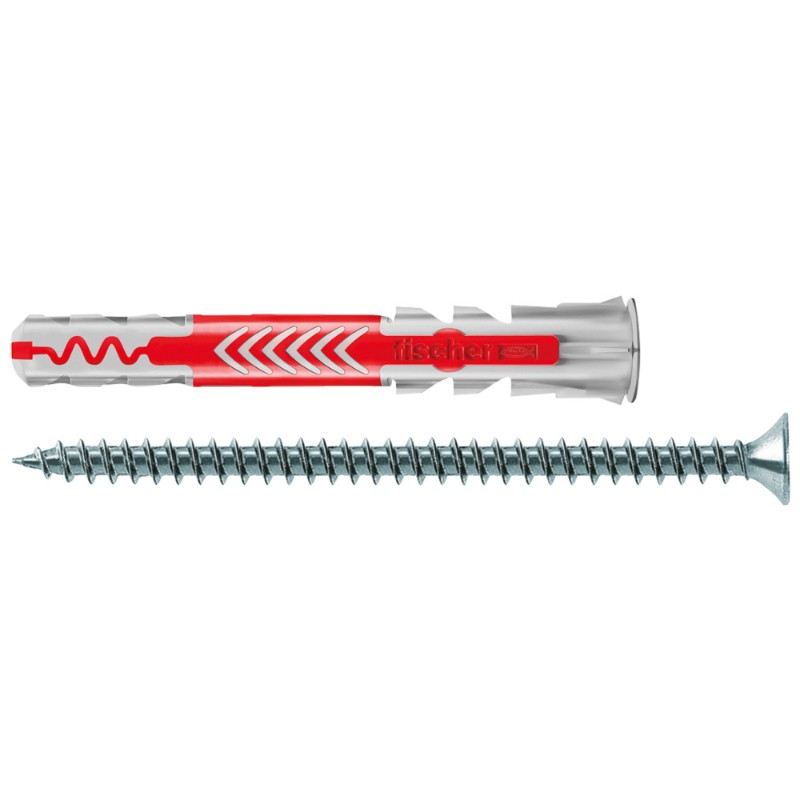

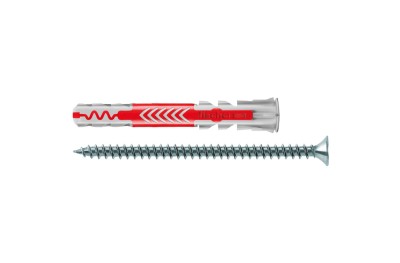

Fischer DuoPower SL: bi-material dowel with increased length with TSP chipboard screw with pozidrive recess.
Fischer DuoPower SL with TE screw: bi-material anchor with increased length with TE wood screw
Why do we recommend Fischer DuoPower dowels?
- Fischer DuoPower is made of two components for a better progressivity of expansion and a greater load capacity.
- The combination of rigid and elastic components allows to obtain a perfect insertion of the screw and a better tightening torque.
- Safe installation on main materials, including sheets and plasterboard.
| Product |
Art. |
Pieces |
Screw |
Diameter
tip |
Depth
minimum hole |
Length
gusset |
| DUOPOWER 6x50 L |
538240 |
100 |
No |
6 mm |
60 mm |
50 mm |
| DUOPOWER 8x65 L |
538241 |
50 |
No |
8 mm |
75 mm |
65 mm |
| DUOPOWER 10x80 L |
538242 |
25 |
No |
10 mm |
100 mm |
80 mm |
| DUOPOWER 6x50 SL |
538245 |
50 |
Yup |
6 mm |
75 mm |
50 mm |
| DUOPOWER 8x65 SL |
538246 |
25 |
Yup |
8 mm |
85 mm |
65 mm |
| DUOPOWER 10x80 S |
538247 |
10 |
Yup |
10 mm |
112 mm |
80 mm |
What are the advantages of Fischer DuoPower anchors?
- Two components for higher load values and intelligent operation (expansion, folding, knotting) depending on the support material;
- The best possible feedback in tightening. It is possible to perceive with certainty when the fixing is installed perfectly;
- The reduced length of the fastening ensures a quick installation without deep drilling;
- The thin collar of the fastener prevents slippage in the hole;
- Closely spaced anti-rotation fins prevent rotation in the hole during installation.
On which materials can Fischer DuoPower be applied?
You can install the Fischer DuoPower expansion anchor on the main building materials:
- Concrete;
- Solid brick in brick;
- Solid calcium silicate brick;
- Solid block in lightened concrete;
- Semi-solid brick (vertically perforated) in clay;
- Semi-solid brick (vertically perforated) in calcium silicate;
- Lightweight concrete hollow block;
- Autoclaved aerated concrete (cellular concrete);
- Drywall;
- Plasterboard sheets and gypsum fiber panels;
- Hollow floors in concrete and brick or similar;
- Natural stone;
- Chipboard;
- Full plasterboard;

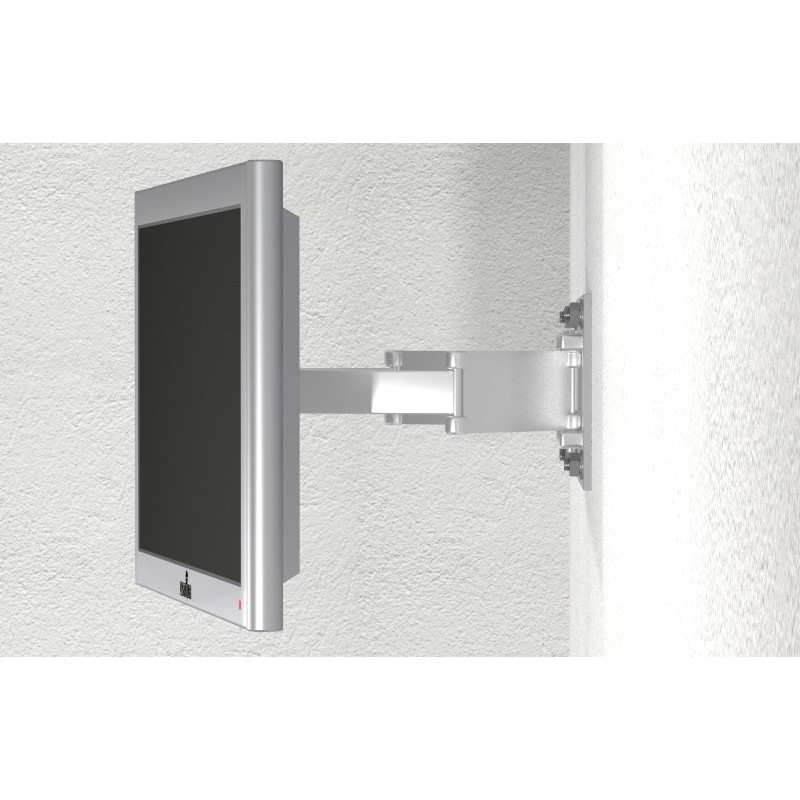

- TV shelves;
- Lighting;
- Shelves;
- Mirror cabinets;
- Letterboxes;
- Paintings;
- Roller blinds;
- Curtain rails;
- Fixings for washbasins;
- Plumbing and heating fittings;
- Bathroom accessories;
- Hanging furniture;
- Extractor hood.

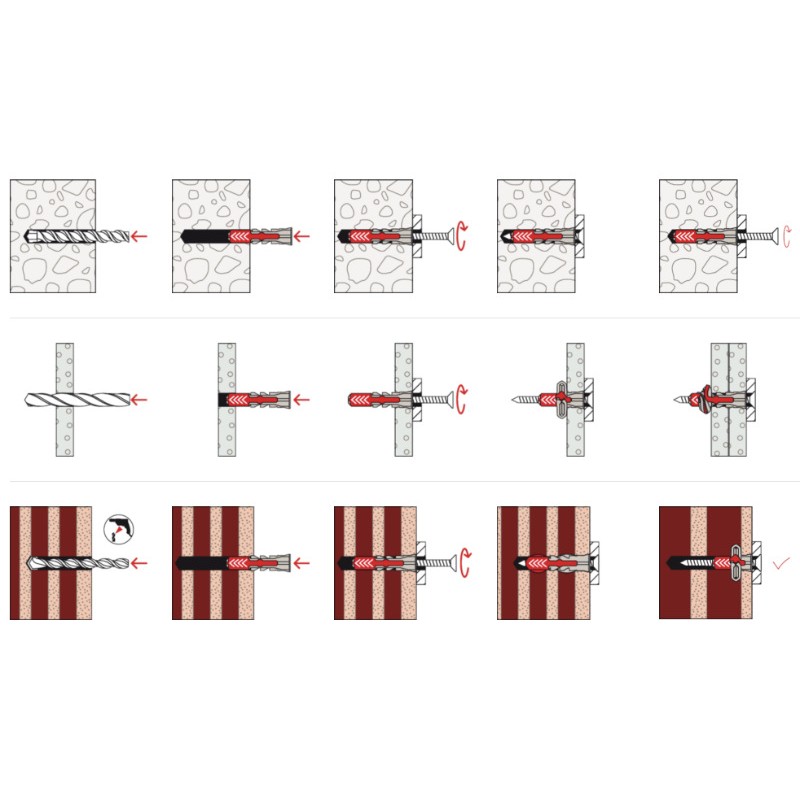

How is the Fischer DuoPower dowel mounted?
- The DuoPower is suitable for pass-through and non-pass-through installation;
- The coupling of two different materials and its multiple functional abilities (expanding, folding and knotting) extend the range of applications to further materials with high loads;
- The required length of the screw is given by the length of the anchor + the thickness of the object to be fixed;
- Suitable for wood and chipboard screws as well as for screws with double thread;
- In the case of fixing on panels, the non-threaded part of the screw must not be longer than the object to be fixed;
- The distance from the edge must be at least once the length of the fastening.
