Fischer DuoPower Anchor - Universal and Bi-material with Screw or Without
Fischer DuoPower : discover the
universal bi-material anchor ideal for fastening medium and light loads on masonry, concrete and plasterboard.
ATTENTION: the number of plugs in the package changes according to the model chosen.
Read the table inside this sheet to find out more.

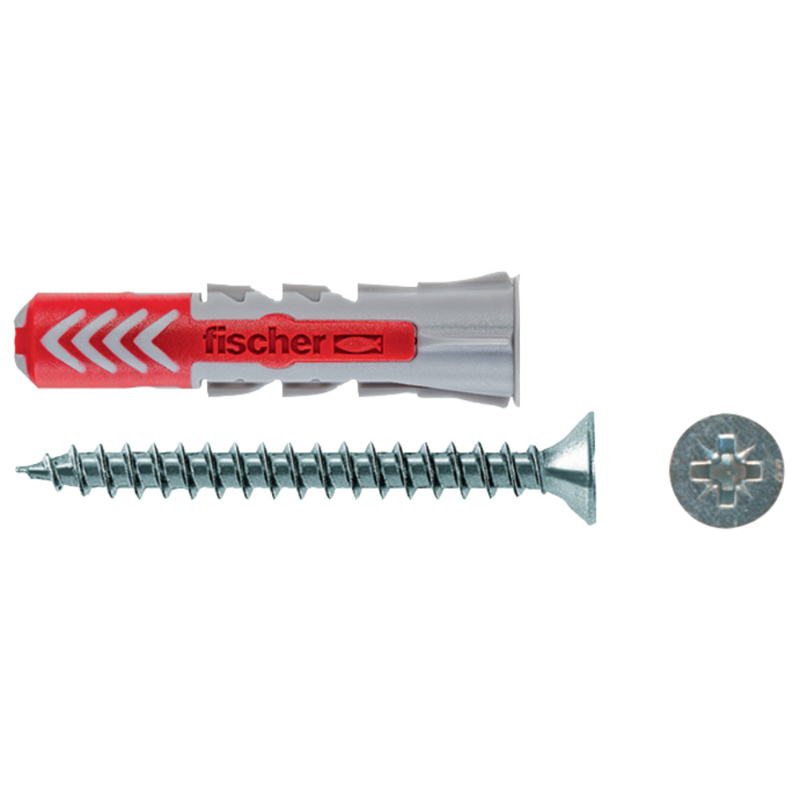

Fischer DuoPower with screw or without: you decide it
You can buy the DuoPower dowel in the
version with or without screw: just select the variant you prefer.
Why choose Fischer DuoPower dowels?
- Fischer DuoPower is made of two components for a better progressivity of expansion and a greater load capacity.
- The combination of rigid and elastic components allows to obtain a perfect insertion of the screw and a better tightening torque.
- Safe installation on main materials, including sheets and plasterboard.
| Product |
Art. |
Pieces |
Screw |
Diameter
tip |
Depth
minimum hole |
Length
gusset |
| DUOPOWER 5 |
537639 |
100 |
No |
5 mm |
35 mm |
25 mm |
| DUOPOWER 6 |
537640 |
100 |
No |
6 mm |
40 mm |
30 mm |
| DUOPOWER 8 |
537641 |
100 |
No |
8 mm |
50 mm |
40 mm |
| DUOPOWER 10 |
537644 |
50 |
No |
10 mm |
70 mm |
50 mm |
| DUOPOWER 12 |
538243 |
25 |
No |
12 mm |
80 mm |
60 mm |
| DUOPOWER 14 |
538244 |
25 |
No |
14 mm |
90 mm |
70 mm |
| DUOPOWER 5 S |
537645 |
100 |
Yup |
5 mm |
40 mm |
25 mm |
| DUOPOWER 6 S |
537646 |
100 |
Yup |
6 mm |
45 mm |
30 mm |
| DUOPOWER 8 S |
537647 |
50 |
Yup |
8 mm |
65 mm |
40 mm |
| DUOPOWER 10 S |
537648 |
25 |
Yup |
10 mm |
75 mm |
50 mm |

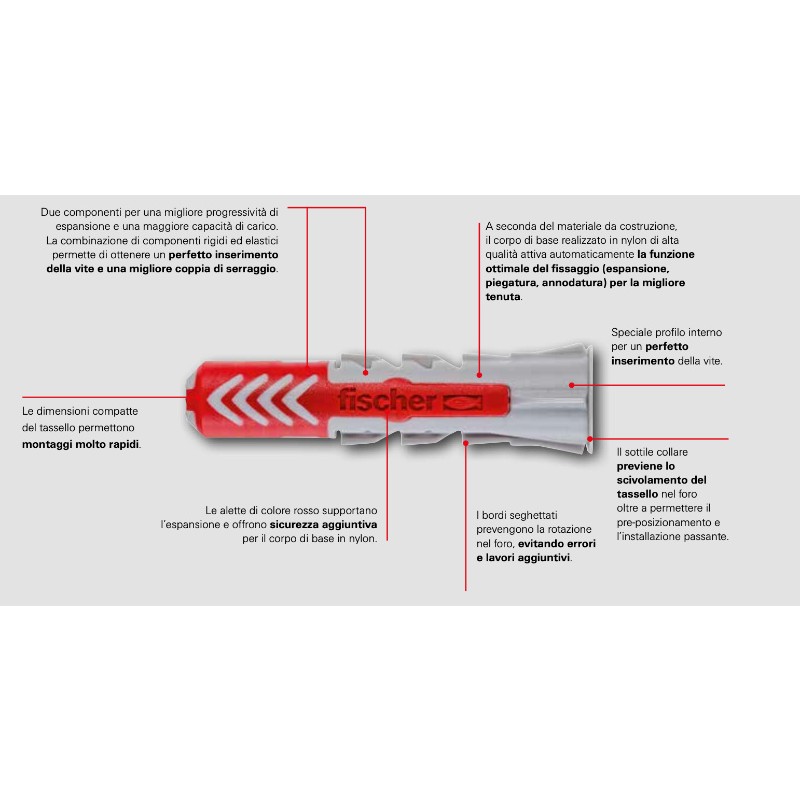

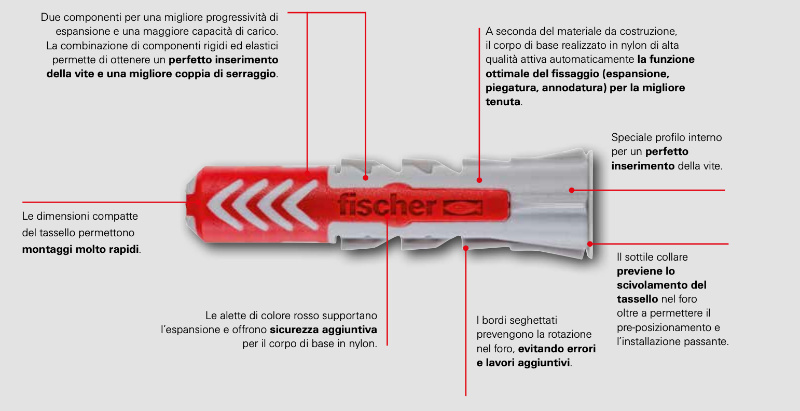

Advantages Fischer DuoPower dowels: strength and intelligence in balance
- Two components for higher load values and intelligent operation (expansion, folding, knotting) depending on the support material;
- The best possible feedback in tightening. It is possible to perceive with certainty when the fixing is installed perfectly;
- The reduced length of the fastening ensures a quick installation without deep drilling;
- The thin collar of the fastener prevents slippage in the hole;
- Closely spaced anti-rotation fins prevent rotation in the hole during installation.
Fischer DuoPower applications on building materials
You can install the Fischer DuoPower expansion anchor on the main building materials:
- Concrete;
- Solid brick in brick;
- Solid calcium silicate brick;
- Solid block in lightened concrete;
- Semi-solid brick (vertically perforated) in clay;
- Semi-solid brick (vertically perforated) in calcium silicate;
- Lightweight concrete hollow block;
- Autoclaved aerated concrete (cellular concrete);
- Drywall;
- Plasterboard sheets and gypsum fiber panels;
- Hollow floors in concrete and brick or similar;
- Natural stone;
- Chipboard;
- Full plasterboard;
- TV shelves;
- Lighting;
- Shelves;
- Mirror cabinets;
- Letterboxes;
- Paintings;
- Roller blinds;
- Curtain rails;
- Fixings for washbasins;
- Plumbing and heating fittings;
- Bathroom accessories;
- Hanging furniture;
- Extractor hood.

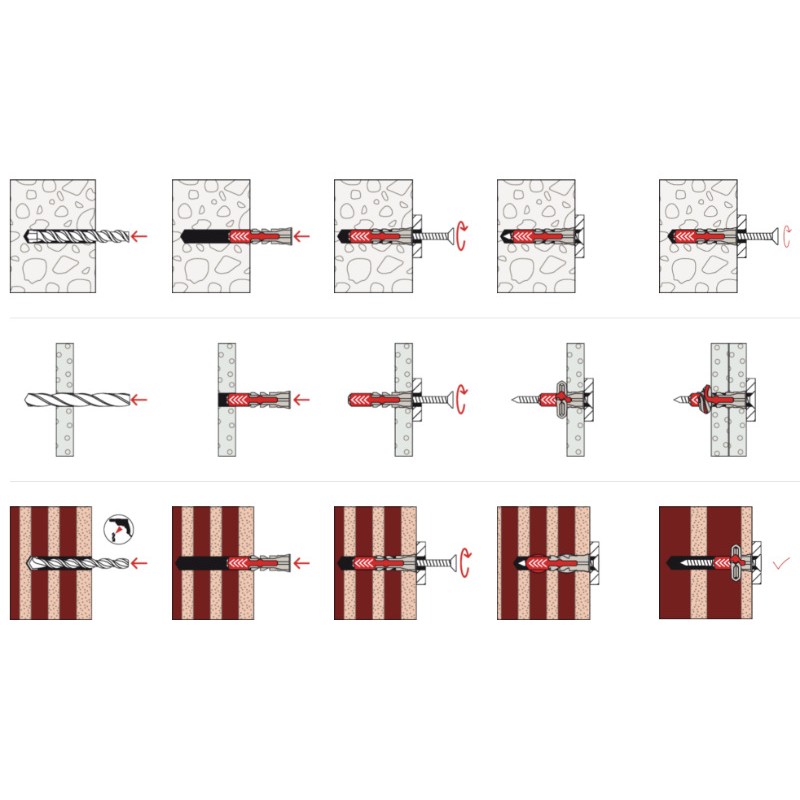

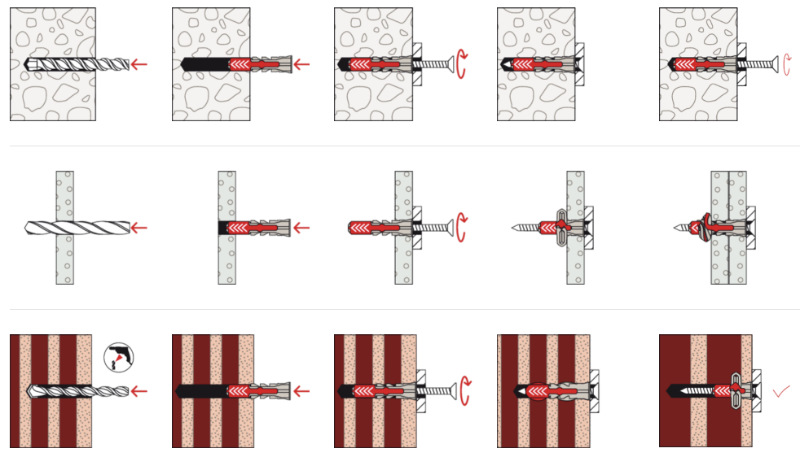

Fischer DuoPower mounting information
- The DuoPower is suitable for pass-through and non-pass-through installation;
- The coupling of two different materials and its multiple functional abilities (expanding, folding and knotting) extend the range of applications to further materials with high loads;
- The required length of the screw is given by the length of the anchor + the thickness of the object to be fixed;
- Suitable for wood and chipboard screws as well as for screws with double thread;
- In the case of fixing on panels, the non-threaded part of the screw must not be longer than the object to be fixed;
- The distance from the edge must be at least once the length of the fastening.
