Fischer UX Dowel - Universal Nylon - Wall Fixing Do It Yourself
Fischer UX Universal Nylon Anchor: You don't need to be a wizard to use Fischer wall anchors. You just need any screwdriver or even a simple screwdriver!
Find out how easy it is to use Fischer UX: the ideal piece for DIY. Simple and innovative, designed for all the walls of your home.
ATTENTION: the number of plugs in the package changes according to the model chosen.
Read the table inside this sheet to find out more.
Fischer UX with TSP chipboard screw or without: the choice is yours!
Buy the UX nylon dowel in the
version with screw or without: you can select the variant you want.

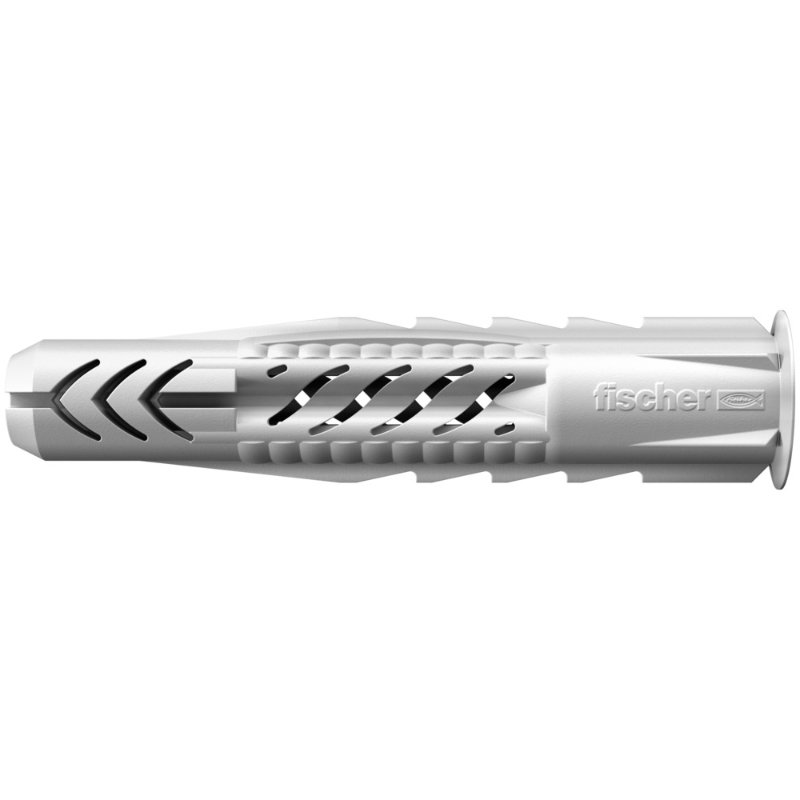

Fischer UX nylon dowel without screw:

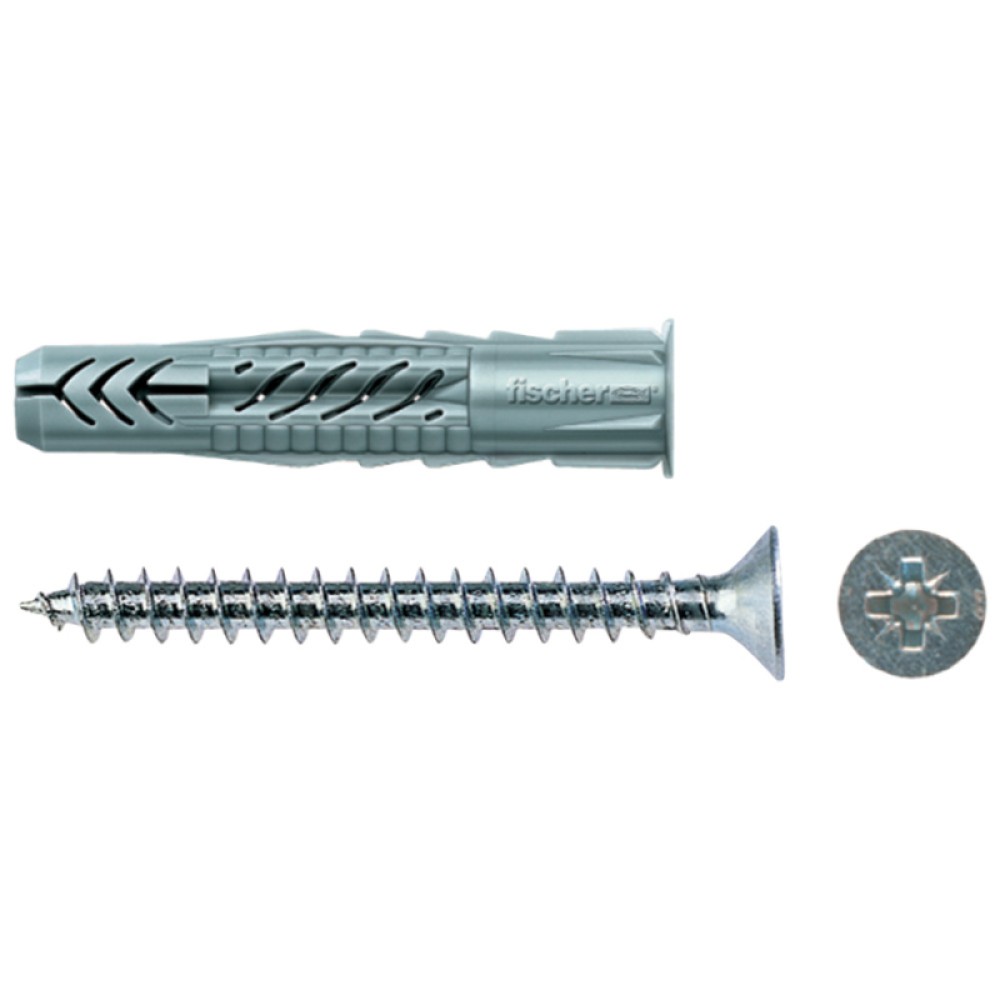

Fischer UX nylon dowel with TSP chipboard screw pozdrive recess:
Which Fischer UX nylon gusset do you want?
In this table you can see the characteristics of the Fischer UX dowels for sale online on Windowo.
| Product |
Art. |
Pieces |
Screw |
Diameter
tip |
Depth
minimum hole |
Length
gusset |
| UX 5x30 R |
71540 |
100 |
No |
5 mm |
40 mm |
30 mm |
| UX 6x35 R |
71541 |
100 |
No |
6 mm |
45 mm |
35 mm |
| UX 6x50 R |
71542 |
100 |
No |
6 mm |
60 mm |
50 mm |
| UX 8x50 R |
71543 |
50 |
No |
8 mm |
60 mm |
50 mm |
| UX 10x60 R |
71544 |
25 |
No |
10 mm |
75 mm |
60 mm |
| UX 12x70 |
71545 |
25 |
No |
12 mm |
85 mm |
70 mm |
| UX 14x75 |
71546 |
20 |
No |
14 mm |
95 mm |
75 mm |
| UX 5x30 RS / 5 |
71547 |
100 |
Yup |
5 mm |
45 mm |
30 mm |
| UX 6x35 RS / 10 |
71548 |
100 |
Yup |
6 mm |
55 mm |
35 mm |
| UX 6x50 RS / 10 |
71549 |
50 |
Yup |
6 mm |
70 mm |
50 mm |
| UX 8x50 RS / 10 |
71550 |
50 |
Yup |
8 mm |
70 mm |
50 mm |
| UX 10x60 RS / 15 |
71551 |
20 |
Yup |
10 mm |
85 mm |
60 mm |
Discover the advantages of the Fischer UX dowels
- The universal operating principle (knotting or expansion) allows its use in all solid, perforated and sheet support materials;
- UX fastening is the right choice if you don't know the base material;
- The side wings of the UX ensure optimal screw guidance;
- Anti-rotation serrated fins prevent rotation in the hole. This guarantees maximum safety during installation;
- Fixing kits with screws, hook and round hook provide the right solution for all applications.
Fischer UX anchors applications on building materials
You can install the Fischer UX expansion anchor on the main building materials:
- Concrete;
- Solid brick in brick;
- Solid calcium silicate brick;
- Solid block in lightened concrete;
- Semi-solid brick (vertically perforated) in clay;
- Semi-solid brick (vertically perforated) in calcium silicate;
- Lightweight concrete hollow block;
- Cellular concrete;
- Hollow concrete and brick slab;
- Plasterboard sheet and gypsum fiber panel;
- Natural stone;
- Chipboard;
- Full plasterboard;
- Paintings;
- Lights;
- Baseboard;
- Lightweight lockers;
- Towel holder;
- Bathroom cabinets;
- Curtain rails;
- Fixings for washbasins;
- TV consoles;
- Fixings in electrical, plumbing and heating installations.

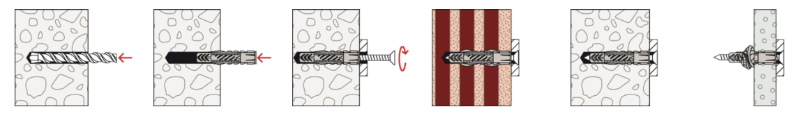

Information on mounting Fischer UX fixings
- The screwing in of the screw causes expansion in solid support materials and knotting in hollow materials;
- The required length of the life is given by the length of the anchor + thickness of the object to be fixed + 1 x screw diameter;
- Suitable for wood and chipboard screws, as well as for double thread screws;
- The distance from the edge must be at least equal to the length of the fastening.
