Giesse bolt Giap Futura European Chamber Silver Plus
FEATURES

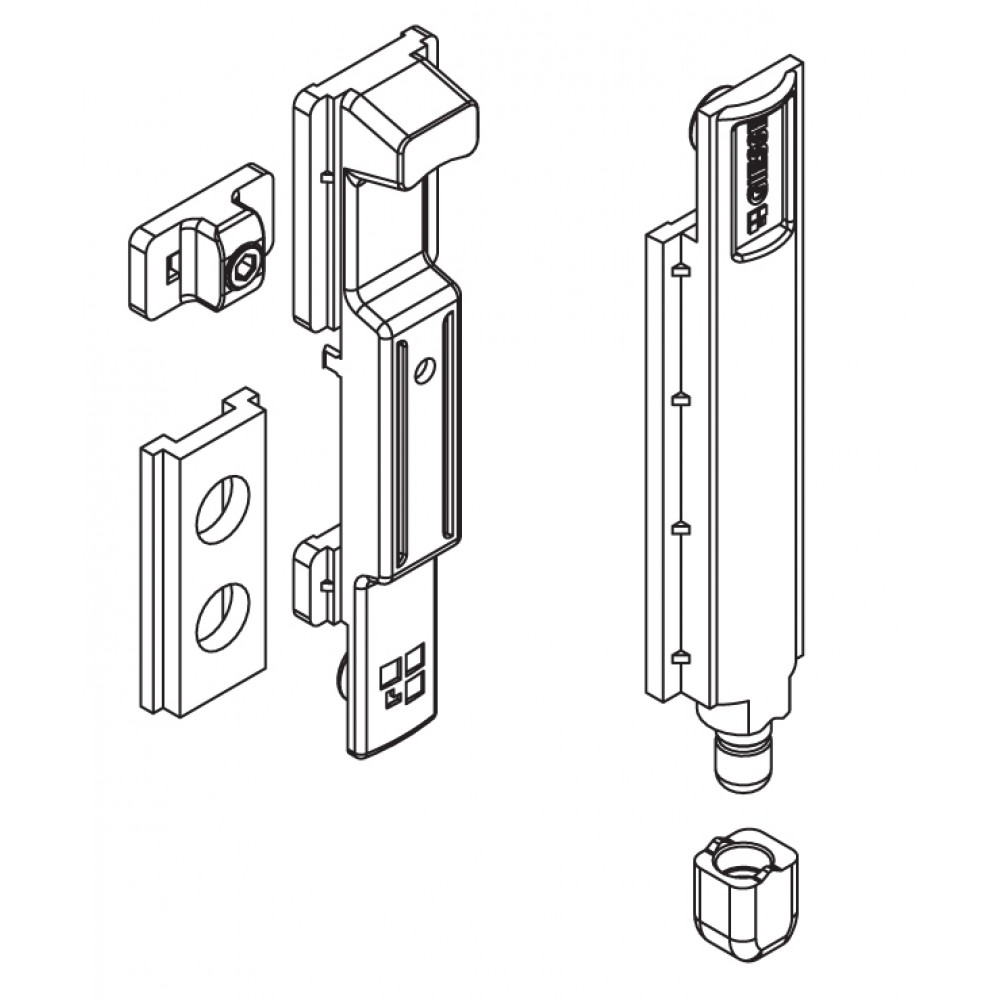

Clasp nylon composed of an operating body and a terminal with pin match for direct fixing to floors.
Useful for windows or doors swing of aluminum doors and windows open joint.

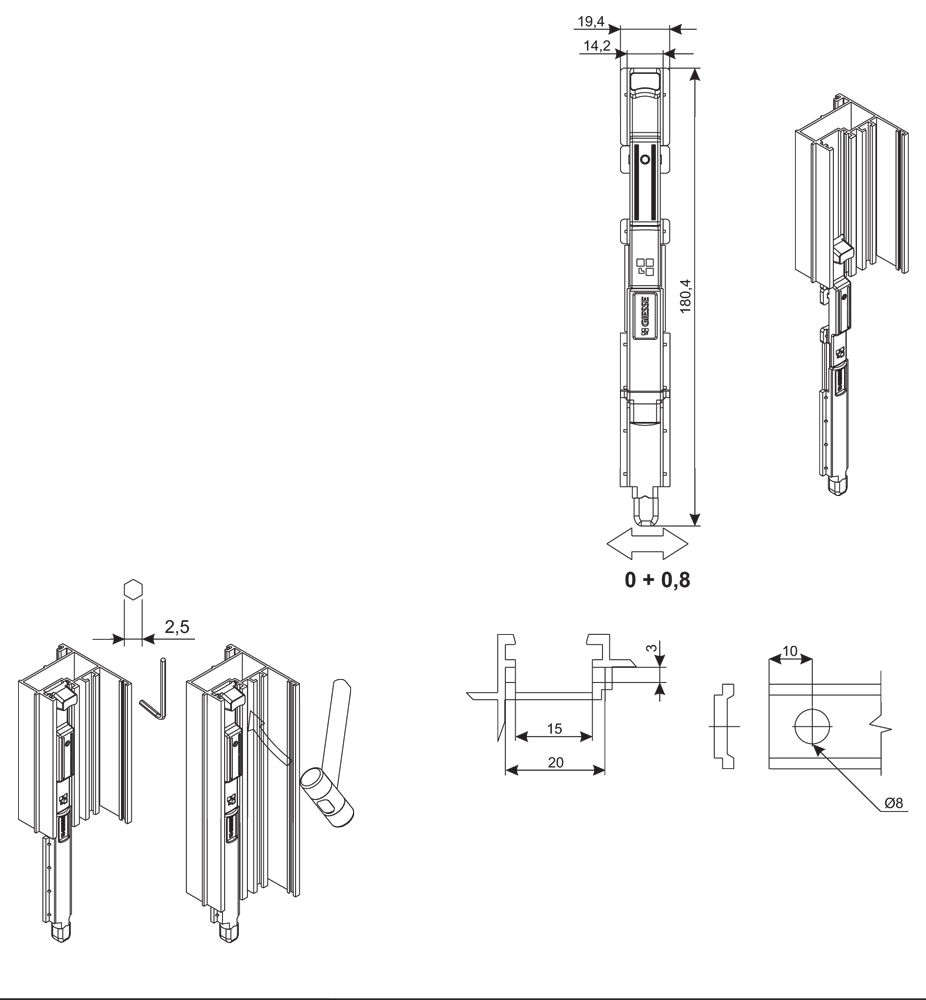

To track by 20mm.
TECHNICAL FEATURES
For fixing, where it is required the application of the encounter auctions Art.01314 (buyable Windowo always on), you will have to engage on the pivot bushing nylon supplied to get a perfect fit.
The side walls have the Appendices intended to trafilarsi upon insertion in the dovetails, in order to compensate the tolerances of extrusion and insights of the thickness of the finishes, painted.
It is applied in the track profile without machining.
Obtained the position, it is secured by a block effected on M5 pre-assembled with an Allen wrench of 2.5mm.
The plate connecting nylon can be replaced dall'astina of the series to prolong the maneuver.
MATERIALS
Basic elements in black nylon with glass fibers;
End pin in galvanized steel;
Fixing block in galvanized zamak Silver Plus;
Grain galvanized steel.
NOTE: For a complete knowledge of the product we recommend reading the PDF attached to the card.
