Handle Panic Omec Composition doors two doors four points Closing

Brands: Omec

Code: COMP.5 MAN. ANTIP. OMEC

-30%

£ 282,21 £ 403,16

Prices excluding VAT

Are you looking for a product of Omec catalog not present on our site? Contact us and ask for a quote.

Quantity

- +

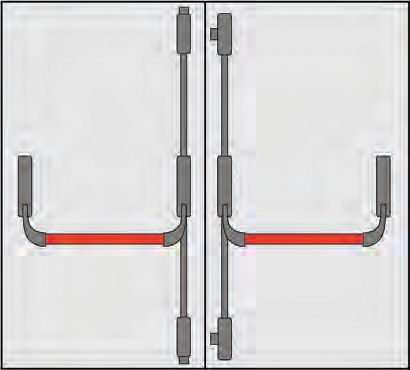

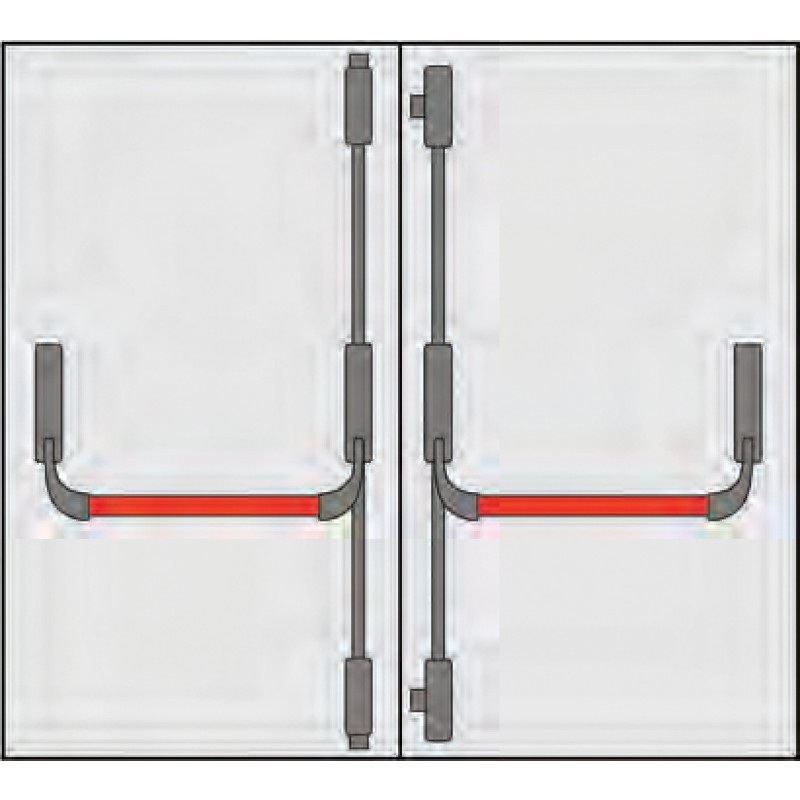

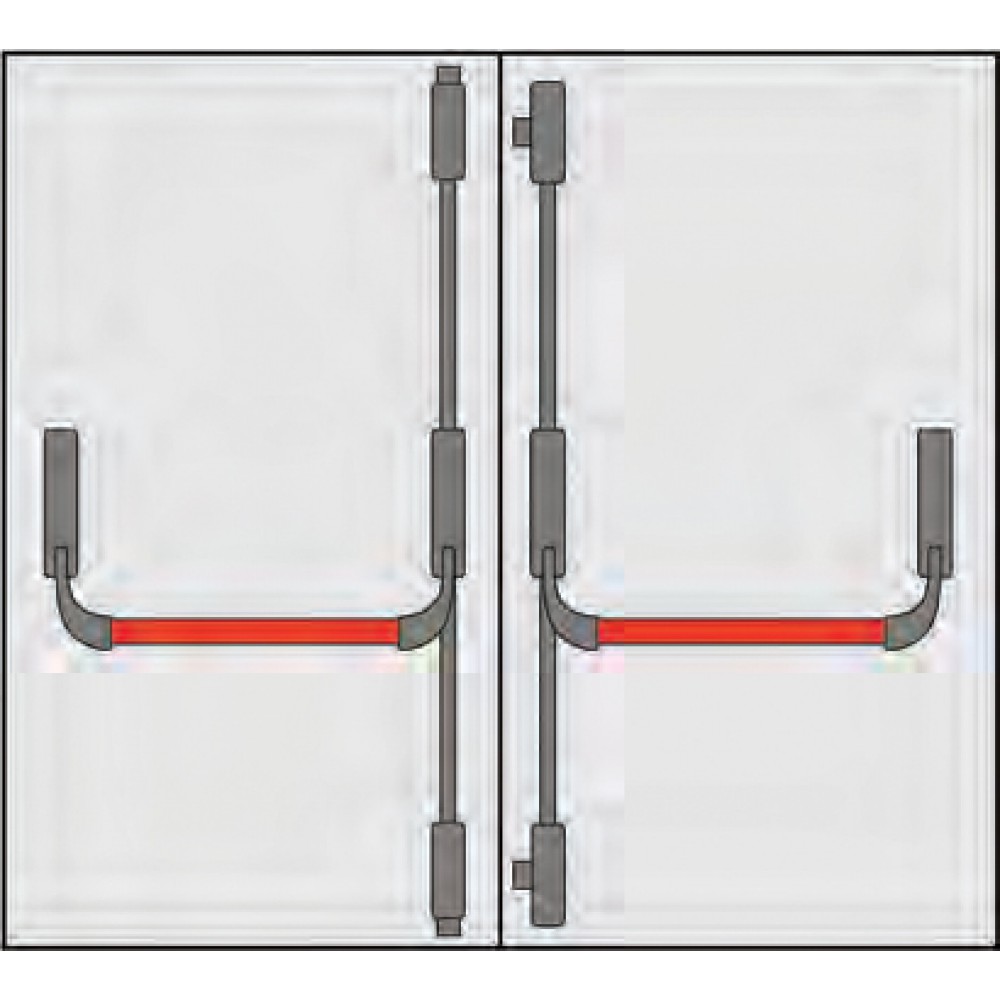

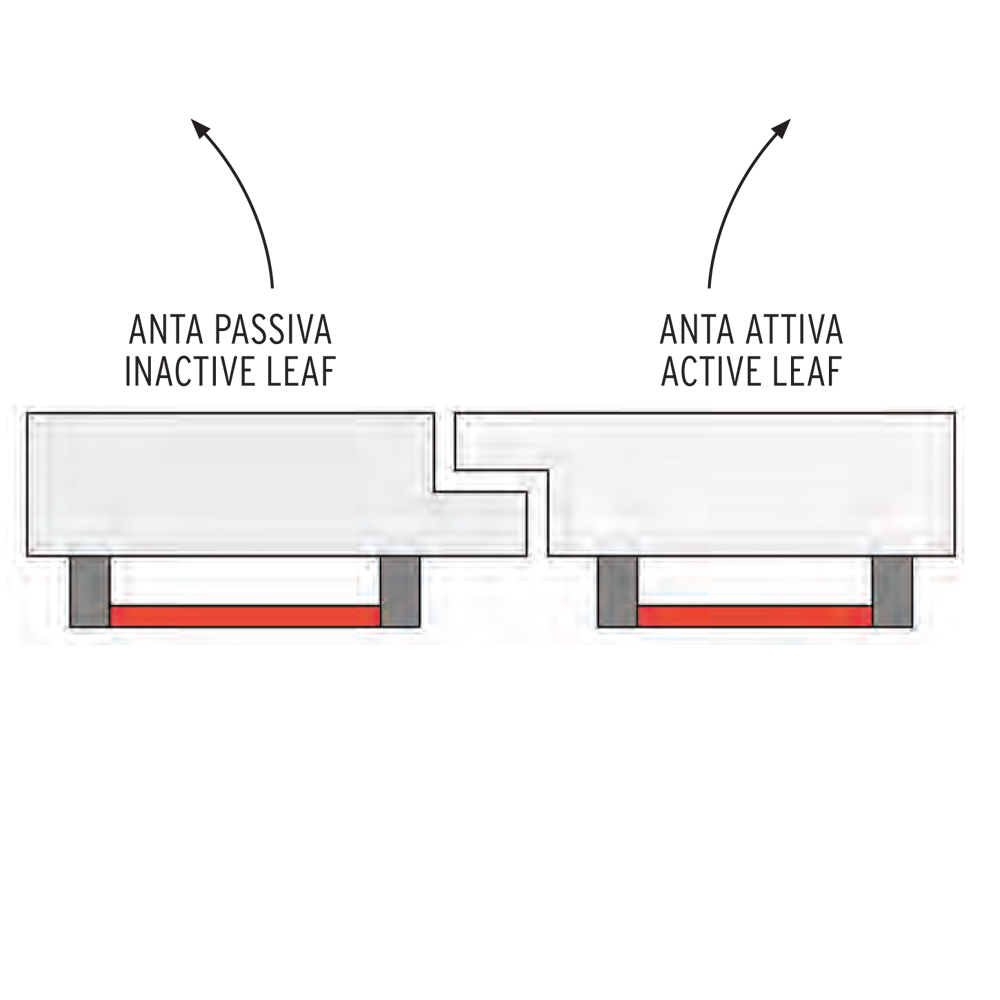

Manigl composition. Panic Omec x Reversible doors two doors; Four Points Closing
Individual items are purchased separately within the "handles Panic".

**Omec items included in this composition Handle Panic (as shown):**
Art.	Name	Quantity	Characteristics
6213	Triple (modular) Reversible	2 pieces	Boxes made of galvanized steel - Lids aluminum painted - levers in special alloy painted - latch in special alloy nickel plated - Stainless steel springs
6005 AR	Horizontal bar Red (RED RAL 3020)	2 pieces	L 1130, Painted Steel
6040	Kit diverters High / Low (Black Black RAL 9005)	1 piece	Boxes made of galvanized steel - Lids aluminum painted - Scrocchi special alloy nickel plated - Stainless steel springs - Auctions galvanized steel - aluminum painted Copriasta
6041	Kit diverters Side (Black Black RAL 9005)	1 piece	Boxes made of galvanized steel - Lids aluminum painted - Scrocchi special alloy nickel plated - Stainless steel springs - Auctions galvanized steel - aluminum painted Copriasta

TECHNICAL Art.6213:
FEATURES: Boxes made of galvanized steel - Lids aluminum painted - levers in special alloy painted - latch in special alloy nickel plated - Stainless steel springs.
OPERATION: latch controlled by the horizontal bar or by external commands.
PARTS SUPPLIED AS STANDARD: side, nylon caps, screws, installation instructions, drilling templates.

TECHNICAL Art.6005 AR:
MATERIAL: Painted steel.
PARTS EQUIPMENT: caps nylon.

TECHNICAL Art.6040:
FEATURES: Boxes made of galvanized steel - Lids aluminum painted - Scrocchi special alloy nickel plated - Stainless steel springs - Auctions galvanized steel - Copriasta painted aluminum.
APPLICATION: Panic triple.
PARTS SUPPLIED AS STANDARD: lateral, strike-floor, screws and mounting accessories.

TECHNICAL Art.6041:
FEATURES: Boxes made of galvanized steel - Lids aluminum painted - Scrocchi special alloy nickel plated - Stainless steel springs - Auctions galvanized steel - Copriasta painted aluminum.
APPLICATION: Panic triple.
PARTS EQUIPMENT: 2 backplates side, screws and mounting accessories.
