Combined Heat and Smoke Detector - Opera 05203 - for Single Zone Fire Control Panel - EN54 Conformity
What is the use of this heat and smoke detector?
- This combined optical and heat detector activates the alarm condition in the event of smoke or heat and smoke detection;
- For single-zone Opera control unit with EN54 compliance.
IMPORTANT Full EN54 compliance
To obtain full EN54 compliance you must have the complete kit consisting of:
- 52002 Single-zone fire alarm panel (1 unit)
- 05110R Case for pressure alarm activation with manual reset (2 units)
- 05115 Reset button (1 unit)
- 05207 Electronic siren (1 unit)
- Optional 05203 Combined heat and smoke detector (2 units)
- Optionally 05204 Rate-of-rise heat detector (e.g. for kitchens) (2 units)
- 00112 Alarm control panel battery (2 units)
Want to be sure you have EN54 compliance?
On Windowo you can also find the complete kit ready for purchase.
Go to the
Single-zone Fire Control Panel Kit Opera.

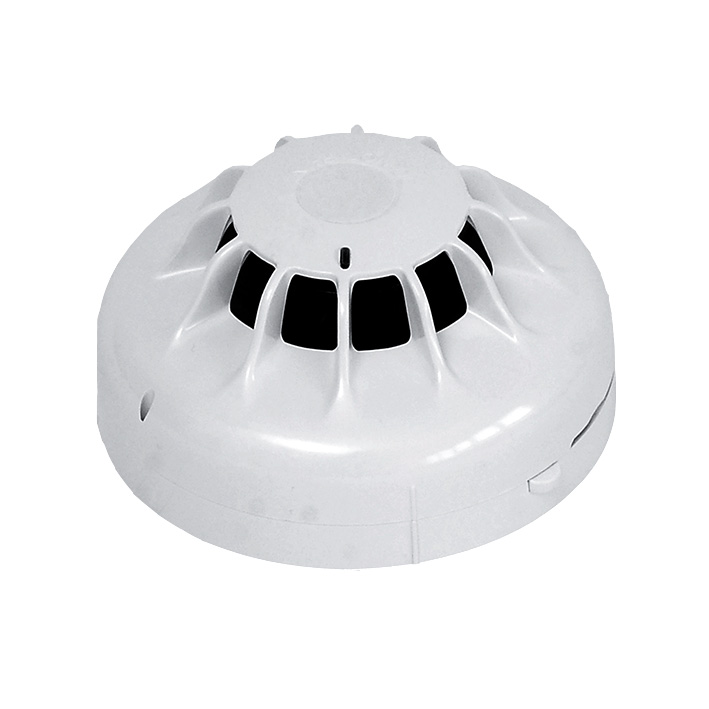

05203 Combined Heat and Smoke Detector
Technical features Heat and Smoke Detector - Opera 05203
- White ABS box
- Dimensions: mm. 110 diameter x 54 height
- Power supply: 24 Vdc (10.5 - 33 Vdc)
- Absorption at rest 67 microA at 24 Vdc/ in alarm: 45 mA
- Operating temperature: - 20 to + 70°C
- Operating technology: optical and thermal (in the event of a rise in temperature, its sensitivity to the detection of particles released by fire increases)
- Supplementary detector complete with base for ceiling mounting, connectable to article 52002 (sold separately on Windowo)
Compliance : EN54-7
On customer request
Relay base for applications to other systems (contact us for more information).
