Hinges to Weld 2 Wings Removable Pin Steel IBFM
White galvanized pin and washer - natural steel wings.

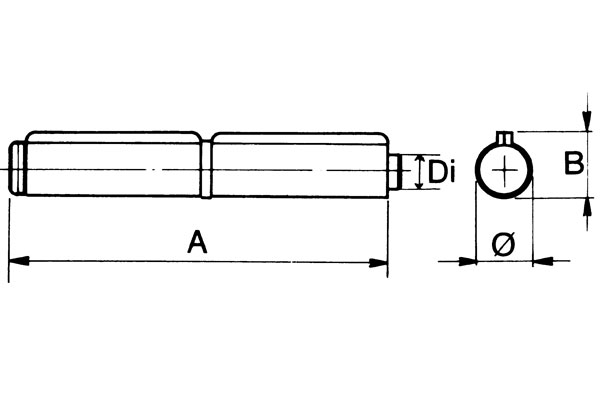

Choose the characteristics of the hinge according to the length of A:
| A mm |
60 |
80 |
100 |
120 |
140 |
170 |
200 |
| Ø mm |
9,5 |
12 |
13,5 |
15 |
16,6 |
17,5 |
22 |
| B mm |
13 |
16,5 |
18 |
19,5 |
22 |
23,5 |
25 |
| D mm |
6 |
8 |
8,5 |
10 |
10,5 |
12 |
14 |
| Capacity kgx2 |
40 |
50 |
70 |
90 |
90 |
100 |
120 |
