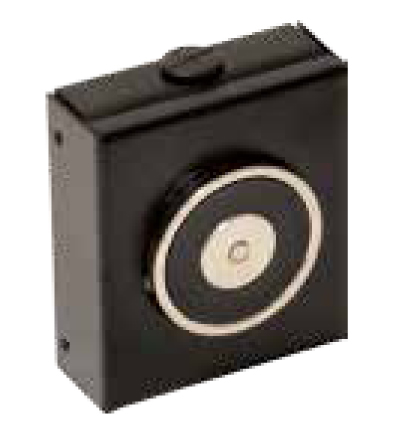

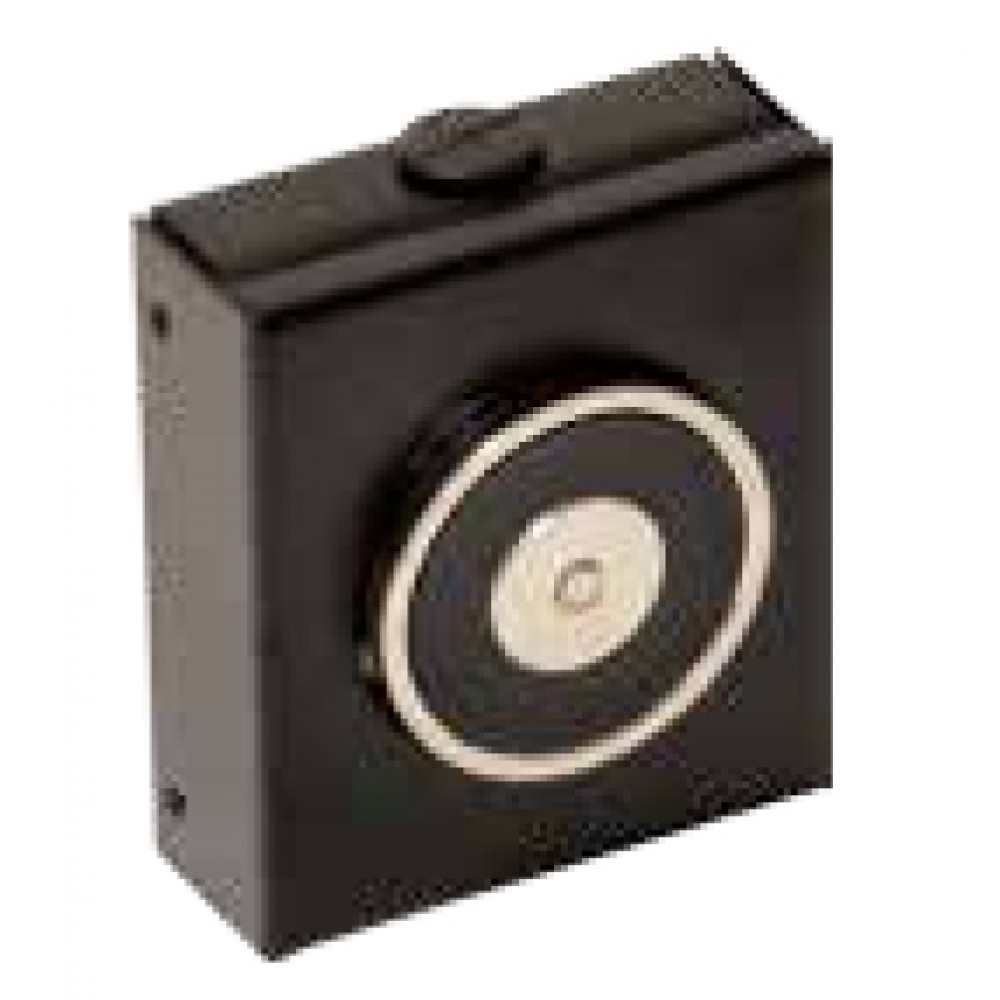

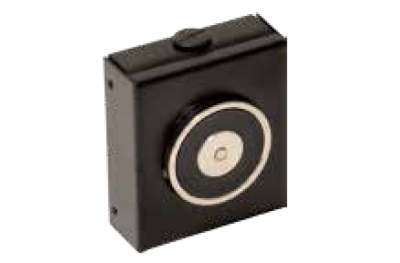

Holding Electromagnet 18000 Opera
Opera 18000 holding electromagnet : safety device designed to keep fire doors open in normal conditions and allow their automatic closing in case of emergency.
This product is ideal for commercial, industrial and public buildings where fire safety is of primary importance.
Holding Electromagnet 18000 Opera - Technical characteristics
- Wall fixing;
- Body in black painted steel;
- Nickel-plated electromagnet block;

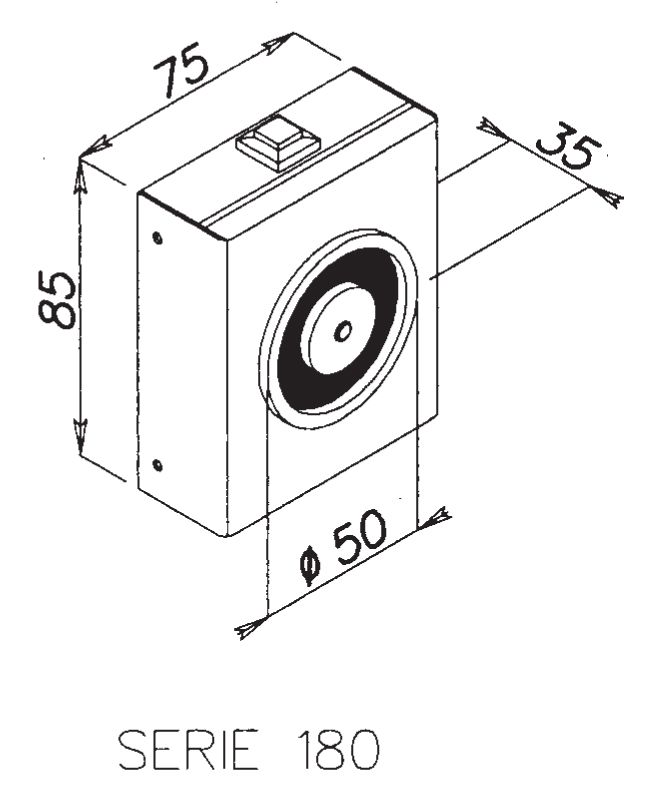

- Dimensions: 85x75x35mm;
- Power supply: 24 Vdc;
- Current consumption: 70 MA;
- Traction force: >55Kg;
- Anti-residual magnetism pin on the electromagnet body;
- Screw connection terminals;
- Internal anti-noise varistor;
Compliance: UNI EN 1155.
Use: electromagnet for swing fire doors.
The product is sold
without a backplate.
The strike plate
can be purchased separately on Windowo: you can choose between Fixed Strike Plate (Art.01800Z Opera) or Articulated Strike Plate (Art.01805Z Opera).
