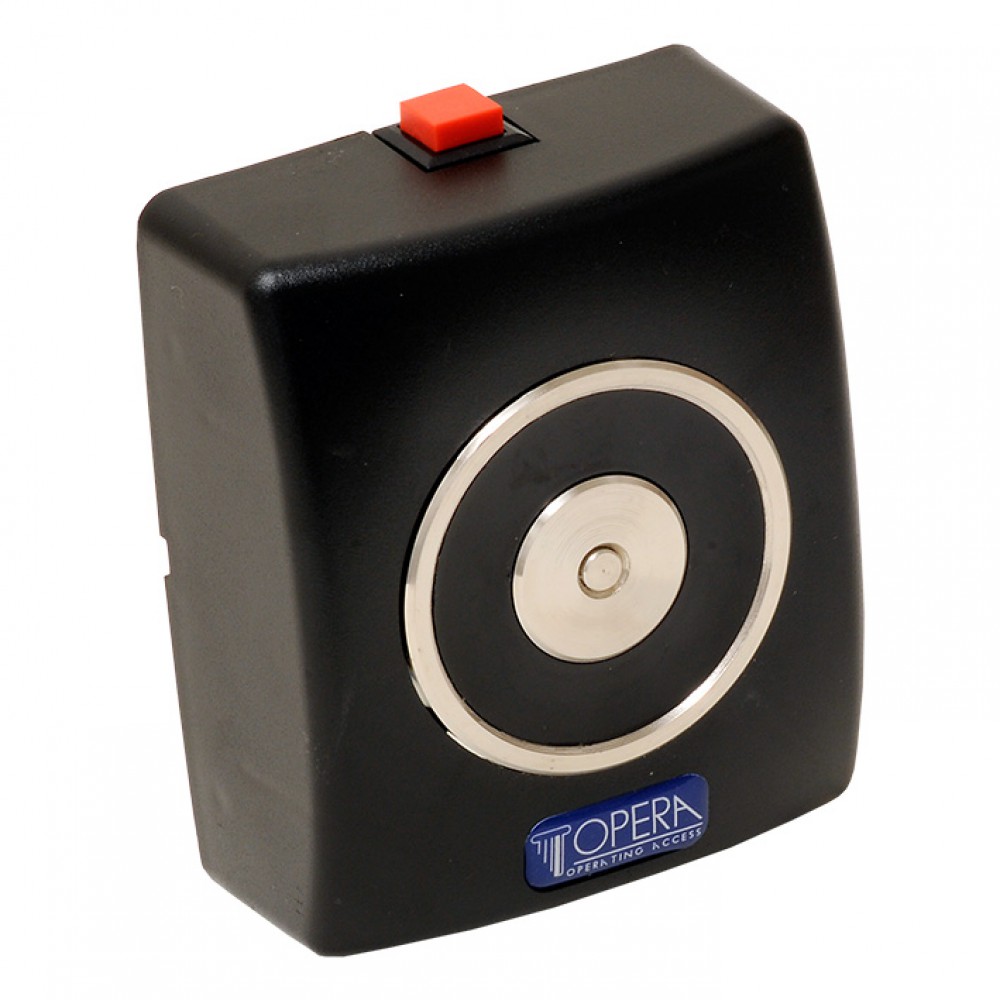

Black Holding Electromagnet with Release Button 19001 Opera
Holding electromagnet for swing fire doors.
Black Holding Electromagnet Version
- With release button
- Wall fixing
By choice
- Standard : as description below
- Adjustable strength : from 10-50 Kg (prevents the magnet from detaching from the wall after repeated misuse)
- Double power supply : automatic selection 24/48 Vdc (useful for the French market)
- Adjustable force + Dual power
Technical features Black Holding Electromagnet
- Body in ABS with base in galvanized steel
- Nickel plated electromagnet block
- Power supply: 24 Vdc - Absorbed current: 70 mA
- Fixed traction force: > 55 Kg
- Residual anti-magnetism pin on the electromagnet body
- Connection connector with anti-interference varistor
Holding electromagnet
compliance : UNI EN 1155.
On request
Contact us to add variants:
- 12 Vdc power supply
- 12 Vac power supply
- 24 Vac power supply
- 48 Vdc power supply
- Reduced force 20 Kg
- Status sensor
IMPORTANT
Holding electromagnet supplied without counterplate.
The counterplate can be purchased on our website. Choose between:
- Fixed Counterplate (Art. 01800Z Opera)
- Articulated counterplate (Art. 01805Z Opera).
Fire Control Series Opera
- Holding electromagnets for fire doors
- Regulators for sliding fire doors
- Hydraulic shock absorbers
- Single-zone fire alarm control panels
- Smoke and heat detectors
Opera holding electromagnets
