Hood with Activated Carbon and LED Lights in Stainless Steel

OndaInox
Brands: OndaInox
Code: CCL
-20%
£ 736,02 £ 920,03
Prices excluding VAT
Notes on stainless steel hoods:

  • They are custom made in Italy;
  • Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

- +

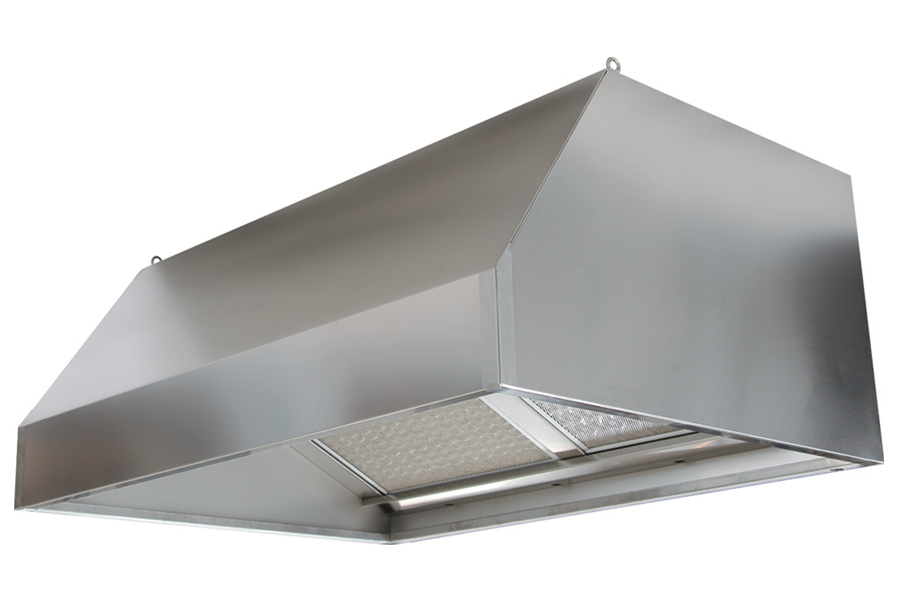

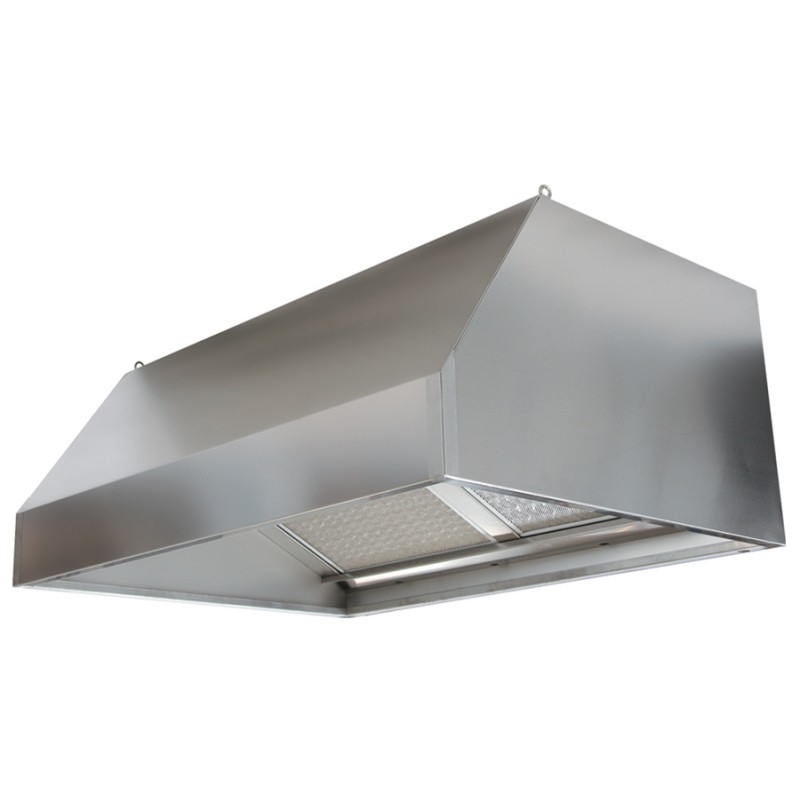

Hood with activated carbon and LED lights in stainless steel

The hood with activated carbon and LED lights is equipped with a LED Strips lighting system and activated carbon filters that can purify the air very effectively. In fact, activated carbon has a very particular power: that of retaining dirt and impurities. Thus the air is reintroduced into the sanitized and refreshed environment.

The activated carbon hoods with LED lights in the self-suction wall-mounted and Mini Snack models are hoods from the respective series to which an additional filtering septum has been added consisting of a class G2 synthetic material filter and a filter containing activated vegetable carbon type " CARBOFIL AGC” in the AG version, in addition to the stainless steel filter with microstriated mesh.

The self-extracting hoods with activated carbon set up in this way give good results in reducing fumes and odors (about 70%) where for various reasons it is not possible to evacuate the fumes produced by the hobs in the traditional way. The absorption capacity of substances in the gaseous state by activated vegetable carbon is determined by the temperature, by the relative humidity of the air and by the speed of passage of the latter.

In order to optimize this equipment, it is advisable that the conditions of use do not exceed temperatures of 50-60° C with a relative humidity of 70-75%. The efficiency of the activated carbons is measured with a benzene index system of 21g/100g, CCL index > 35%.

However, it will always be good practice to channel the hood to prevent the untreated part of the air from being introduced into the work environment .

cappa a carboni attivi e luci led in acciaio inox

Hood with activated carbon and LED lights in stainless steel - construction features:

  • The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm, positioned against the wall;
  • Construction in AISI 430, Scotch-Brite satin finish. Fully edged, even in the internal parts;
  • Assembled by electro-welding;
  • Perimeter condensate collection channel. Terminal block capacitor in IP 55 box;
  • Special executions (execution in AISI 304, assembly by welding) on request.

Supplied with the hood with activated carbon and stainless steel LED lights:

  • Triple filtering septum composed of Metal Mesh Filter + Acrylic Filter + Activated Carbon Filter;
  • Centrifugal electric fan 220V single-phase 50/60Hz;
  • 1/2 condensate drain;
  • LED Strip lighting;
  • Fixing bars;
  • Certifications relating to Activated Carbon.

Notes on the hood with activated carbon and LED lights in stainless steel:

  • Packaging included in the price ;
  • Hanging kit and flange not included ;
  • The hoods of intermediate lengths not marked have the same price as the hoods with lengths immediately greater (e.g.: CS711 = CS712);
  • Also available in the Snack version upon request;
  • Built in compliance with CE standards;
  • Made in Italy.

Hood with activated carbon and LED lights in self-suction stainless steel (with electric fan)

Hood with activated carbon and LED lights with a depth of 700 mm

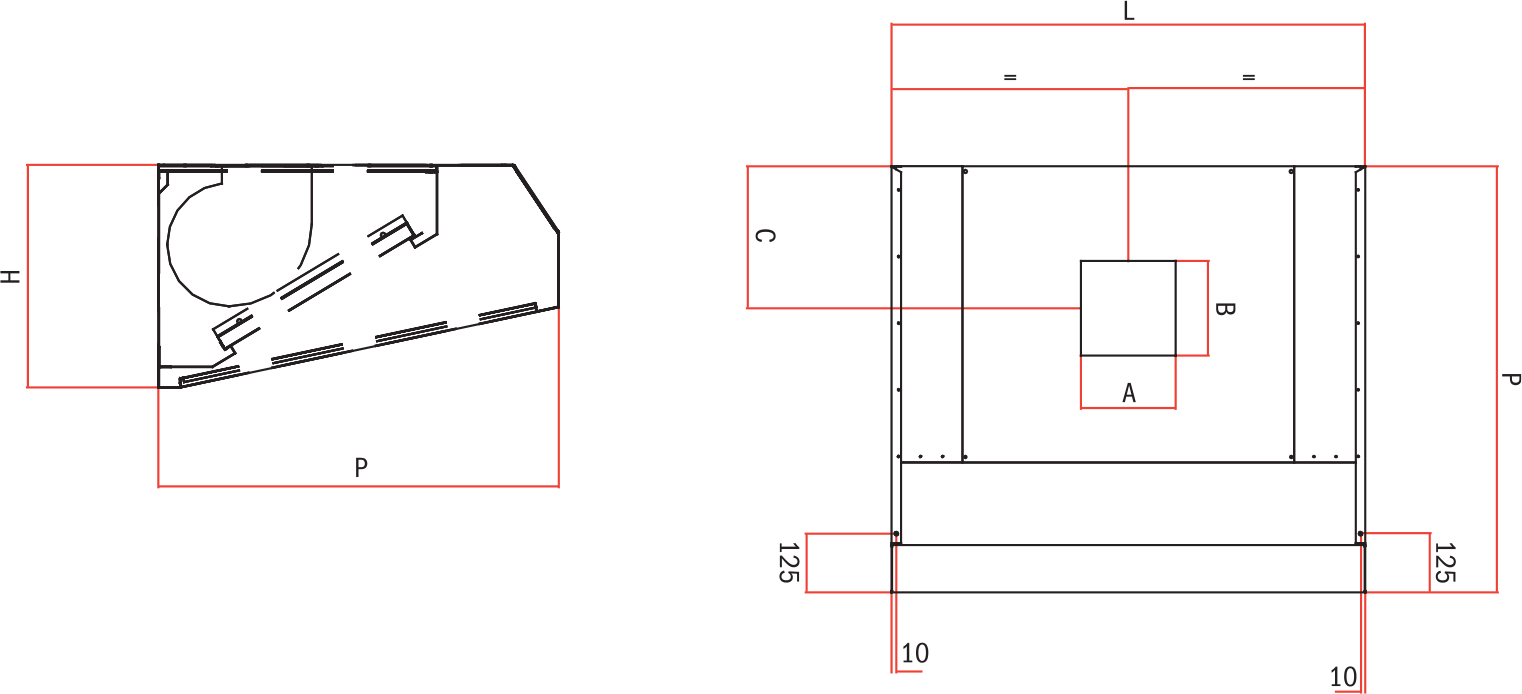

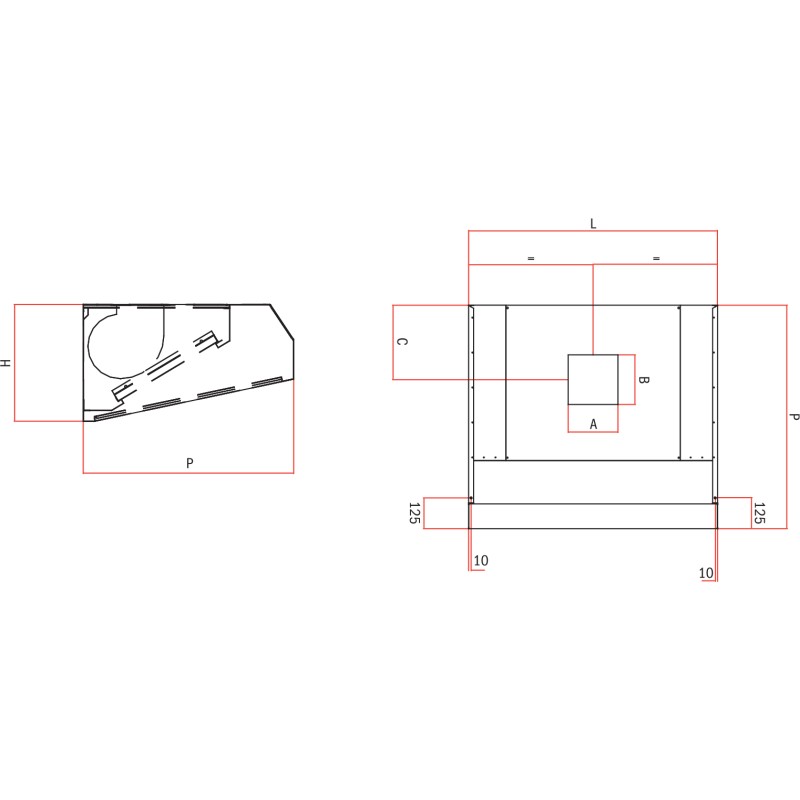

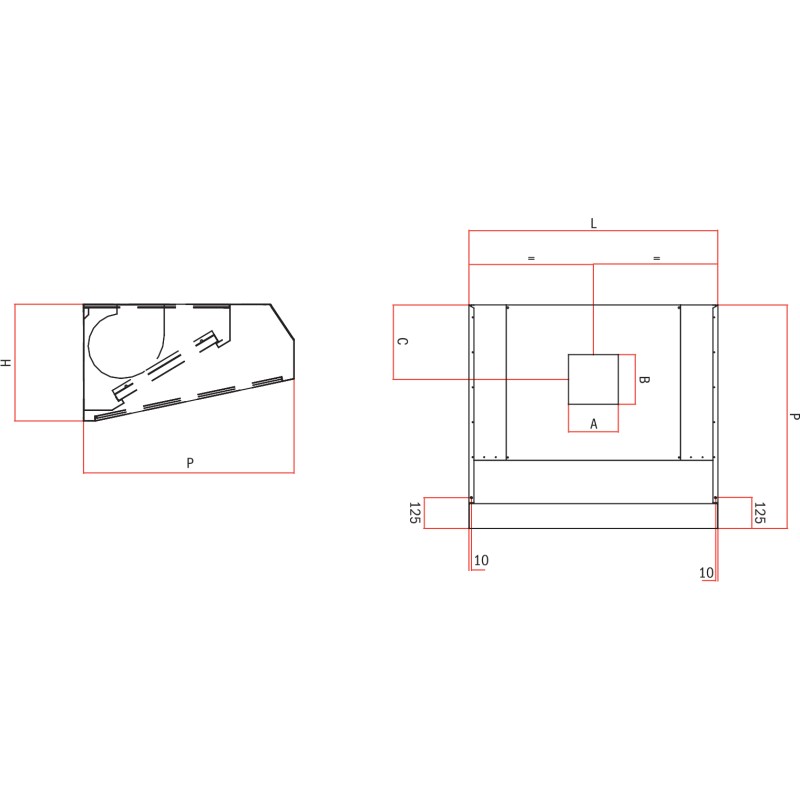

Template Dimensions WxLxH A x B c LED spotlights Filter media and number of filters Coal Treated Air Weight Capacity* Motor Watts/Amps
(mm) (mm) (mm) (20 watts each) Inox Mesh Synthetic Coal (kg) (m 3 /h) (kg) (m 3 /h)
CCL 7/10 7000x1000x600 230x200 245 2 2a 2a 2a 3.8 600 34 900 7/7 145/1.8
CCL 7/12 7000x1200x600 230x200 245 2 2b 2b 2b 4.8 640 38 1100 7/7 145/1.8
CCL 7/14 7000x1400x600 300x270 215 3 3a 3a 3a 5.7 900 42 1250 8/9T 420/3.1
CCL 7/16 7000x1600x600 300x270 215 3 3a 3a 3a 5.7 900 46 1400 8/9T 420/3.1
CCL 7/18 7000x1800x600 300x270 215 3 3b 3b 3b 7.2 960 50 1600 8/9T 420/3.1
CCL 7/20 7000x2000x600 300x270 215 4 4a 4a 4a 7.6 1200 54 1800 8/9T 420/3.1
CCL 7/22 7000x2200x600 300x270 215 4 4a 4a 4a 7.6 1200 58 1950 8/9T 420/3.1
CCL 7/24 7000x2400x600 300x270 215 4 4b 4b 4b 9.6 1280 62 2200 8/9T 420/3.1
CCL 7/26 7000x2600x600 300x270 215 5 4b 4b 4b 9.6 1280 66 2300 8/9T 420/3.1



Hood with activated carbon and LED lights with a depth of 900 mm
Template Dimensions WxLxH A x B c LED spotlights Filter media and number of filters Coal Treated Air Weight Capacity* Motor Watts/Amps
(mm) (mm) (mm) (20 watts each) Inox Mesh Synthetic Coal (kg) (m 3 /h) (kg) (m 3 /h)
CCL 9/10 900x1000x600 230x200 245 2 2c 2c 2c 4.8 640 36 1000 7/7 145/1.8
CCL 9/12 900x1200x600 300x270 245 2 2d 2d 2d 6 700 40 1150 8/9T 420/3.1
CCL 9/14 900x1400x600 300x270 215 3 3c 3c 3c 7.2 960 44 1400 8/9T 420/3.1
CCL 9/16 900x1600x600 300x270 215 3 3c 3c 3c 7.2 960 46 1550 8/9T 420/3.1
CCL 9/18 900x1800x600 300x270 215 3 3d 3d 3d 9 1050 50 1800 8/9T 420/3.1
CCL 9/20 900x2000x600 300x270 215 4 4c 4c 4c 9.6 1280 54 2000 8/9T 420/3.1
CCL 9/22 900x2200x600 300x270 215 4 4c 4c 4c 9.6 1280 58 2200 8/9T 420/3.1
CCL 9/24 900x2400x600 300x270 215 4 4d 4d 4d 12 1400 62 2400 8/9T 420/3.1
CCL 9/26 900x2600x600 300x270 215 5 4d 4d 4d 12 1400 66 2550 8/9T 420/3.1



Hood with activated carbon and LED lights with a depth of 1100 mm
Template Dimensions WxLxH A x B c LED spotlights Filter media and number of filters Coal Treated Air Weight Capacity* Motor Watts/Amps
(mm) (mm) (mm) (20 watts each) Inox Mesh Synthetic Coal (kg) (m 3 /h) (kg) (m 3 /h)
CCL 11/12 1100x1200x600 300x270 215 2 2d 2d 2d 6 700 42 1450 8/9T 420/3.1
CCL 11/14 1100x1400x600 300x270 215 3 3c 3c 3c 7.2 960 46 1650 8/9T 420/3.1
CCL 11/16 1100x1600x600 300x270 215 3 3c 3c 3c 7.2 960 50 1900 8/9T 420/3.1
CCL 11/18 1100x1800x600 300x270 215 3 3d 3d 3d 9 1050 54 2100 8/9T 420/3.1
CCL 11/20 1100x2000x600 300x270 215 4 4c 4c 4c 9.6 1280 58 2400 8/9T 420/3.1
CCL 11/22 1100x2200x600 300x270 215 4 4c 4c 4c 9.6 1280 62 2600 8/9T 420/3.1
CCL 11/24 1100x2400x600 300x270 215 4 4d 4d 4d 12 1400 66 2850 8/9T 420/3.1


The electric fans installed on the hood are made up of single-phase, 230 Volt, 50 Hz motors.

Filter legend:

  1. 400x400mm
  2. 500x400mm
  3. 400x500mm
  4. 500x500mm


* : Average flow rate defined with passage speed under the hood of 0.30 m/s .
