IBIS VDS - Automation for Swing Gate with Articulated Arm

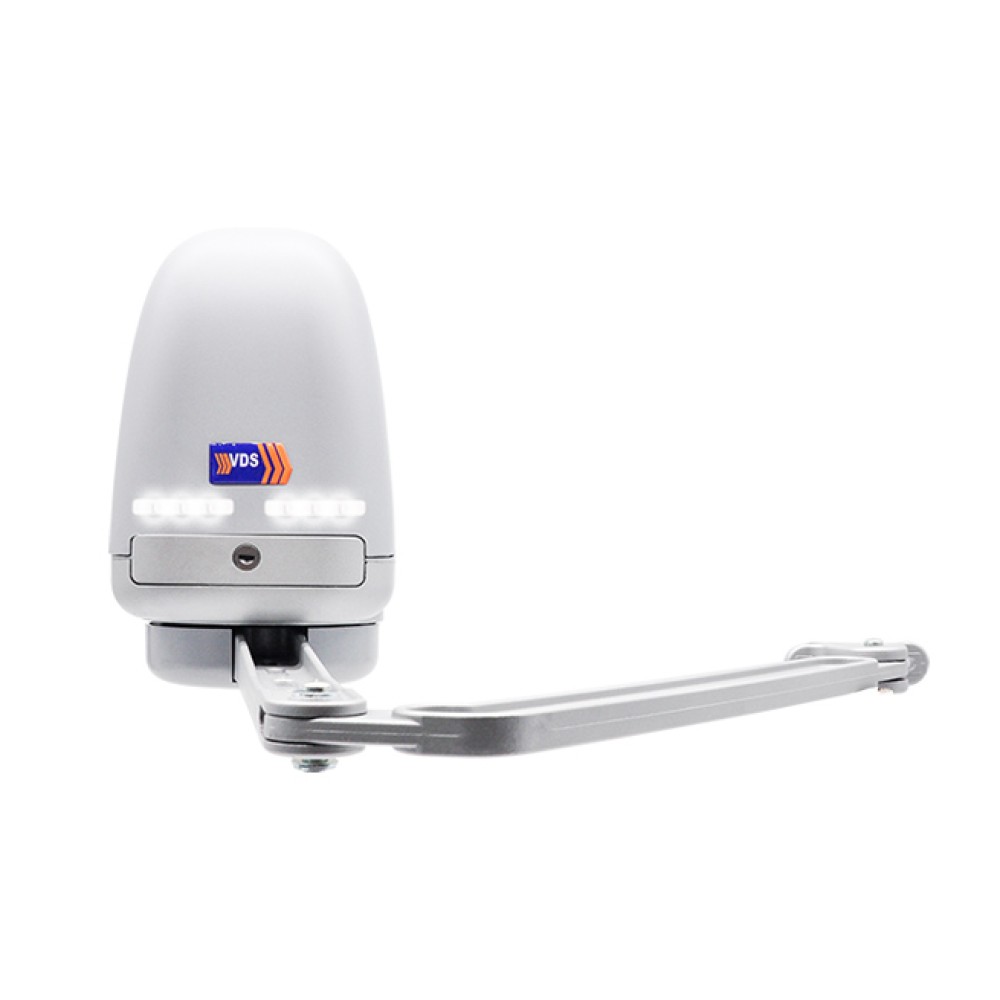

IBIS VDS is a
swing gate automation equipped with an aluminum articulated arm.
The IBIS VDS electromechanical actuator is sold online in
the motor only version or in kit with control equipment plus accessories.
The IBIS VDS Automation arm gate motor has a
thrust force of 250 NM and lifts a maximum of 200 kg in the 230V version or 150 kg for the 24V.
Advantages IBIS VDS Swing Gate Automation
- Gearmotor made of die-cast aluminum;
- Machined from solid steel, cast iron and bronze gears • Anti-shear articulated arm in aluminum, powder coated;
- Maximum silent operation;
- High Performance electric motor;
- Mechanical release with personalized key;
- Predisposition for remote release via cable;
- Mechanical limit switch in opening and closing;
- Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust;
- 120 ° opening;
- Suitable for applications on large pillars • Single version for right and left door;
- Control panel with obstacle detection;
- Anti-crushing device (EN 12453);
- Speed slowdown (EN 12453);
- Soft start - Soft stop;
- Optional battery back-up kit;
- Power supply 230V - 24V.
IBIS VDS actuator performance requirements
- SEMI-INTENSIVE use 230VAC, INTENSIVE 24VDC;
- Frequency of use 50% (230 VAC) - 90% (24 VDC);
- Opening and closing time 15 SEC;
- Thrust force 250 NM.
In the IBIS series, the use of an electric lock is recommended for leaves longer than 2 meters.
For better radio reception we recommend the use of an external antenna cod. 210/1.
In the presence of strong winds and cold temperatures, the performance of the actuator can be considerably reduced.

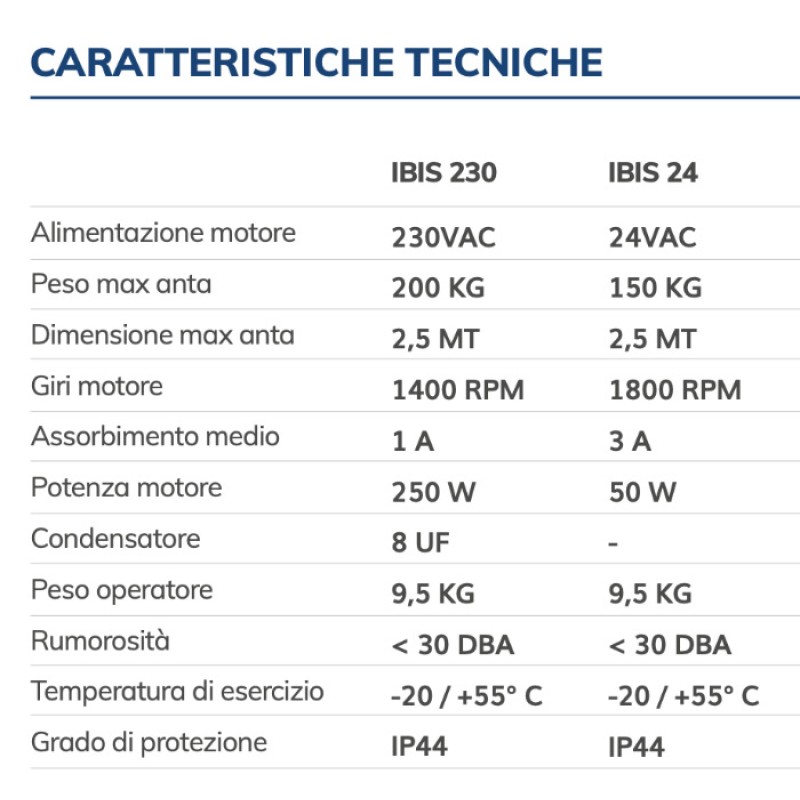

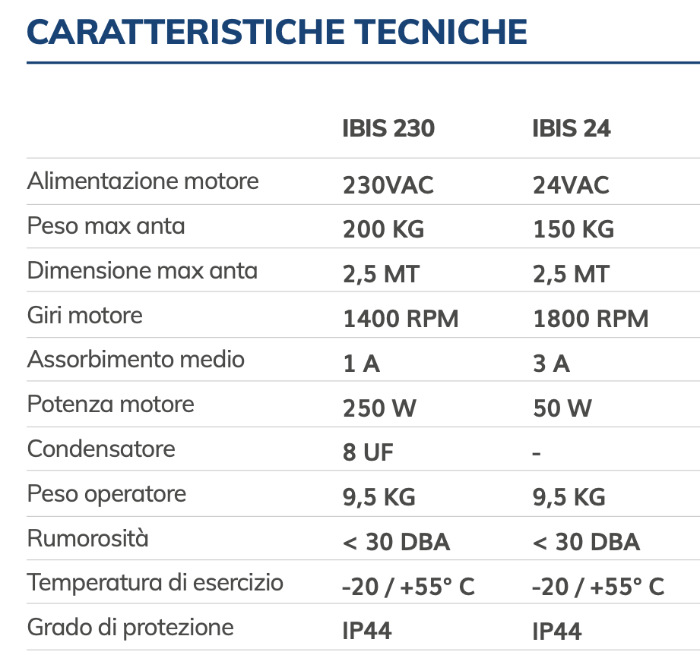

Technical features of the IBIS VDS swing gate automation
- Motor power supply: 230V or 24V (by choice);
- Max leaf weight: 200 kg (230V) or 150 kg (24V);
- Max leaf size: 2.5 meters;
- Engine revolutions: 1400 rpm (230V) or 1800 rpm (24V);
- Average absorption: 1 A (230V) or 3 A (24V);
- Motor power: 250W (230V) or 50W (24V);
- Capacitor: 8 UF or zero;
- Operator weight: 9.5 kg;
- Noise: <30 DBA;
- Operating temperature: -20 / + 55 ° C;
- Degree of protection: IP44.

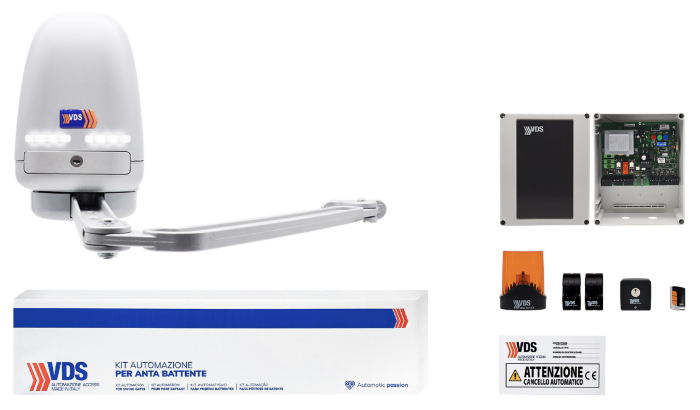

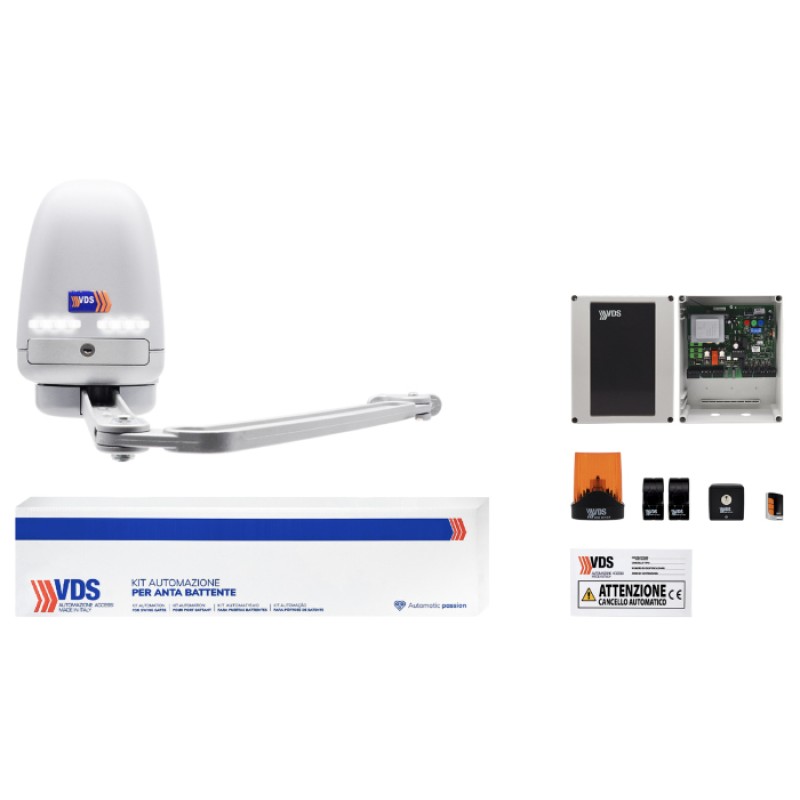

What does the IBIS VDS swing gate automation kit include?
This motor can be purchased both in the single version and in kit with accessories included.
Here is what the IBS VDS KIT includes:
- Gearmotor;
- Control unit 230V or 24V;
- Pair of photocells;
- LED flasher;
- Key selector;
- Transmitter;
- Warning sign.
VDS Automation for Swing Gates for Sale Online
The
VDS company has been operating in the gate automation sector for over thirty years.
Each
VDS swing gate motor is manufactured in Italy by specialized personnel with quality raw materials.
Find the best VDS Automations gate automations on Windowo with a special offer price.
