IoT Connected Roller Shutter Module 03982 Vimar
Vimar connected shutter module: this is an
IoT electronic control device for 1 shutter with slat orientation.
Exchange relay output for motor cosφ 0,6 2 A 100-240 V ~ 50/60 Hz, remote control, double IoT technology on Bluetooth 5.0 standard for creating VIEW Wireless mesh system and on Zigbee 3.0 standard, power supply 100-240 V 50/60 Hz, built-in
installation (rear door) .
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Compatible with Alexa, Google Home and IFTTT , through the appropriate Zigbee gateway or hub;
- The shape favors the maximum flexibility of installation (retrofit, junction boxes, etc.);
- If directly piloted by the commands without battery, wiring with electromechanical buttons is not necessary.
Module for the
motorization of the roller shutter with two alternative operating modes: Bluetooth or Zigbee.
The device is equipped with an
output with 2 monostable relays with interlocked operation, i.e. with mutually exclusive activation of the relays with minimum interlocking time. In the event of a power failure, the relays both remain open.
Features of the connected shutter module IoT 03982 Vimar
- Nominal supply voltage: 100-240 V ~, 50/60 Hz;
- Power dissipated: 0.55 W;
- Transmitted RF Power: <100mW (20dBm);
- Frequency range: 2400-2483.5 MHz.

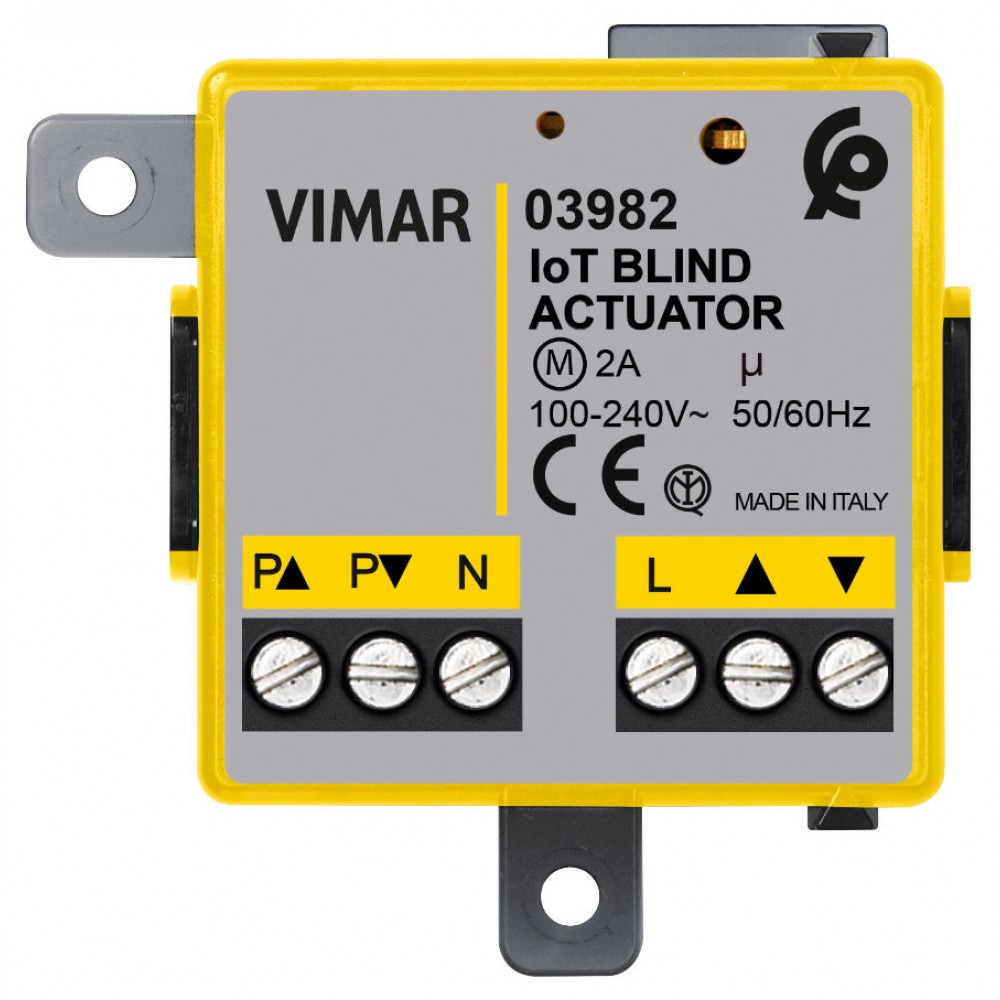

Clamps:
- 2 terminals (L and N) for line and neutral;
- 2 terminals for shutter output;
- 2 terminals for connecting buttons for actuator control and configuration.
To control the actuator, use the buttons art. 20066-19066-16121- 14066 or art. 20062-19062-16150-14062 while for configuration use only pushbuttons art. 20066-19066-16121-14066.
- RGB LED that signals the configuration status (blue flashing);
- In Bluetooth technology mode, up to 2 radio devices (art. 03925) can be associated with the device, allowing the control of the actuator or the activation of a scenario;
- Operating temperature: -10 ÷ +40 ° C (for indoors);
- Degree of protection: IP20;
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Can be controlled from App View (for Bluetooth technology) and Amazon Alexa App (for Zigbee technology).
With Vimar the electrical system becomes connected
Vimar is an Italian company that produces
home automation and electrical equipment of different types: connected domestic series, wireless smart home products, video door entry systems, security, plates, electrical switches, plugs, sockets, adapters and much more.
The
Wireless View App allows the configuration of the connected domestic series devices which represent the ideal solution in new systems or renovations where basic smart functions are required.
