Island Hood Stainless Steel Hanging Without Motor

Brands: OndaInox

Code: CI

-20%

£ 478,72 £ 598,40

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

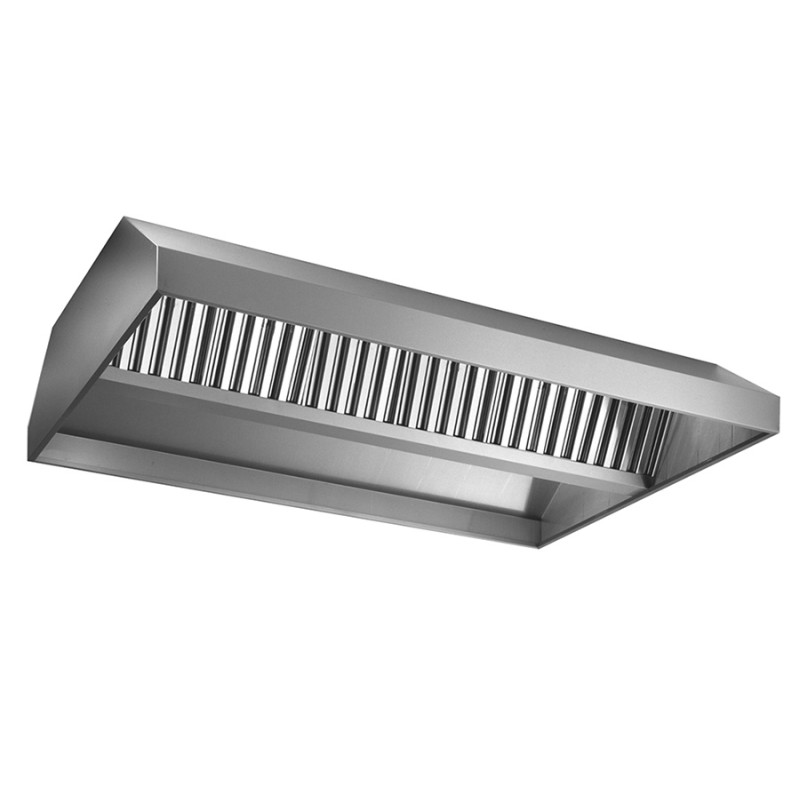

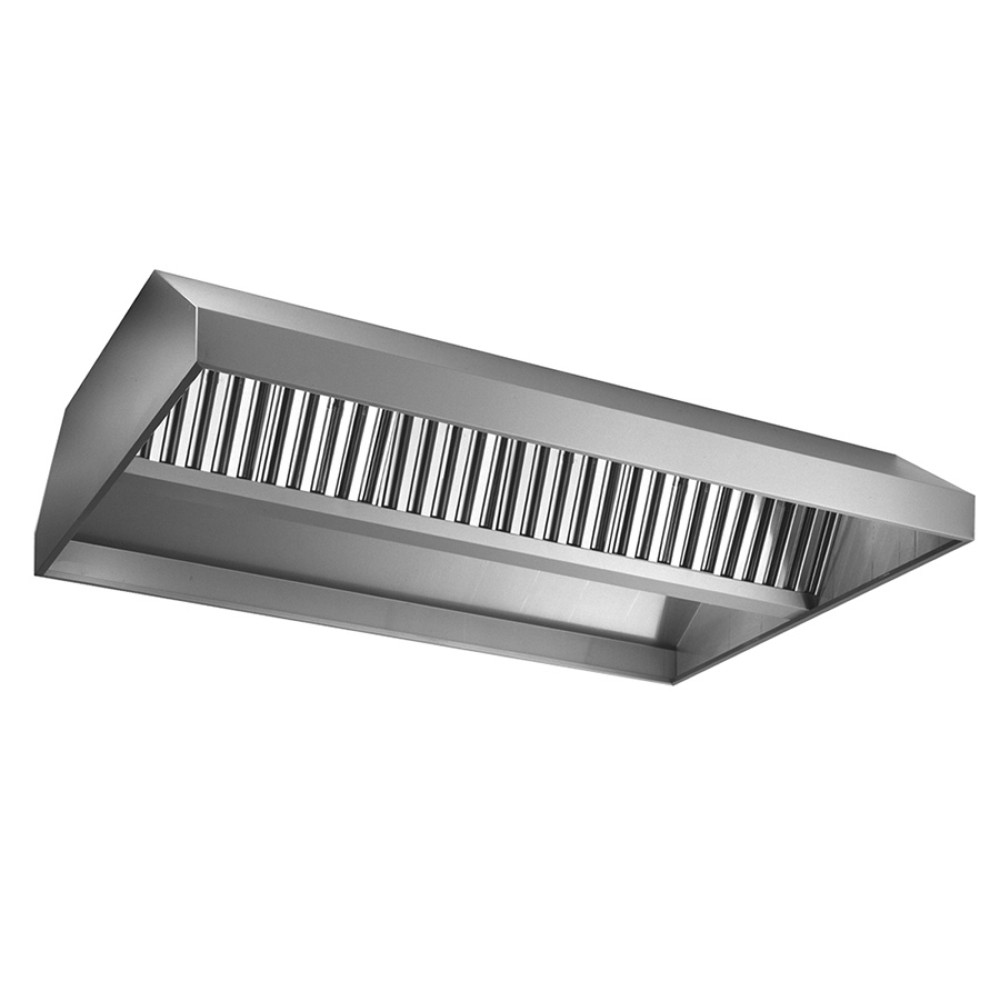

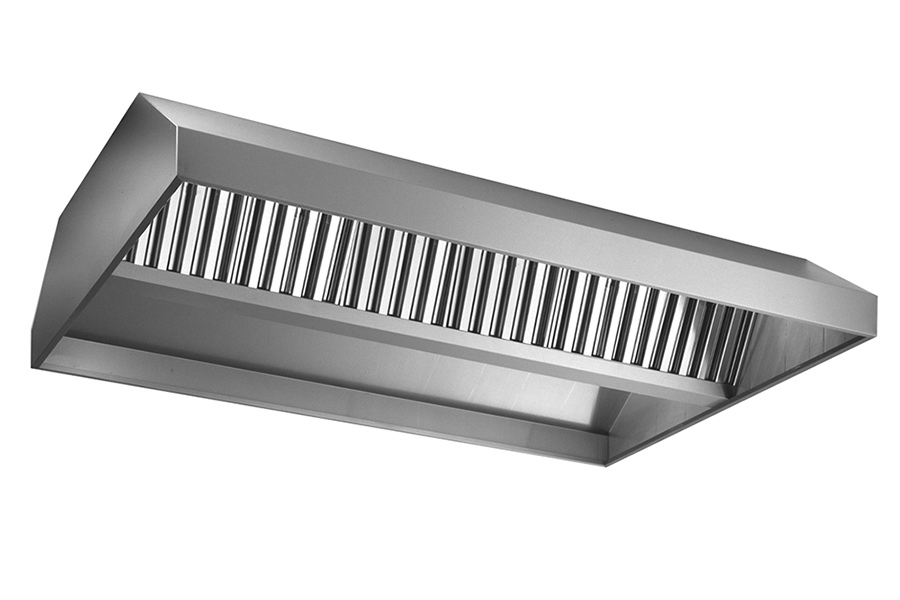

Suspended Island Hood in Stainless Steel Without Motor

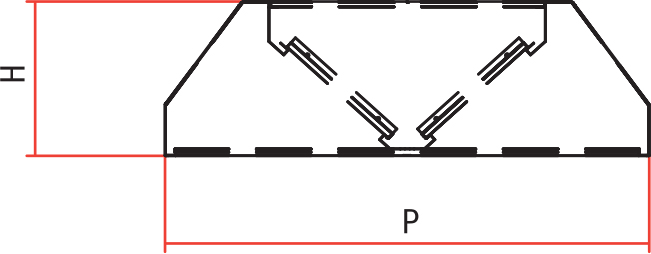

Island hood in stainless steel with particular profile for cooking blocks with a depth of 120-140-180 cm , positioned in the center of the room.

Construction in AISI 430 , Scotch-Brite satin finish. Completely rimbordata, even in the internal parts. Assembled by electro-welding.

Special executions (execution in AISI 304, assembly by welding) and LED lighting on request.

Production of island hoods in Italy with high quality materials.

Island Hood Stainless Steel

Supplied with the island hood:

Labyrinth grease filters in AISI 430 stainless steel;
1/2” condensate drain.

Notes on the pendant hood:

Packaging in bubble wrap and pallet included in the price;
Hanging kit and flange not included;
The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CI14115 = CI1416).

Stainless steel island hood without electric fan - Model and dimensions of your choice

Cappa isola inox senza elettroventilatore - Modello e dimensioni a scel

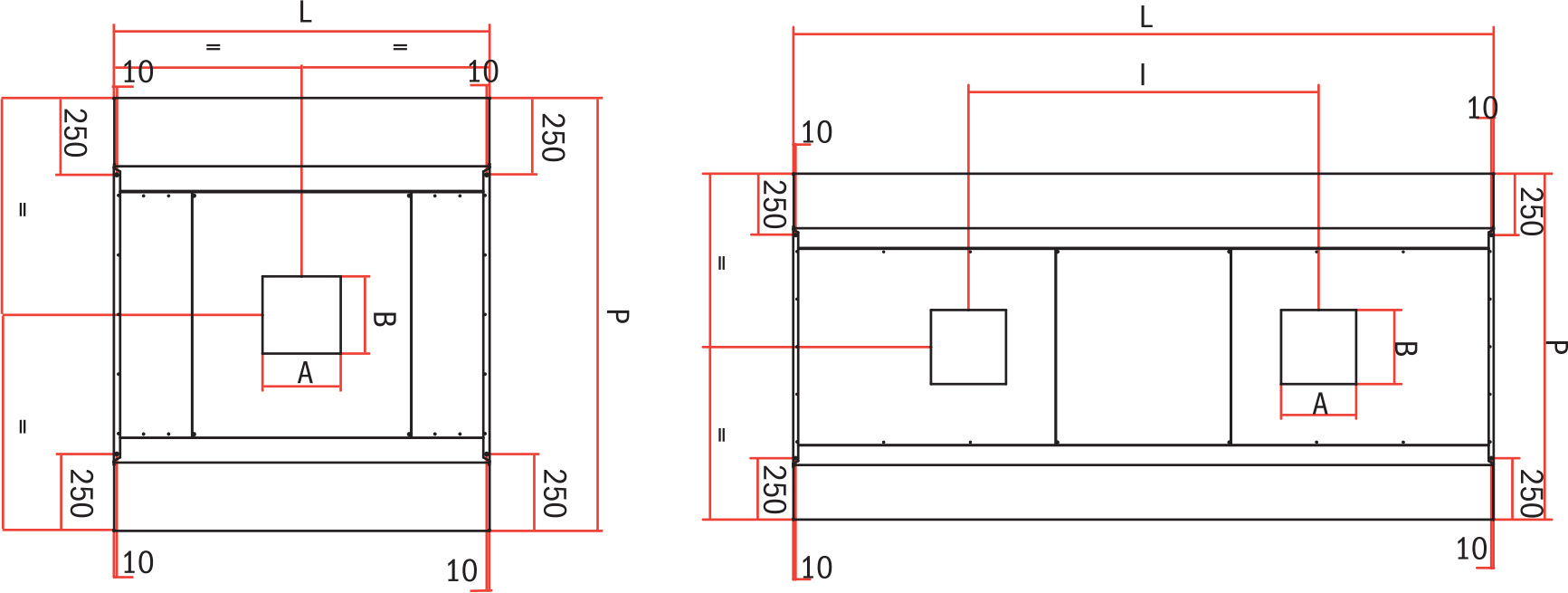

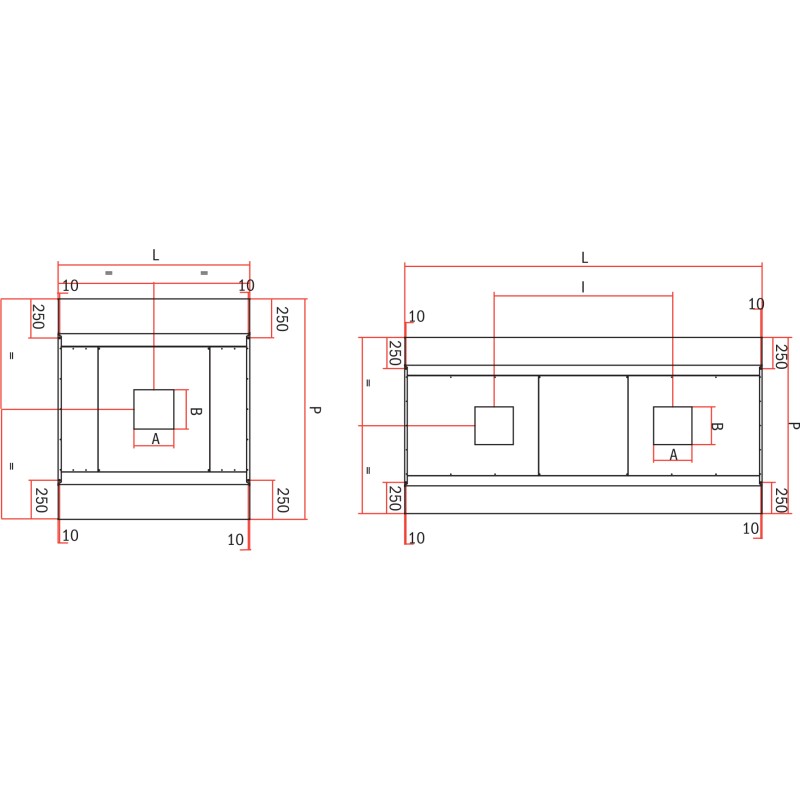

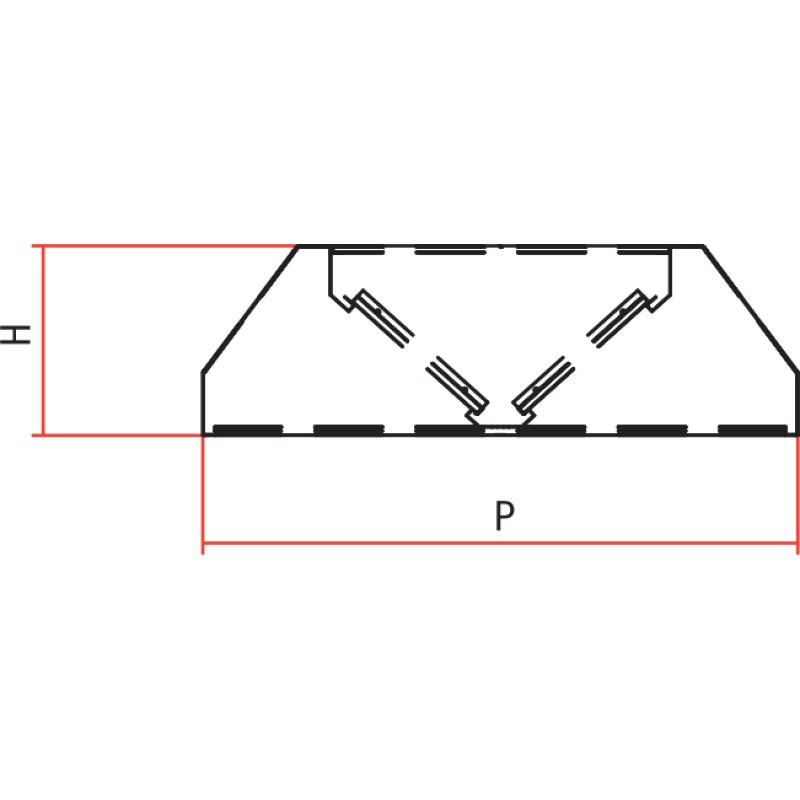

Island hood in steel depth 1400 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	*Flow rate (m3/h)**	THE (mm)
CI 14/12	1400x1200x450	250x250	=	4b	60	2100
IC 14/14	1400x1400x450	250x250	=	4b	64	2500
CI 14/16	1400x1600x450	300x300	=	6a	68	2800
IC 14/18	1400x1800x450	300x300	=	6b	72	3200
CI 14/20	1400x2000x450	300x300	=	8a	76	3500
IC 14/22	1400x2200x450	400x300	=	8a	80	3950
CI 14/24	1400x2400x450	400x300	=	8b	84	4200
CI 14/26	1400x2600x450	300X300X2	=	8b	88	4600	1300
CI 14/28	1400x2800x450	300X300X2	=	10b	ninety two	4900	1400
CI 14/30	1400x3000x450	300X300X2	=	10b	96	5300	1500
CI 14/32	1400x3200x450	300X300X2	=	10b	100	5600	1600
CI 14/34	1400x3400x450	300X300X2	=	12b	104	6000	1700
CI 14/36	1400x3600x450	300X300X2	=	12b	108	6400	1800
CI 14/38	1400x3800x450	300X300X2	=	12b	120	6700	1900

Cappa isola in acciaio profondità 1400 mm

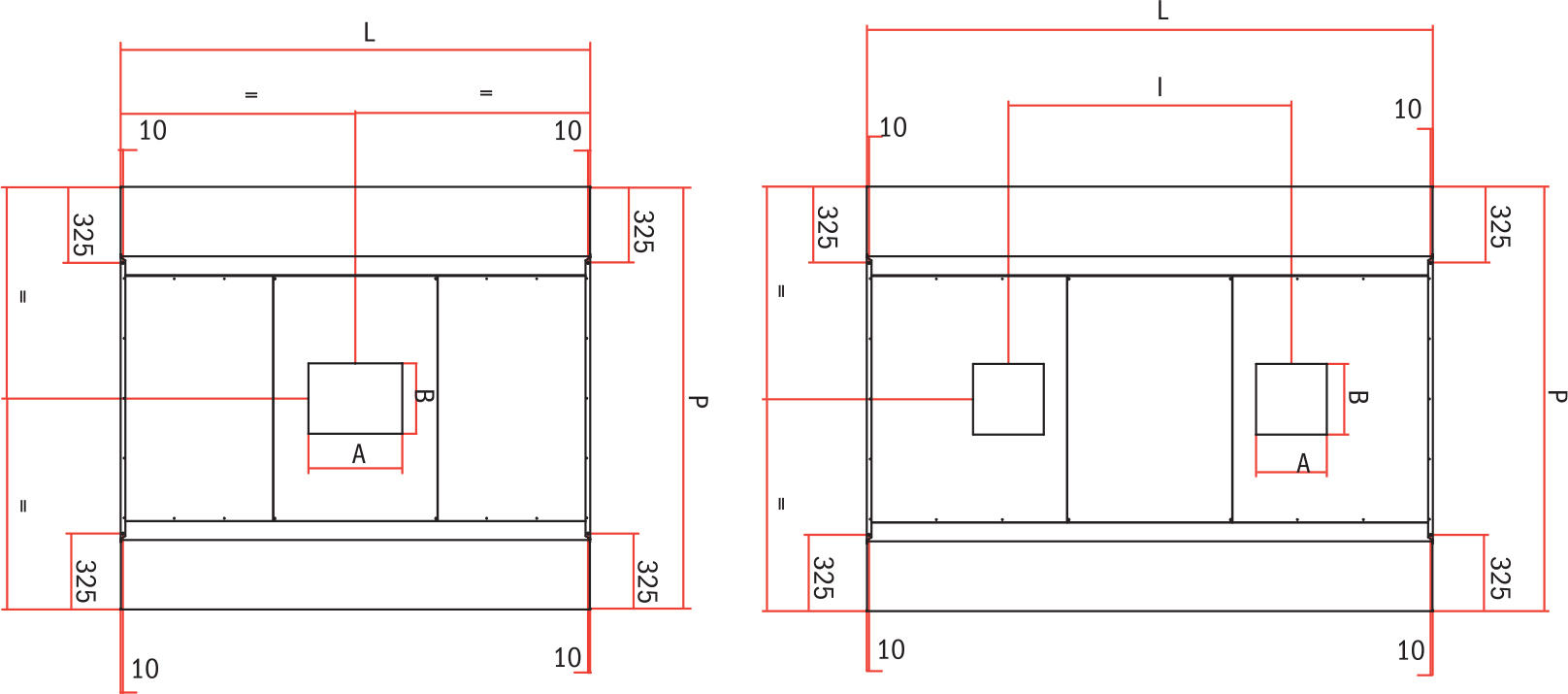

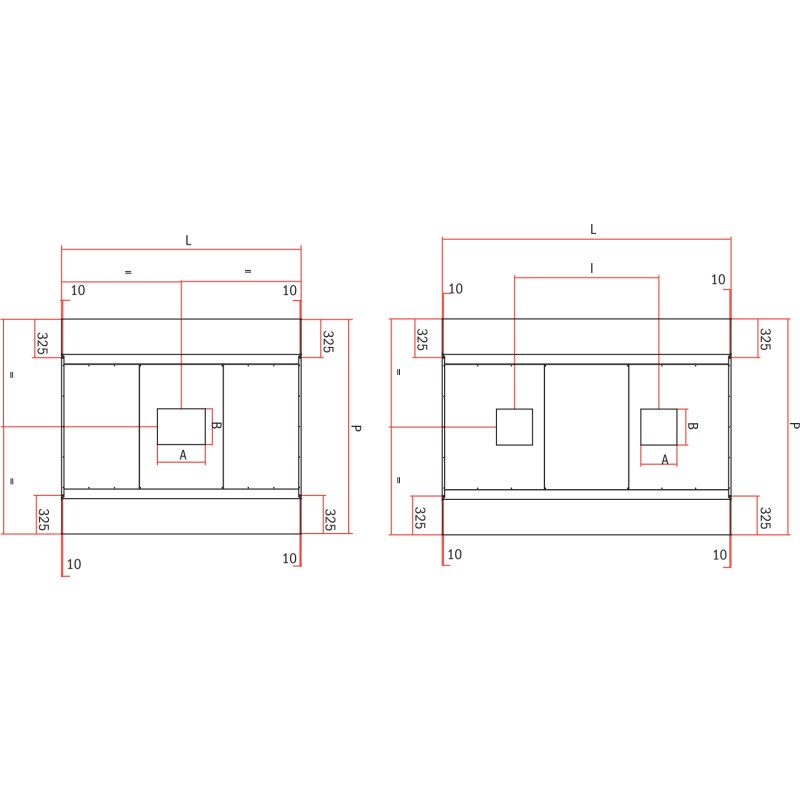

Island hood in steel depth 1800 mm

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	*Flow rate (m3/h)**	THE
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	*Flow rate (m3/h)**	(mm)
IC 18/12	1800x1200x450	300x300	=	4d	64	2750
CI 18/14	1800x1400x450	300x300	=	6c	68	3200
CI 18/16	1800x1600x450	300x300	=	6c	72	3650
CI 18/18	1800x1800x450	400x300	=	6d	76	4050
CI 18/20	1800x2000x450	400x300	=	8c	80	4550
CI 18/22	1800x2200x450	400x300	=	8c	84	5000
CI 18/24	1800x2400x450	300X300X2	=	8d	88	5450	1200
CI 18/26	1800x2600x450	300X300X2	=	8d	ninety two	5900	1300
CI 18/28	1800x2800x450	300X300X2	=	10d	96	6350	1400
CI 18/30	1800x3000x450	300X300X2	=	10d	100	6800	1500
CI 18/32	1800x3200x450	300X300X2	=	10d	106	7250	1600
CI 18/34	1800x3400x450	300X300X2	=	12d	112	7700	1700
CI 18/36	1800x3600x450	300X300X2	=	12d	116	8200	1800
CI 18/38	1800x3800x450	300X300X2	=	12d	123	8600	1900

Cappa isola in acciaio profondità 1800 mm

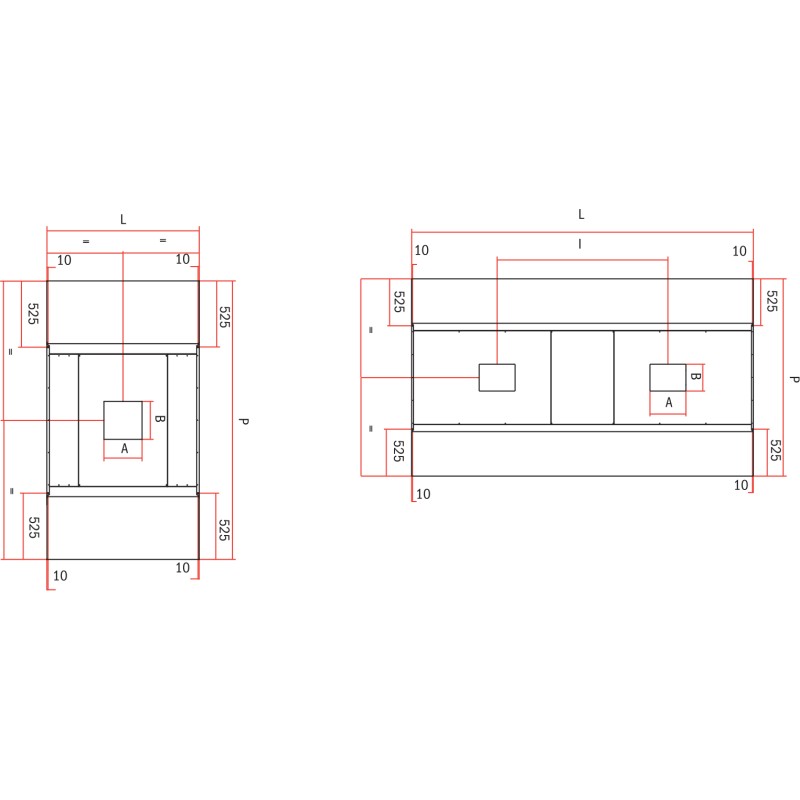

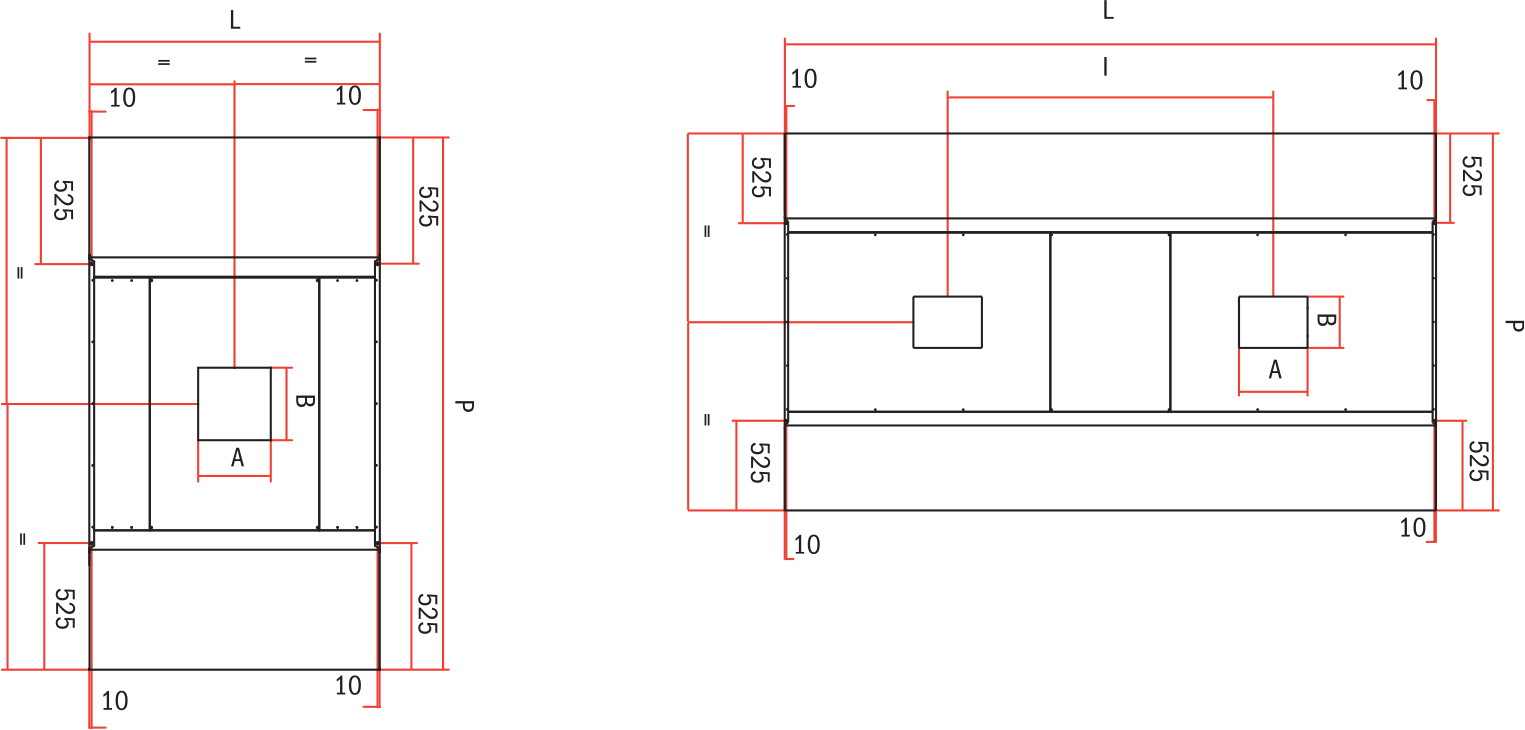

Island hood in steel depth 2200 mm

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	*Flow rate (m3/h)**	THE
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	*Flow rate (m3/h)**	(mm)
IC 22/12	2200x1200x450	300x300	=	4d	71	3300
IC 22/14	2200x1400x450	300x300	=	6c	75	3900
CI 22/16	2200x1600x450	300x300	=	6c	79	4450
CI 22/18	2200x1800x450	400x300	=	6d	83	5000
CI 22/20	2200x2000x450	400x300	=	8c	87	5550
CI 22/22	2200x2200x450	400x300	=	8c	91	6100
CI 22/24	2200x2400x450	300X300X2	=	8d	96	6660	1200
CI 22/26	2200x2600x450	300X300X2	=	8d	101	7200	1300
CI 22/28	2200x2800x450	300X300X2	=	10d	106	7800	1400
CI 22/30	2200x3000x450	300X300X2	=	10d	110	8300	1500
CI 22/32	2200x3200x450	300X300X2	=	10d	115	8850	1600
CI 22/34	2200x3400x450	300X300X2	=	12d	120	9450	1700
CI 22/36	2200x3600x450	300X300X2	=	12d	125	10000	1800
CI 22/38	2200x3800x450	300X300X2	=	12d	130	15000	1900
